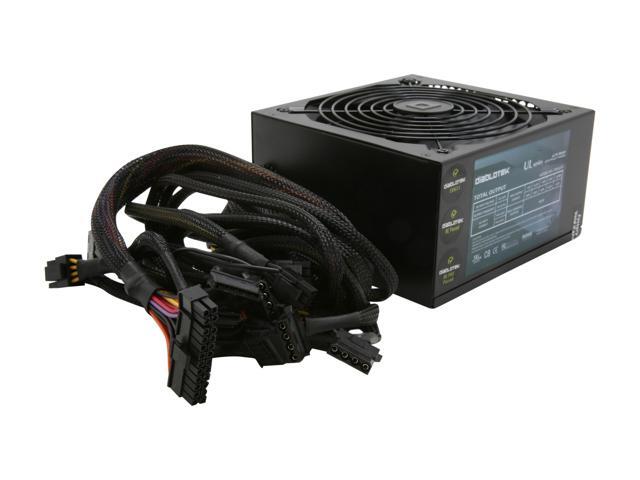

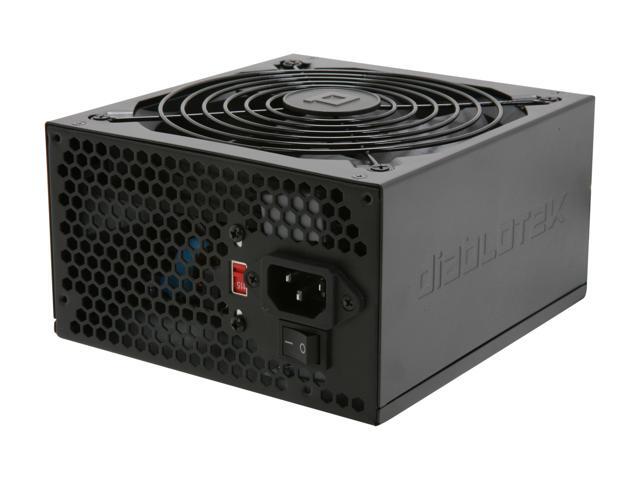

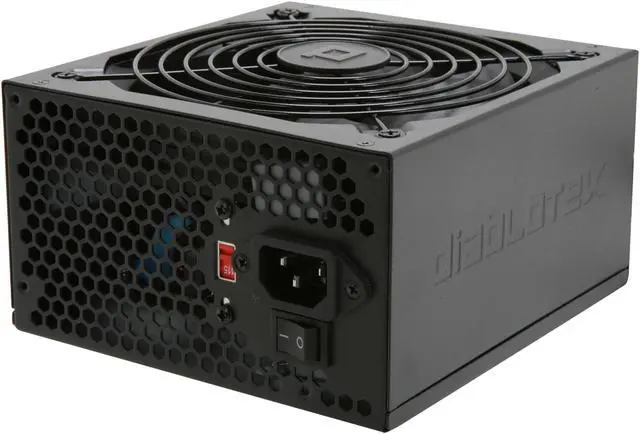

Brand | Diablotek |
---|---|
Series | UL Series |
Model | PSUL675 |
Type | ATX 12V v2.31 |
---|---|
Maximum Power | 675 W |

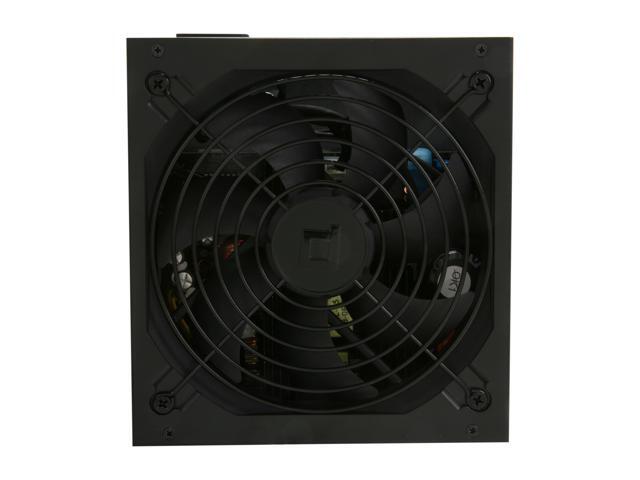

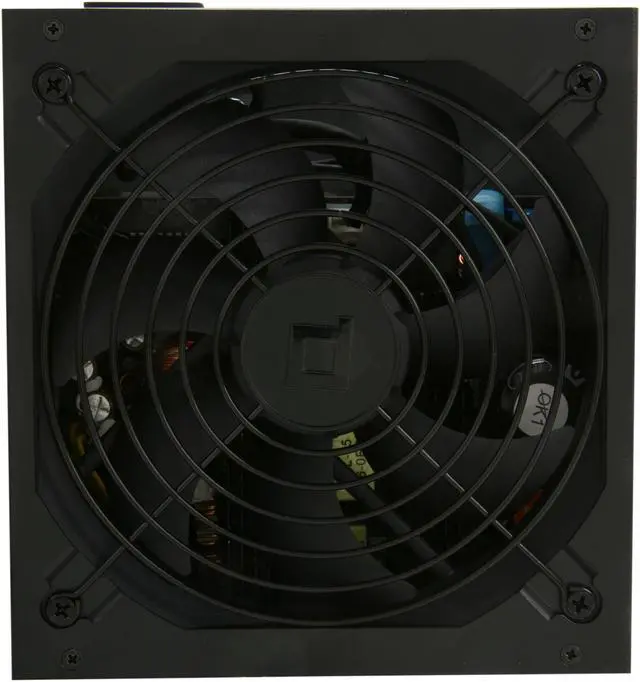

Fans | 1 x 140mm Fan |
Main Connector | 20+4Pin |
+12V Rails | Single |
PCI-Express Connector | 2 x 6+2-Pin |
SATA Power Connector | 6 |
SLI | SLI Ready |
Haswell Support | Yes |
CrossFire | CrossFire Ready |
Modular | No |
Hold-up Time | 16ms min. |
Efficiency | up to 79% |
Over Voltage Protection | Yes |
Overload Protection | Yes |

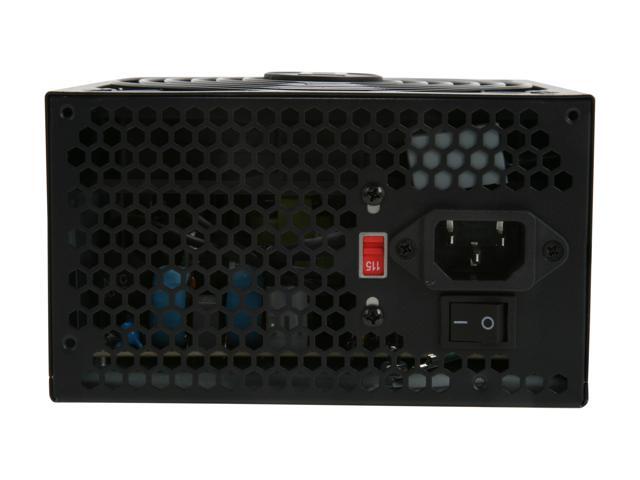

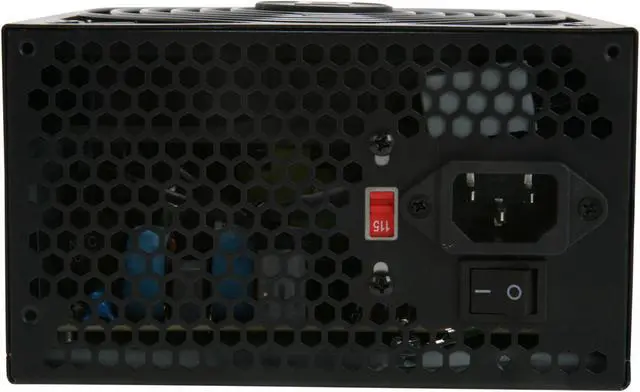

Input Voltage | 115 / 230 V |
Input Frequency Range | 50/60 Hz |
Input Current | 10A @ 115V, 6A @ 230V |

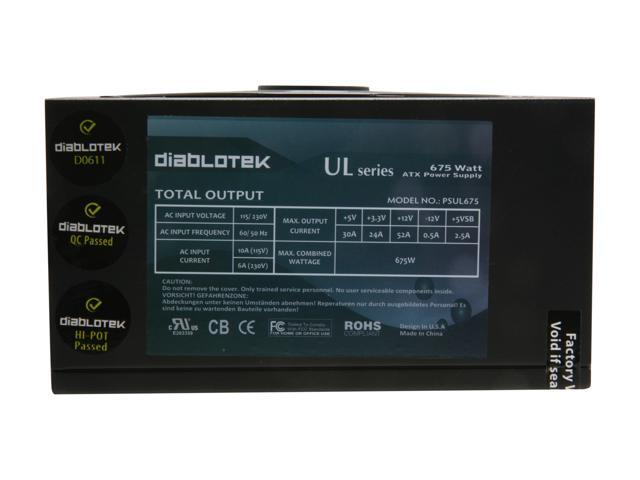

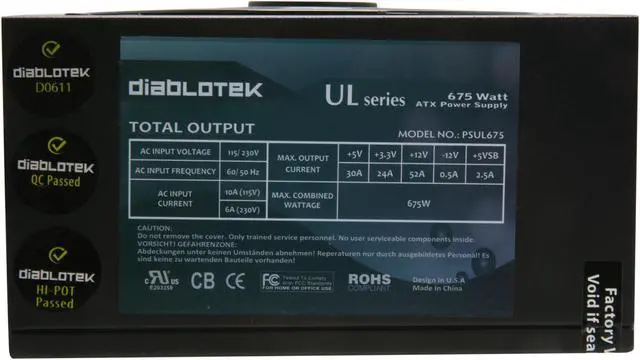

Output | +3.3V@24A, +5V@30A, +12V@52A, -12V@0.5A, +5vsb@2.5A |
MTBF | >100,000 Hours |
Approvals | UL. FCC. CE. RoHs Compliant |

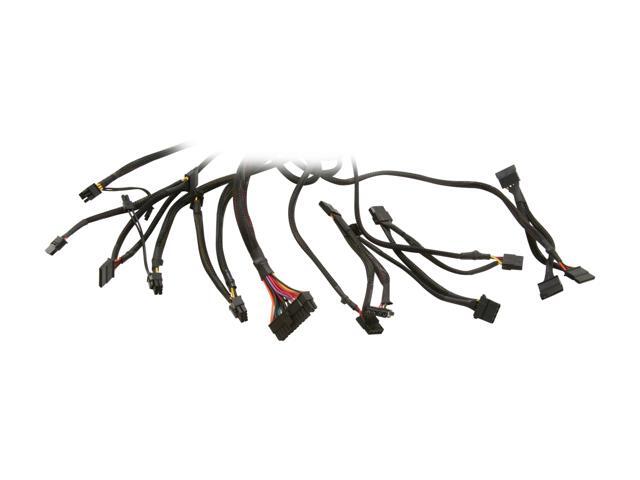

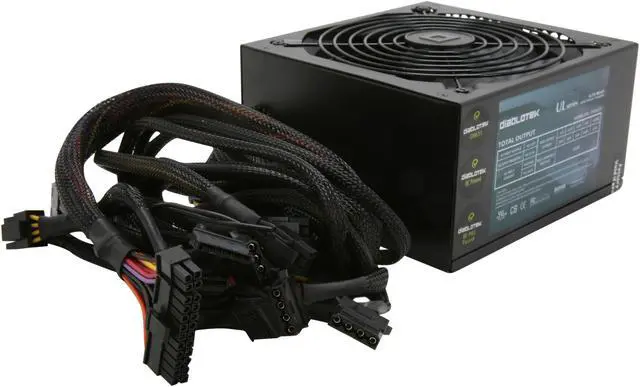

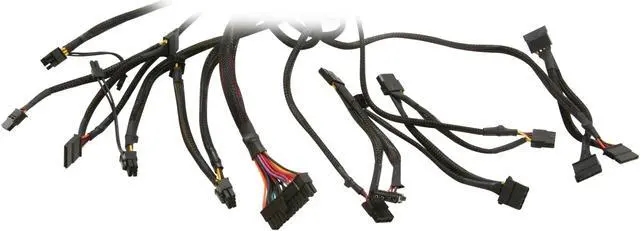

Connectors | 1 x 20+4 Pin Mainboard Connector 1 x 8 Pin CPU +12V Connector 1 x 4+4 Pin CPU +12V Connector 6 x SATA Connector 6 x 4 Pin Molex Connectors 1 x Floppy Power Connector 2 x 8(6+2)-pin PCI-E Connectors |
Dimensions | 6.3" x 5.9" x 3.4" |
---|---|
Weight | 4.2 lbs. |
Date First Available | August 03, 2011 |
---|
Pros: It runs my system perfectly! I don't have any equipment to determine stability though. It has enough connections for everything I have, and then some. The connections are availiable to hook up a second video card. The fan is very quiet. I love the wire sleeves.
Cons: Depending on your case and motherboard config, you may be disapointed with wire length. With mine, the PS is mounted on the bottom, so while some cables are perfect length, others have to stretch across the middle of the case. I understand that this is always a possibility. No eggs deducted.
Overall Review: I think i'll build up some custom cables for my rig, and splice them in. Of course that would kill the warrenty. Has anyone ever tried that? AMD Phenom II x4 975 BE BIOSTAR TA990FXE Patriot Signature 8GB DDR3 1600 XFX Radeon HD 6870 2GB Seagate Barracuda 500GB 7200rpm Diablotek 675W NZXT Source 210 case
