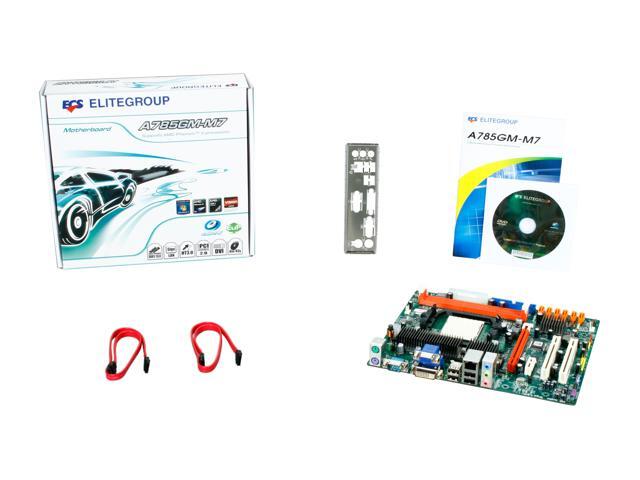

ECS A785GM-M7 AM3 AMD 785G Micro ATX AMD Motherboard

OUT OF STOCK.
  • AMD 785G
  • Phenom II / Athlon II / Sempron 100 Series Supports CPU up to 95W TDP only
  • DDR3 1333/1066/800
Specs
Reviews

Learn more about the ECS (EliteGroup) A785GM-M7

Model
Brand ECS
Model A785GM-M7
Supported CPU
CPU Socket Type AM3
CPU Type Phenom II / Athlon II / Sempron 100 Series
Supports CPU up to 95W TDP only
FSB 2600 MHz
Chipsets
Chipset AMD 785G
South Bridge AMD SB710
Memory
Number of Memory Slots 2×240pin
Memory Standard DDR3 1333/1066/800
Maximum Memory Supported 16GB
Channel Supported Dual Channel
Expansion Slots
PCI Express 2.0 x16 1 x PCI Express 2.0 x16
PCI Express x1 1 x PCI Express x1
PCI Slots 2 x PCI Slots
Storage Devices
PATA 1 x ATA133 2 Dev. Max
SATA 3Gb/s 6 x SATA 3Gb/s
SATA RAID 0/1/10
Onboard Video
Onboard Video Chipset ATI Radeon HD 4200
Onboard Audio
Audio Chipset VIA VT1705
Audio Channels 6 Channels
Onboard LAN
LAN Chipset Atheros AR8131
Max LAN Speed 10/100/1000Mbps
Rear Panel Ports
PS/2 2
COM 1
Video Ports D-Sub + DVI
USB 1.1/2.0 4 x USB 2.0
Audio Ports 3 Ports
Internal I/O Connectors
Onboard USB 3 x USB 2.0 headers support additional 6 USB ports
Physical Spec
Form Factor Micro ATX
Dimensions (W x L) 9.6" x 8.3"
Power Pin 24 Pin
Additional Information
Date First Available April 19, 2010
