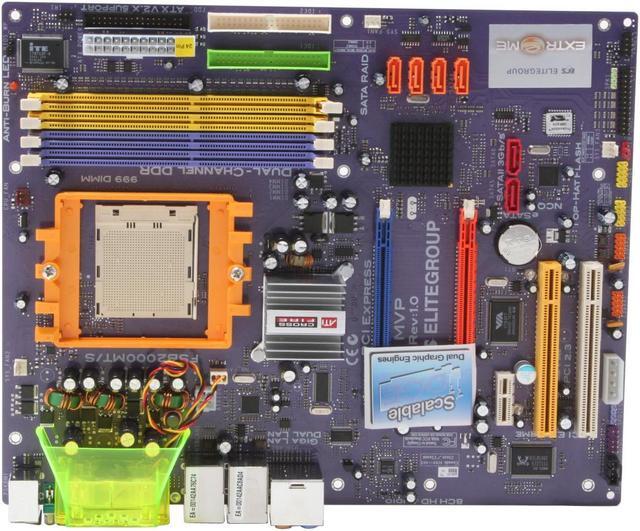

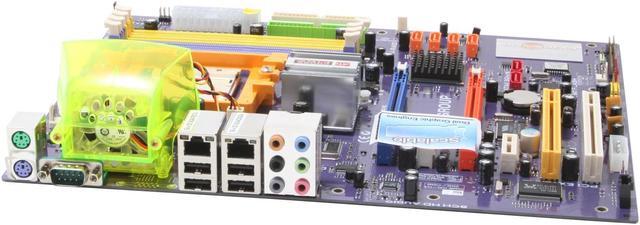

ECS KA1 MVP (1.0) 939 ATI Radeon Xpress 200 CrossFire ATX CrossFire AMD Motherboard
- 939
- ATI Radeon Xpress 200 CrossFire
- 4×184pin DDR 400
Specs
Reviews (18)
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the ECS (EliteGroup) KA1 MVP (1.0)
| Brand | ECS |
|---|---|
| Model | KA1 MVP (1.0) |
| CPU Socket Type | 939 |
|---|---|
| CPU Type | Athlon 64 X2 / Athlon 64 FX / Athlon 64 |
| FSB | 1000 MHz |
| Chipset | ATI Radeon Xpress 200 CrossFire |
|---|---|
| South Bridge | ATI SB450 |
| Number of Memory Slots | 4x184pin |
|---|---|
| Memory Standard | DDR 400 |
| Maximum Memory Supported | 4GB |
| Channel Supported | Dual Channel |
| PCI Express x16 | 2 x PCI Express x16 |
|---|---|
| PCI Express x1 | 2 x PCI Express x1 |
| PCI Slots | 2 x PCI Slots |
| PATA | 2 x ATA100 4 Dev. Max |
|---|---|
| SATA RAID | 0/1 |
| Additional RAID Controller | Sil 3132 |
| Onboard Video Chipset | None |
|---|
| Audio Chipset | Realtek ALC880 |
|---|---|
| Audio Channels | 8 Channels |
| LAN Chipset | Marvell 88E8053 |
|---|---|
| Second LAN Chipset | Realtek 8100C |
| Max LAN Speed | 1Gbps + 100Mbps |
| Back I/O Ports | 1 x COM (Serial Port) / 2 x PS/2 / 4 x USB 2.0/1.1 / 6 x Audio Jacks |
|---|---|
| PS/2 | 2 |
| COM | 1 |
| USB 1.1/2.0 | 4 x USB 2.0 |
| Audio Ports | 6 Ports |
| Onboard USB | 2 x USB 2.0 connectors support 4 ports |
|---|---|
| Onboard 1394 | 2 x 1394a connectors support 2 ports |
| Form Factor | ATX |
|---|---|
| Dimensions (W x L) | 12.0" x 9.6" |
| Power Pin | 24 Pin |

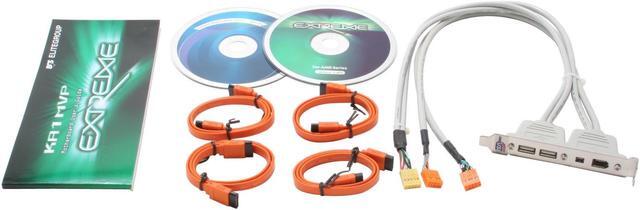

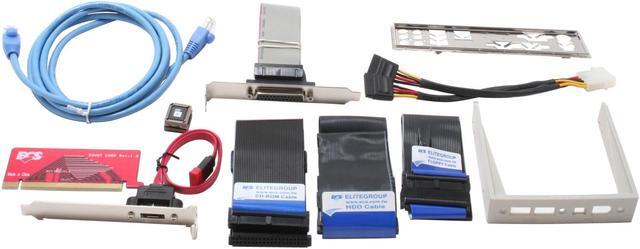

| Package Contents | KA1 MVP (1.0) Driver Disk User Manual Rear I/O Panel Shield 2 x IDE/PATA Cable FDD Cable 4 x SATA Cable 4-pin to SATA Power Cable IEEE 1394 and USB Bracket IEEE 1394 and USB Bracket Housing eSATA Bracket Parallel/LPT Bracket Shunt Card Software Disk Top Hat Flash Ethemet Crossover Cable |
|---|
| Date First Available | November 22, 2005 |
|---|
