Standards | IEEE 802.11a/b/g/n |
---|
WiFi Generation | Wi-Fi 5 |
---|
Wireless Standard | IEEE 802.11a / IEEE 802.11ac / IEEE 802.11b / IEEE 802.11g / IEEE 802.11n |
---|
Device Management | Multi-language user interface Supports remote management System status and security log Fault tolerance firmware upgradable Auto firmware upgrage Auto restart while malfunction (Watch Dog) Smart iQ Setup, no CD required Supports smartphone, tablet or laptop setup (iOS 4 or Android 4 and above are required for smartphone or tablet setup). |
---|
Security | WEP, WPA and WPA2 security QoS for critical operations SPI anti-DoS firewall |
---|
WPA | WPA2 |
---|

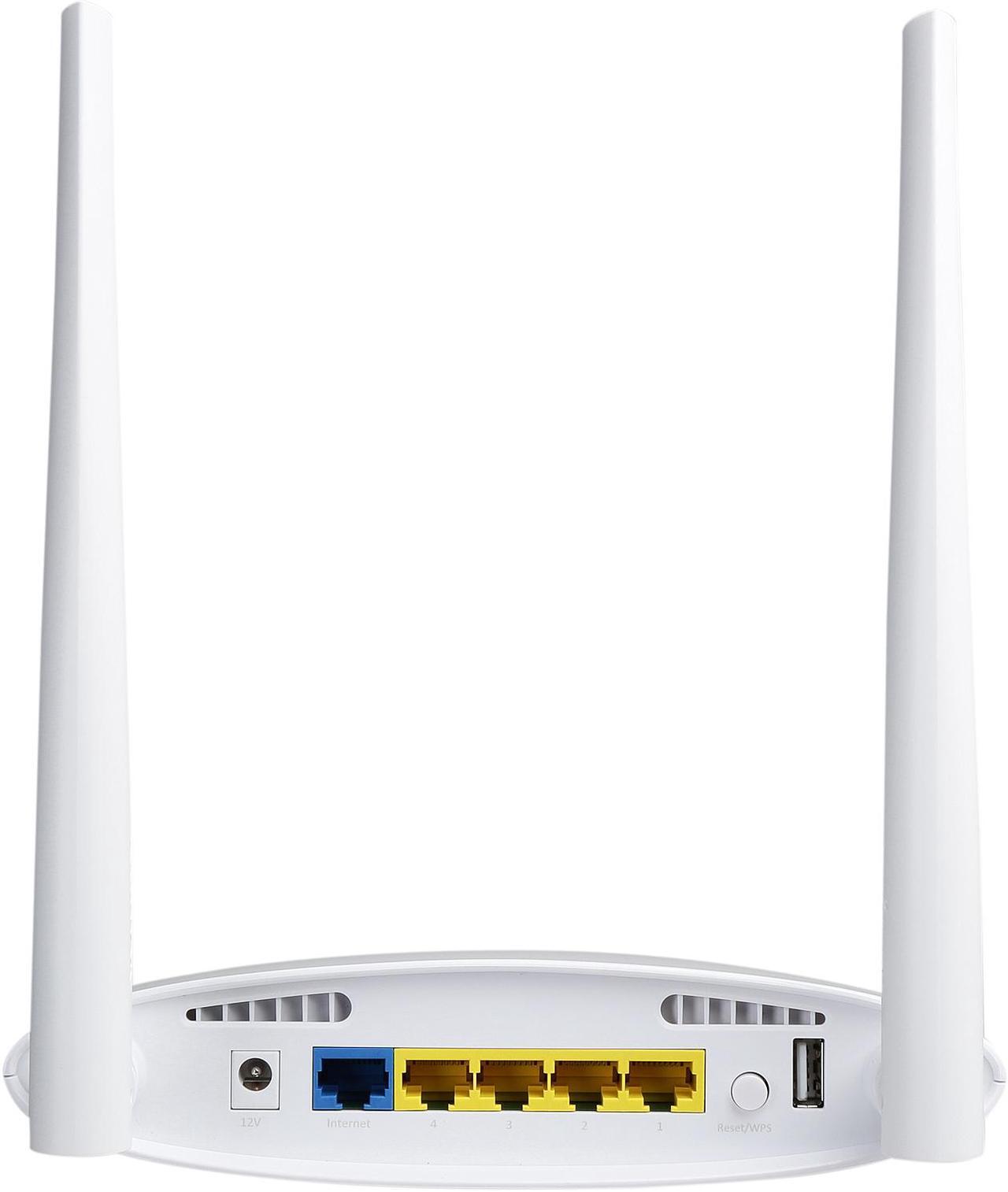

WAN Ports | 1 x 10/100/1000M |
---|
LAN Ports | 4 x 10/100/1000M |
---|
LEDs | Power, Internet, WLAN, USB |
---|
Buttons | Reset, WPS |
---|
Wireless Data Rates | AC1200 / Up to 1.2Gbps |
---|
Frequency Band | 2.4 GHz / 5 GHz |
---|
Antenna | 2 x Dual-band antennas |
---|
Receiver Sensitivity | 2.4 GHz Receive Sensitivity 11b (1 Mbps): -91 +/-2 dBm 11b (11 Mbps): -87 +/-2 dBm 11g (54 Mbps): -71 +/-2 dBm 11n (20 MHz, MCS7): -68 +/-2 dBm 11n (40 MHz, MCS7): -65 +/-2 dBm
5 GHz Receive Sensitivity 11a (6 Mbps): -90 +/-2 dBm 11a (54 Mbps): -71 +/-2 dBm 11n (20 MHz, MCS7): -69 +/-2 dBm 11n (40 MHz, MCS7): -65 +/-2 dBm 11ac (80 MHz, MCS9): -55 +/-2 dBm |
---|
Interface | 1 x USB 2.0 port |
---|
Power Supply | DC 12V, 1.25A (UK, AU) DC 12V, 1.5A (US, EU) |
---|
Dimensions | 1.65" x 7.49" x 6.77" |
---|
Weight | 0.71 lb. |
---|
Temperature | 0°C - 40°C (32°F - 104°F) |
---|
Humidity | 10% - 90%, Non-Condensing |
---|
