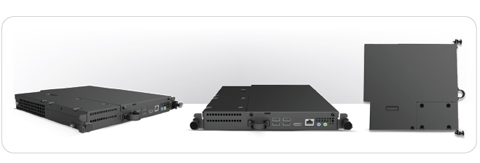

The Elo Interactive Digital Signage (IDS) touch screen enables increased customer engagement and immersive brand experiences by adding an exciting new dimension to traditional broadcast digital signage – the power of touch. Elo’s ECMG2 computer modules, available for use with the Elo 3201L, 4201L, 5501L and 7001L IDS touchscreens are well-suited for interactive media delivery and online collaboration for modern office environments. Computer modules are available in a choice of two models: ECMG2-i3 based on a 3.3GHz Intel® Core i3 processor and HD2500 graphics; and ECMG2-i5 based on a 2.9GHz (3.6 GHz Max Turbo) Intel Core i5 processor and HD4000 graphics.
Centralized management and security capabilities of Microsoft® Windows® ensures compatibility with many content management servers and web-based consoles for seamless connection with the internet, digital marketing, interactive whiteboard, building directory, virtual receptionist, and point-of-information (POI) applications.
The ECMG2 computer modules can support optimal partitioning of locally cached and network stored content, allowing developers to monitor and deploy content via device-to- device or web connections.
Elo founders pioneered the touch screen over 40 years ago. Today, Elo Touch Solutions is a leading global supplier of touch-enabled technology, products and industry solutions. The Elo portfolio encompasses the broadest selection of OEM touch screen components, touch monitors, and all-in-one touch computers for the demanding requirements of diverse markets, including gaming machines, hospitality systems, industrial automation, interactive kiosks, healthcare, office equipment, point of sale terminals, retail displays, and transportation applications. The Elo touch experience has consistently stood for quality, reliability and innovation with over 20 million installations worldwide.
Specifications | ||
Module Dimensions | Width: 10.8” (274 mm) Depth: 9.8” (248 mm) Height: 1.8” (45.7 mm) | |
Processor | Intel Core i3 i3-3220 3.30 GHz 3MB Intel ® Smart Cache 5 GT/s DMI |
Intel Core i5 i5-3475S 2.9GHz (3.6 GHz Max turbo) 6MB Intel® Smart Cache 5 GT/s DMI |
Chipset | Intel ® H61 Express Chipset | |
Video | i3 – Intel® HD 2500 i5 – Intel® HD 4000 |
|
BIOS | AMI | |
Memory (RAM) Standard/max./slots | i3 – 2GB DDR3 SO-DIMM on 1 of 2 slots i5 – 4GB DDR3 SO-DIMM on 1 of 2 slots (Expandable up to 8GB MAX SO-DIMM DDR3-1333/1600 (PC3-10600) |
|
Hard Disk Drive | 320GB 2.5” ADVANCED FORMAT (AF) SATA HDD | |
Operating Systems Supported | No Operating System Microsoft Windows 7 Professional (32-bit) Microsoft Windows Embedded 8.1 Industry (64-bit) | |
Languages | Windows 7/8.1: 35 language groups: Arabic, Brazilian Portuguese, Bulgarian, Chinese (Simplified), Chinese (Traditional), Chinese (Hong Kong), Croatian, Czech, Danish, Dutch, English, Estonian, Finnish, French, German, Greek, Hebrew, Hindi, Hungarian, Italian, Japanese, Korean, Lithuanian, Norwegian, Polish, Portuguese, Romanian, Russian, Serbian Latin, Slovak, Slovenian, Spanish, Swedish, Thai, Turkish, Ukrainian | |
USB Port (s) | 4 x Type A ports | |
Ethernet Port(s) | 1 x LAN RJ45 (Gigabit) | |
Audio Port(s) | Microphone in, line out | |

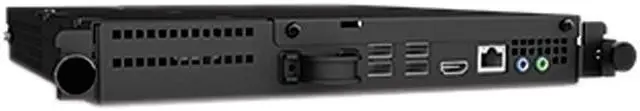

Rear I/O (Summary of all above ports) | 4 Type A USB ports 1 Gigabit Ethernet LAN RJ45 port 3 3.5 mm TRS jacks for Audio In, Audio Out, Microphone in |
|
Real Time Clock | Replaceable lithium-ion battery for clock | |
Power Supply | Power supplied by Interactive Digital Signage display | |
Weight | Actual: 4.47 lb (2.03 Kg) Shipping: 6.4 lb (2.9 Kg) |
|
Shipping Box Dimensions | Width: 15.4” (392 mm) Depth: 14.25” (362 mm) Height: 5.1” (130 mm) | |
Temperature | Operating : 0°C to 40°C (32°F to 104°F) Storage : -20°C to 60°C (-4°F to 140°F) |
|
Humidity (non-condensing) | Operating : 20% to 80% Storage : 5% to 95% |
|
Agency Approvals | US UL, FCC; Canada cUL, IC; Europe CE; Japan VCCI; Taiwan BSMI; Korea KC; International CB | |
Warranty | 3 years | |
MTBF | 50,000 hours demonstrated |
Model | Part Number | Processor | RAM | HDD | OS |
---|---|---|---|---|---|
ECMG2-i3 | E776797 | Intel Core i3 3.3GHz HD2500 | 2GB | 320GB | No OS |
E487570 | Intel Core i3 3.3GHz HD2500 | 2GB | 320GB | Windows 7 | |
ECMG2-i5 | E272400 | Intel Core i5 3.6GHz HD4000 | 4GB | 320GB | No OS |
E584199 | Intel Core i5 3.6GHz HD4000 | 4GB | 320GB | Windows 7 | |
E009007 | Intel Core i5 3.6GHz HD4000 | 4GB | 320GB | Windows 8.1 |
