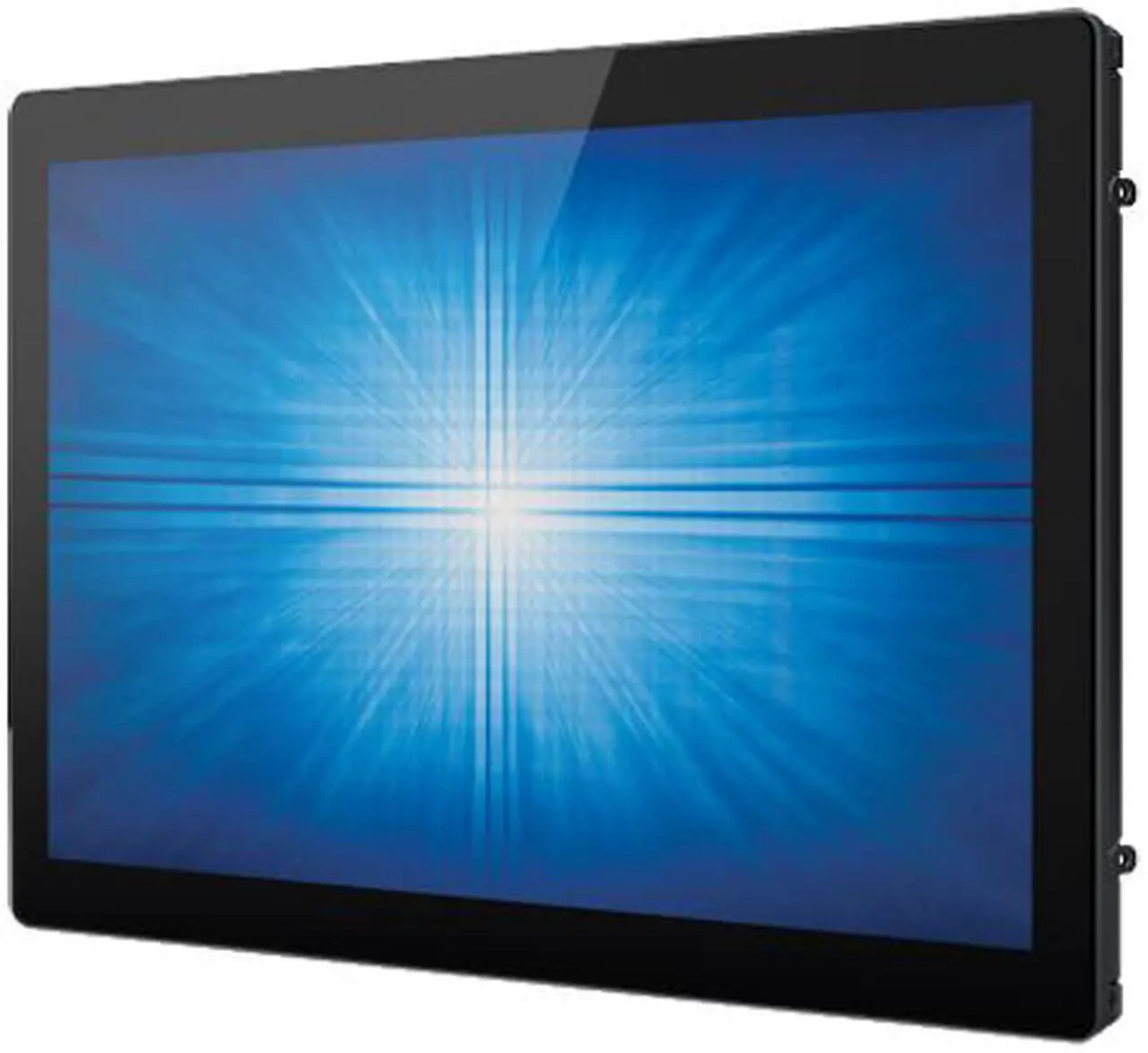

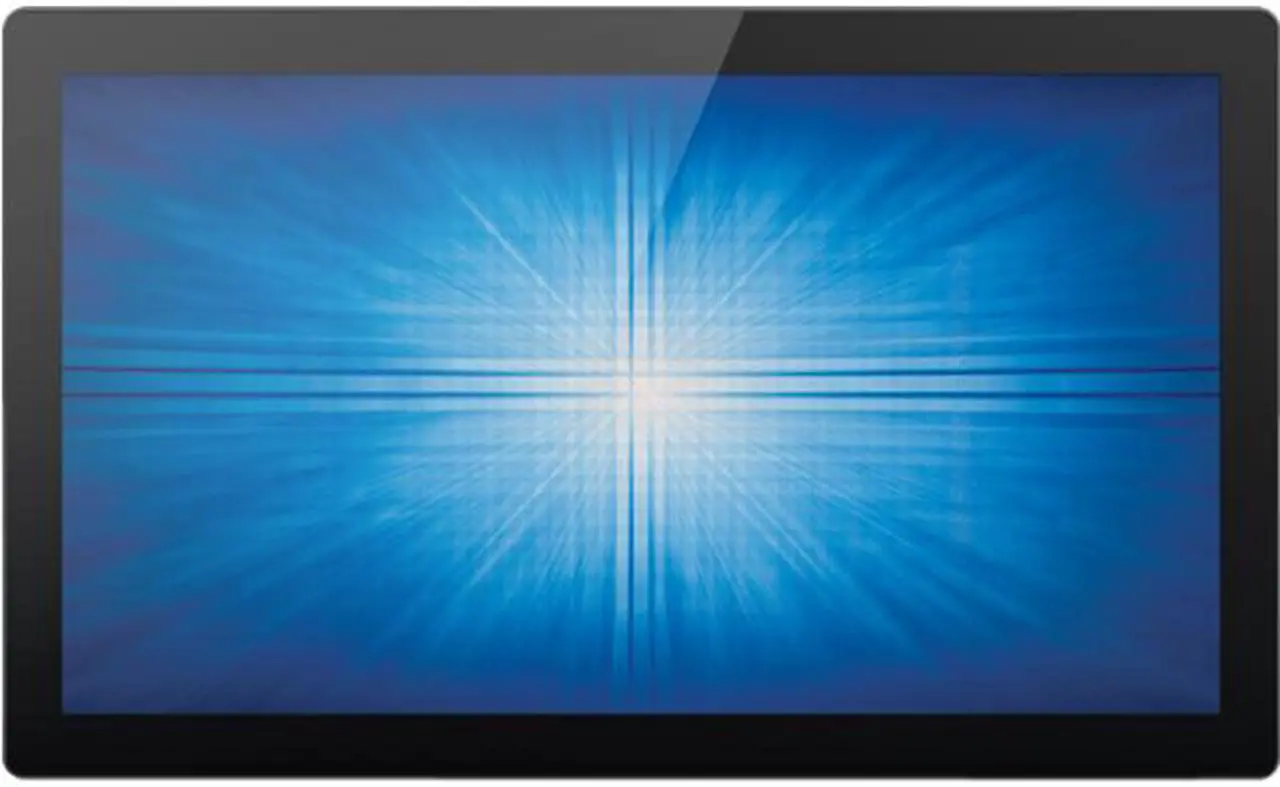

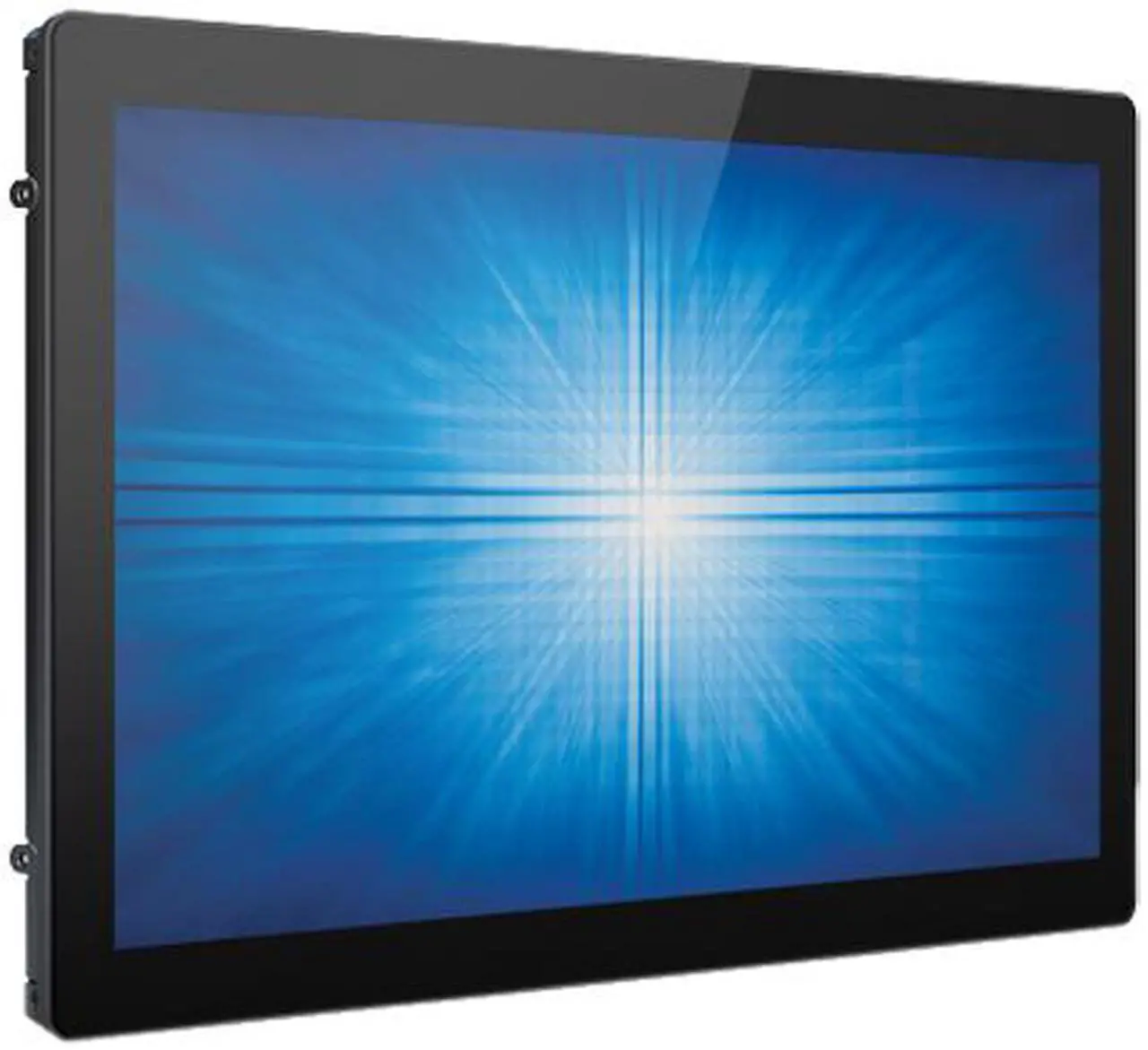

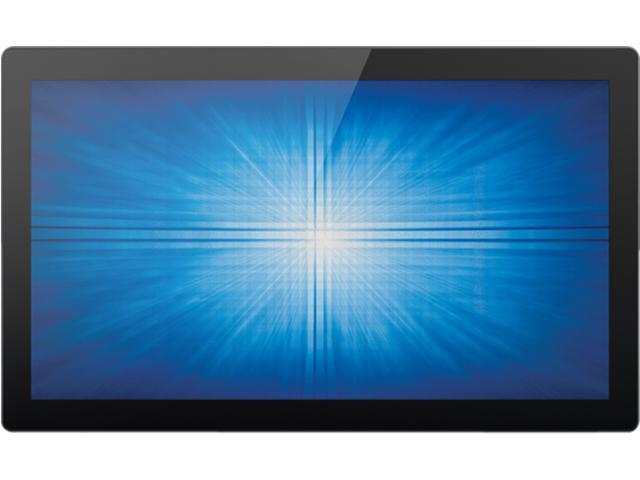

Elo E330429 2293L 21.5” Open-frame Commercial-grade Touchscreen Display with TouchPro PCAP

Be the first to review this product...

See more "elo touchscreen"

OUT OF STOCK.

21.5", 1920 x 1080, 60Hz, 225nit, PCAP (TouchPro® Projected Capacitive) - 10 Touch, USB 2.0
The touchscreen is sealed against dirt, dust and liquids, which simplifies integration into the final enclo

Overview

Specs

Reviews

MAIN OVERVIEW FEATURES: Viewable
Screen Size: 21.5"S creen
Mode: Full
HDResponse Time: 5 msAspect
Ratio: 16:9
Mount Type: Flush Mount
Backlight Technology: LED
Maximum Resolution: 1920 x 1080Color
Supported: 16.7 Million Colors
Contrast Ratio: 1, 000:1
Brightness: 250 cd/m²Touchscreen
Type: Projected Capacitive
Multi-touch Screen: Yes
HDMI: Yes
USB: Yes
VGA: Yes
Display
Port: Yes
Operating
Power Consumption: 18
WColor: Black

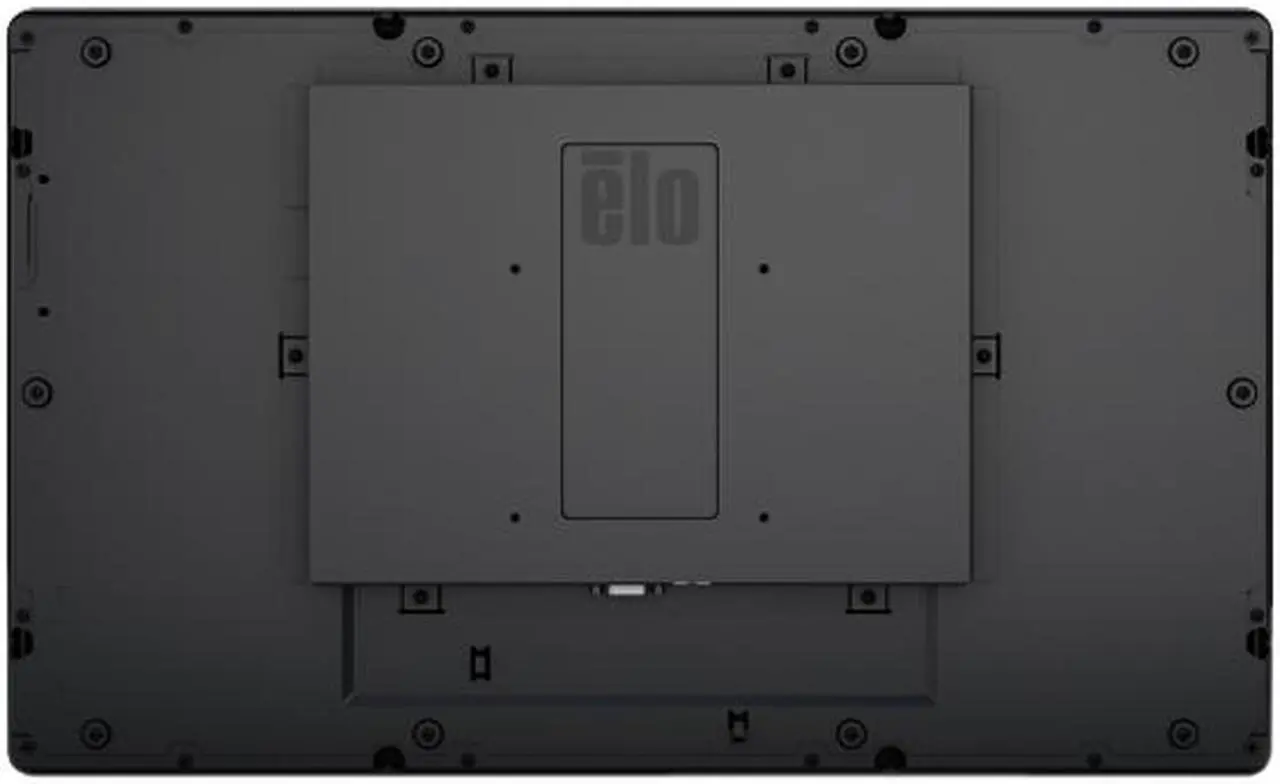

VESA Mount Compatible: Yes
Height: 12.24"
( 310.90 mm)Width: 20.31"
( 515.87 mm)Depth: 1.49"
( 37.85 mm)Weight (Approximate): 5.10 kgPackage
Contents: 2293L 21.5" Open Frame Touchscreen (Rev B) HDMI cable VGA Cable RJ45 OSD Remote Touch USB Cable User Manual CD Quick Install Guide "L" (Side Mount) Brackets and w/Screws EEI Label Japan Class-B TM info sheet
Environmentally Friendly: Yes
Environmental Certification: T? V, RoHS, China RoHS, WEEE
Limited Warranty: 3 Year

Model
Brand	Elo Touch Solutions
Model	E330429
Cabinet Color	Black

Display
Screen Size	21.5"
Maximum Resolution	1920 x 1080
Viewing Angle	Horizontal: +/-85 degree or 170 degree total / Vertical: +/-80 degree or 160 degree total
Display Colors	16.7 Million
Brightness	225 cd/m2
Contrast Ratio	1000:1
Response Time	5ms

Connectivity
Connectors	Video Interface: HDMI, VGA & Display Port

Power
Power Consumption	Monitor + Adapter at 230V/50Hz ON: 18 W SLEEP: 1.1 W OFF: 0.5W

Convenience
Features	On Screen Display Accessible through switches on the unit’s tethered OSD Control box. Controls: Menu, Up, Down, Select, Power Settings: Brightness, Contrast, Clock, Phase, H-position, V-position, Auto-Adjust, Aspect Ratio, Sharpness, Color Temperature, OSD Timeout, OSD Language, OSD H-Position, OSD V-Position, Recall Defaults, Video Priority, Information, Touch On Sleep Mode, Touch Through Languages: English, French, Italian, German, Spanish, Simplified Chinese, Traditional Chinese, Japanese Lockouts: OSD, Power Aspect Ratio: 16:9 Active Area (mm): 18.76" x 10.55" / 476.64mm x 268.11mm Other Supported Resolutions 640 x 480 60Hz 720 x 400 70Hz 800 x 500, 60Hz 800 x 600 56, 60Hz 1024 x 768 60Hz 1280 x 800 60Hz 1280 x 1024 60Hz 1366 x 768 60Hz, 60Hz RB 1440 x 900 60Hz, 60Hz RB 1680 x 1050 60Hz, 60Hz RB 1920 x 1080 50, 60Hz Input Video Format HDMI V1.3 Type A receptacle for HDMI input Analog VGA on Female DB-15 connector DisplayPort V1.1a - Supports later versions of Display Port video input Input Video Frequency Horizontal: 30 - 82 KHz Vertical: 50 - 75 Hz Operating Temperature: 0 degree C to 40 degree C / 32 degree F to 104 degree F Storage Temperature: -20 degree C to 60 degree C / -4 degree F to 140 degree F Humidity Operating: 20% to 80% Storage: 10% to 95%

Additional Information
Date First Available	February 28, 2019

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

Limited Warranty period (parts): 1 year
Limited Warranty period (labor): 1 year
Read full details

Return Policies

Return for refund within: Non-refundable

Return for replacement within: 30 days

This item is covered by Newegg.com's Replacement Only Return Policy

Manufacturer Contact Info

Manufacturer Product Page
Manufacturer Website
Support Phone: 1-800-557-1458
Support Email: customerservice@elotouch.com
Support Website
View other products from Elo Touch Solutions
