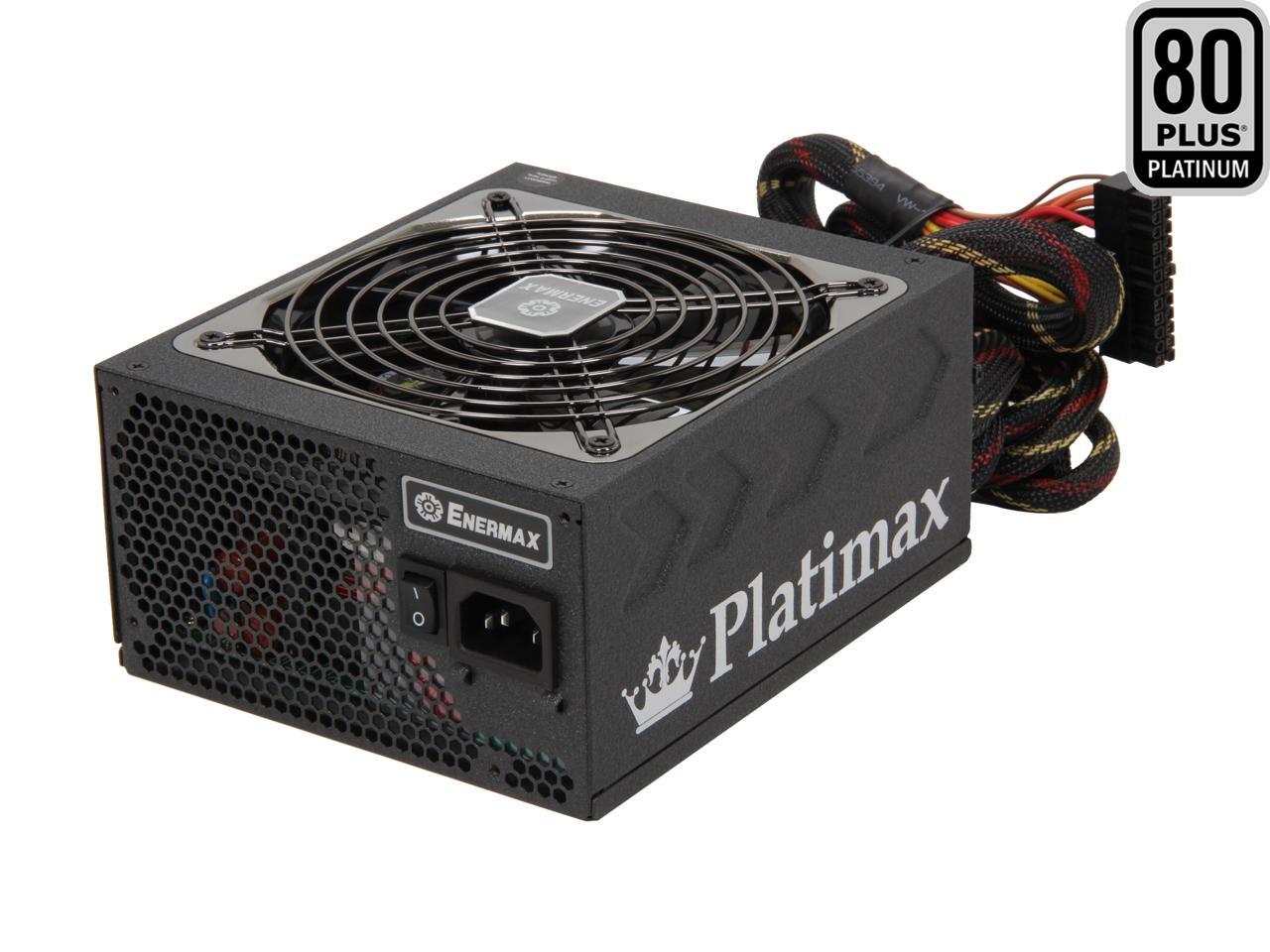

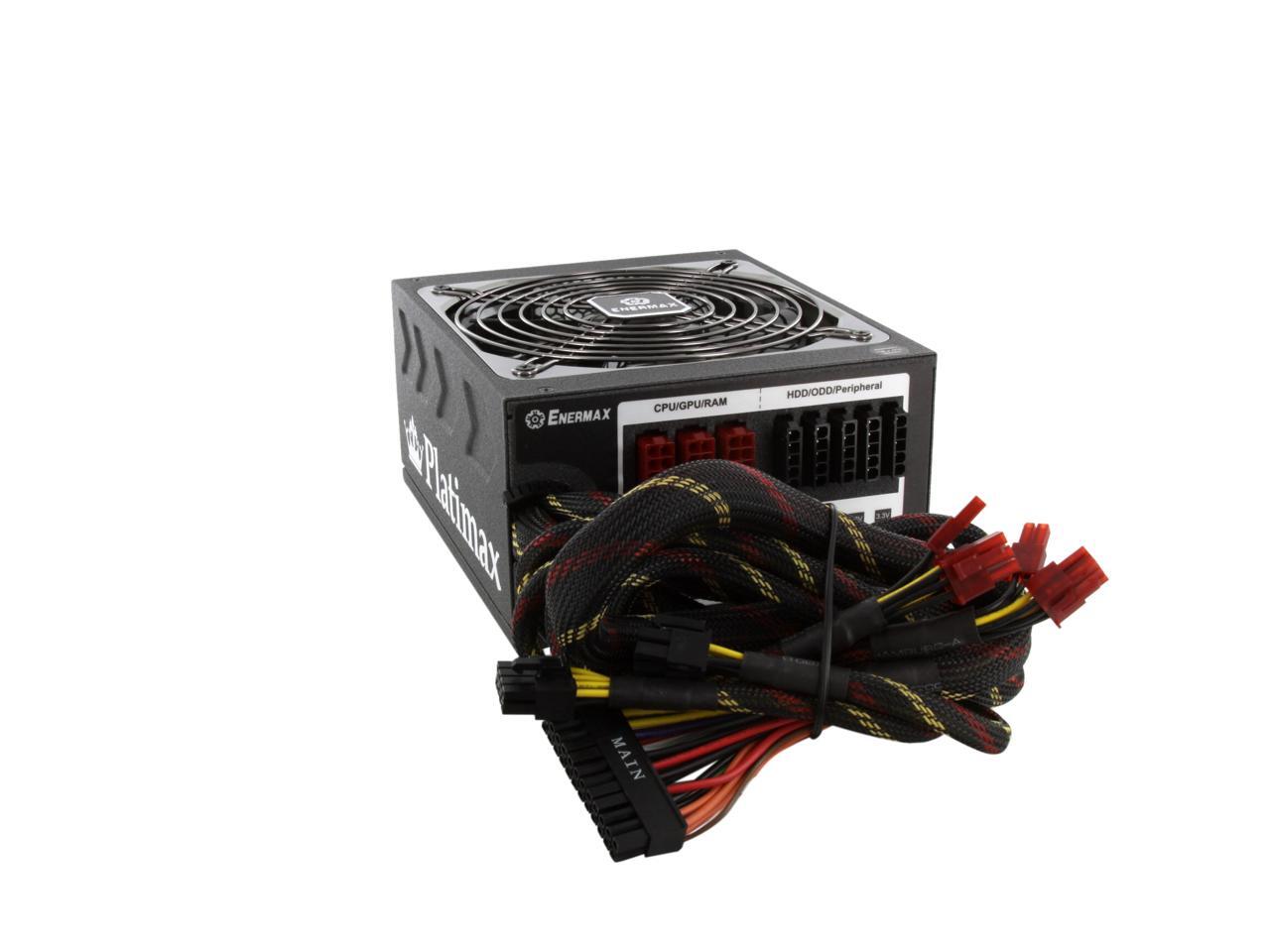

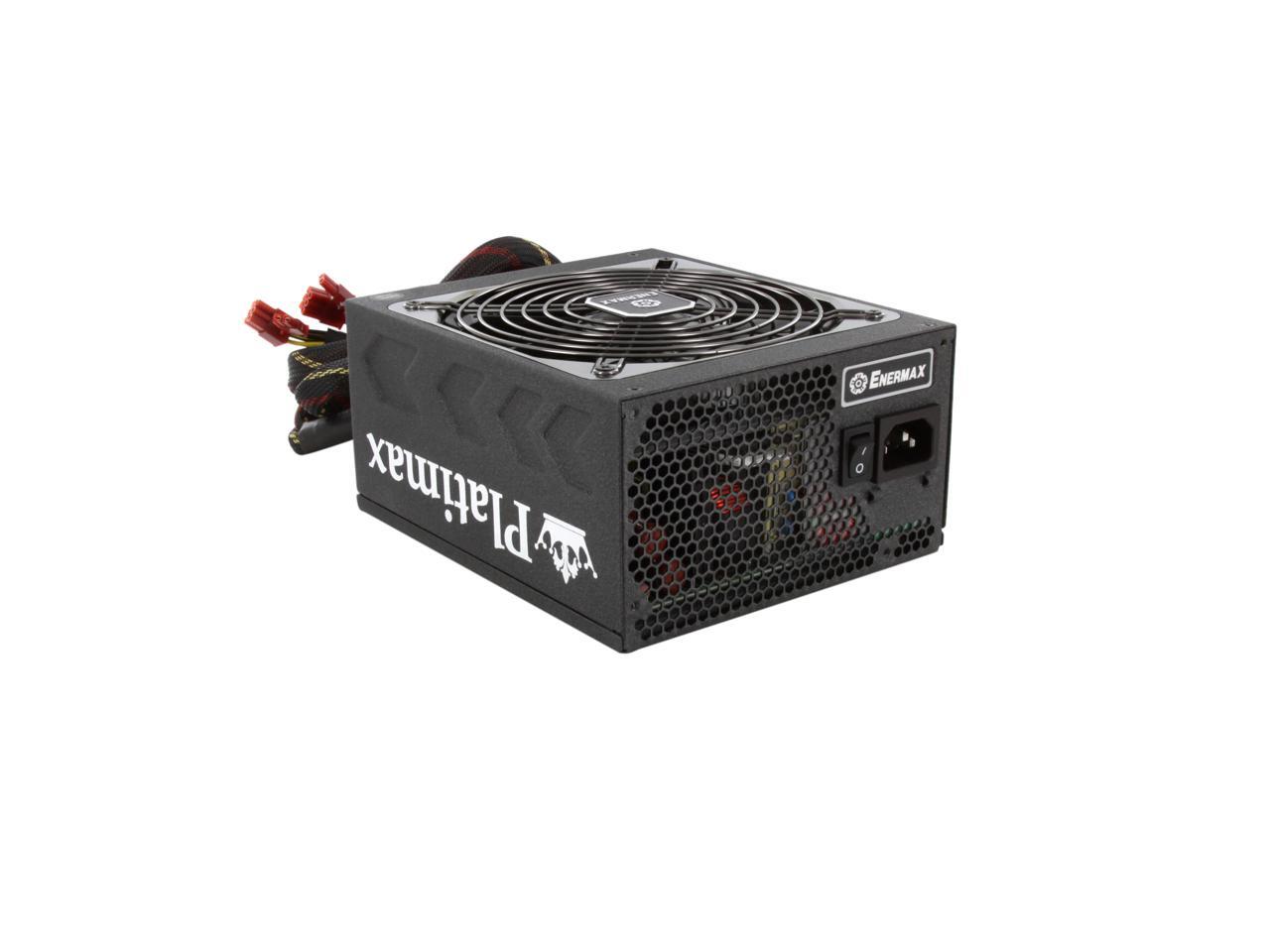

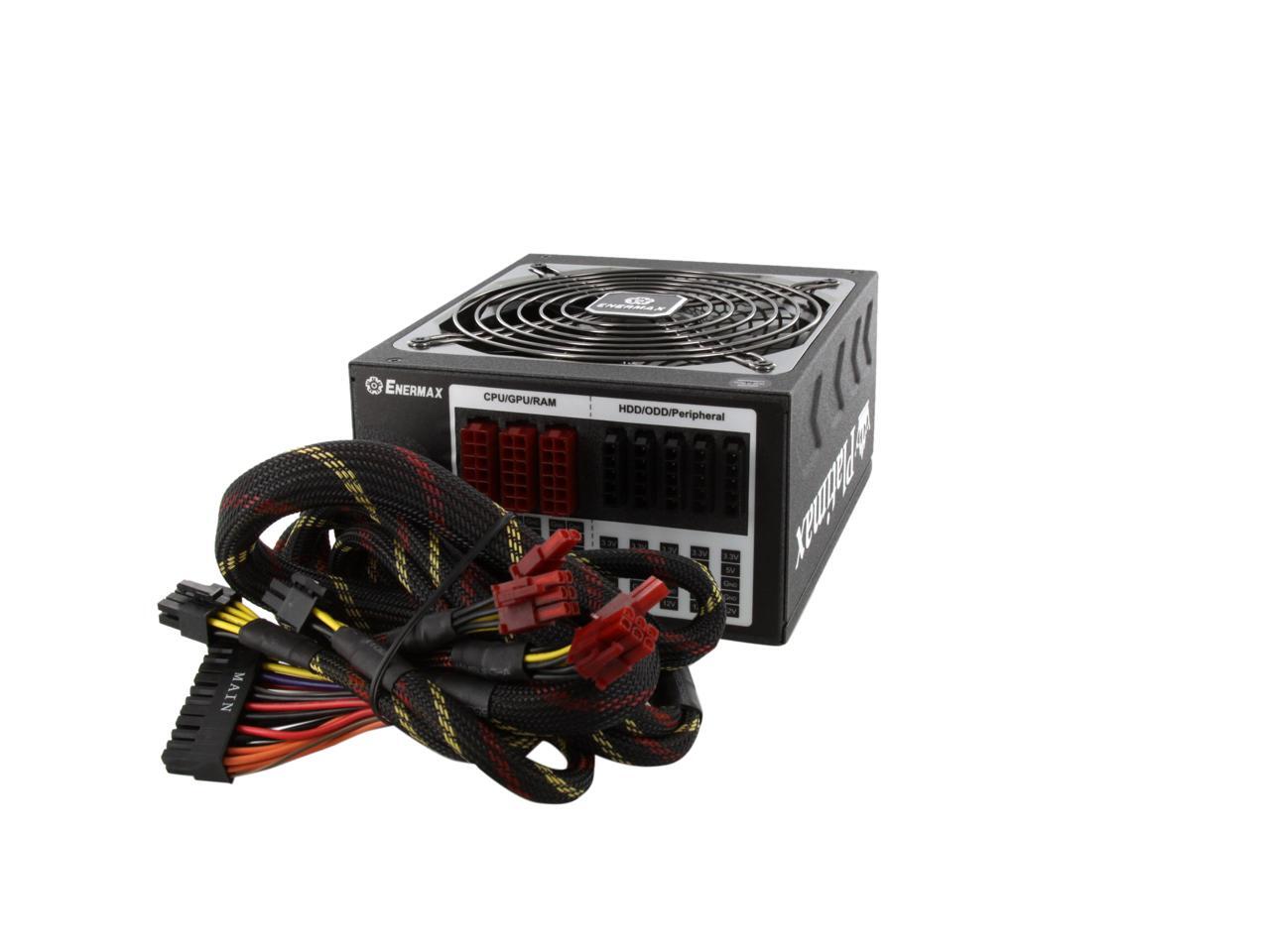

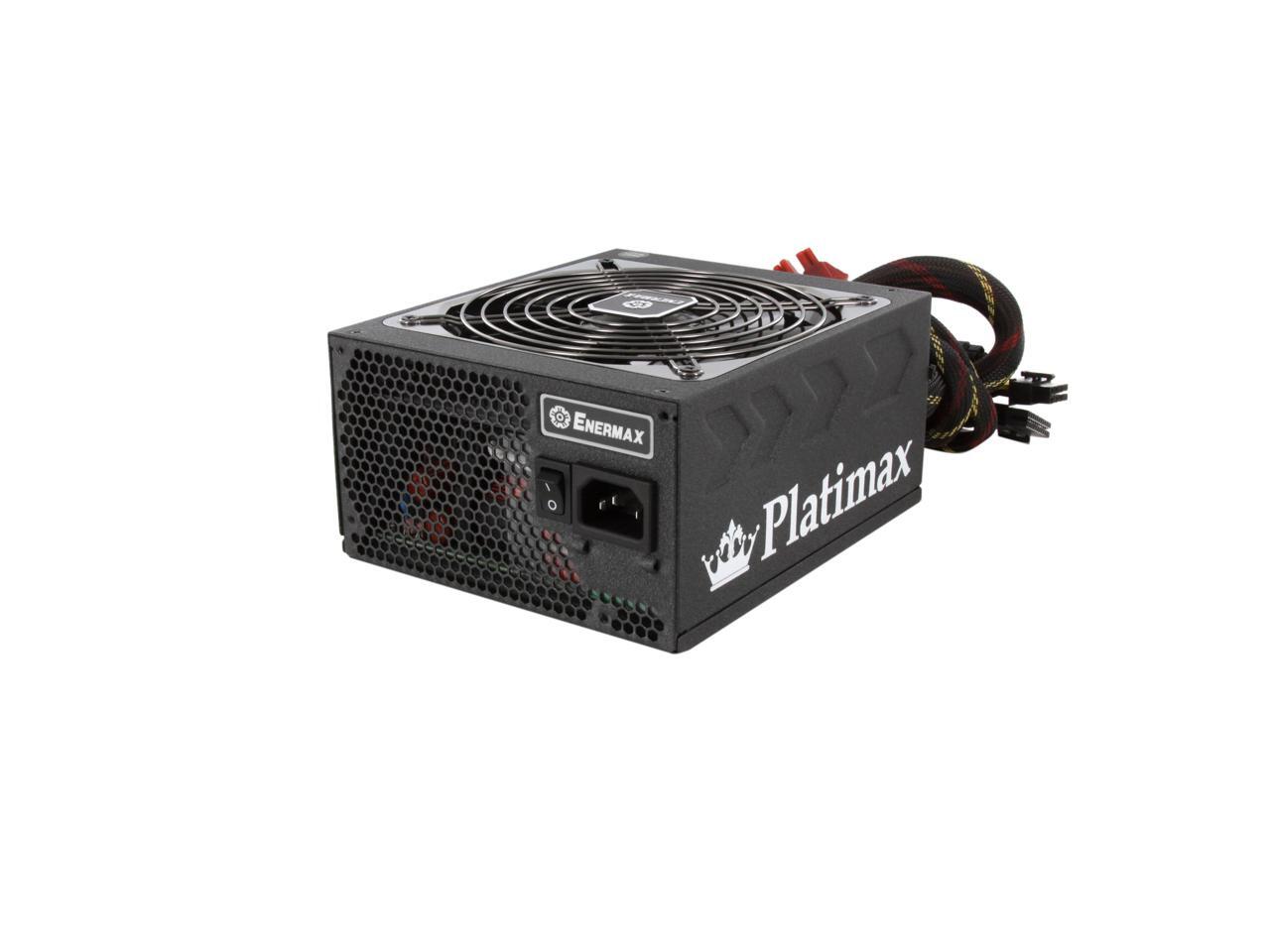

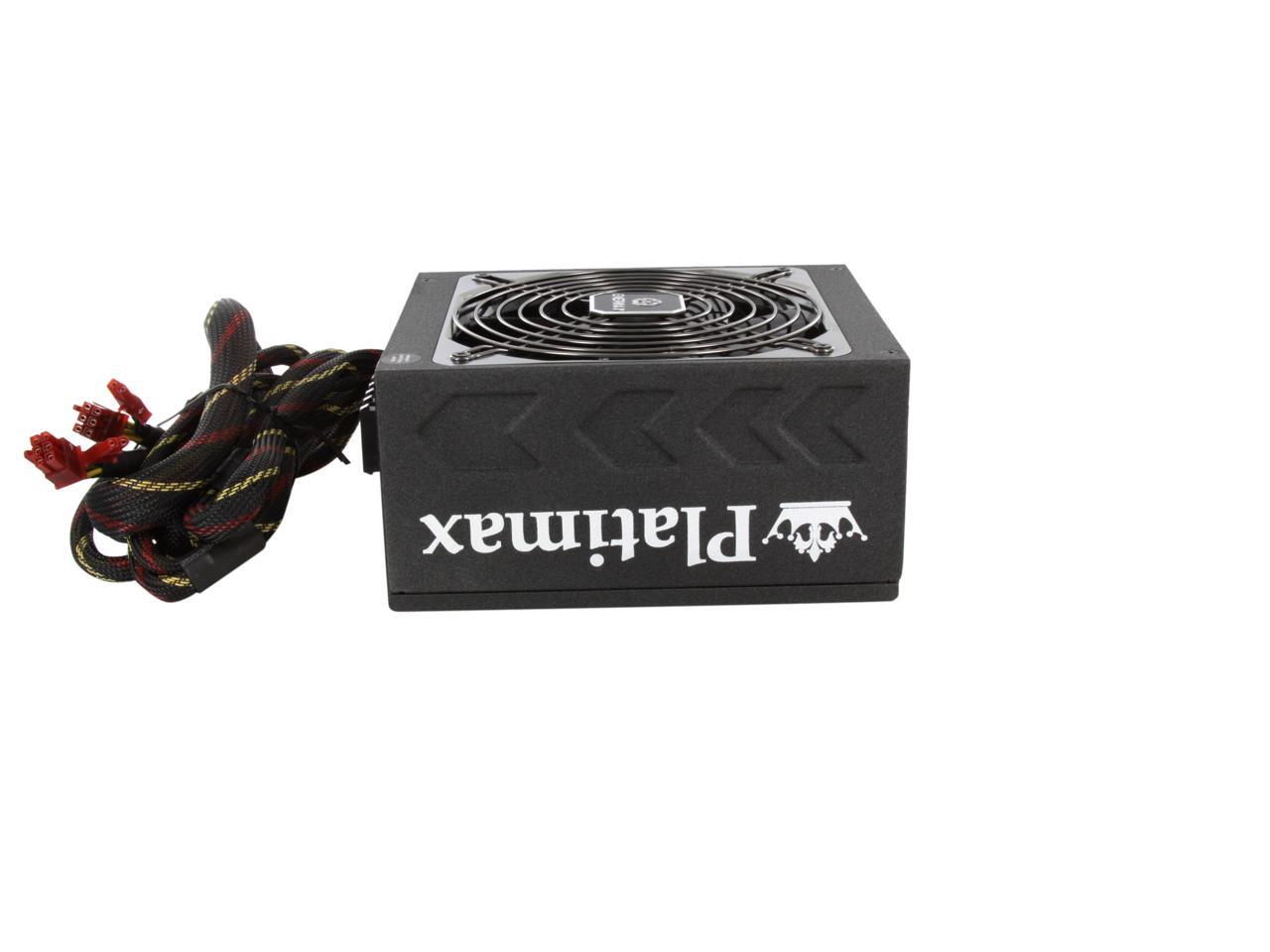

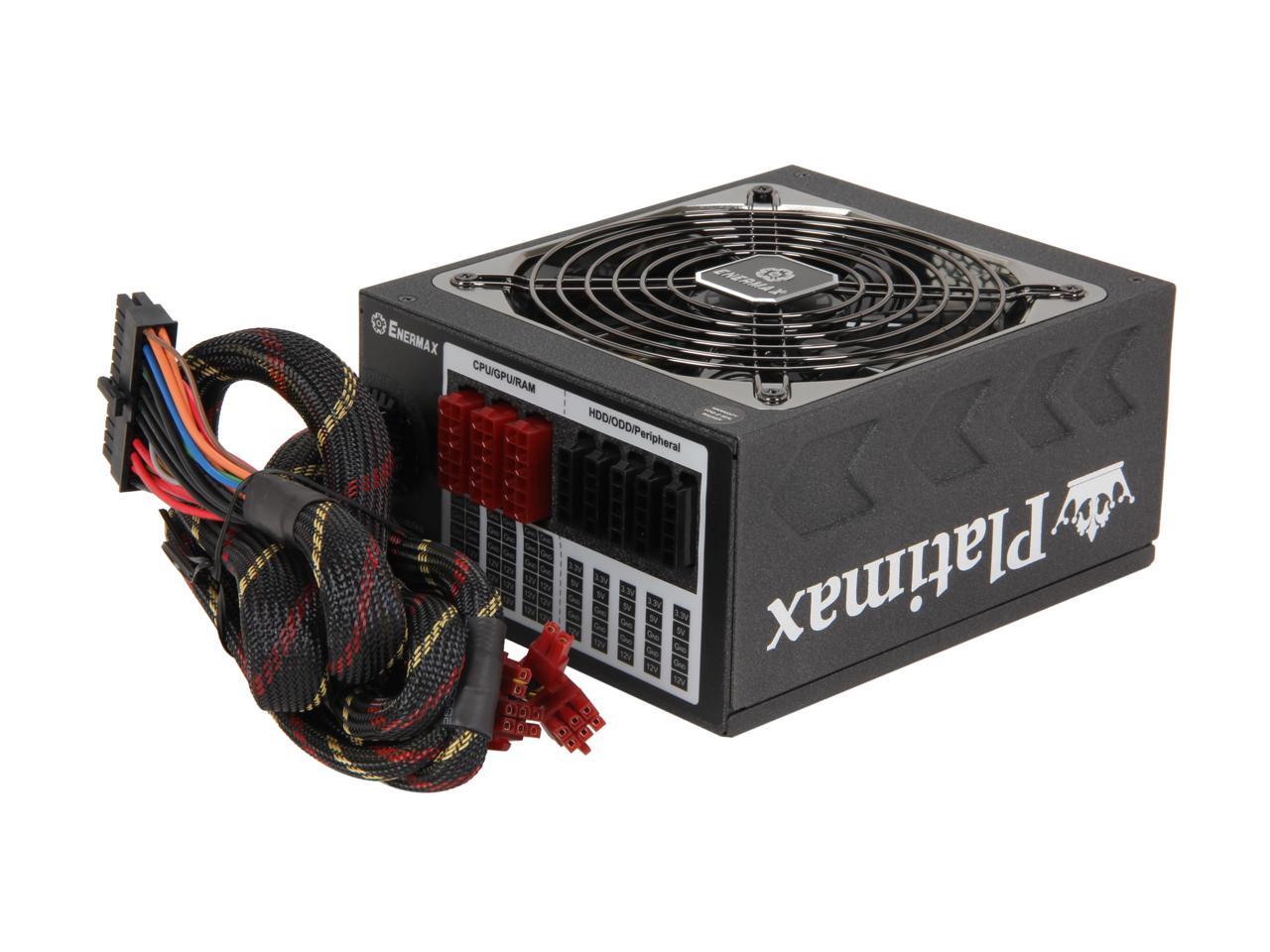

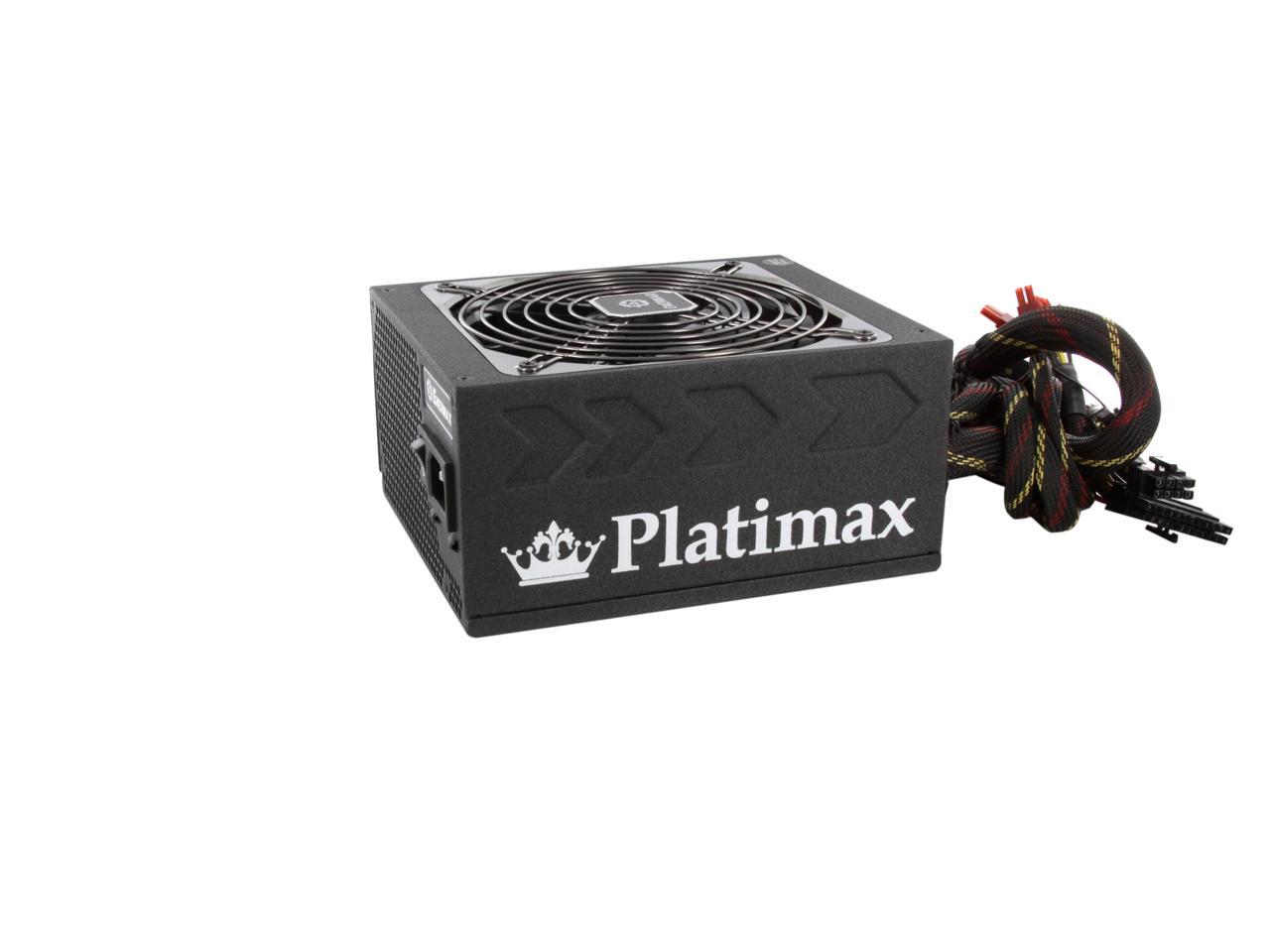

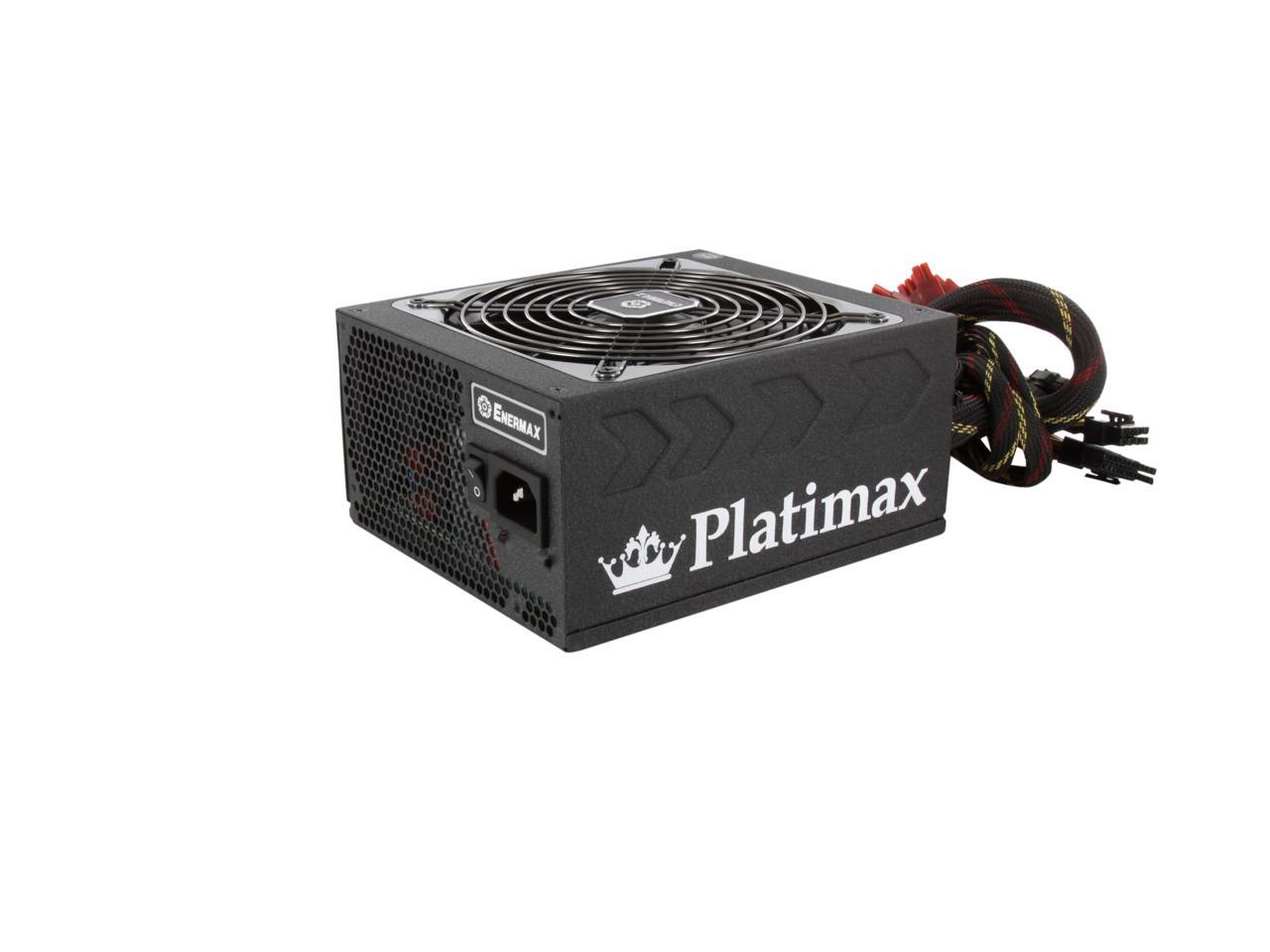

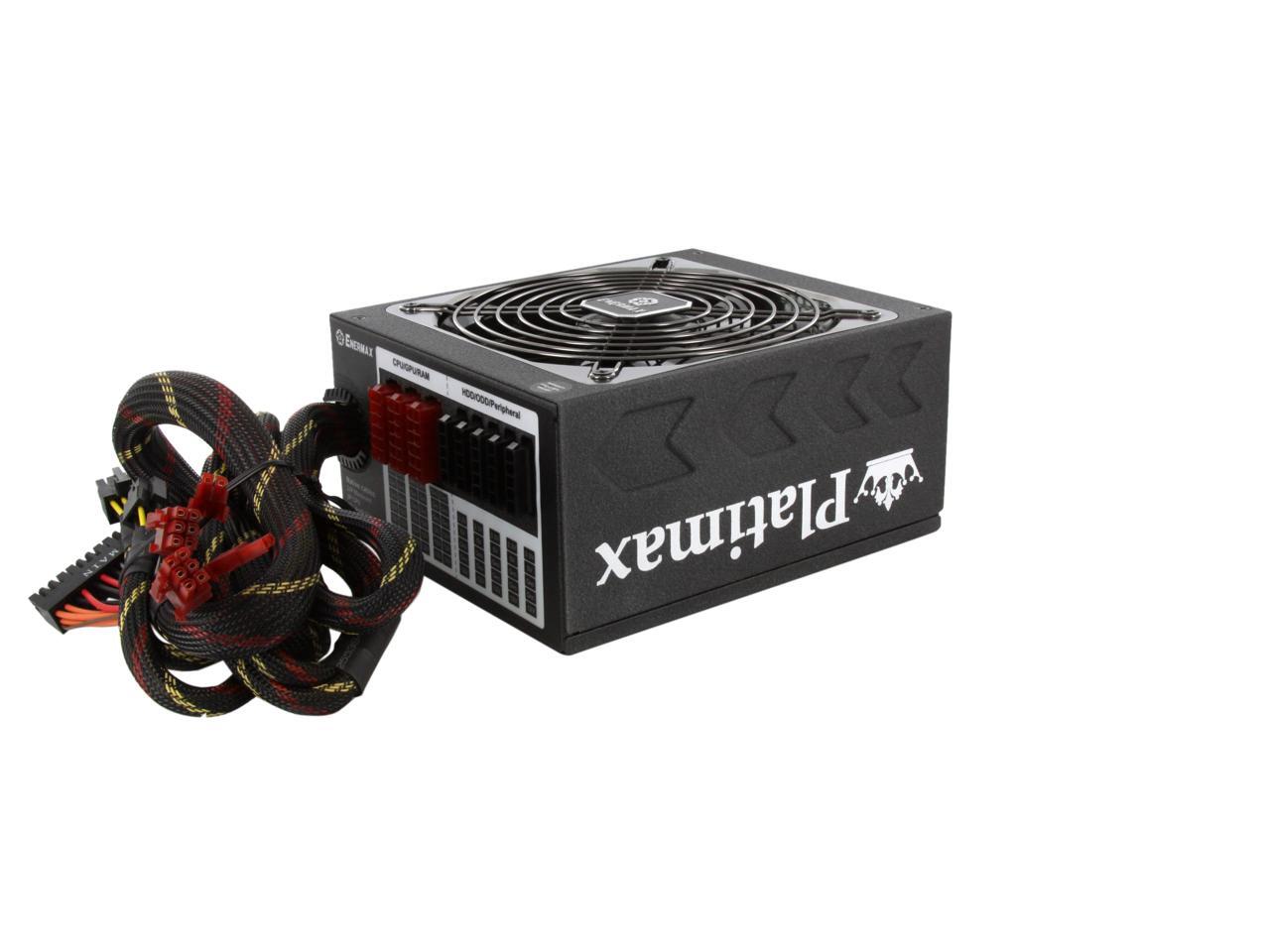

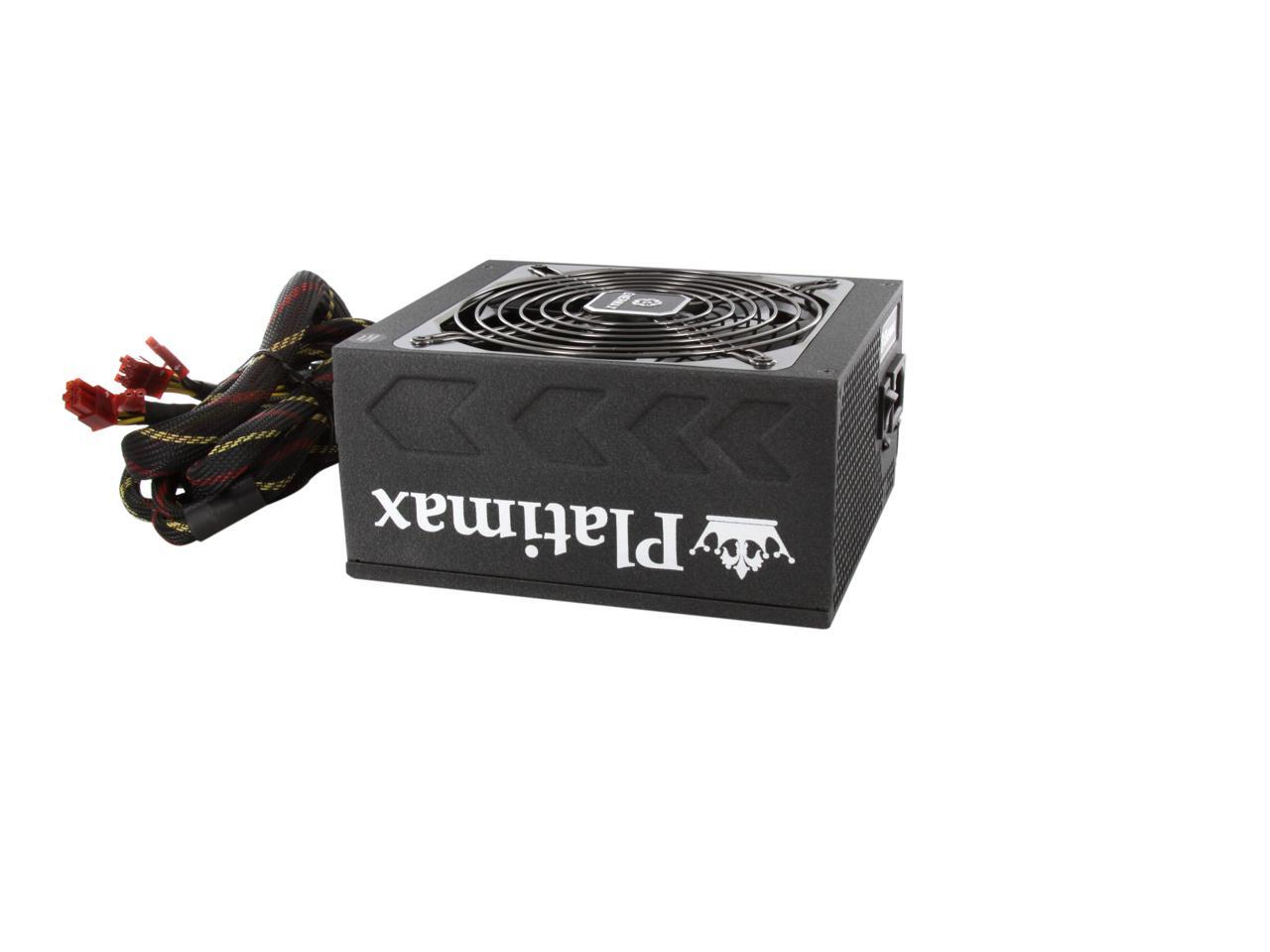

ENERMAX Platimax EPM1000EWT 1000W ATX12V / EPS12V SLI Ready CrossFire Ready 80 PLUS PLATINUM Certified Modular Active PFC Power Supply New 4th Gen CPU Certified Haswell Ready

(46) Write a Review
Check more best sellers of "Power Supplies"
Check more lowest price of "Power Supplies"
Check more deals of "Power Supplies"
OUT OF STOCK.
Newegg PC Builder
  • ATX12V / EPS12V
  • Modular
  • 80 PLUS PLATINUM Certified
  • 115 - 240 V 50/60 Hz
  • +3.3V@20A, +5V@20A, +12V@83A, -12V@0.5A, +5VSB@3A
🔥Don't forget your OS, we have Windows 11 OEM, 10 OEM, Download and USB versions available
Overview
Specs
Reviews

ENERMAX Platimax 1000W Power Supply Specifications

EPM1000EWT

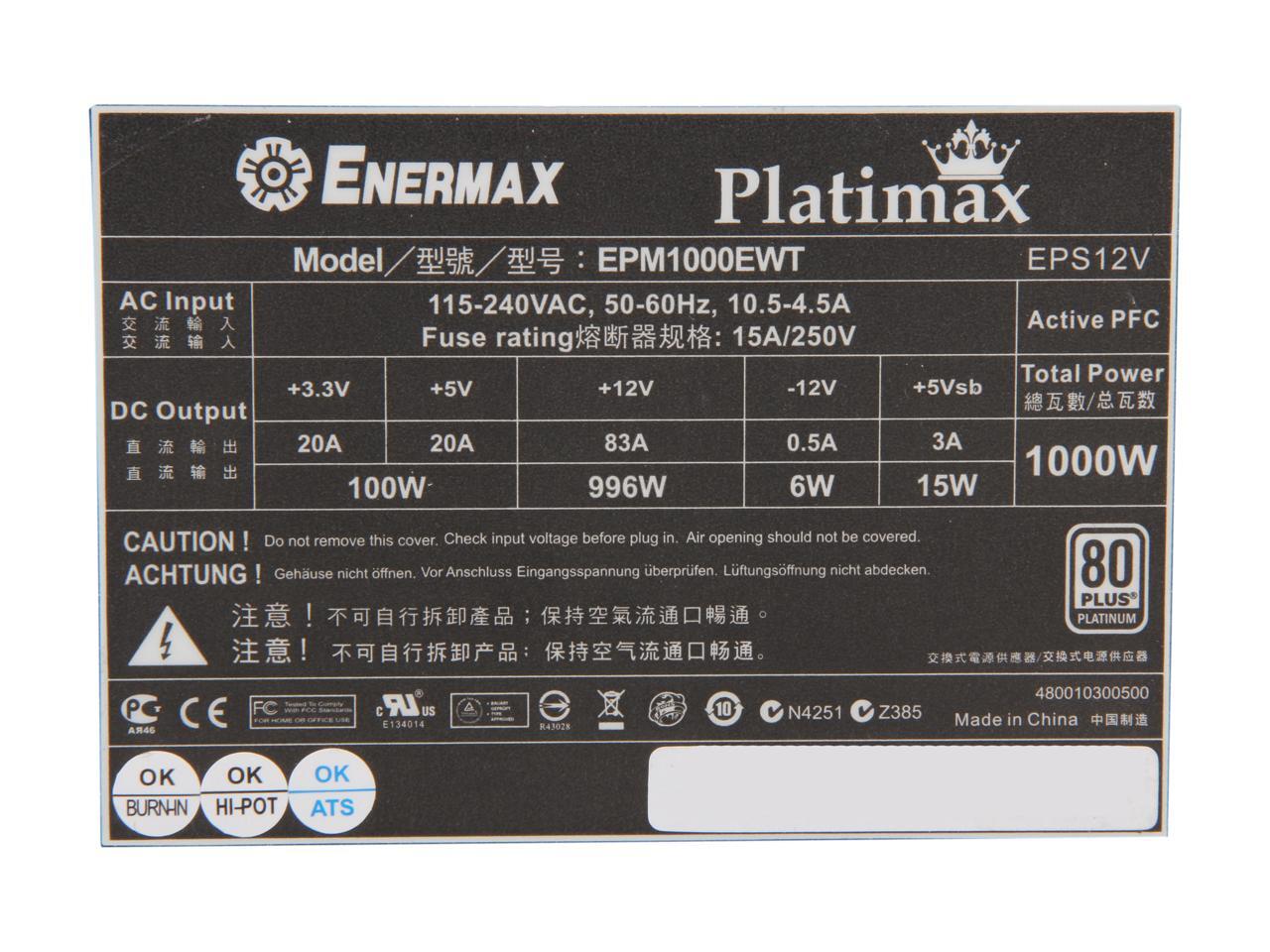

AC Input Voltage 115 ~ 240VAC, 50 ~ 60Hz
(Maximum range: 103 ~ 264VAC, 47 ~ 63Hz)
AC Input Current 10.5 ~ 4.5A
DC Output
Rated Combined
3.3V 0 ~ 20A 100W
5V 0 ~ 20A
12V 0 ~ 83A 996W
-12V 0 ~ 0.5A 6W
5Vsb 0 ~ 3A 15W
Total Power 1000W
Peak Power* 1100W
Protection Circuit
Over Current Protection DC Rail OCP Trigger Range
3.3V 30 ~ 40A
5V 30 ~ 40A
(DC)
Under Voltage / Over Voltage Protection		 DC Rail UVP Trigger Range OVP Trigger Range
3.3V 2.0 ~ 2.4V 3.9 ~ 4.5V
5V 3.3 ~ 3.7V 5.7 ~ 6.5V
12V 8.5 ~ 9.5V 13.3 ~ 14.5V
Over Power Protection Activated when output power > 120 ~ 150% of rated max load.
Over Temperature Protection Activated when PSU heat sink > 90 ~ 120°C.
Short Circuit Protection Activated when any DC rails short-circuited.
Surge & Inrush Protection Sustain 2KV surge stroke.
Sustain up to 100A inrush current @ 240VAC at cold start.
ENVIRONMENT
Temperature Operation Ambient: 32 - 122°F (0 - 50°C)
Storage Ambient: -40 - 158°F (-40 - 70°C)
Humidity Operation: to 85% relative humidity, non-condensing at 77°F (25°C)
Storage: to 95% relative humidity, non-condensing at 122°F (50°C)
OTHERS
MTBF > 100,000 hours at 70% of full rated load, 230VAC/50Hz, 77°F (25°C)
(MIL-HDBK-217F standard)
Dimensions (W x H x D) 6 x 3.3 x 6.9in. (150 x 86 x 175mm)
Weight 5lbs (2.25kg) (without modular cables) ± 1.76oz (50g)
Safety UL/cUL (Level 6), TUV, GOST, CB, BSMI
EMC CE, FCC, KCC


ENERMAX Platimax 1000W Power Supply Features

89PLUS Ready! World's leading full modular cables PSU series with 89 - 94% efficiency @ 20 - 100% load. Compliant with 80 PLUS Platinum standard.
ErP Lot 6 Ready

 Help system to meet ErP Lot 6 2010 (<1W at standby mode) with high efficiency +5Vsb circuitry. (With ErP Lot 6 enabled motherboard.)
High Compatibility Ready! Single rail +12V output highly compatible with various types of high-end graphics card at full-load operation.
World Ready! 100 ~ 240VAC in with automatic adjustment and active PFC for global usage.
24/7 @ 122°F (50°C) Ready! Non-Stop industrial class performance at 50°C ambient.
C6 & Hybrid Ready!
 Maximum compatibility with C6 & hybrid states of current and future CPU & GPU generations by ZERO LOAD design.
DXXI Ready!
100% 6 + 2-Pin (8P) PCI-E connector to support new generation DXXI graphics cards.
Future Ready! 12P modular design for possible upcoming new CPU and GPU 10P and/or 12 connectors.
Server Ready! SSI PSDG support for latest Intel® Core™ Extreme / i7, Xeon™ and AMD® Opteron™ and SLI® or CrossFireX™ and downward compatible with EPS12V v2.92, v2.8.

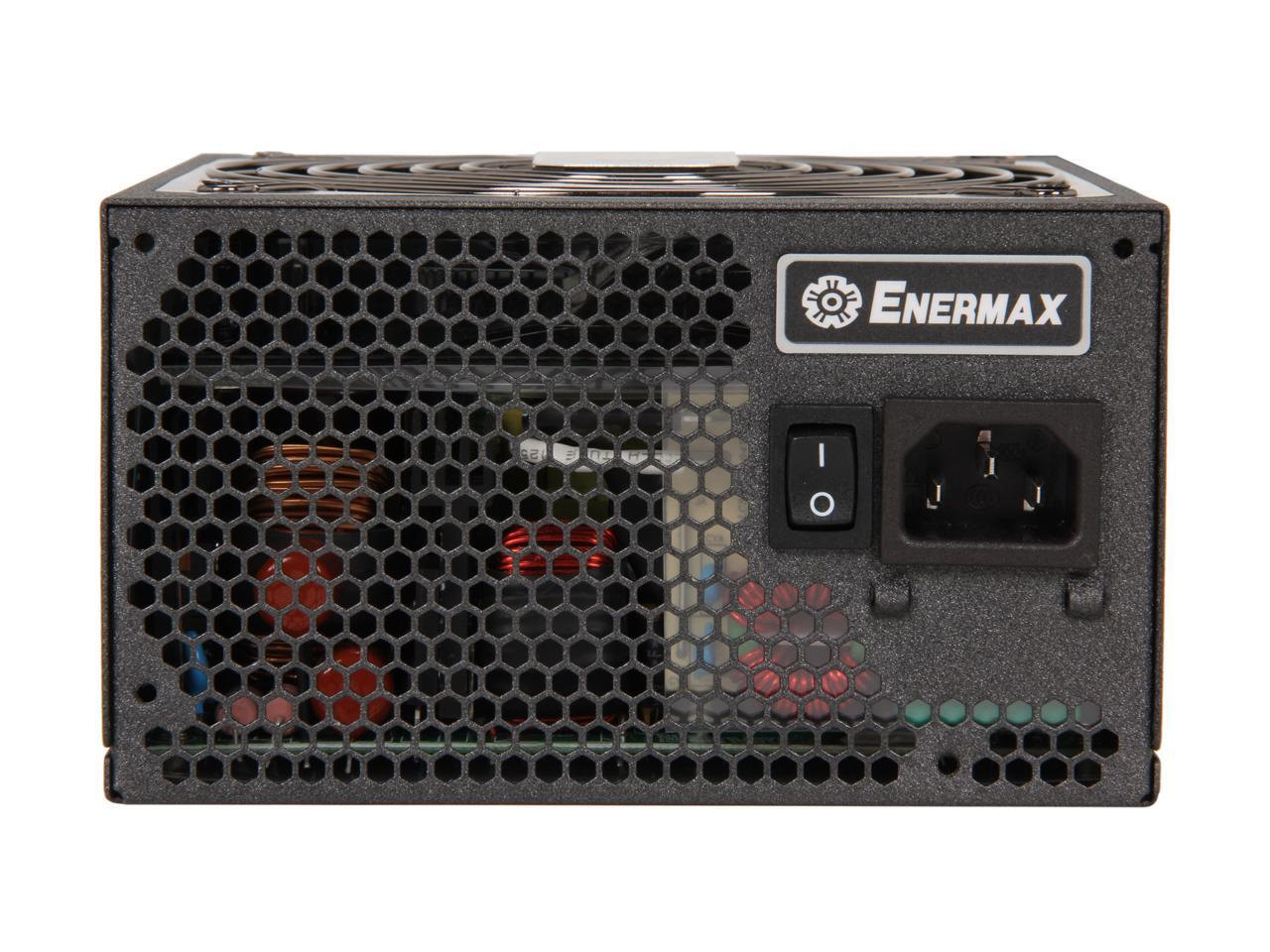

CordGuard CordGuard Fixing the AC cord tightly to avoid accidental shutdowns of your PC.
HeatGuard Keeping PSU fan running for 30 - 60 seconds after shut down to dissipate the remaining system heat and prolonging system lifetime.
SafeGuard
Advanced multiple protection circuitries of OCP, OVP, DC UVP, AC UVP, OPP, OTP , SCP & SIP protects your system.
SpeedGuard
The world's leading patented fan control starting with unmatched 600RPM to a maximum of 1500RPM for optimal cooling and minimum noise.
Twister Fan Inside! 13.9cm Twister-bearing fan with low noise and long lifetime. (100,000 hours MTBF, Patented Twister Bearing Technology)
100% 221°F (105°C) Japanese Electrolytic Capacitors Highest components standards for maximum durability and stability
Dynamic Hybrid Transformer Technology Technological breakthrough topology using a staged dynamic transformer array for extremely high efficiency with the most durable and stable output at any load.

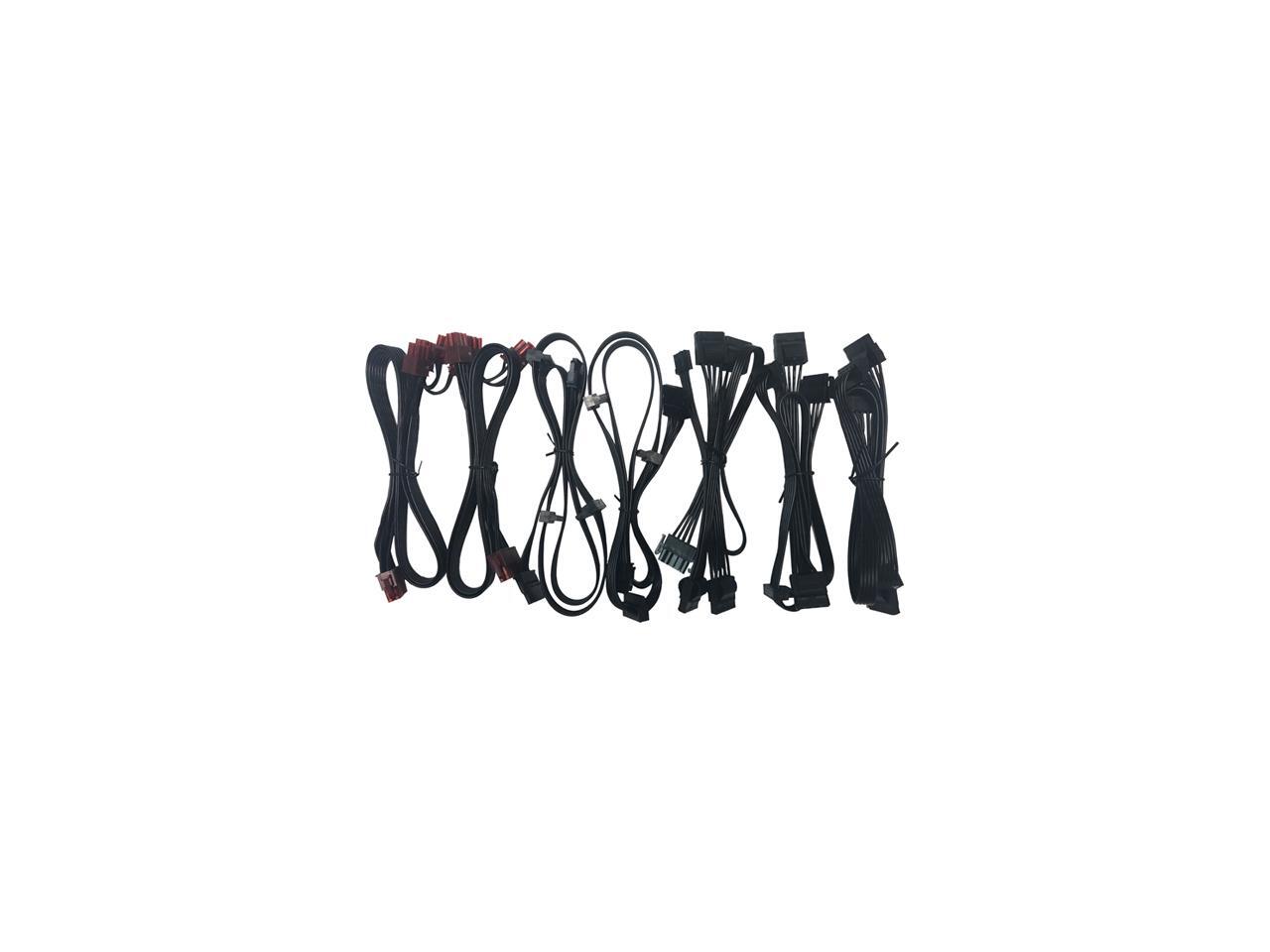

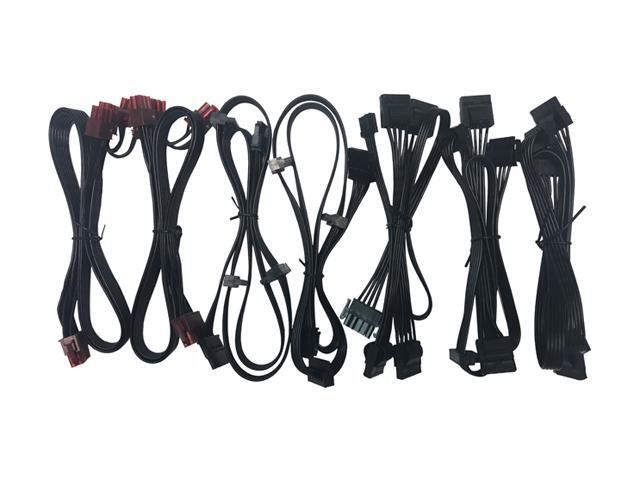

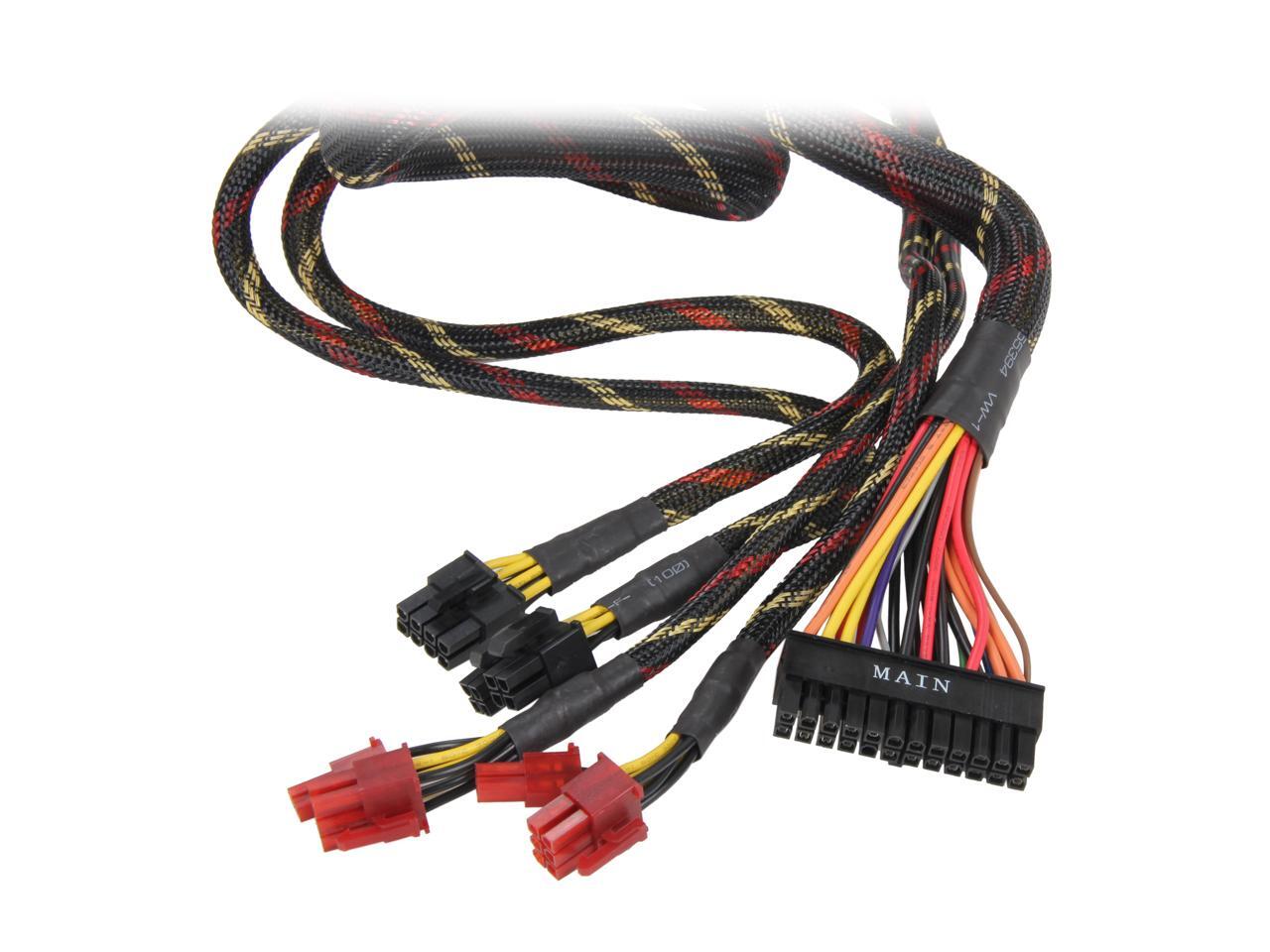

Cables & Connectors

EPM1000EWT

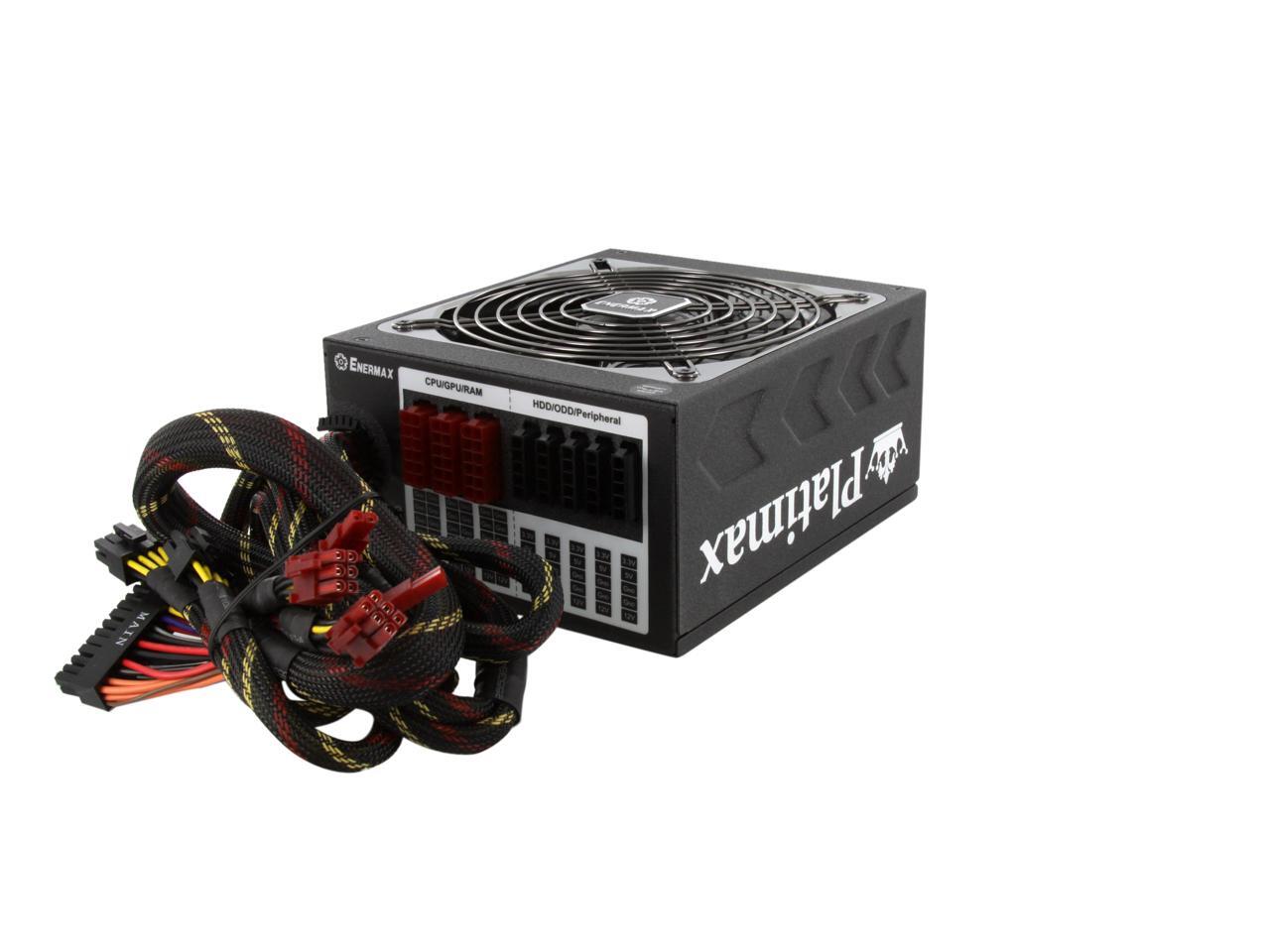

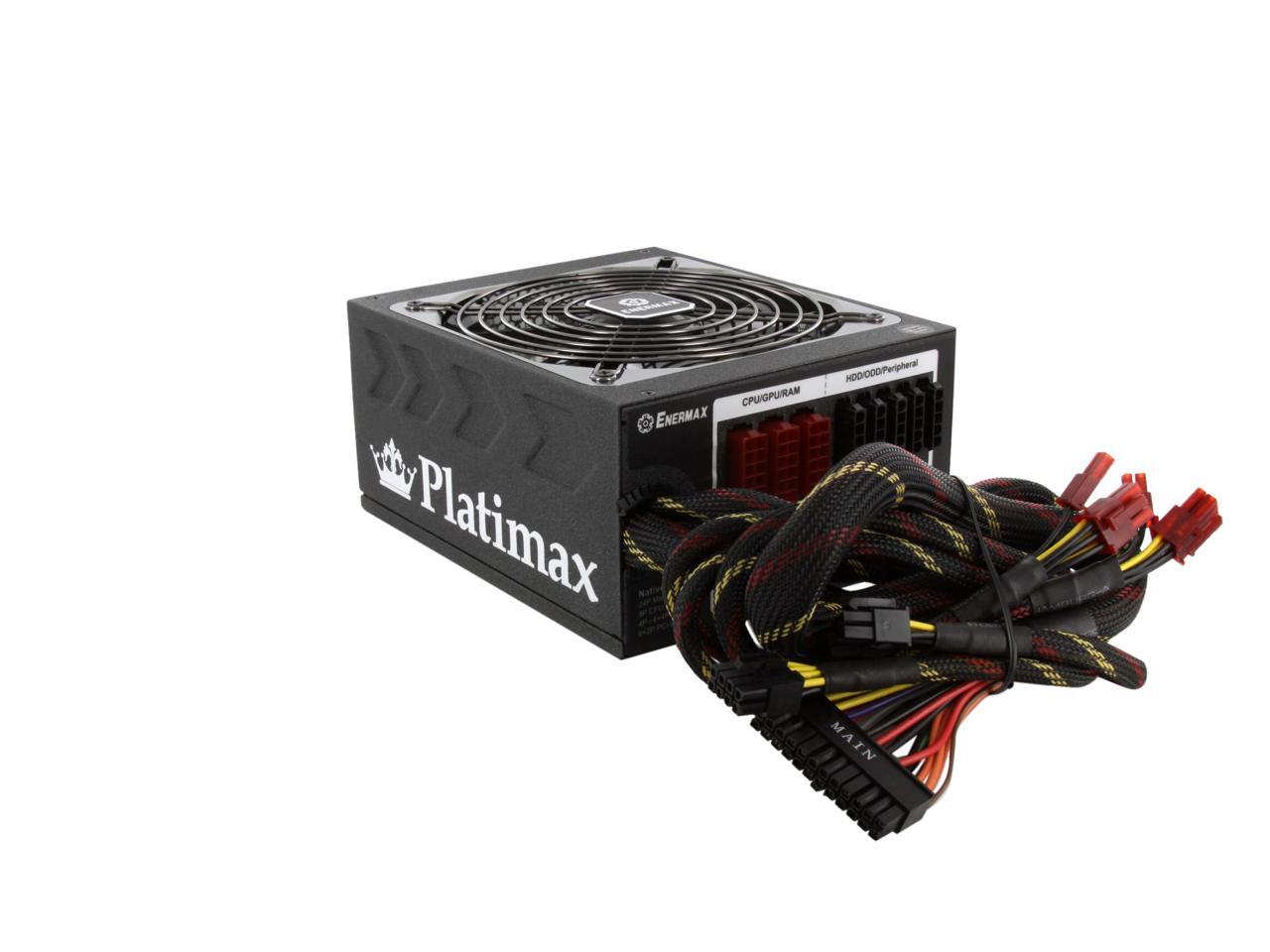

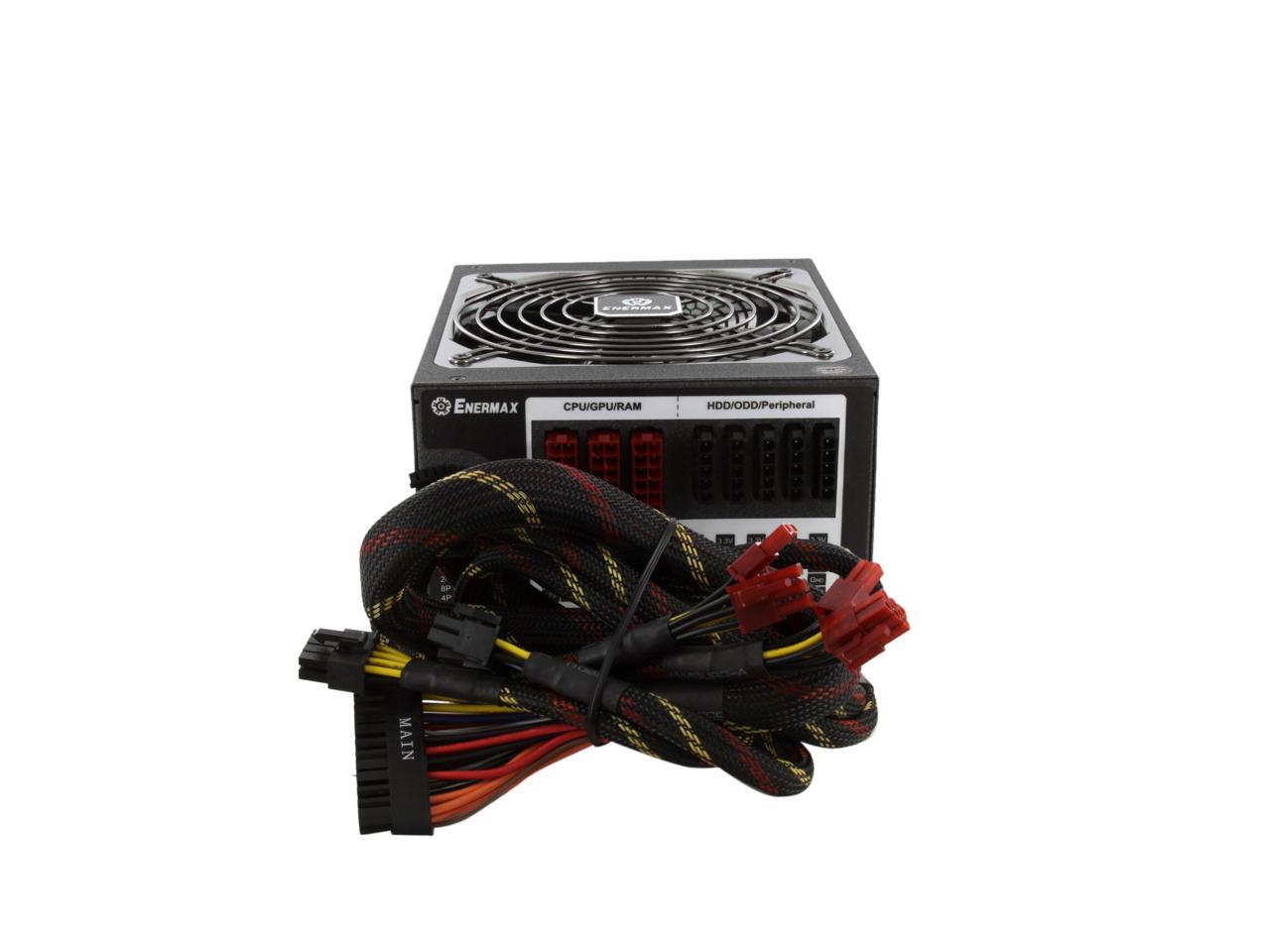

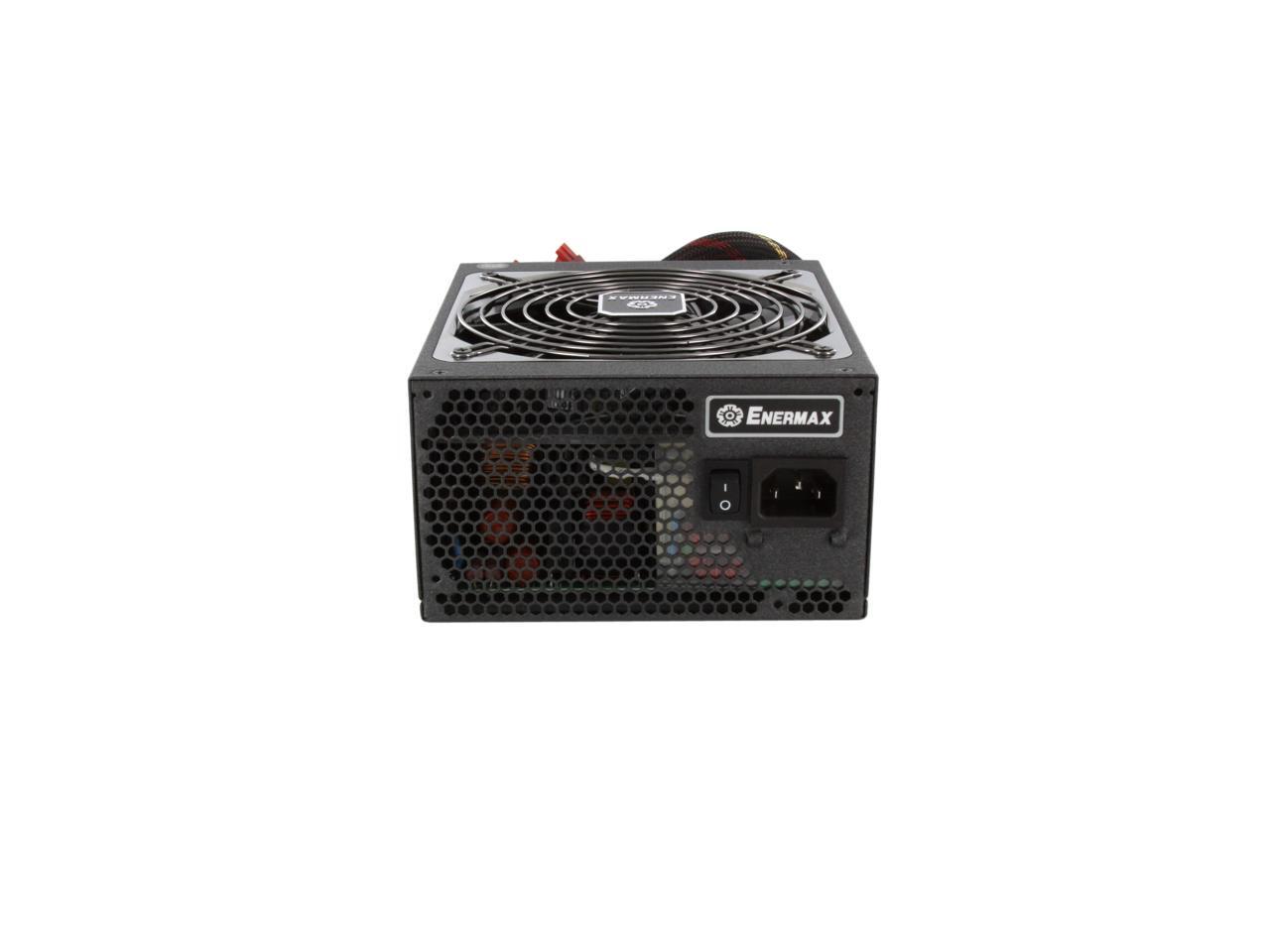

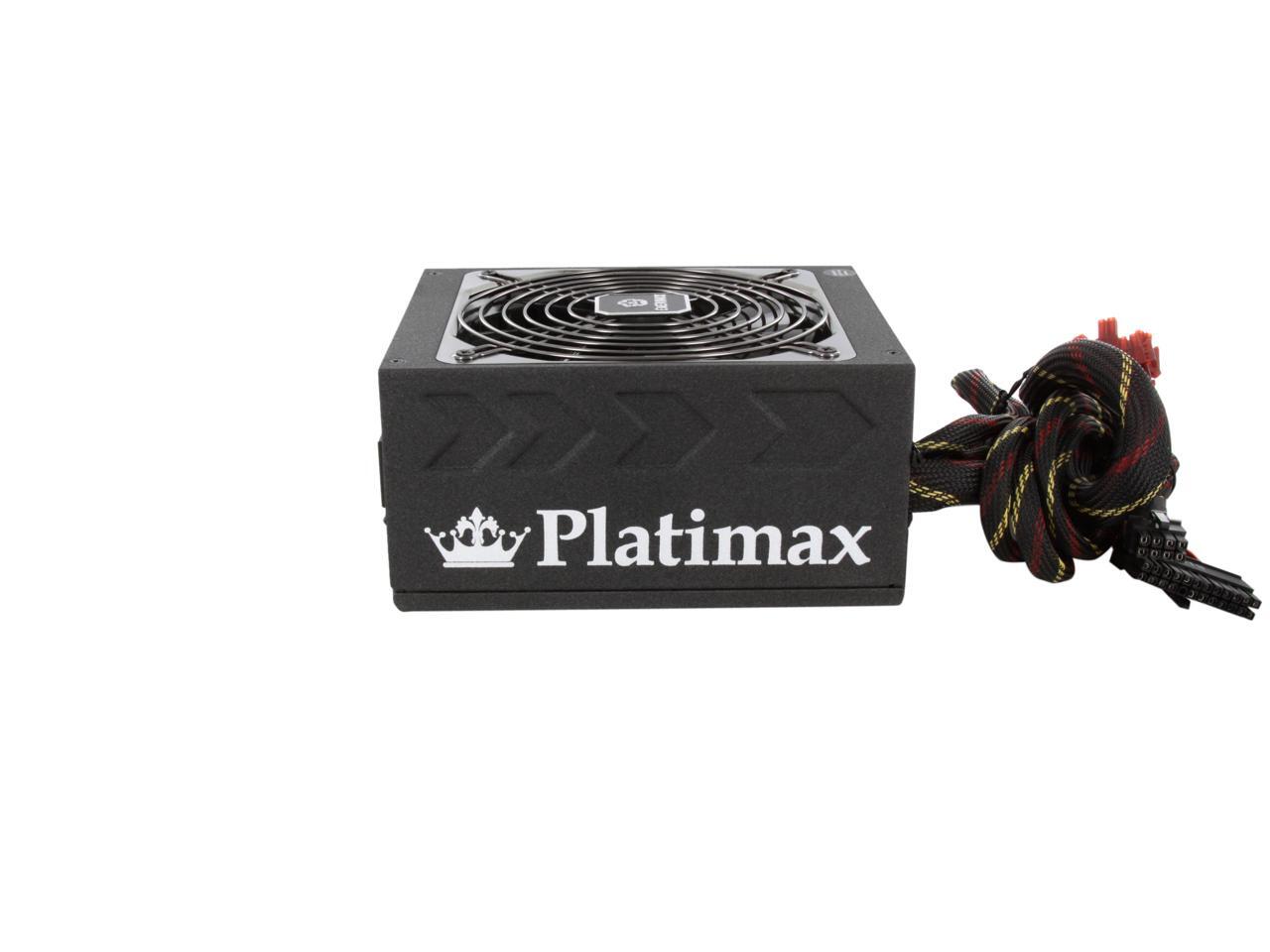

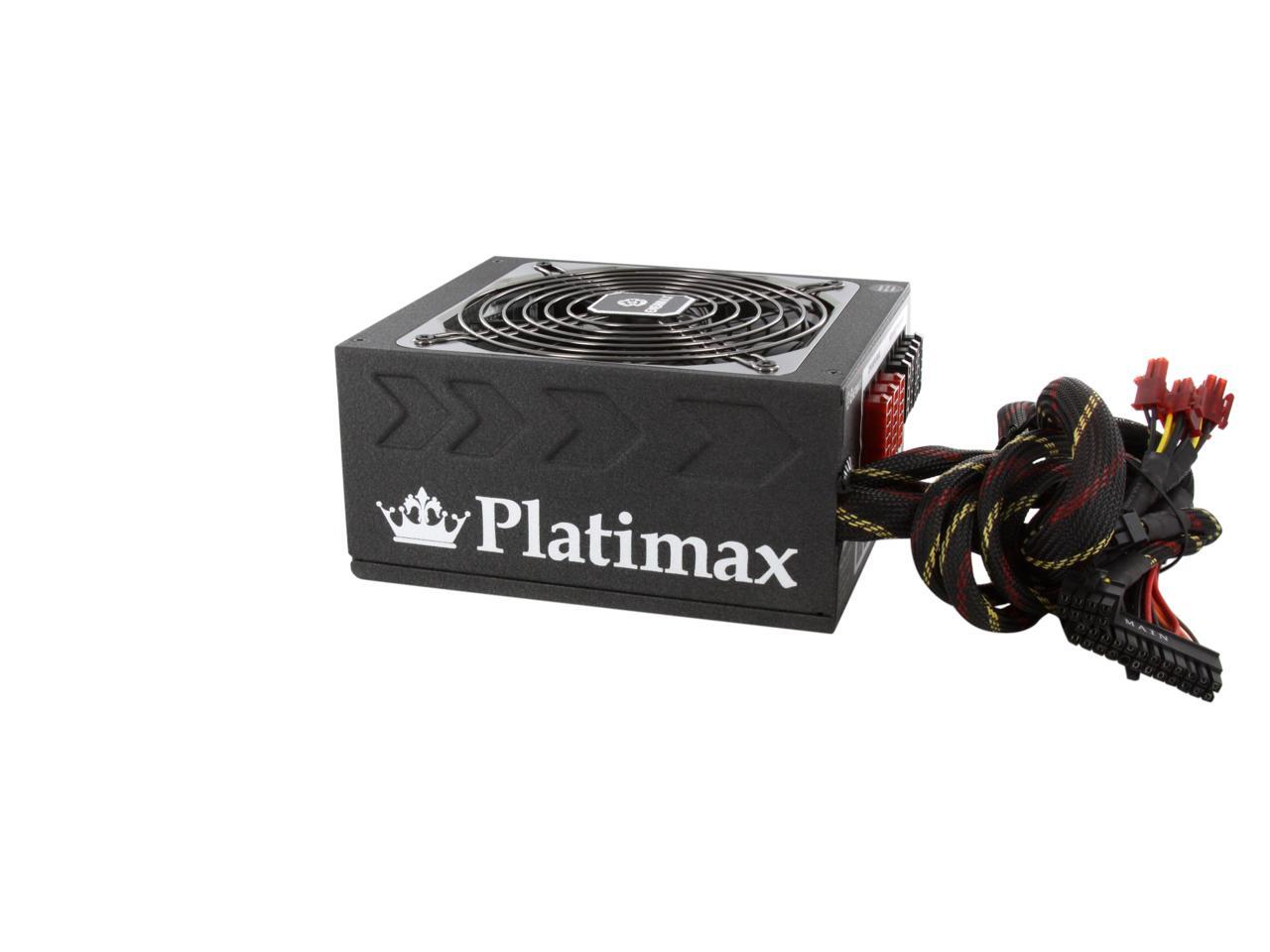

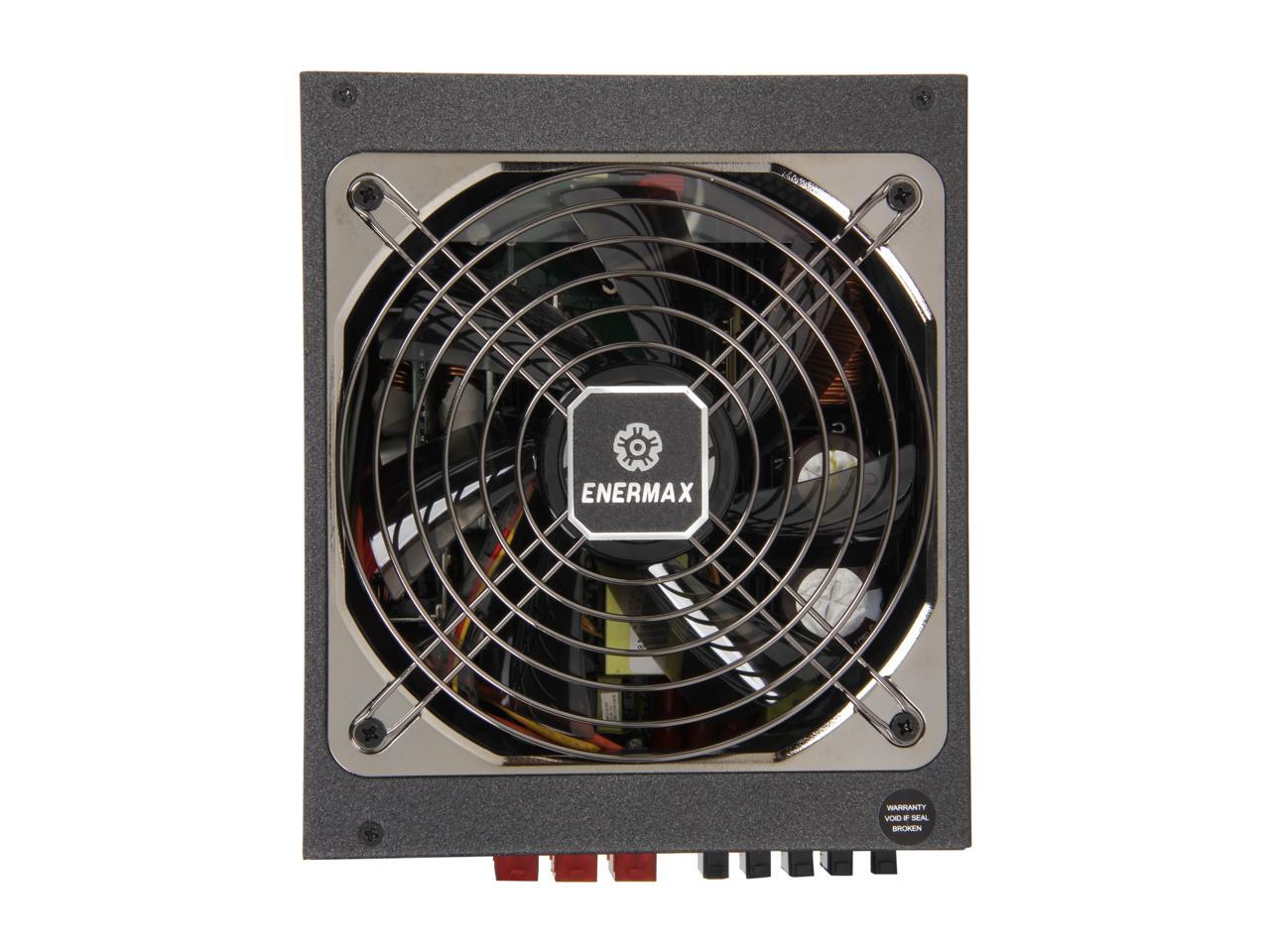

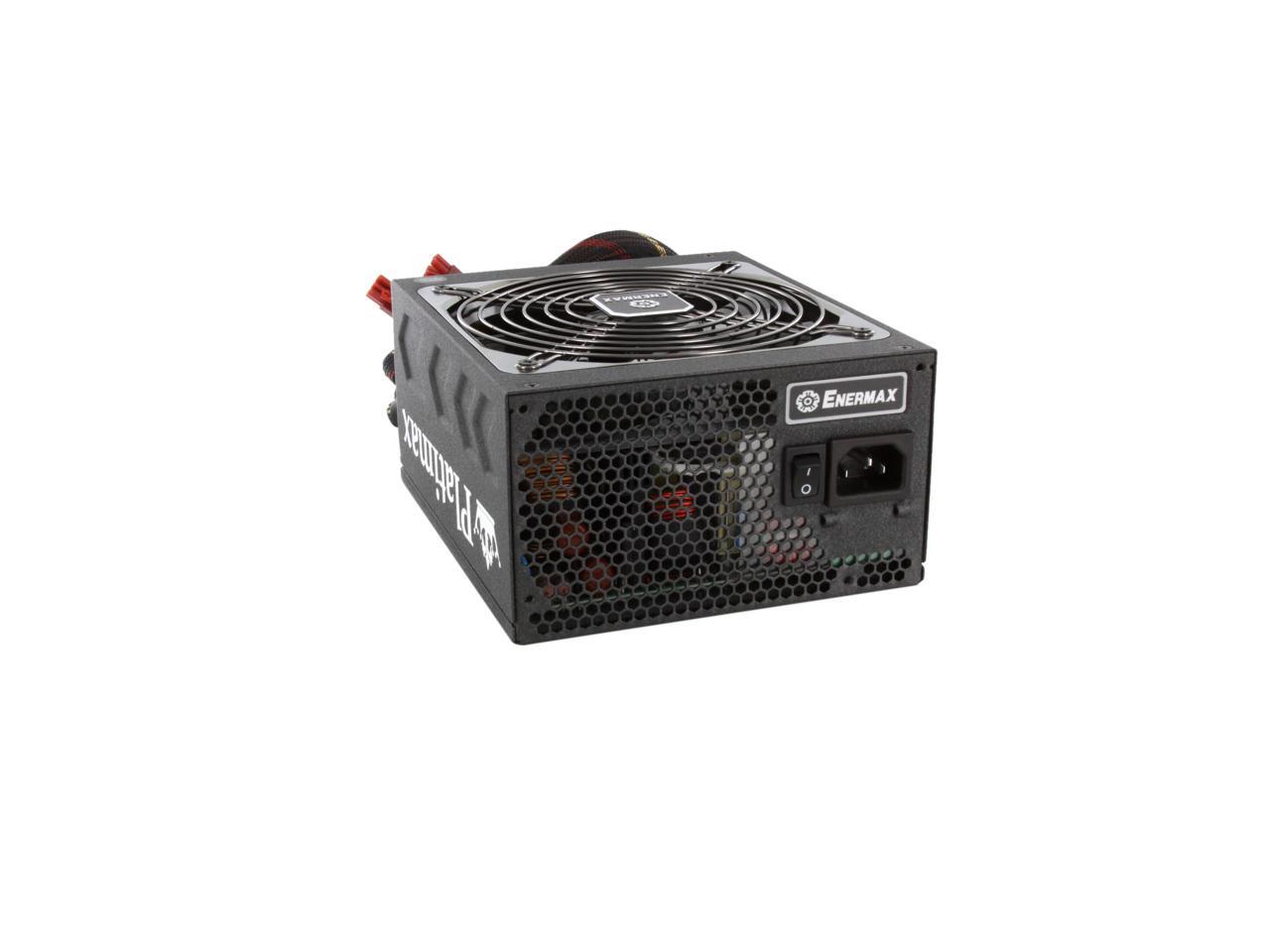

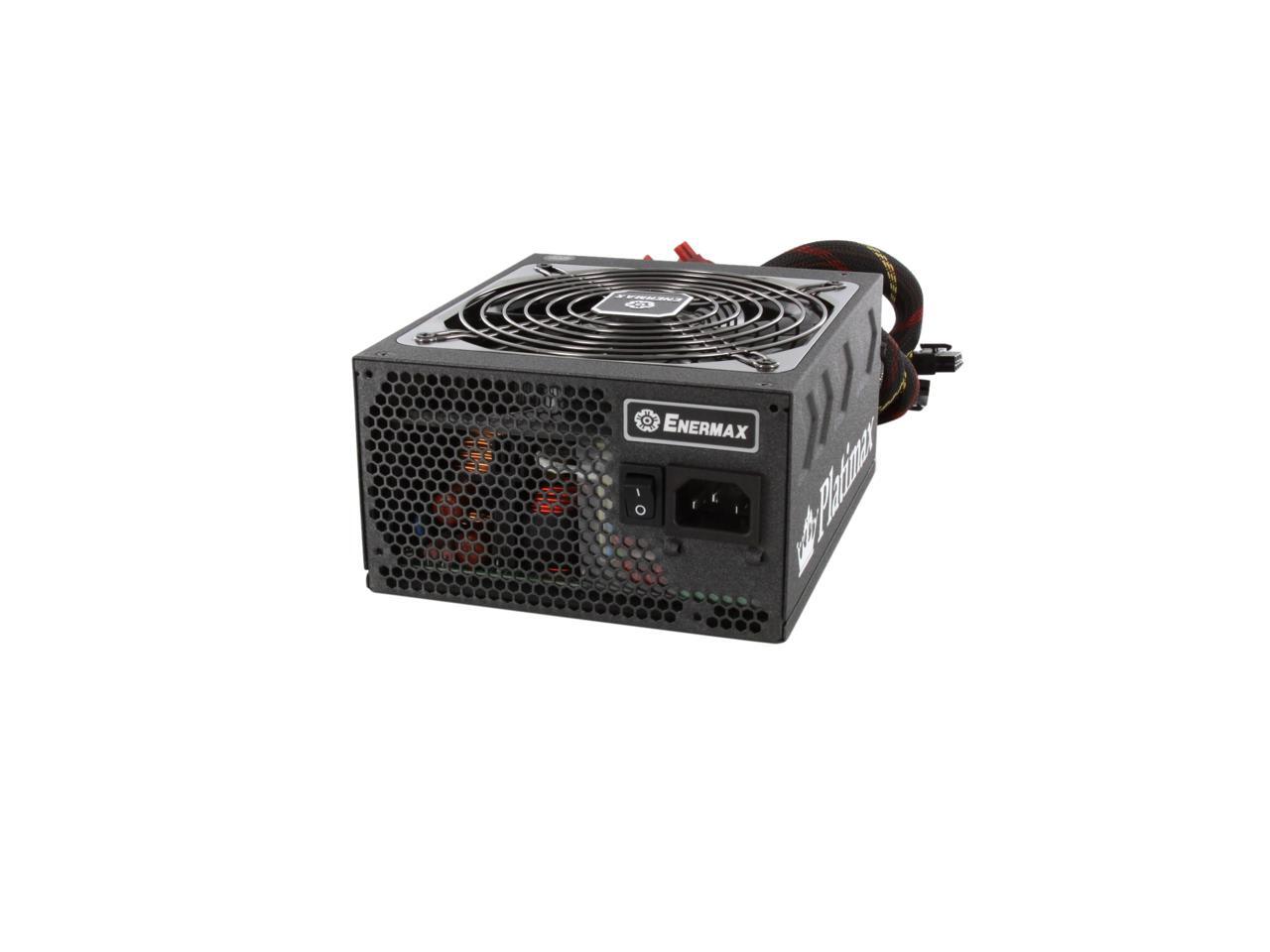

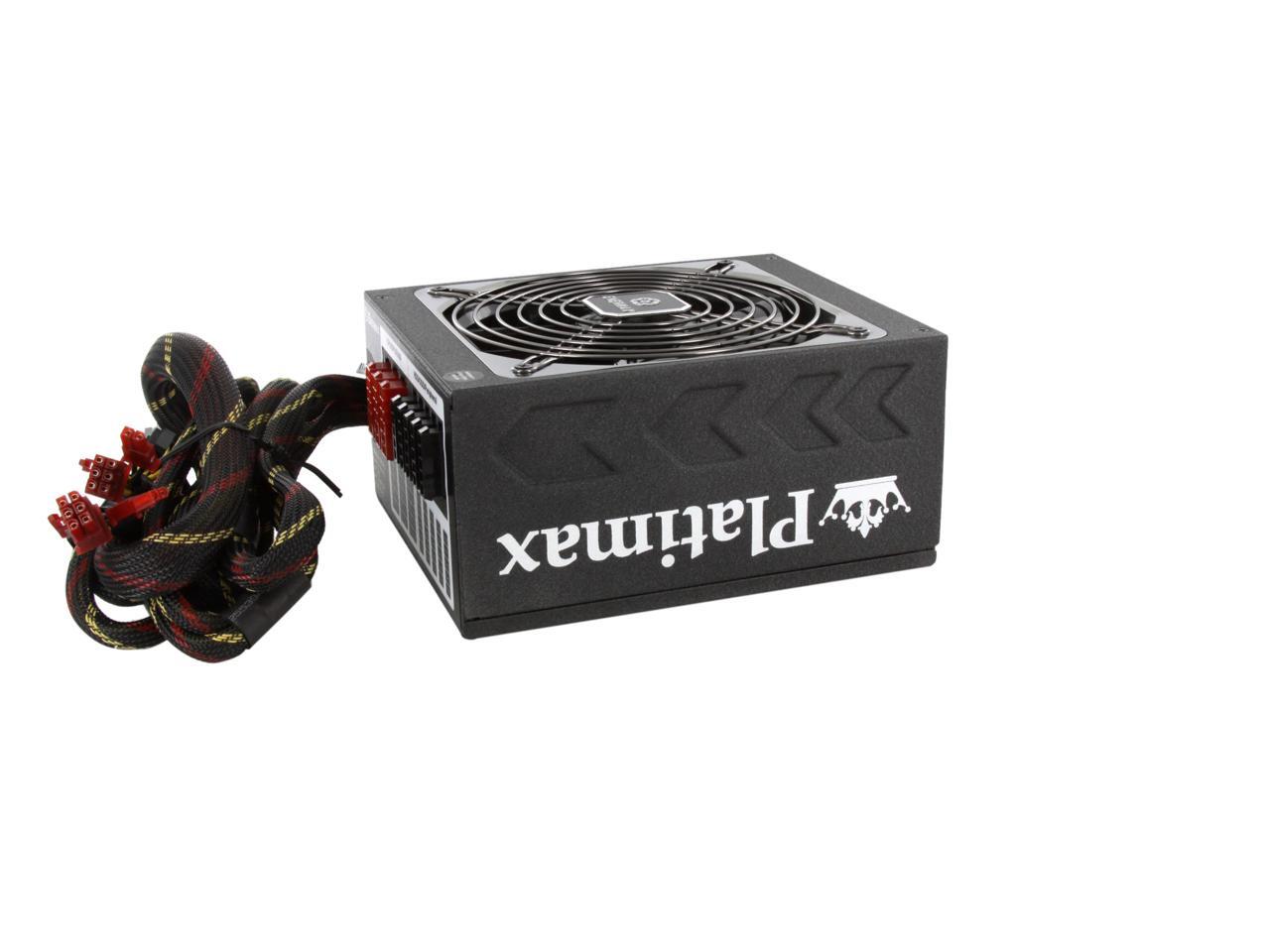

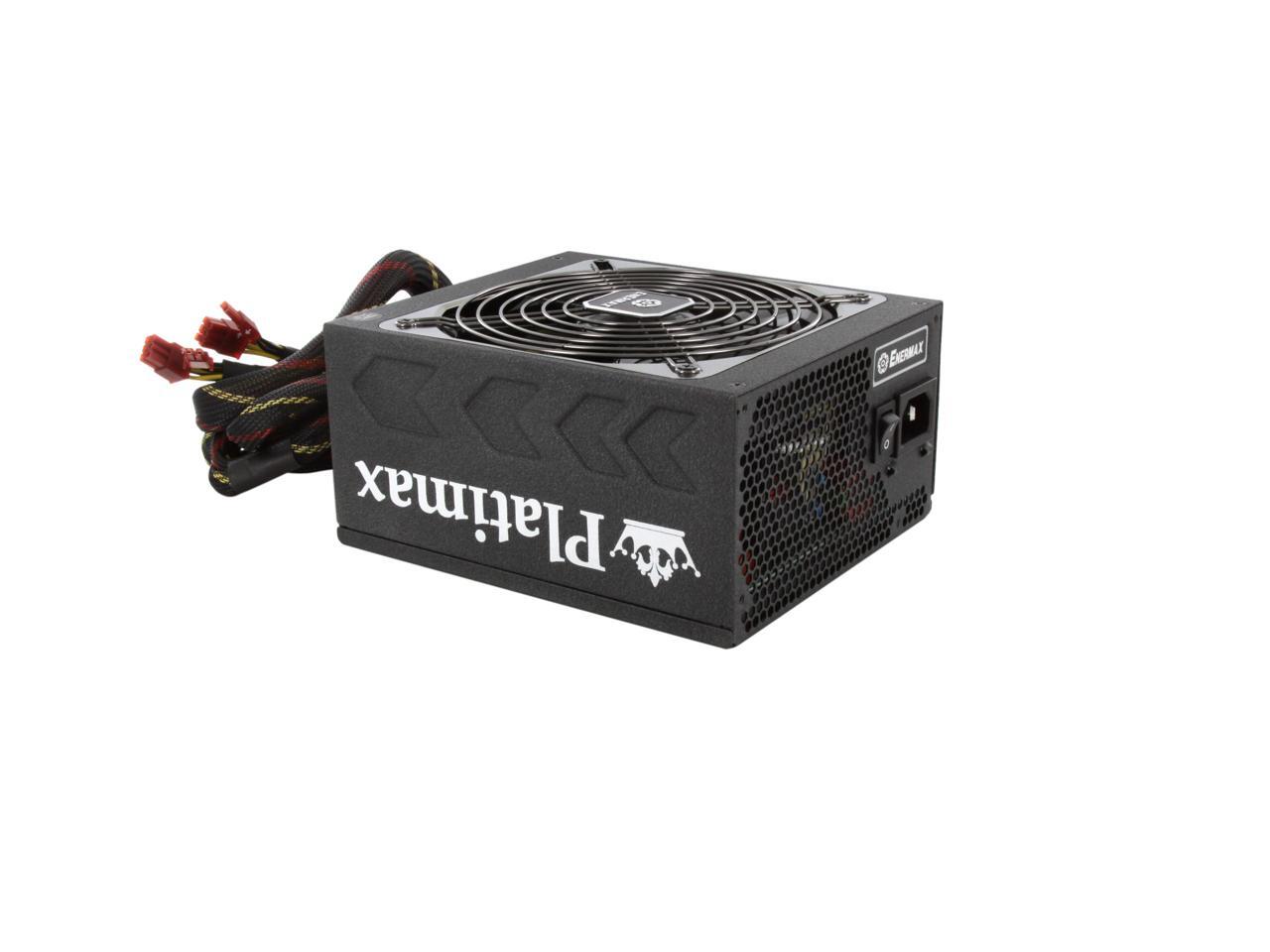

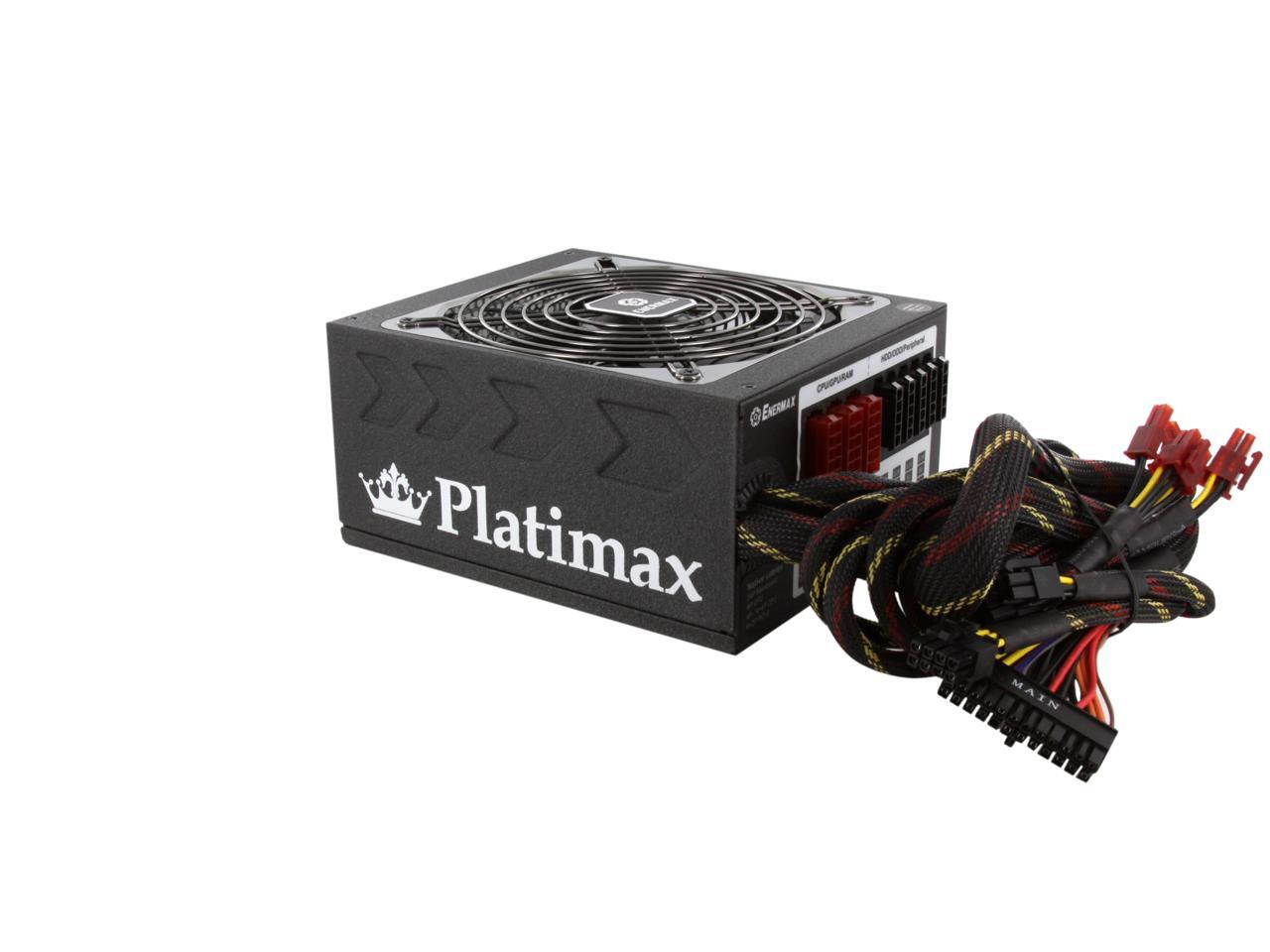

Gallery

EPM1000EWTEPM1000EWTEPM1000EWT

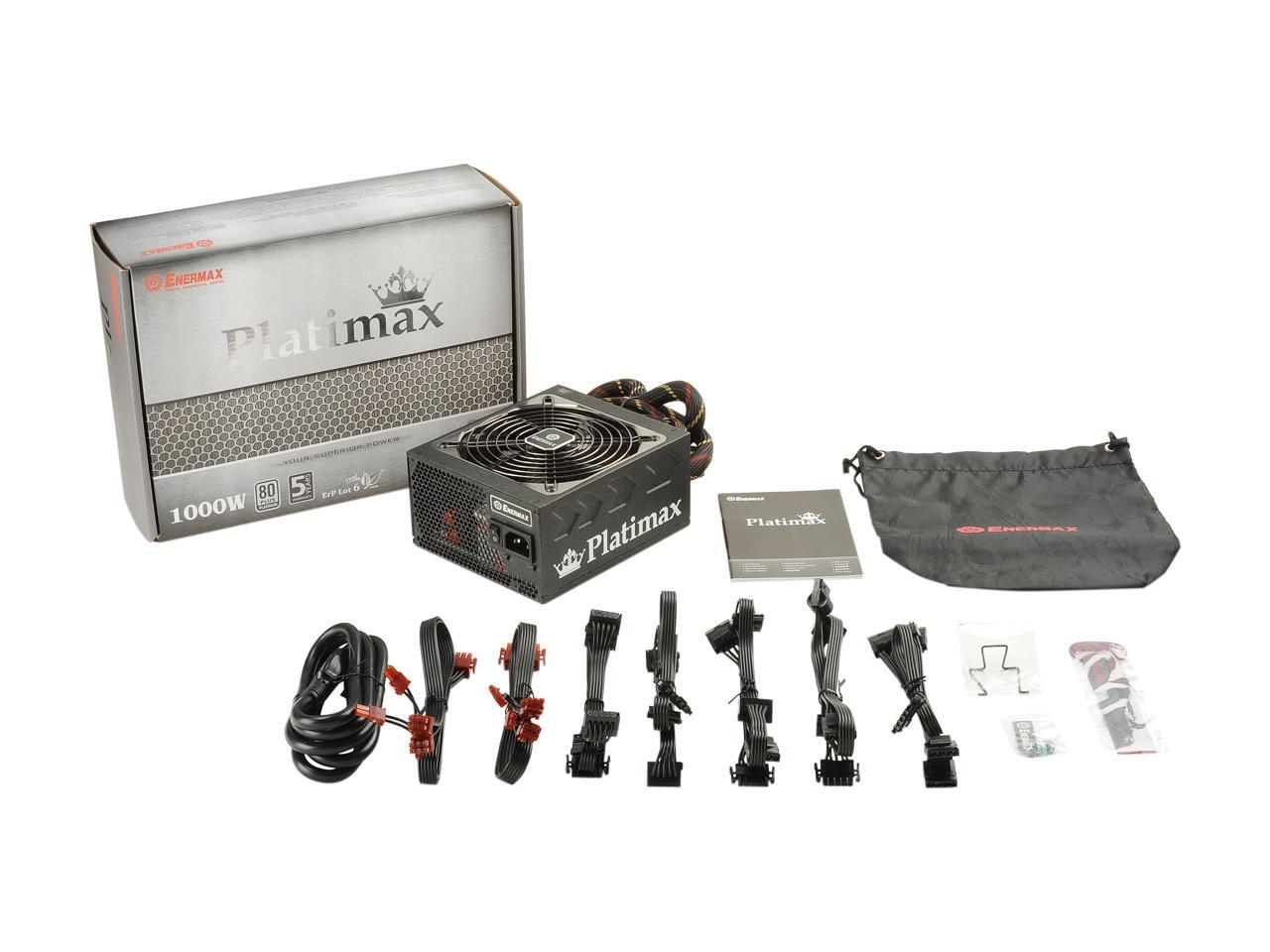

What's in the Box

EPM1000EWT

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

  • Limited Warranty period (parts): 5 years
  • Limited Warranty period (labor): 5 years
