What is the actual size of the discs? Nowhere in the specs does it state this?

They aren't very big. They are mounted now but if I were to guess - 8 inch diameter.

Does this work with trees or leaves in the line of sight; we only need 400 ft of range?

I use mine over a distance of about 300 meters to carry the signals of 4 x 4k security cameras plus a video intercom. Since the link was installed a bush (shefalea) has grown up to block the clear line of sight. I have refrained from trimming the bush since there is no indication of signal degradation. I can't say whether or not a forest or numerous trees would affect the signal. Hope this helps.

What type of lightning protection is used with these devices?

We used shielded RJ45 connectors, and on the POE Injector there is a screw to ground the Injector as well. If you're really paranoid I suppose you could get a PoE surge protector, however I do not have any experience with that.

How many meter radius range?

These do not provide a radius of coverage, they are directional, like a flashlight beam, not a porchlight.

Out of stock

This item is currently out of stock and it may or may not be restocked.

Out of Stock

Sold by Newegg

Shipped by Newegg

Add to Wish List

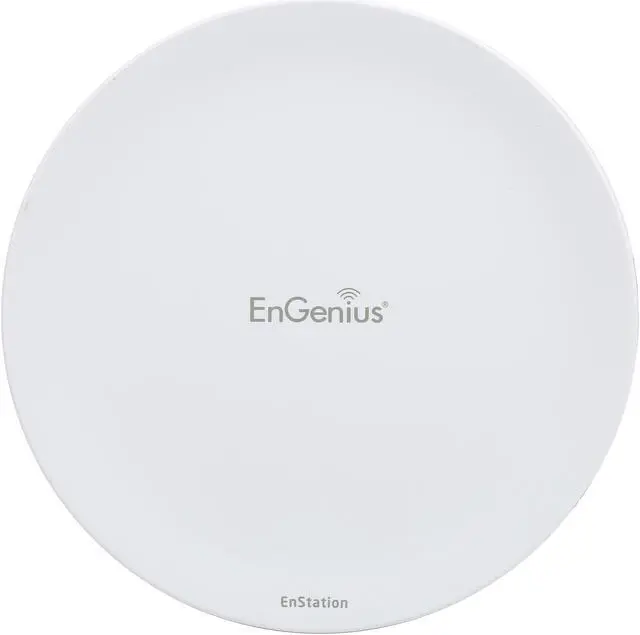

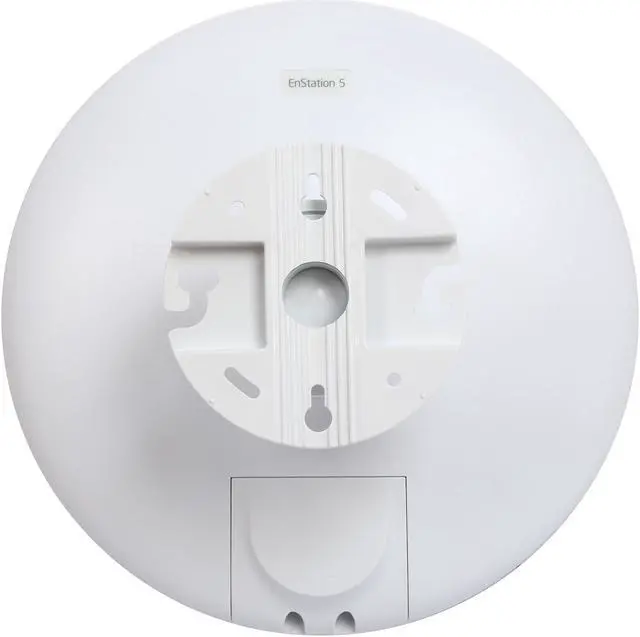

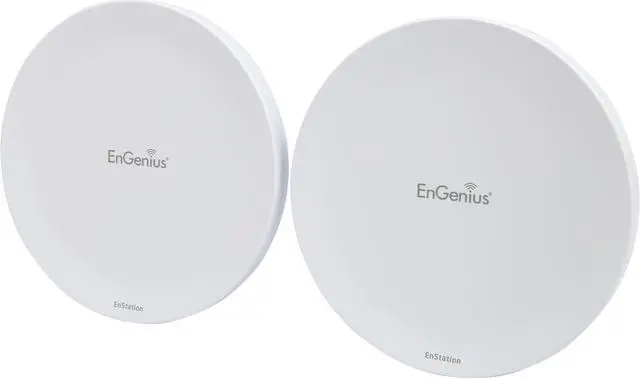

Main image of EnGenius N-EnStation5 Kit N300 Long-Range Wireless 5 GHz Outdoor Access Point/Bridge Kit

Alt view image 2 of 7 - EnGenius N-EnStation5 Kit N300 Long-Range Wireless 5 GHz Outdoor Access Point/Bridge Kit

Alt view image 3 of 7 - EnGenius N-EnStation5 Kit N300 Long-Range Wireless 5 GHz Outdoor Access Point/Bridge Kit

Alt view image 4 of 7 - EnGenius N-EnStation5 Kit N300 Long-Range Wireless 5 GHz Outdoor Access Point/Bridge Kit

Alt view image 5 of 7 - EnGenius N-EnStation5 Kit N300 Long-Range Wireless 5 GHz Outdoor Access Point/Bridge Kit

Alt view image 6 of 7 - EnGenius N-EnStation5 Kit N300 Long-Range Wireless 5 GHz Outdoor Access Point/Bridge Kit

Alt view image 7 of 7 - EnGenius N-EnStation5 Kit N300 Long-Range Wireless 5 GHz Outdoor Access Point/Bridge Kit

Shop All EnGenius Technologies Products

EnGenius N-EnStation5 Kit N300 Long-Range Wireless 5 GHz Outdoor Access Point/Bridge Kit

(5) Write a Review

High-gain 19 dBi antenna
Distance up to 5 miles point to point
Wireless speeds up to 300Mbps

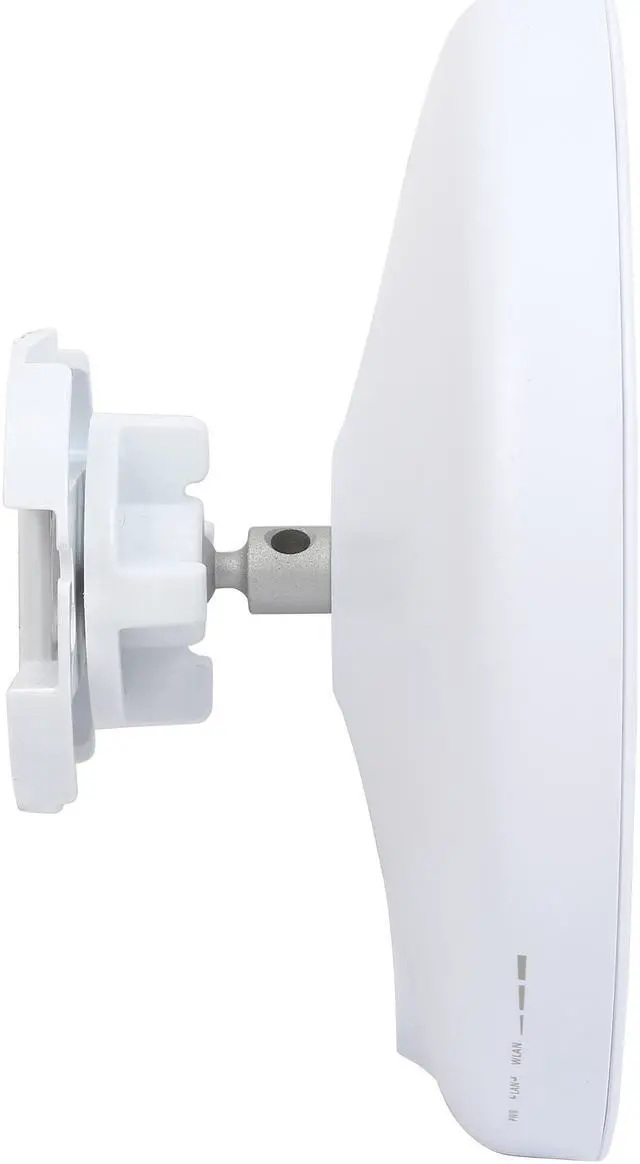

360° 3-Axis pivoting arm locks
Power transmit up to 400mW
IP55-rated waterproof & dustproof casing

Overview

Specs

Reviews (5)

See all Q & A

Any questions? Ask Celeste^SM will help you find out quickly.

Try me now

2PK LONG RANGE WIRELESS 5GHZ

Model
Brand	EnGenius
Model	N-EnStation5 Kit

Details
Standards	IEEE 802.11a/n Radio I: 11a/n: 5.180-5.825 GHz Data Rate: Up to 300 Mbps on the 5 GHz band
Wireless Data Rates	Up to 300Mbps
Security	WEP Encryption: 64/128/152 bit WPA/WPA2 Enterprise (WPA-EAP using AES) Hide SSID in Beacons MAC Address Filtering Filter up to 50 MAC addresses Wireless STA (Client) Connection List Reports various information in a timely manner as required by the administrator 802.1x Authenticator
Frequency Band	5.0 GHz
Antenna	Internal High-Gain Directional Antenna: 5 GHz (P1) Average Antenna Gain: 19 dBi Polarization: Linear Azimuth Beam Width: 30° Elevation Beam-Width: 18° VSWR: 1:2.0 5 GHz (P2) Peak Antenna Gain: 19 dBi Polarization: Linear Horizontal Beam Width: 18° Elevation Beam-Width: 30° VSWR: 1:2.0
Transmitted Power	Up to 26 dBm Up to 400 mW Max Power is limited by regulatory power

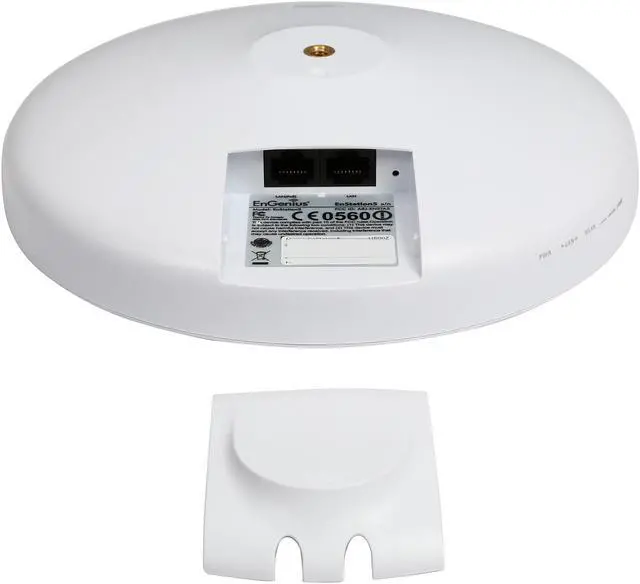

Interface	Two (2) 10/100 BASE-T Ethernet Ports One (1) Port supports 24V Proprietary PoE Input One (1) Port supports extension of an Internet signal
Buttons	Reset Button
WAN Ports	2 x 10/100M
Power Supply	Power Source (PoE Injector): 24V/.6A Proprietary Compliant Source Active Ethernet (Power over Ethernet, PoE) Power Consumption: 7 W

Environmental
Temperature	Operating: -4 degree F to 140 degree F (-20 degree C to 60 degree C) Storage: -22 degree F to 176 degree F (-30 degree C to 80 degree C)
Humidity	Operating: 90% or less Storage: 90% or less

Features
Features	Up to 300 Mbps, 2.4GHz IEEE 802.11b/g/n Compliant 13 dBi Dual Polarization Directional High-Gain Antenna with Narrow Beam 24V Proprietary PoE Support Multiple Operation Modes Supported: Access Point, Client Bridge, or WDS Bridge Dynamic Channel Optimization Can be monitored after deployment with EnGenius EZ Controller software for Windows (Free online download) SNMP V1/V2c/V3 and MIB I/II Supported 2 Stream (2x2) Wi-Fi Scheduler CLI Support VLAN Pass-Through SSID-to-VLAN mapping Mac Address Filtering Industry Standard Security Encryption IP55-Rated Waterproof Housing

Packaging

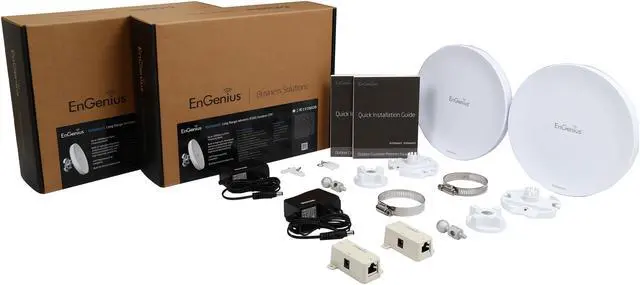

Package Contents	Two (2) EnStation5, Wireless 5GHz Outdoor AP/Bridge Two (2) PoE Injector (EPE-1212) with Power Adapters (24V/.6A) Two (2) Pole/Wall Mounting Kits Two (2) sMounting Screw Sets Quick Installation Guide

Additional Information
First Listed on Newegg	December 09, 2014

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

Limited Warranty period (parts): 1 year
Limited Warranty period (labor): 1 year
Read full details

Return Policies

Return for refund within: 30 days
Return for replacement within: 30 days
This item is covered by Newegg.com's 30-Day Return Policy.
Read full return policy for details.

Manufacturer Contact Info

Manufacturer Product Page
Manufacturer Website
Support Phone: 1-888-735-7888
Support Website
