| Brand | EPoX |
|---|---|

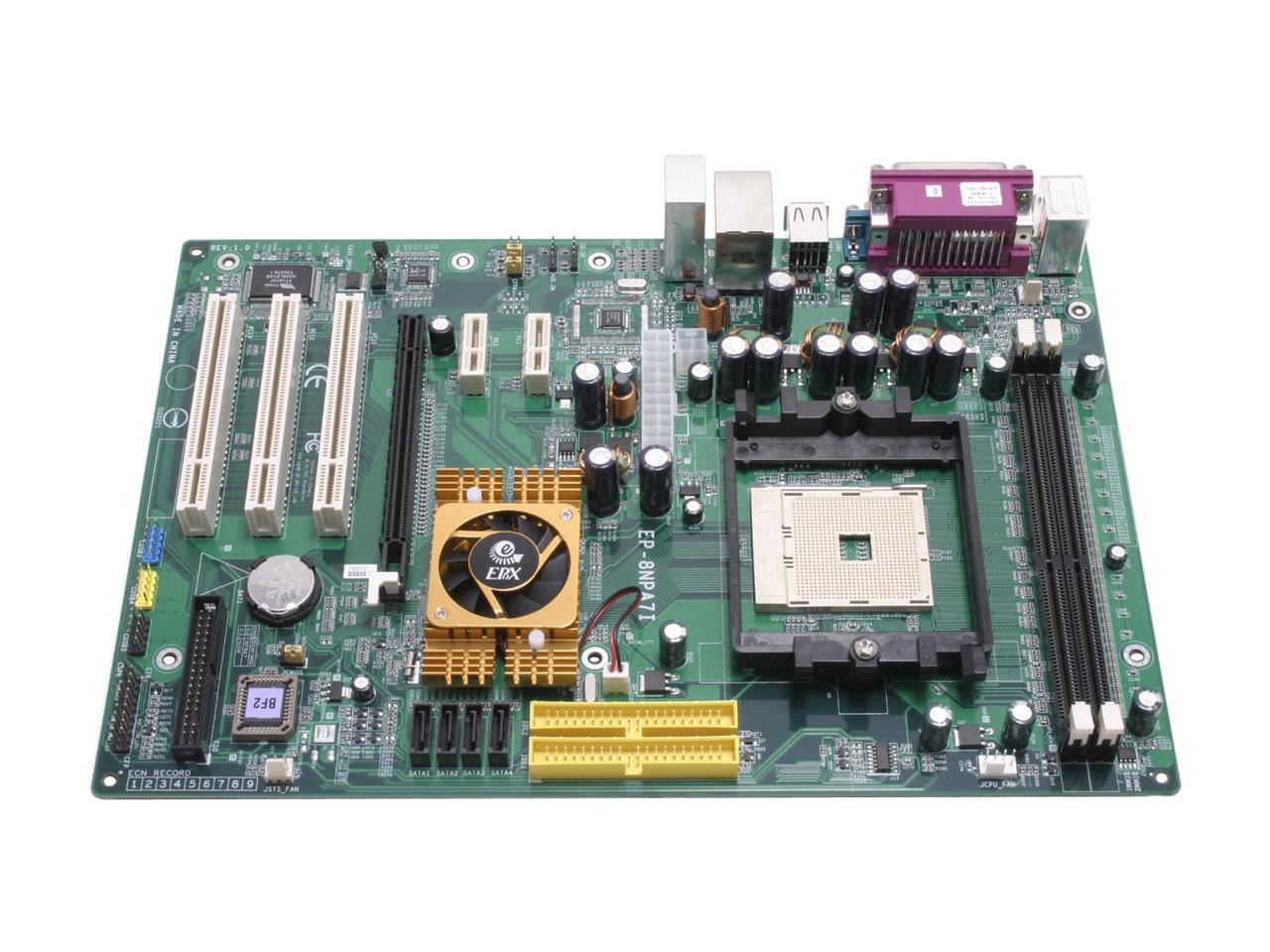

| Model | EP-8NPA7I |
| CPU Socket Type | 754 |
|---|---|
| CPU Type | Athlon 64 / Sempron |
| FSB | 800 MHz |
| Chipset | NVIDIA nForce4 4X |
|---|
| Number of Memory Slots | 2×184pin |
|---|---|
| Memory Standard | DDR 400 |
| Maximum Memory Supported | 2GB |
| PCI Express x16 | 1 x PCI Express x16 |
|---|---|
| PCI Express x1 | 2 x PCI Express x1 |
| PCI Slots | 3 x PCI Slots |
| PATA | 2 x ATA100 4 Dev. Max |
|---|---|
| SATA 1.5Gb/s | 4 x SATA 1.5 Gb/s |
| SATA RAID | 0/1 |
| Onboard Video Chipset | None |
|---|
| Audio Chipset | Realtek ALC655 |
|---|---|
| Audio Channels | 6 Channels |
| LAN Chipset | Realtek 8201CL PHY |
|---|---|
| Max LAN Speed | 10/100Mbps |
| PS/2 | 2 |
|---|---|
| COM | 1 |
| LPT | 1 |
| USB 1.1/2.0 | 4 x USB 2.0 |
| S/PDIF Out | 1 x Coaxial |
| Audio Ports | 3 Ports |
| Onboard USB | 3 x USB 2.0 connectors support 6 ports |
|---|
| Form Factor | ATX |
|---|---|
| Dimensions (W x L) | 12.0" x 8.3" |
| Power Pin | 24 Pin |

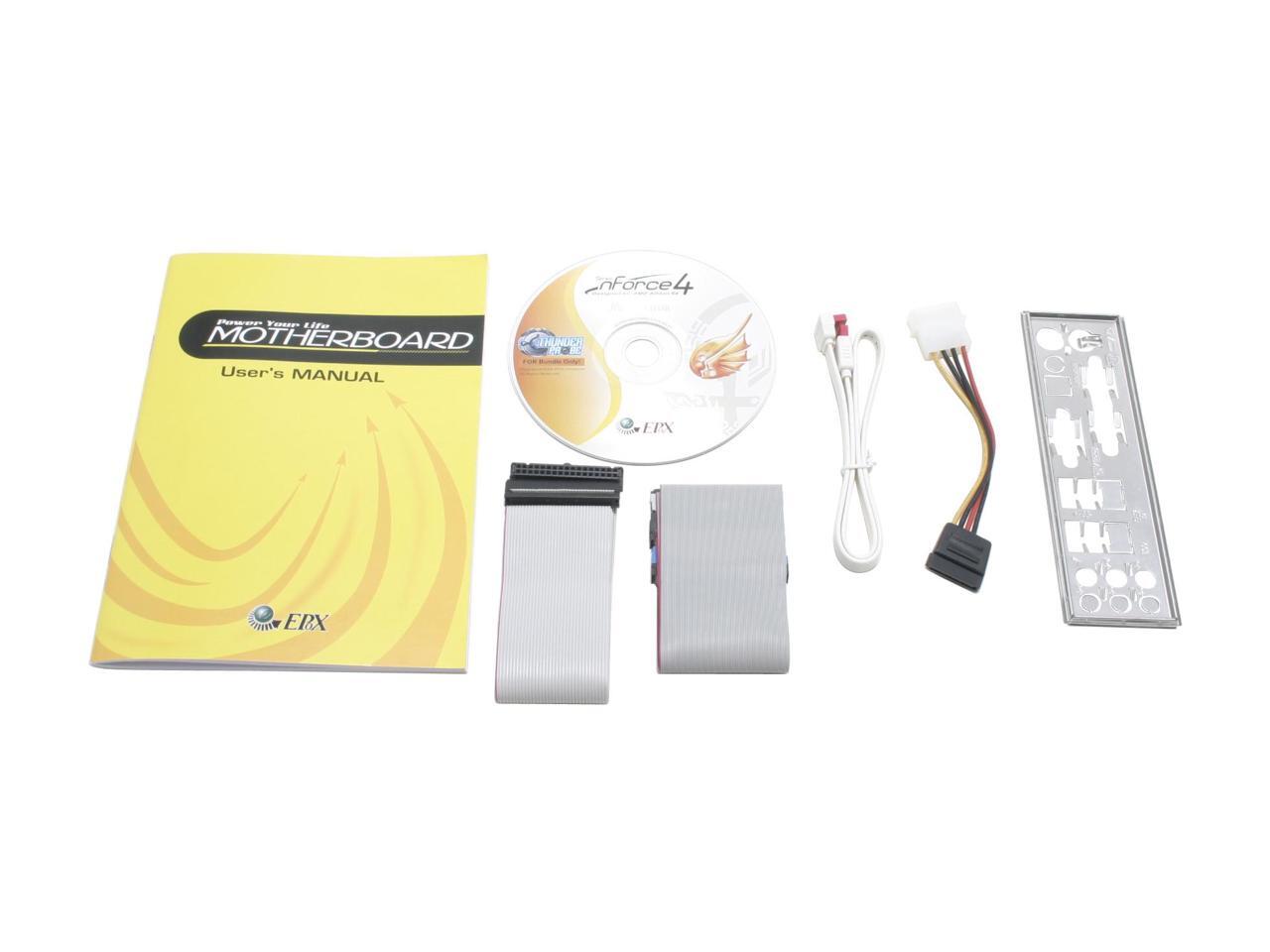

| Package Contents | EP-8NPA7I User Manual Driver Disk Rear I/O Panel Shield IDE/PATA Cable FDD Cable SATA Cable 4-pin to SATA Power Cable |
|---|
| Date First Available | September 02, 2005 |
|---|
Pros: Stable as a rock at 297Mhz. It's everything I could want in a mb. The layout is Excellent! RAM runs 297Mhz. As close to 1 to 1 as possible.Have a EVGA 6800GS 525core 1118Mhz ram, With an Artic Freezer 64 Pro, it runs 29C even with heavy downloads and installs.Will be online COD2 tonight.IT's the only mb I have that recognized 600Mhz ram from the first boot.
Cons: At first, I was having the exact sawe problems as the previous reviewer,almost RMA'ed it. Then I figured it out, had the large Gigabyte cooler with the 110mm fan.The problem was that the cooler wasn't going down all the way, it looked like it was, it felt tight. The black plastic piece around the cpu socket is too tight for some coolers to make adequate contact with the Athlon. I was taken mine apart to RMA it after a very frustrating evening. I was barely able to get the cooler off the board! It was incredably hard to remove. I thought, "you don't suppose this this wasn't making proper contact with the cpu to cool it". Then I put on the Artic. Bingo! That fixed it completely!!! Also had to download new bios in order to get enough voltage on the cpu so it could run 297Mhz. It doesn't like 300Mhz. So now I have Sempron 3100(Which is really cheap) running 2.673Ghz. It really performs!!!
Overall Review: Watch how your cooler fits. Oh Hell , just run the Artic Freezer 64 Pro. I running almost 2700Mhz at 28-29C. That is cool on air Oh yeah, buy all your stuff from NEWEGG!
