ETCR3000+ Digital Earth Resistance Tester Resistance Range 0.10O ~ 2000O

ETCR3000+ Digital Earth Resistance Tester Resistance Range 0.10O ~ 2000O
Notice:
  The standard package don't include batteries.Because,the international air shipping forbid to ship liquid,powder and batteries,we can not put them in the package box.Hope you can understand buy them in your local store or supermarket.
At the same time, please forgive us that we are unable to provide the English user manual. If you need it, please contact the customer service after purchase.
Thanks for your support!

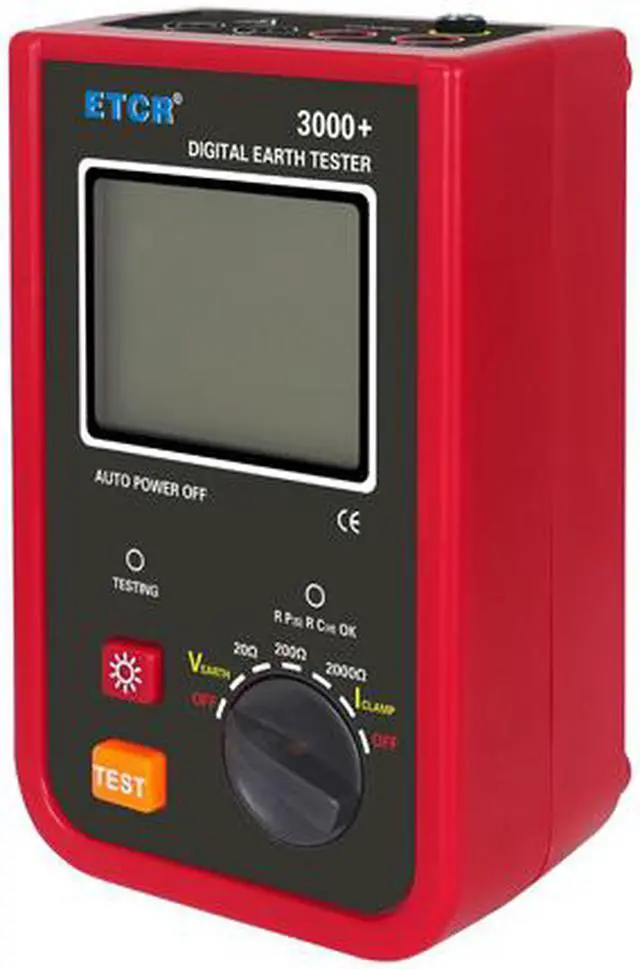

ETCR3000+ Digital Earth Resistance Tester specially designed and manufactured for the field measurement of ground resistance, adopts digital and micro-processing technology, 3 wire or 2 wire method to measure ground resistance, with unique calibration function for wire resistance, anti-interference ability and environmental adaptability, to ensure the long-term measurement of high precision, high stability and reliability.
ETCR3000+ Digital Earth Resistance Tester has the unique function of wire resistance calibration, and it is more accurate to measure the low value ground resistance in the field, which can avoid the error caused by the change of wire resistance in the test line for a long time usage.It can avoid errors caused by incomplete insertion of test line into instrument interface or bad contact.It can avoid the error caused by the user to change or lengthen the test line.

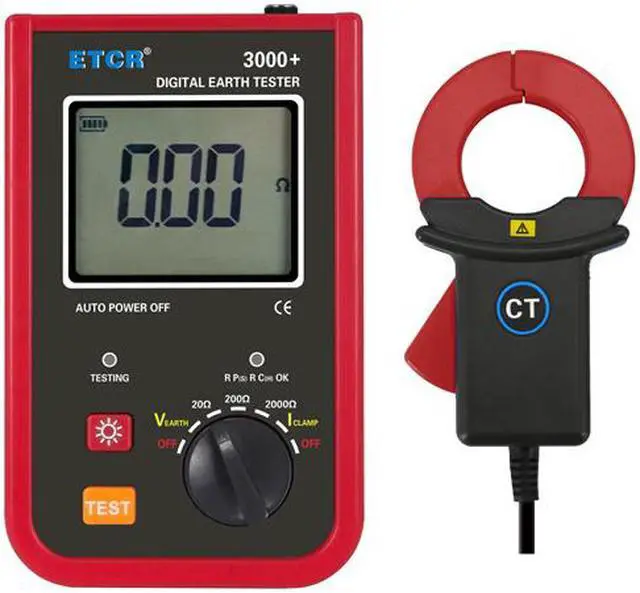

ETCR3000+ Digital Earth Resistance Tester is composed of a host, a current clamp, a test line, etc. It can store 1000 sets of data and has functions such as historical data access, reading, saving, reporting,  printing,and so on.
 Range and Accuracy
Test Function Range Accuracy Resolution
Earth Resistance 0.10O ~ 20O ±2%rdg±3dgt
(Auxiliary earth resistance 100O±5%,voltage to earth<10V) 0.01O
0.1O ~ 200O 0.1O
1O ~ 2000O 1O
Earth Current 0mA~100A AC ±2%rdg±3dgt 1mA
Earth Voltage 0V~200V AC ±2%rdg±3dgt 1V
Technical Specification
Function Description
Power Supply   DC9V, R6 AA dry batteryX6PCS
Earth Resistance   Range: 0.10O ~ 2000O
  Resolution: 0.01O
  Accuracy: ±2%rdg±3dgt
Grounding Current   Range: 0mA~ 100A AC
  Resolution: 1mA
  Accuracy: ±2%rdg±3dgt
Grounding Voltage   Range: 0~200V AC
  Resolution: 1V
  Accuracy: ±2%rdg±3dgt
Display LCD   LCD:58mmX46mm
Tester Dimension   210mm(L)×133mm(W)×68mm(H)
Weight   Host: about 800g, total weight: about 2285g (include accessories)
Measurement Method   Earth resistance: rated current change-pole method, measure current 10mA Max; Voltage to earth: average value rectification
Measurement Time  Earth resistance: 15 seconds/time;Voltage to earth : 2 times/second;
Data Storage 1000 groups , the little digital flash "1000" symbol indicate storage is full
Data Access Data access function: display "READ" symbol
Overrange Display  Overrange overflow function: display ”OL” symbol
Auxiliary Ground Rod  2 PCS: F10mm×250mm
Test Wires  Red 15m, yellow 10m, green 5m, red 1.5m (total 4 pcs wires)
Wire Resistance Verification  Avoid errors caused by the test line not fully inserted into the instrument interface or poor contact or the user replaces the lengthened test line, ensure grounding resistance measurement more accurate
Auto Shutdown   3 Minutes after power on, will automatic shutdown without any operation.
Battery Voltage   While battery voltage decreases to around 7.2V, will display low battery voltage symbol“    ”, and remind to replace the battery.

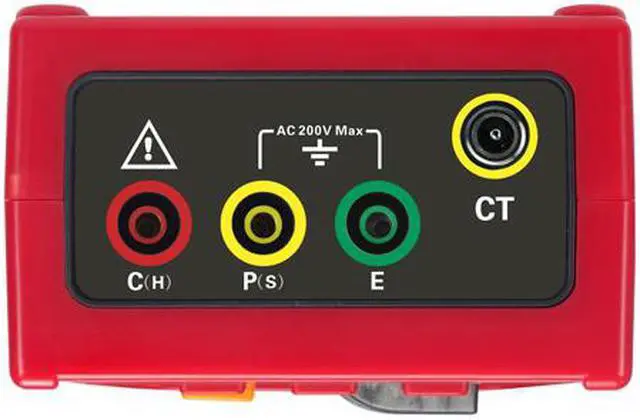

Overload Protection   Earth resistance: between each interfaces of E-P,E-C, AC 280V/3 seconds
Electromagnetic Property   IEC61010-4-3, wireless frequency electromagnetic field=1V/m
Working Current   Backlight: 25mA Max;  Standby: 85mA Max(Backlight close);  Measurement: 300mA Max(Backlight close)

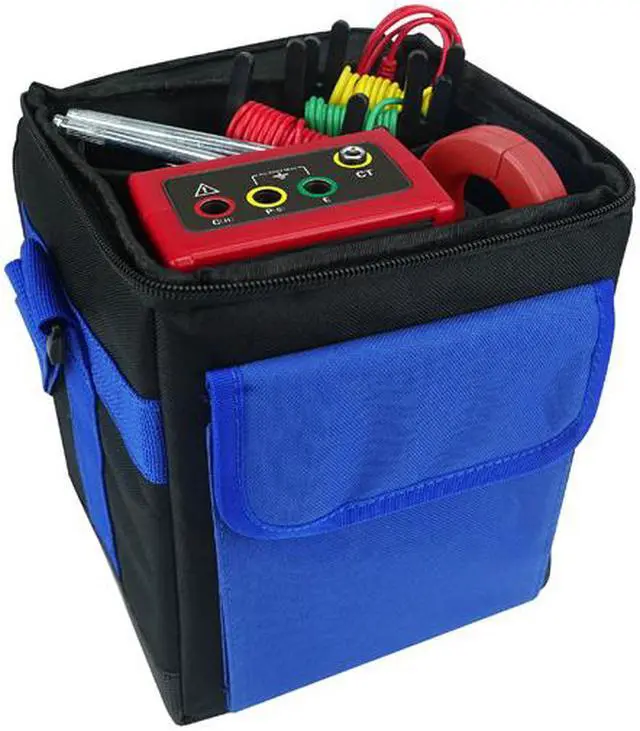

Accessories   Tester:1PCS; Current sensor: 1PCS; Grounding rod: 2PCS; Test line :3PCS; Simple test line: 1PCS;  Tester bag:1PC;
