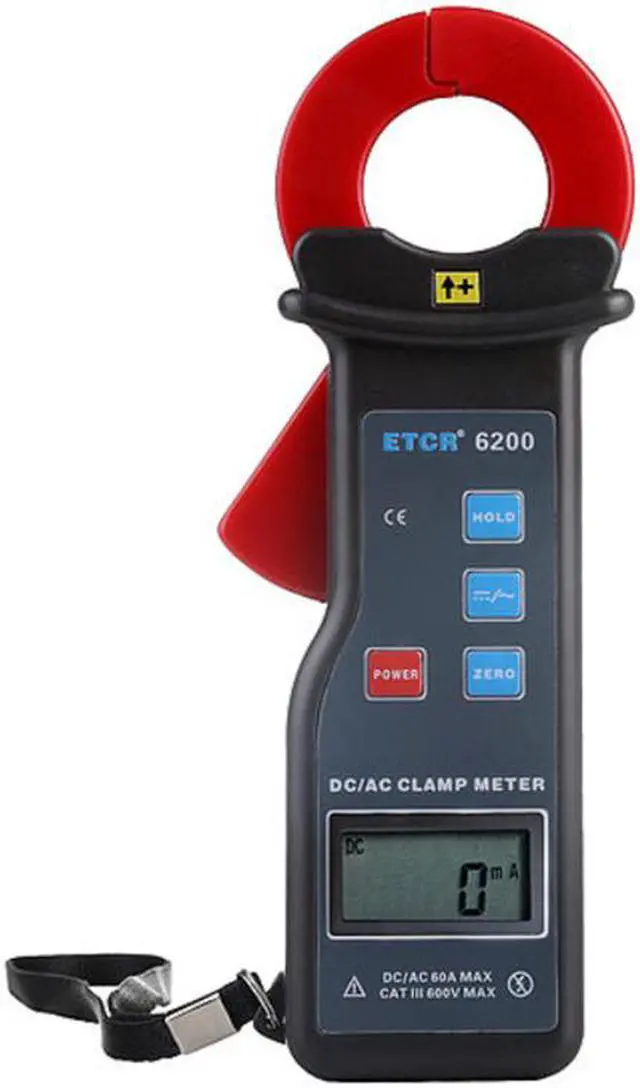

ETCR6200 AC/DC Leakage Current Clamp Meter 0mA~60.0A AC/DC NEW

ETCR6200 AC/DC Clamp leakage Current Meter
Product Main Function

1. Measurement of AC/DC leakage current.

2. Range: 0mA~60.0A AC/DC

3. Resolution: 1mA AC/DC

4. Accuracy: ±2%rdg±5dgt

5. Data Storage: 99 groups

6. Line Voltage: below 600V

7. CT Size: 25mm x 30mm

ETCR6200 DC/AC Clamp Leakage Current Meter also known as: automobile leakage current clamp meter, automobile starting current tester, car charging current tester etc. which is specially designed and manufactured for measuring DC and AC leakage current, current, especially suitable for measuring automobile dark current, leakage current and starting current. The meter adopt CT and digital integration technology, non-contact measurement, no need to disconnect the circuit line, fast, safe and reliable. The meter has characteristics of small size, high precision, strong anti-interference ability, automatic shift, It is suitable for quick detection of automobile leakage current and power consumption current, and it can quickly find faults such as broken wiring harnesses, electrical leakage, line boarding, etc., and measure the starting current of motor and charging current of generator. It is widely used in automobile maintenance, automobile factory inspection, automobile parts production inspection, telecom machine room current inspection, electric power maintenance, meteorology, oil field inspection, etc.
The meter with the functions of peak hold, data hold and data storage, and equipped with RS232 interface, communication cable and monitoring software. It can real time monitoring and query history online via the computer, and display dynamically, has the maximum, the minimum and the average value indication, with the alarm value setting and the alarm indication function, has the historical data reading, saves, prints and other functions.


Function

Measurement of AC/DC leakage current, current, Car DC dark current, leakage current, starting current.

Power Supply

Alkaline dry battery 6LR61,9V, continuous working 30 hours(Battery not included)

Test Mode

Clamp CT, non-contact measurement

Display Mode

4 digital LCD display

Meter Dimension

175mm(L)×70mm(W)×38mm(H)

LCD Dimension

35mm×21.5mm; display area:32mm×15mm

Sampling Rate

2 times/second

Frequency Response

AC: 45Hz-400Hz

Polarity Indication

In DC current test auto identified and display“—” symbol

CT Size

25mm×30mm

Conductor Position The tested conductor is in the center of the clamp
Shift

Automatically

Line Voltage

Do not exceedAC 600V

Communication Interface

With RS232 interface, storage data can be uploaded to computer, software monitoring

Communication Parameter

Baud rate:9600, data bit:8, stop bit:1, check bit: NONE

Data Storage

99 groups, flashes display "FULL" symbol indicate the storage full

Data Hold

Data hold function: "DH" symbol display

Overflow Display

Exceed measure range overflow function: "OL" symbol display

Automatic Shutdown

5 Minutes after power on will shutdown automatically without any operation

Battery Voltage

When battery voltage lower than 7.2V, the low battery voltage symbol will display,and remind to replace the battery

MeterWeight

240g

Working Current

<20mA

Working Temperature

-10°C-50°C, below 80%rh

Limit Temperature Error

-10°C-0°C and 40°C-50°C, Max error increase 1%rdg

Store Temperature

-10°C-60°C,below 70%rh

Insulating Strength

AC 2KV/rms. (between iron core and shell)

Suitable Safe Standard

IEC1010-1,IEC1010-2-032,pollution:2,CAT III (600V)

Accessories

Meter: 1PCS; RS232 communication cable: 1PCS; Software CD: 1PCS; Cloth bag: 1PCS
