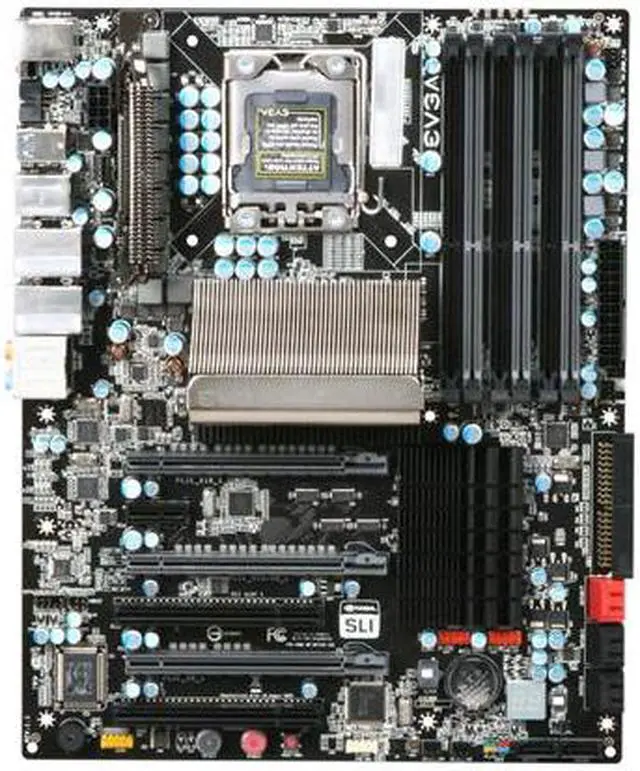

EVGA X58 FTW3 132-GT-E768-TR LGA 1366 Intel X58 SATA 6Gb/s USB 3.0 ATX Intel Motherboard
- LGA 1366
- Intel X58
- 6×240pin DDR3 1600MHz+
Specs
Reviews (54)
Learn more about the EVGA 132-GT-E768-TR
| Brand | EVGA |
|---|---|
| Model | 132-GT-E768-TR |
| CPU Socket Type | LGA 1366 |
|---|---|
| CPU Type | Core i7 (LGA1366) |
| Chipset | Intel X58 |
|---|---|
| South Bridge | Intel ICH10R |
| Onboard Video Chipset | None |
|---|
| Number of Memory Slots | 6x240pin |
|---|---|
| Memory Standard | DDR3 1600MHz+ |
| Maximum Memory Supported | 24GB |
| Channel Supported | Triple Channel |
| PCI Express 2.0 x16 | 3 (x16, x16/x8, x8) |
|---|---|
| PCI Express x1 | 1 x PCI Express x1 |
| PCI Slots | 2 x PCI Slots |
| PATA | 1 x ATA133 2 Dev. Max |
|---|---|
| Serial ATA (SATA) | 2 x SATA 6Gb/s |
| SATA RAID | Serial ATA 300MB/sec support RAID 0, RAID1, RAID 0+1, RAID5 and JBOD Serial ATA 600MB/sec support RAID 0 and RAID1 |
| Audio Channels | 8 Channels |
|---|
| Max LAN Speed | 2 x 1Gbps |
|---|
| Back I/O Ports | 1 x PS/2 / 2 x USB 3.0 / 8 x USB 2.0/1.1 |
|---|---|
| PS/2 | 1 |
| USB 3.0 | 2 x USB 3.0 |
| USB 1.1/2.0 | 8 x USB 2.0 |
| IEEE 1394 | 1 x IEEE 1394a |
| Audio Ports | 6 Ports |
| Onboard USB | 4 x USB 2.0 |
|---|---|
| Onboard 1394 | 1 x 1394a |
| Form Factor | ATX |
|---|---|
| Dimensions (W x L) | 12.0" x 9.6" |
| Power Pin | 24 Pin |
| Features | 8+2 Phase PWM w/ Switching Frequency up to 1333KHz 100% Solid State Capacitors Supports 2-way SLI and 3-way SLI or CrossFireX EVGA E-LEFT Tuning Utility EVGA EZ Voltage Read Points EVGA EVBot Support Onboard Clear CMOS, Power and Rest Buttons EVGA Vdroop Control |
|---|

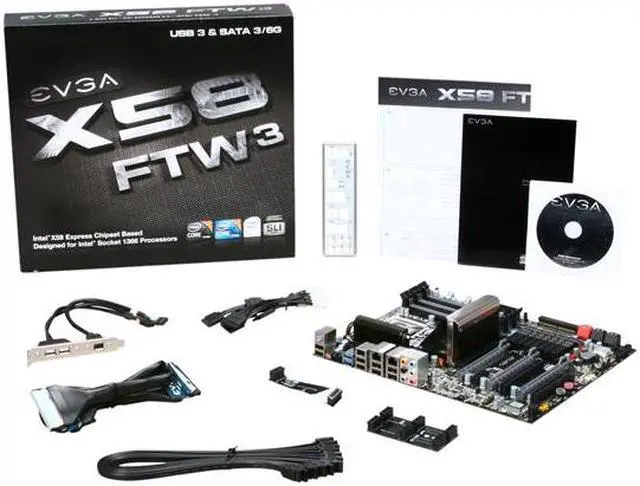

| Package Contents | 132-GT-E758-TR EVGA Driver Installation CD with EVGA E-LEET Rear Case I/O Panel 6 SATA Data Cables 3 SATA Power Cables 2-way and 3-way SLI Bridge 4 Port USB Bracket 1 1394a Firewire Bracket Visual Installation Guide Manual |
|---|
| Date First Available | December 20, 2010 |
|---|
