EVGA SuperNOVA 650 G+, 80 Plus Gold 650W, Fully Modular, FDB Fan, 10 Year Warranty, Includes Power ON Self Tester, Power Supply 120-GP-0650-X1

Name: EVGA SuperNOVA 650 G+, 80 Plus Gold 650W, Fully Modular, FDB Fan, 10 Year Warranty, Includes Power ON Self Tester, Power Supply 120-GP-0650-X1
Brand: EVGA
SKU: N82E16817438131
Price: 249.99 USD
Availability: InStock
Rating: 4 (20 reviews)

(20)

Write a Review

See more "evga supernova 650"

Ships from Hong Kong. Most customers receive within 7-9 days.

Sold and Shipped by PC Power Marketplace a-seller

100% Japanese Capacitors ensure long-term reliability; Unbeatable EVGA 10 Year Warranty and unparalleled EVGA Customer Support
80 PLUS Gold certified, with 90% (115VAC) / 92% (220VAC~240VAC) efficiency or higher under typical loads
Fully Modular to reduce clutter and improve airflow
Whisper Silent with 135mm Fluid Dynamic Bearing Fan
Heavy-duty protections, including OVP (Over Voltage Protection), UVP (Under Voltage Protection), OCP (Over Current Protection), OPP (Over Power Protection), SCP (Short Circuit Protection), and OTP (Over Temperature Protection)

EVGA SuperNOVA 650 G+, 80 Plus Gold 650W, Fully Modular, FDB Fan, 10 Year Warranty, Includes Power ON Self Tester, Power Supply 120-GP-0650-X1

Ships from Hong Kong. Most customers receive within 7-9 days.

Overview
Specs
Warranty & Returns
Reviews
Q&A

EVGA G+ 120-GP-0650-X1 PSU with text that reads: The New Gold Standard for Performance and Value - Fully Modular - Tight 12V Voltage Regulation - Quiet FDB Fan

EVGA G+ 120-GP-0650-X1 PSU standing up vertically

The G+ PSU

Since its launch in 2013, the EVGA SuperNOVA G1 power supplies have been among the longest-lasting and best-performing power supplies on the market. Despite only a few changes over the years it's only fitting that it's time for an upgrade. Enter the G+, the new and improved fully-modular power supply lineup from EVGA with an 80+ Gold efficiency rating.

Closeup of the EVGA 120-GP-0650-X1 PSU's main fan

Additionally, the G+ power supplies feature a cleaner internal layout to increase airflow, a variable-resistor module (to increase voltage stability), two DC-to-DC modules for more efficient power switching on all models, a full suite of power-supply protections, and EVGA's world-leading global 10-year warranty on all G+ power supplies.

A 1000 G+ power supply on top of a longer 1000 G power supply. Next to the 1000 G+ is text that reads: 1000/850 G+ (180x150x85mm) versus 1000 G1 (200x150x85mm) SHORTER LENGTH. Next to the 1000 G there is text that reads: 750/650 G+ (170x150x85mm) versus 750/650 G1 (180x150x85mm)

When it comes to building a system, even the smallest differences can make or break your build. Each G1+ power supply is between 10mm to 20mm shorter than its G1 counterpart, giving you more space without sacrificing quality.

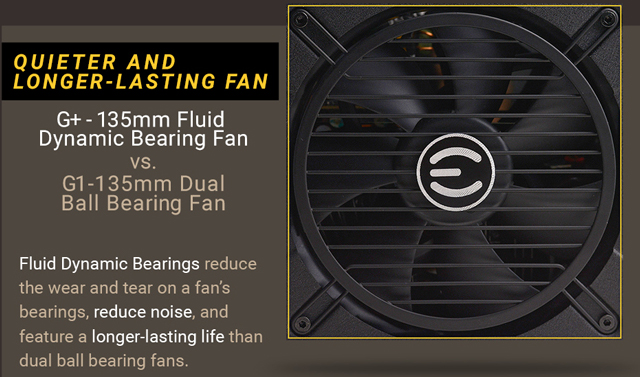

EVGA 120-GP-0650-X1 PSU banner showing the main fan along with text that reads: QUIETER AND LONGER-LASTING FANS - G+ 135mm Fluid Dynamic Bearing Fan versus G1 135mm Dual Ball Bearing Fan - Fluid dynamic bearings reduce the wear and tear on a fan's bearings, reduce noise, and feature a longer-lasting life than dual ball bearing fans.

Closeup of the PSU's nippon capacitors along with text that reads: TIGHTER 12V LOAD REGULATION - 650 G+ 0.62% versus 650 G1 3.76%

The G+ features upgrades in many areas, including a single 12V rail, 100% Japanese capacitors, VR module and 2 DC-to-DC modules on all G+ power supplies. This results in over 90% efficiency, 0.52%-0.62% 12V load regulation and stable power to all connected devices.

EVGA 650 G+ 120-GP-0650-X1 PSU banner with text that reads: UP TO 22% QUIETER UNDER LOAD - 650 G+ 24.0dB versus 650 G1 30dB

Combining its fluid dynamic bearing fan, along with a cleaner internal layout, the G+ power supply lineup reduces noise by up to 22%, compared to the G1 power supplies.

10-year EVGA warranty badge and text that reads: World-leading warranty and support for 10 years

Specs at a Glance

FEATURES

GOLD-RATED EFFICIENCY

80 Plus certification ensures your power supply isn't wasting power and turning it into excess heat. Under typical load, this power supply is 90% efficient or higher.

100% JAPANESE CAPACITORS

Get the most reliability and greatest performance with the use of the highest possible quality Japanese capacitors.

To angled squares going over each other making a smaller angled square

FULLY MODULAR DESIGN

A fully modular design allows cables to be removed from the power supply for ease of installation and removal. You can also leave off unnecessary cables to reduce case clutter and maximize case airflow.

TIGHT VOLTAGE REGULATION (<1%)

A single +12V rail offers the best power output, rail stability and compatibility with the latest hardware. EVGA SuperNOVA G+ provides up to 70.8A on a single rail!

FLUID DYNAMIC BEARING FAN

A high-quality 135mm fluid dynamic bearing fan gives the SuperNOVA G+ an excellent thermal and acoustic profile, and its high reliability ensures a long PSU lifetime.

TO PROTECT AND TO SERVE

This PSU will cover your circuits with complete protection: OCP, OVP, OTP, OPP, SCP and UVP.

AC Input	100-240VAC, 12-5A, 50-60Hz
DC Output	+3.3V	+5V	+12V	+5Vsb	-12V
Max Output	24A	24A	54A	3A	0.3A
Combined	120W		648W	15W	6W
Output	650W @ + 50C° Industrial-grade testing + all load and regulation testing done at 50C°.

Learn more about the EVGA 120-GP-0650-X1

Model

Brand: EVGA

Model: 120-GP-0650-X1

Series: SuperNOVA

Details

Type: ATX12V / EPS12V

Maximum Power: 650W

Fans: 135mm Fluid Dynamic Bearing Fan

Main Connector: 24Pin

+12V Rails: Single

PCI-Express Connector: 4 x 6+2-Pin

SATA Power Connector: 9

Modular: Full Modular

Efficiency: 90% or Higher Typical

Energy-Efficient: 80 PLUS GOLD Certified

Over Voltage Protection: Yes

Input Voltage: 100 - 240 V

Input Frequency Range: 50/60 Hz

Input Current: 10 - 5 A

Output: +3.3V@24A, +5V@24A, +12V@54A, -12V@0.5A, +5VSB@3.0A

MTBF: 100,000 Hours

Approvals: TUV, CB, CE, FCC, RCM, cTUVus, WEEE, RoHS
Compliance with ErP Lot 6 2013 Requirement

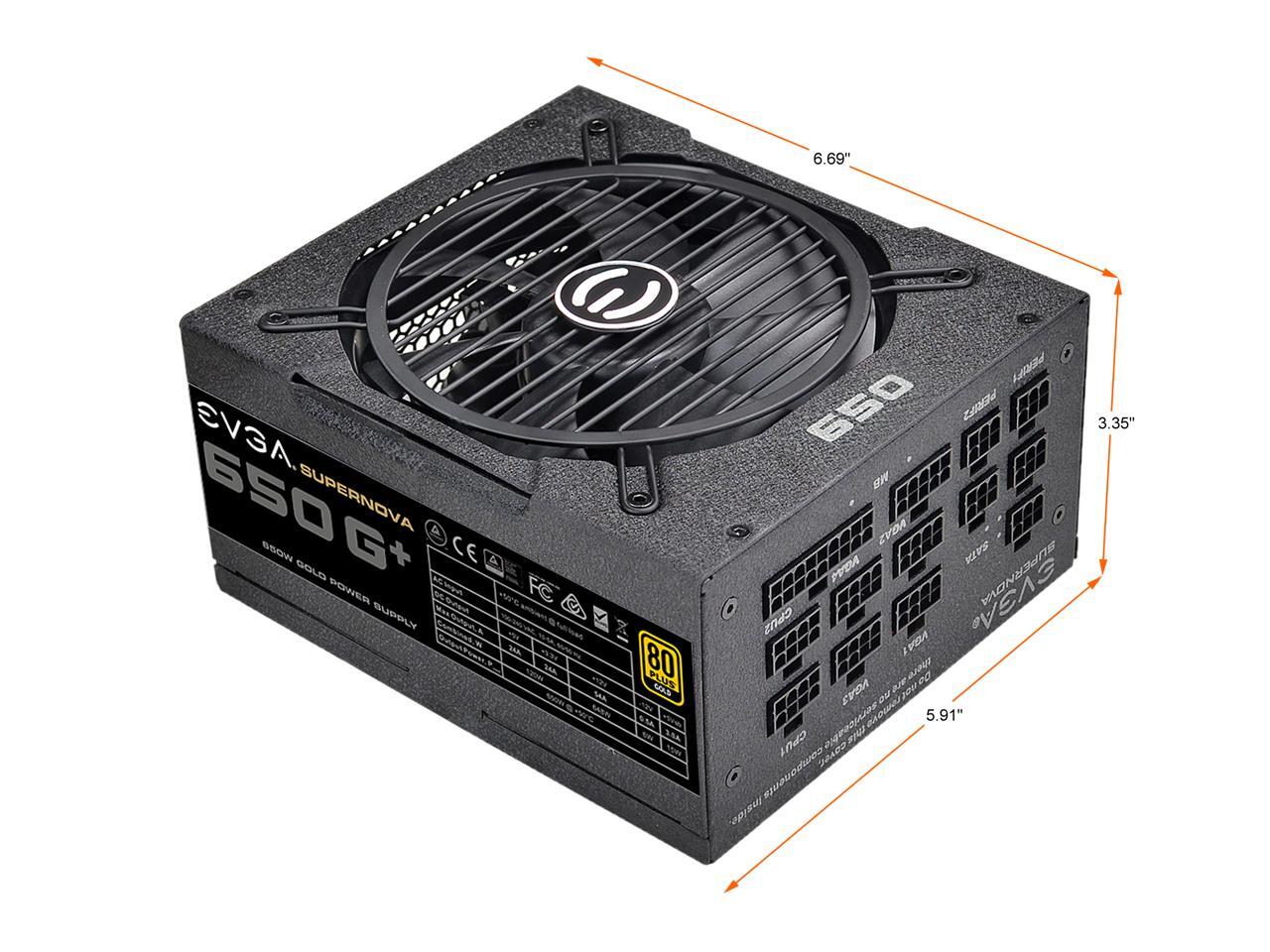

Dimensions: 3.35" x 5.91" x 6.69"

Max PSU Length: 170 mm

Weight: 7.00 lbs.

Features

Connectors: 1 x 24 Pin ATX
2 x 8pin(4+4) EPS (CPU)
4 x 8pin(6+2)PCIE
9 x SATA
6 x Four-Pin Peripheral
2 x Floppy

Features: 80 PLUS Gold certified, with 90% (115VAC) / 92% (220VAC~240VAC) efficiency or higher under typical loads

Fully Modular to reduce clutter and improve airflow

Heavy-duty protections, including OVP (Over Voltage Protection), UVP (Under Voltage Protection), OCP (Over Current Protection), OPP (Over Power Protection), SCP (Short Circuit Protection), and OTP (Over Temperature Protection)

100% Japanese Capacitors ensure long-term reliability

Whisper Silent with 135mm Fluid Dynamic Bearing Fan

Additional Information

Date First Available: July 09, 2020

Warranty, Returns, And Additional Information

Warranty
Limited Warranty period (parts): 3 years
Limited Warranty period (labor): 2 years
Read full details

Manufacturer Contact Info
Manufacturer Product Page|
Manufacturer Website|
Support Phone: 1-888-880-3842
Support Website|
View other products from EVGA

Return Policies
This item is covered by PC Power Marketplace Return Policy.

Anonymous

Ownership: 1 week to 1 month

Verified Owner

Fans too loud 4/30/2020 1:54:56 PM

Pros: -Power supply function well as intended
-Plenty cables for all uses, nice cable casing

Cons: - this model does not have the ECO mode where the fan stops when power consumption is low. The fan is on full power all the time, making it extremely load when doing emails and stuff

Overall Review: Easy to install, fan speed not adjustable

Did you find this review helpful?

Manufacturer Response:

We greatly appreciate your feedback on this matter. We can confirm the fan will be on consistently with this model due to the non available ECO mode. However, the fan would be quite unless the unit was overheating or the fan is stuck at 100%. We ask in this type of event to please contact our support team in order to best assist you. Newegg@evga.com or at 888-881-3842. Please reference ticket number 3769610.

Noah A.

Ownership: 1 week to 1 month

Verified Owner

Gets the job done. 3/22/2020 5:45:53 PM

Overall Review: I have no complaints. The price was okay (even though it felt expensive), and the design is decent. I can't hear the fan (I don't think!), and all my components get the power they need. The modularity is always a plus, and I feel like this will last me a long time.

Did you find this review helpful?

William J.

Ownership: 1 week to 1 month

Verified Owner

Works as it should. 1/29/2020 3:45:42 AM

Pros: All black cables, no catchup and mustard!
Has two CPU power cables, must have for my X570 motherboard.

Overall Review: Have used EVGA power supplies in the past and this one is just as nice as the others. Would buy again.

2 out of 2 people found this review helpful. Did you? Thanks for the valuable feedback you provided!

Dustin J.

Ownership: 1 month to 1 year

Verified Owner

Broke in about five months 11/10/2019 6:22:00 PM

Pros: It worked for five months.

Cons: Does not last long.

Overall Review: Not impressed. I just wanted it to last a year at least.

Did you find this review helpful?

Manufacturer Response:

Thank you for your feedback.

To confirm that your power supply will no longer power on, you can try testing the power supply with the included self tester and you can find out how to test your power supply by going to evga.com This will help you test the power supply for any activity. If you are experiencing other unrelated difficulties with this power supply please feel free to contact our technical support team at newegg@evga.com or give us a call at 1.888.881.3842 and refer to ticket #3629960

Kind Regards,
EVGA

Cole C.

Ownership: 1 week to 1 month

Verified Owner

Worked unless under load 10/11/2019 10:04:01 AM

Pros: Worked for simple web browsing

Cons: Would over heat under load and shut off

Overall Review: It kinda worked but not all the time so I returned it for a refund

Did you find this review helpful?

TROY A.

Ownership: 1 month to 1 year

Verified Owner

Nice unit 8/17/2019 8:05:41 AM

Pros: Fully modular will be a priority for me after buying this and seeing the benefits.
Effortless install.

Cons: None

Overall Review: Buy it.

0 out of 1 people found this review helpful. Did you? Thanks for the valuable feedback you provided!

Joseph Z.

Ownership: 1 day to 1 week

Verified Owner

I have a working 750 g+, the 650 g+ just blew within 24 hours of installation 7/19/2019 10:15:58 AM

Pros: -Nice appearance and parts
-Extra cables, I'm knitting a blanket out of the extras
-750 going strong about a year on, no troubles
-Self Tester
-EVGA's Warranty

Cons: -The 650 installed fine, nice appearance as well
-It didn't last 24 hours before I heard a pop and a sizzle and then nothing had power in my tower!
-Weekend with no games as a result :(

Overall Review: -will update review/rating based on r.m.a. process

1 out of 1 people found this review helpful. Did you? Thanks for the valuable feedback you provided!

Manufacturer Response:

Dear Valued Customer,

I do apologize for the troubles you are having with your EVGA 650G1+ power supply. I can assure you that we are here to assist and support you as best we can. If you haven't already done so, then I would encourage you to contact our Technical Support team by phone 1.888.881.3842 and pressing option 1 or by email: Newegg@EVGA.com with your reference# 3553495 so that we can further assist you with warranty services if needed.

Sincerely,
EVGA Customer Support

BERNIE S.

Ownership: 1 day to 1 week

Verified Owner

good quality 7/16/2019 7:21:22 AM

Pros: -10 year warranty
-with self tester

Cons: -non

Overall Review: good quality and nice packaging

Did you find this review helpful?
