Question 1

Does this come with all the cables?

Accepted Answer

Yes, it comes with enough modular cables to fully populate the connections.

Question 2

Does it have ketchup and mustard cables?

Accepted Answer

No all black sleeved cables and full modular. With the warranty it's hard to beat for the price.

Question 3

will this fit a sfx build?

Accepted Answer

It will depend on your case, this is not an sfx unit, but if your case fits standard atx power supplies, then this will work

Question 4

Will it fit a motherboard with1 x 24-pin ATX main power connector,1 x 8-pin ATX 12V power connector & 1 x 4-pin ATX 12V power connector?

Accepted Answer

Yes, it comes with an supports 2 CPU power cables. The ones included are both 2x4pin, so you would use one combined into the 8 pin block, and 1 as a 4 pin connector.

Question 5

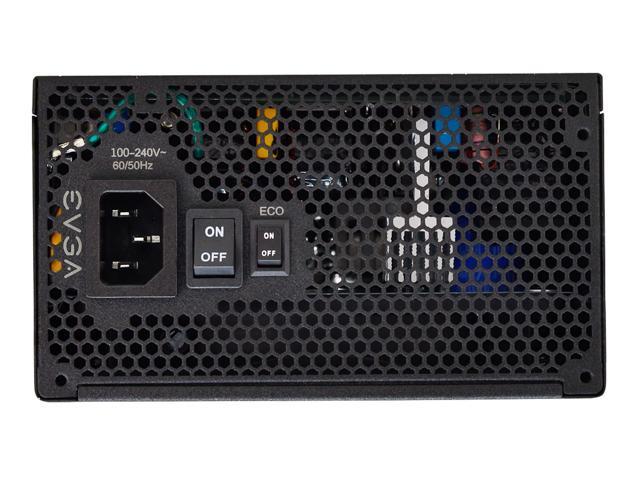

what does it means input 9 - 4.5 A ? What will be affected? Because I usually see input 10-5 A

Accepted Answer

The input current range of 9 - 4.5 A means that the power supply can draw between 4.5 and 9 amps from the power source, depending on the voltage and load. This range is slightly lower than the 10-5 A range you usually see, but it should not significantly affect the performance of the power supply under normal operating conditions.

Question 6

what does it means input current 9 - 4.5 A ? what is the difference to 10 - 5 A What will be affected?

Accepted Answer

Short answer: Don't worry about it. It means this PSU consumes 9 amps max for USA and 4.5 A for Europe. The other PSU you reference consumes 10 amps, so there is a one amp difference. More power isn't necessarily better so don't stress over this.

Long answer:
You asked the question twice, but I will answer this one. Power is calculated as Voltage * Amperage. This unit support both American and European voltages. US uses 120VAC and Europe uses 240VAC. You will see above the "Input Current 9 - 4.5 A" rating is an accompanying "Input Voltage 120 - 240 V" rating. The first number is for US and the second number is for Europe. These units will ship switched to the 120VAC setting, so don't worry about this. So really what you are looking at is a PSU that handles 120VAC @ 9A. When you multiply them you get 1,080 Watts (W). If you were to do the same for the European rating you will get 240VAC @ 4.5A which when multiplied is still 1,080 W. You are now probably wondering why am I saying this unit produces 1,080 W when the product listing says 750W. To get that calculation you use the Root Mean Square value (RMS) of your voltage which is approximately 120VAC/sqrt(2) --> 84.8528. You take this value and multiply it by the same amperage to get the power and it is approximately 763.6753 W. Do the same for the European values and you will get the same number. The reason the number is higher than 750W is because this is peak power which you don't want to be at, that means you are maxing out your PSU.
