Best Seller Ranking | #47 in Power Supplies |
---|
Brand | EVGA |
---|---|

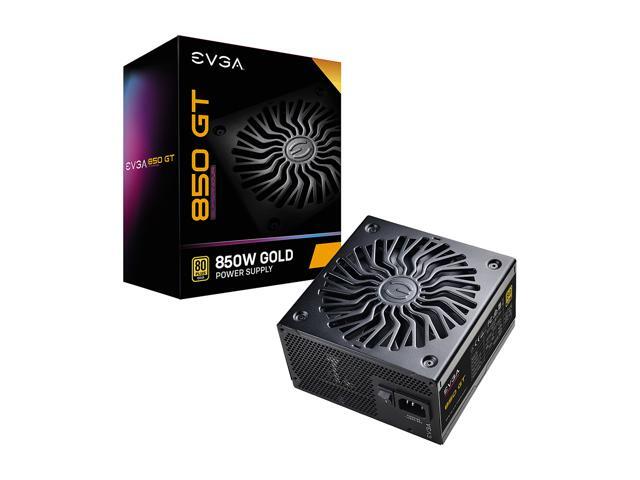

Series | SuperNOVA 850 GT |
Model | 220-GT-0850-Y1 |
Type | ATX12V / EPS12V |
---|---|
Maximum Power | 850 W |
Fans | 1 x 135mm Fluid Dynamic Bearing Fan |
PFC | Active |
Main Connector | 20+4Pin |
+12V Rails | Single |
PCI-Express Connector | 6 x 6+2-Pin |
SATA Power Connector | 9 |
Haswell Support | Yes |
Modular | Full Modular |
Efficiency | 90% or higher (under typical load) |
Energy-Efficient | 80 PLUS GOLD Certified |
Protection | OVP (Over Voltage Protection), UVP (Under Voltage Protections), OCP (Over Current Protection), OPP (Over Power Protection), SCP (Short Circuit Protection), and Dual OTP (Over Temperature Protection) |
Input Voltage | 100 - 240 V |
Input Frequency Range | 50/60 Hz |
Input Current | 10 - 5A |
Output | +3.3V@20A, +5V@20A, +12V@70.8A, -12V@0.3A, +5Vsb@3A |
MTBF | 100,000 Hours |
Approvals | TUV, CB, CE, FCC, RCM, cTUVus, BSMI, CCC, WEEE, RoHS, Compliance with ErP Lot 3 2014 Requirement |
Max PSU Length | 150 mm |

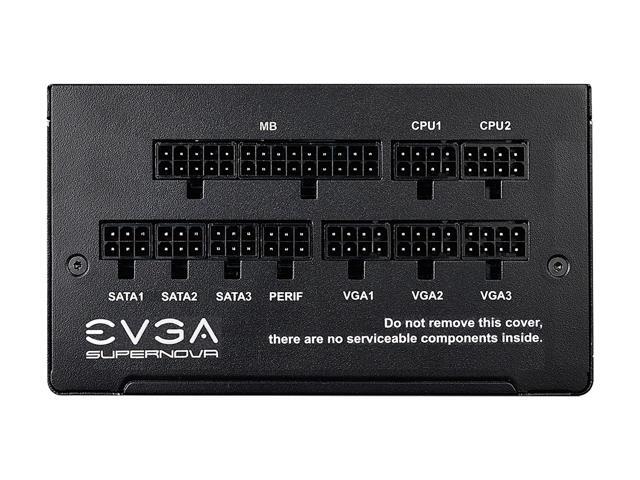

Connectors | 1 x 24 Pin ATX 2 x 8 Pin EPS (4+4) 6 x 8pin PCIe (6+2) 9 x SATA 3 x Four-Pin Peripheral 1 x Floppy |
Features | Introducing the EVGA SuperNOVA GT Series of power supplies - the newest addition to the outstanding line of EVGA Power Supplies. Featuring 80 Plus Gold certification, 100% Japanese capacitors, a fluid dynamic bearing fan, and a fully modular design, this power supply is built for long-term usage and durability. Building upon EVGA's line of 80 Plus Gold rated power supplies, the EVGA GT Series combines all these features at a great price. EVGA Auto ECO Intelligent Thermal Control System eliminates fan noise at low to medium loads 80 PLUS Gold certified, with 90% efficiency or higher under typical loads. Heavy-duty protections, including OVP (Over Voltage Protection), UVP (Under Voltage Protections), OCP (Over Current Protection), OPP (Over Power Protection), SCP (Short Circuit Protection), and Dual OTP (Over Temperature Protection) |
---|

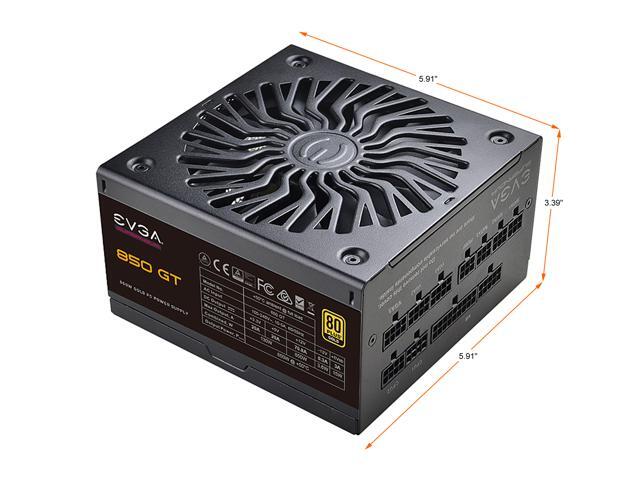

Dimensions | 3.39" x 5.91" x 5.91" |
---|---|
Weight | 3.7 lbs. |
Date First Available | March 22, 2021 |
---|
Pros: New model from EVGA 80+ Gold rating High quality fan with liquid bearing should last basically forever if the fan even has to turn on. The cables aren't super stiff like some other power supply cables I have dealt with in the past.
Cons: None
Overall Review: If you can find this in stock, I'd recommend buying it. This is not a good PSU for running multiple graphics cards as there are only 2 plugs for 8 pin GPU cables. It's only 750 W so it likely doesn't provide enough power for multiple cards anyway. It powers my system with no issues. The only thing I would have liked is if the spacing between each sata power connection was a bit longer for cable management purposes, but that's all dependent on what case you put this in.
