EVGA X570 DARK, 121-VR-A579-KR, AM4, AMD X570, PCIe Gen4, SATA 6Gb/s, 2.5Gb/s LAN, Wi-Fi 6/BT5.2, USB 3.2 Gen2, M.2, EATX, AMD Motherboard

(1) Write a Review
See more "evga x570"
In stock. Limit 10 per customer.
Ships from United States.
  • X570 DARK
  • X570 FTW WIFI
  • AMD X570 Chipset, Supports AMD Ryzen 5000 and 3000 Series processors for the AMD AM4 socket
  • PCIe Gen4, M.2 Gen4, EATX Form Factor, 10 Layer PCB, 17 Phase PWM, Metal Reinforced PCIe Slots, NVIDIA SLI Ready, Preinstalled rear I/O cover
  • 2 DIMM Dual-Channel supports up to 64GB 4800+ MHz, 6 USB 3.2 Gen2 Ports (4x Type A, 1x Type-C, 1x Type-C Header)
  • 8 SATA 6Gb/s, 2x M.2 Key-M 110mm, 1x M.2 Key-E 32mm with installed WiFi 6/BT 5.2, 2x Intel 2.5Gb/s NIC
  • Onboard ARGB lighting + 2x ARGB / 2x RGB Headers fully customizable through EVGA ELEET X1
Specs
Reviews

Learn more about the EVGA X570 DARK

Model
Brand EVGA
Model X570 DARK
Part Number 121-VR-A579-KR
Supported CPU
CPU Socket Type AM4
CPU Type Supports AMD Ryzen 5000 / 5000G / 4000G / 3000 Series processors
Chipsets
Chipset AMD X570
Memory
Number of Memory Slots 2x288pin (DDR4)
Memory Standard AMD Ryzen 5000 Series
- Support DDR4 5000(O.C.)/ 4800(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3733(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ (O.C.)/ 3200/ 3000/ 2800/ 2666/ 2400/ 2133

AMD Ryzen 5000 G Series / 4000 G Series
- Support DDR4 5333(O.C.)/ 5100(O.C.)/ 5000(O.C.)/ 4800(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3733(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ (O.C.)/ 3200/ 3000/ 2800/ 2666/ 2400/ 2133

AMD Ryzen 3000 Series
- Support DDR4 5100(O.C.)/ 5000(O.C.)/ 4800(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3733(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ (O.C.)/ 3200/ 3000/ 2666/ 2400/ 2133
Maximum Memory Supported 64GB
Channel Supported Dual Channel
Expansion Slots
PCI Express 4.0 x16 2 x PCI Express 4.0 x16
PCI Express x4 1 x PCIe 4.0 x4
Other Slots 1 x M.2 Key-E 32mm
Storage Devices
SATA 6Gb/s 8 x SATA 6Gb/s
M.2 2 x M.2 Key-M 110mm PCIe Gen4
SATA RAID 0/1/10
Onboard Audio
Audio Chipset Realtek 1220
Audio Channels 7.1 Channels
Onboard LAN
LAN Chipset 2 x Intel I225-V
Max LAN Speed Dual 10/100/1000/2500Mbps
Wireless LAN Intel AX200 Wi-Fi 6
Bluetooth Bluetooth 5.2

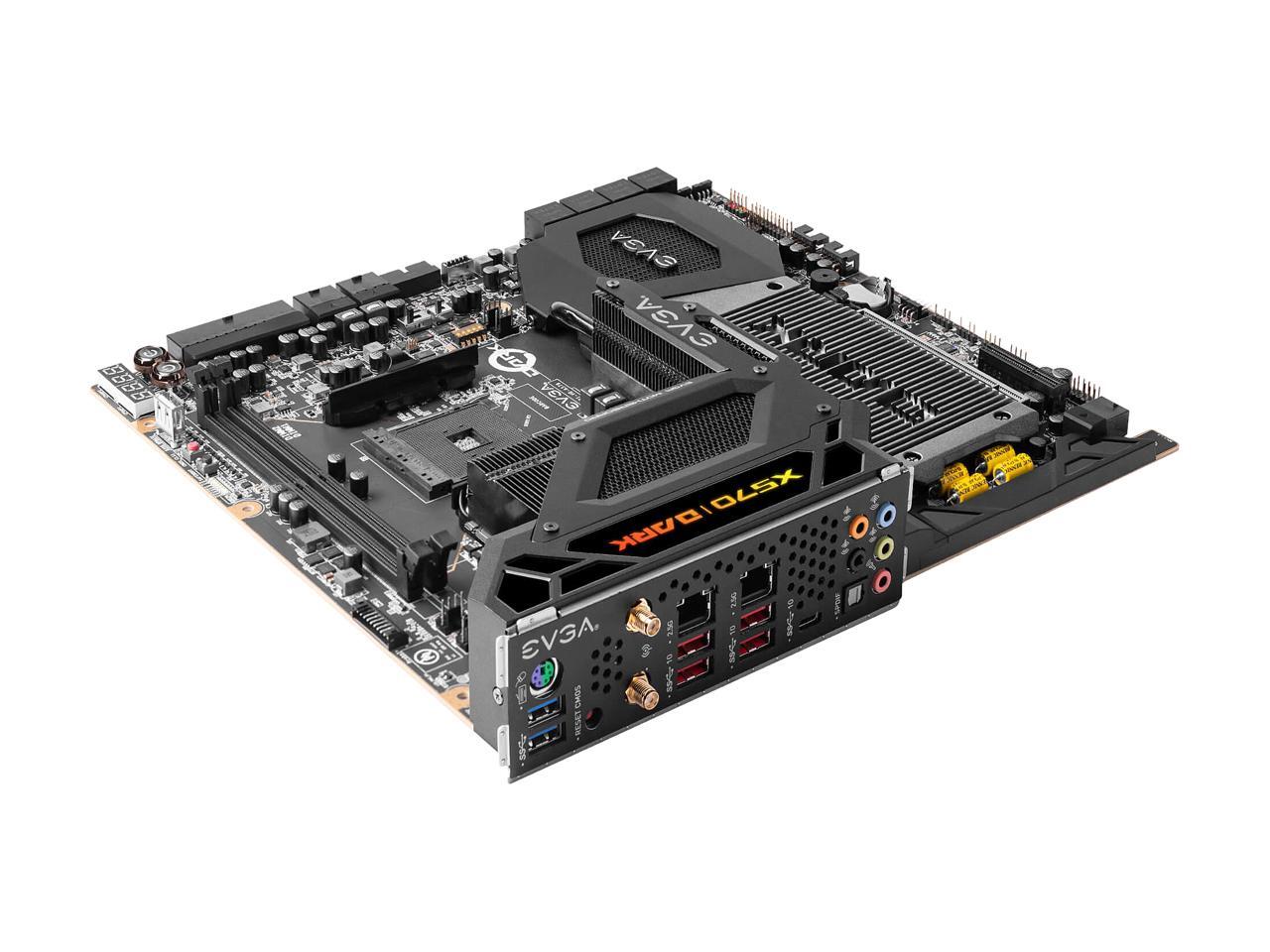

Rear Panel Ports
Back I/O Ports 1 x BIOS/CMOS Reset
2 x Antenna Bracket
2 x LAN (RJ45)
1 x Optical S/PDIF Out
5 x Audio Jacks
1 x PS/2 Keyboard/Mouse Combo
1 x USB 3.2 Gen 2 Type-C
4 x USB 3.2 Gen 2 Type-A
2 x USB 3.2 Gen 1 Type-A
Internal I/O Connectors
Onboard USB 1 x USB 2.0 Port (for BIOS update), 2 x USB 2.0 Headers, 1 x USB 3.2 Gen1 Header, 1 x USB 3.2 Gen2 Type-C Header
Physical Spec
Form Factor Extended ATX
LED Lighting RGB

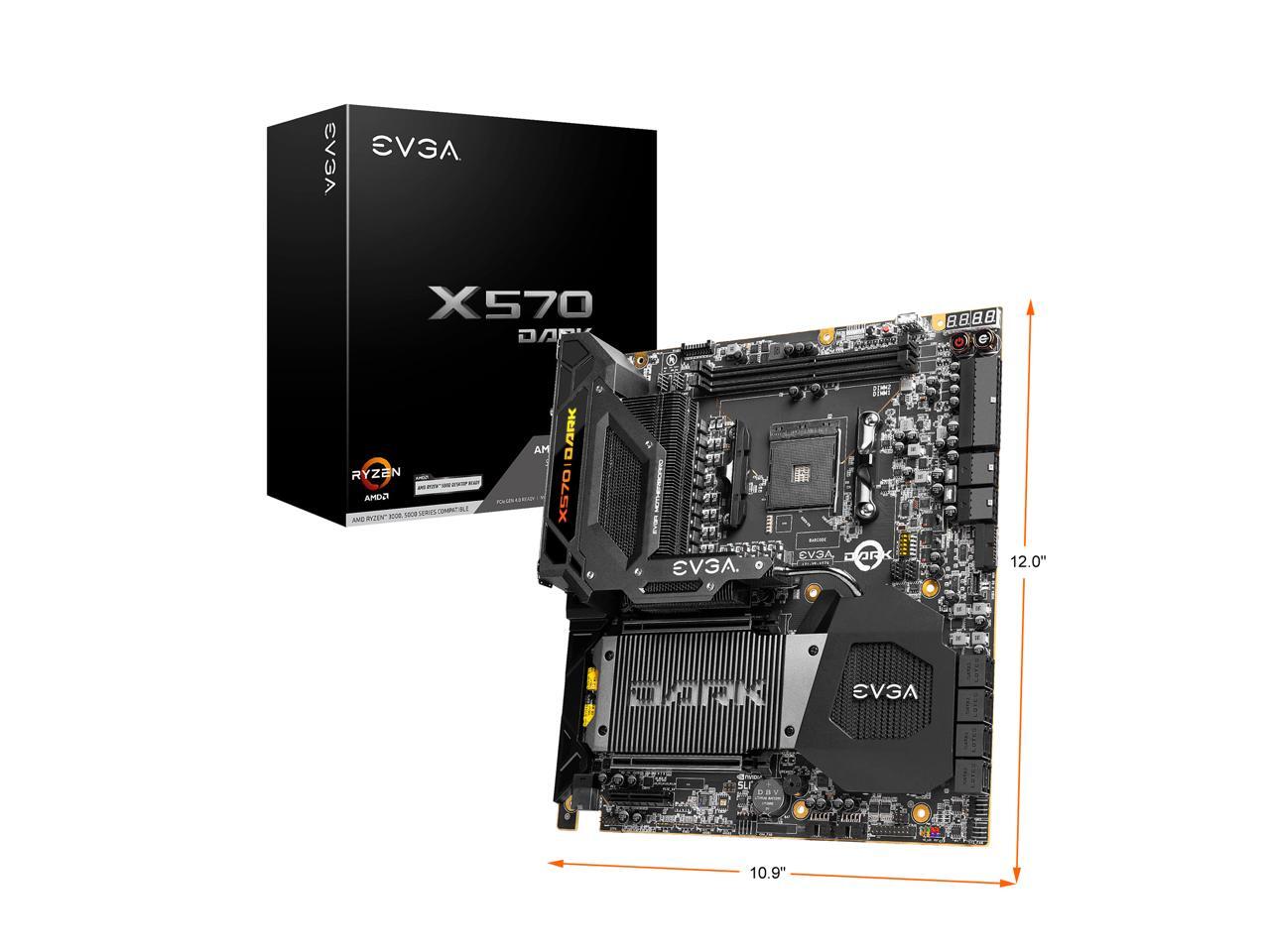

Dimensions (W x L) 12.0" x 10.9"
Power Pin 24 Pin
Packaging

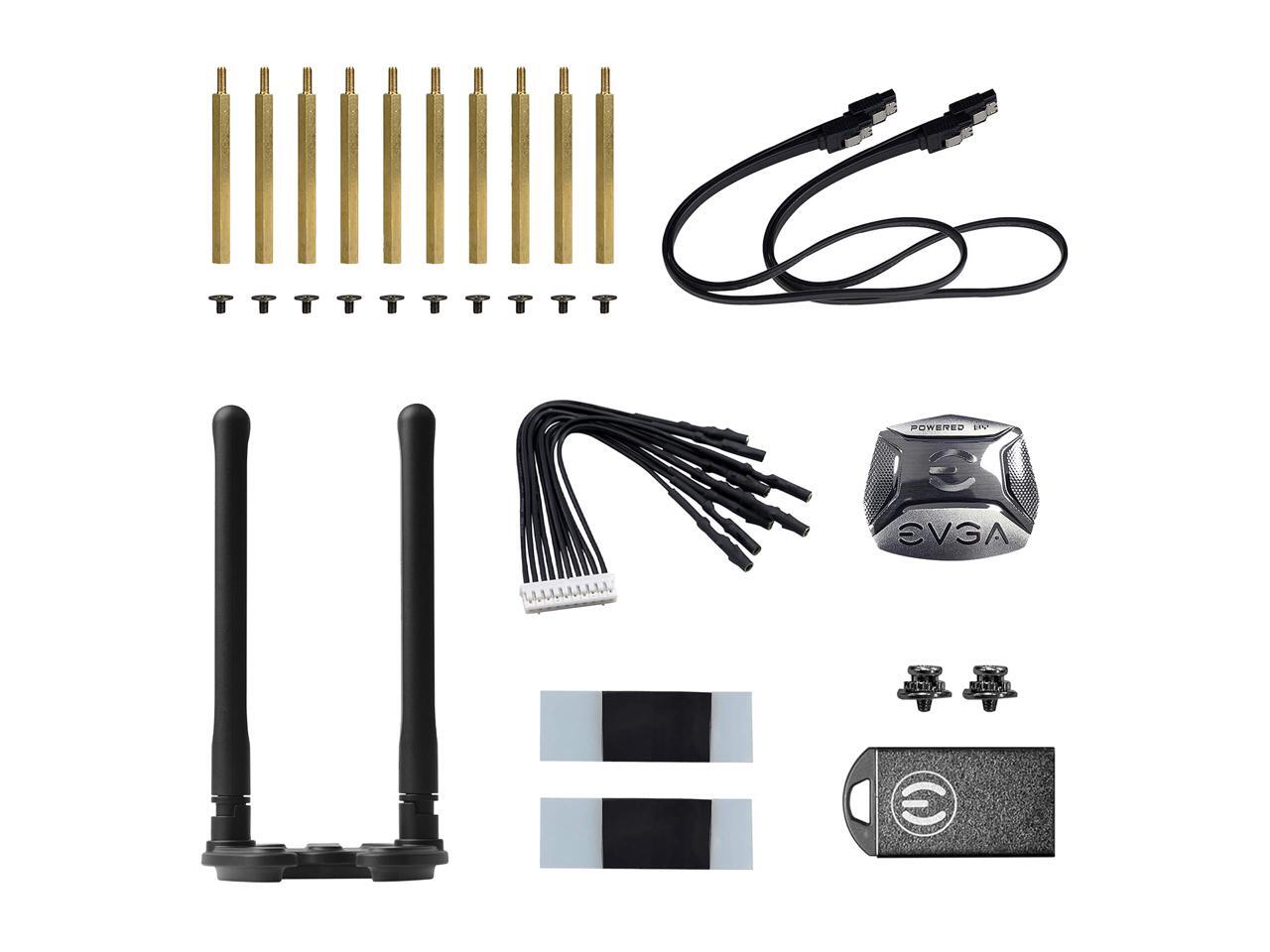

Package Contents ACCESSORIES
EVGA Quick Installation Guide
2 x SATA 6Gb/s Data Cables
M.2 Thermal Pads
M.2 Screw Kit
EVGA Wi-Fi/BT Antenna
USB Flash drive with driver and manual
Additional Information
Date First Available February 14, 2022

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

  • Limited Warranty period (parts): 3 years
  • Limited Warranty period (labor): 3 years
