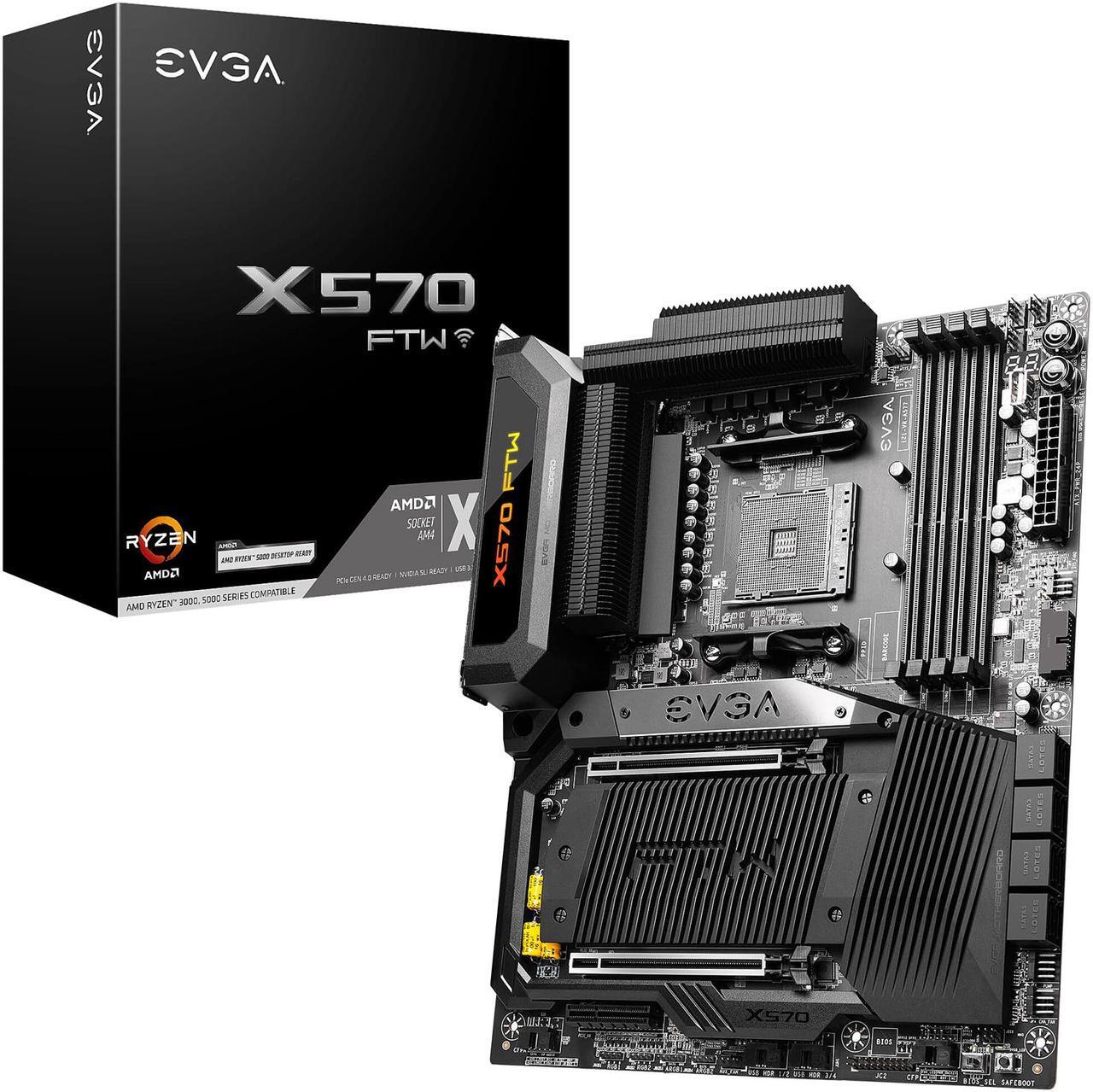

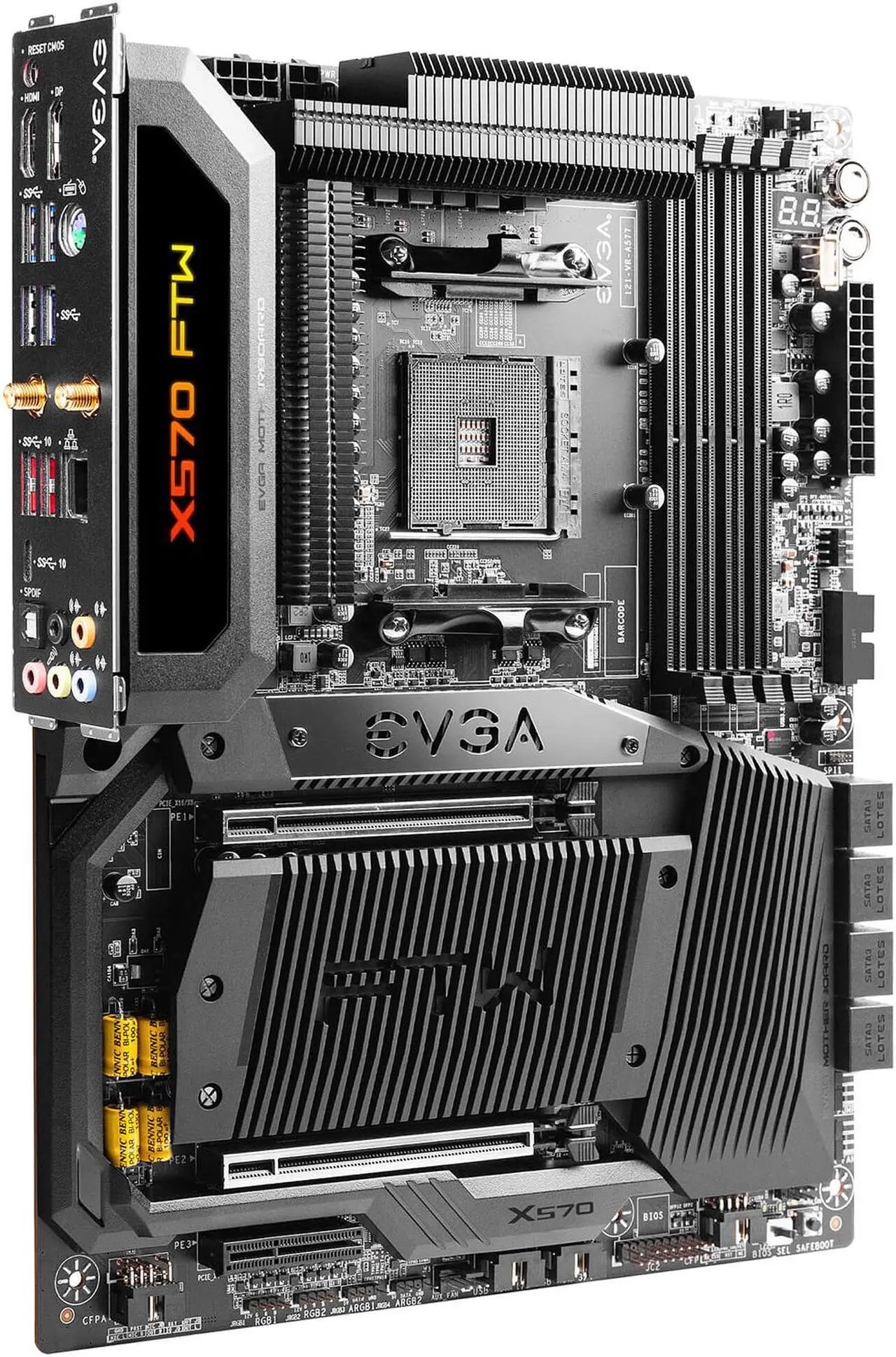

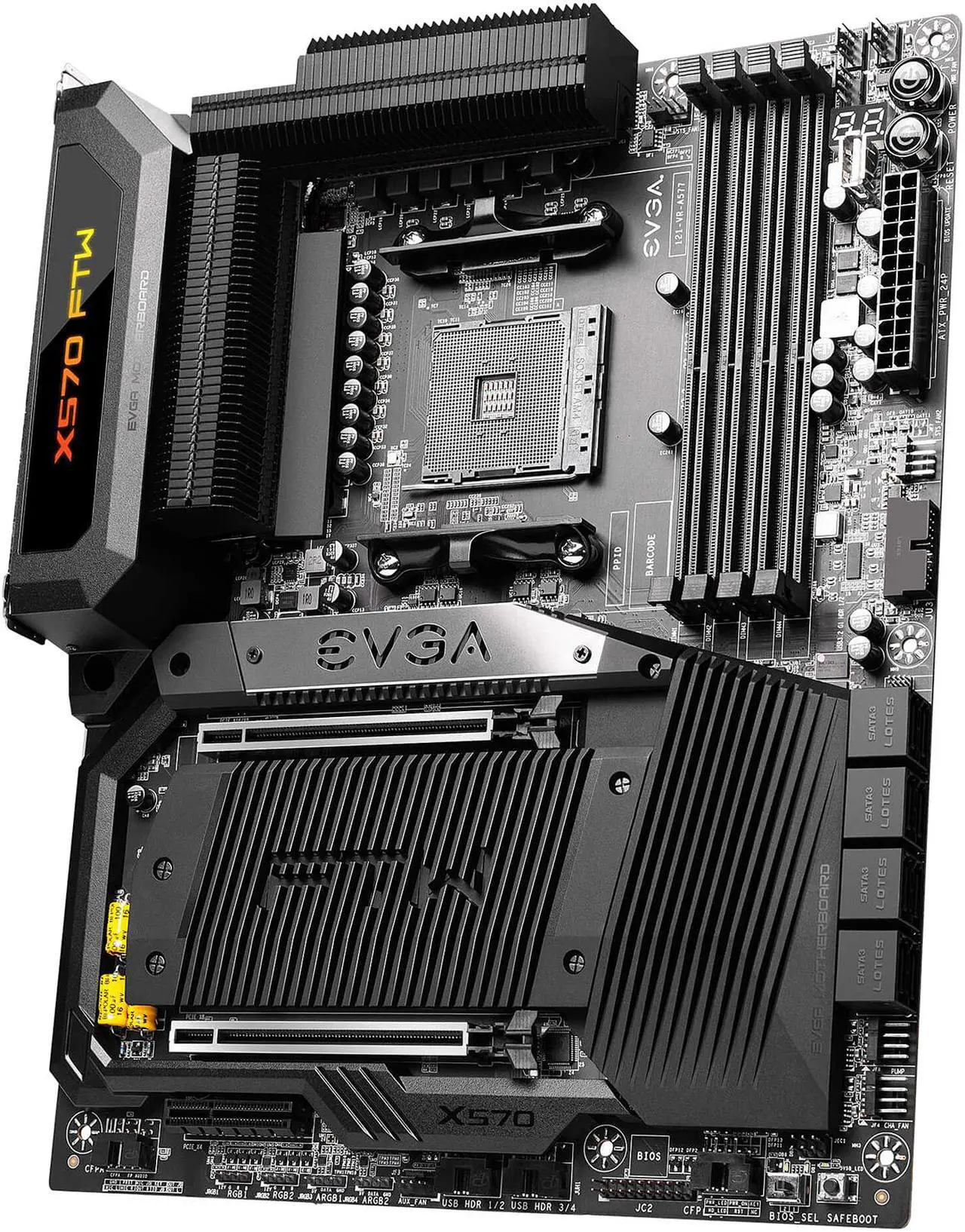

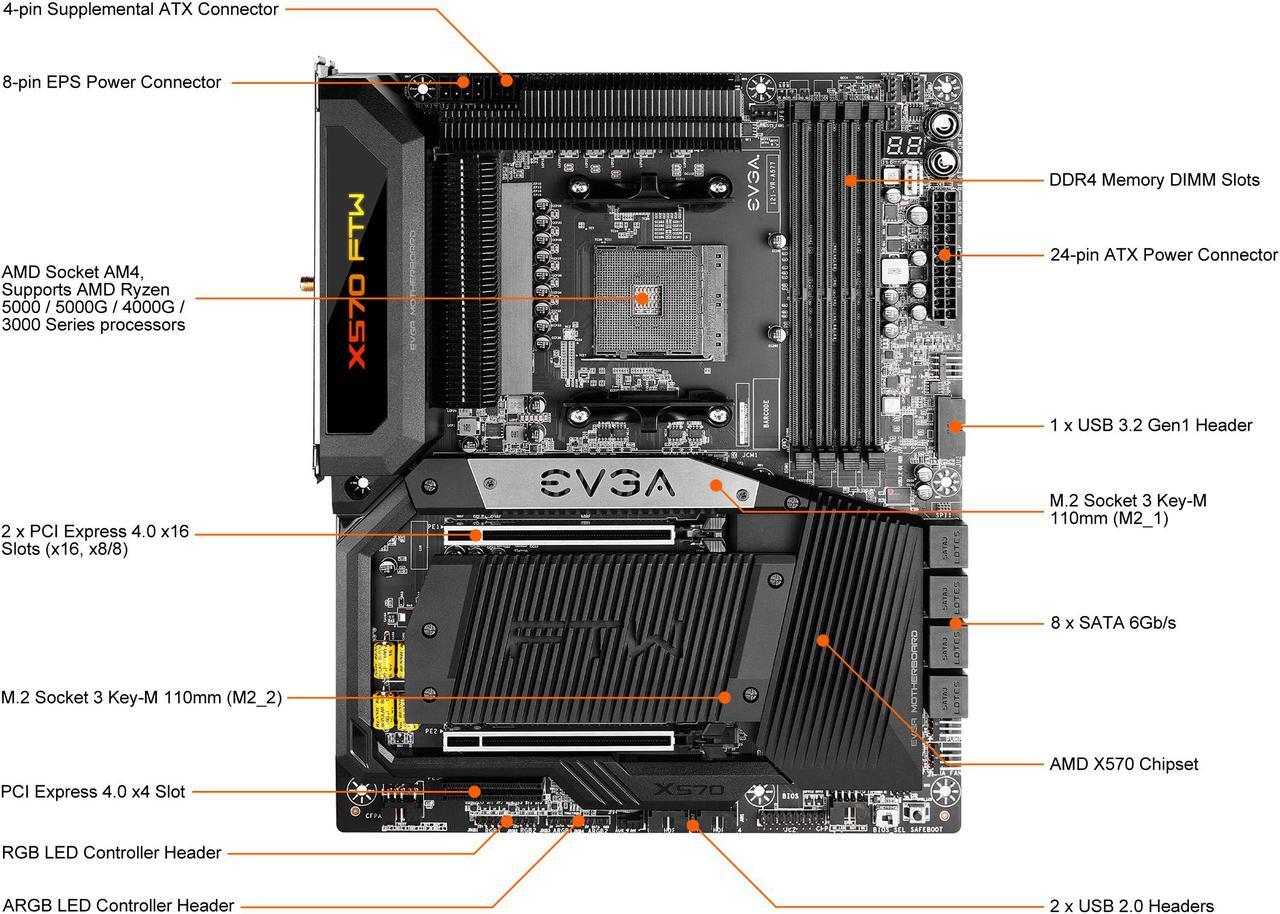

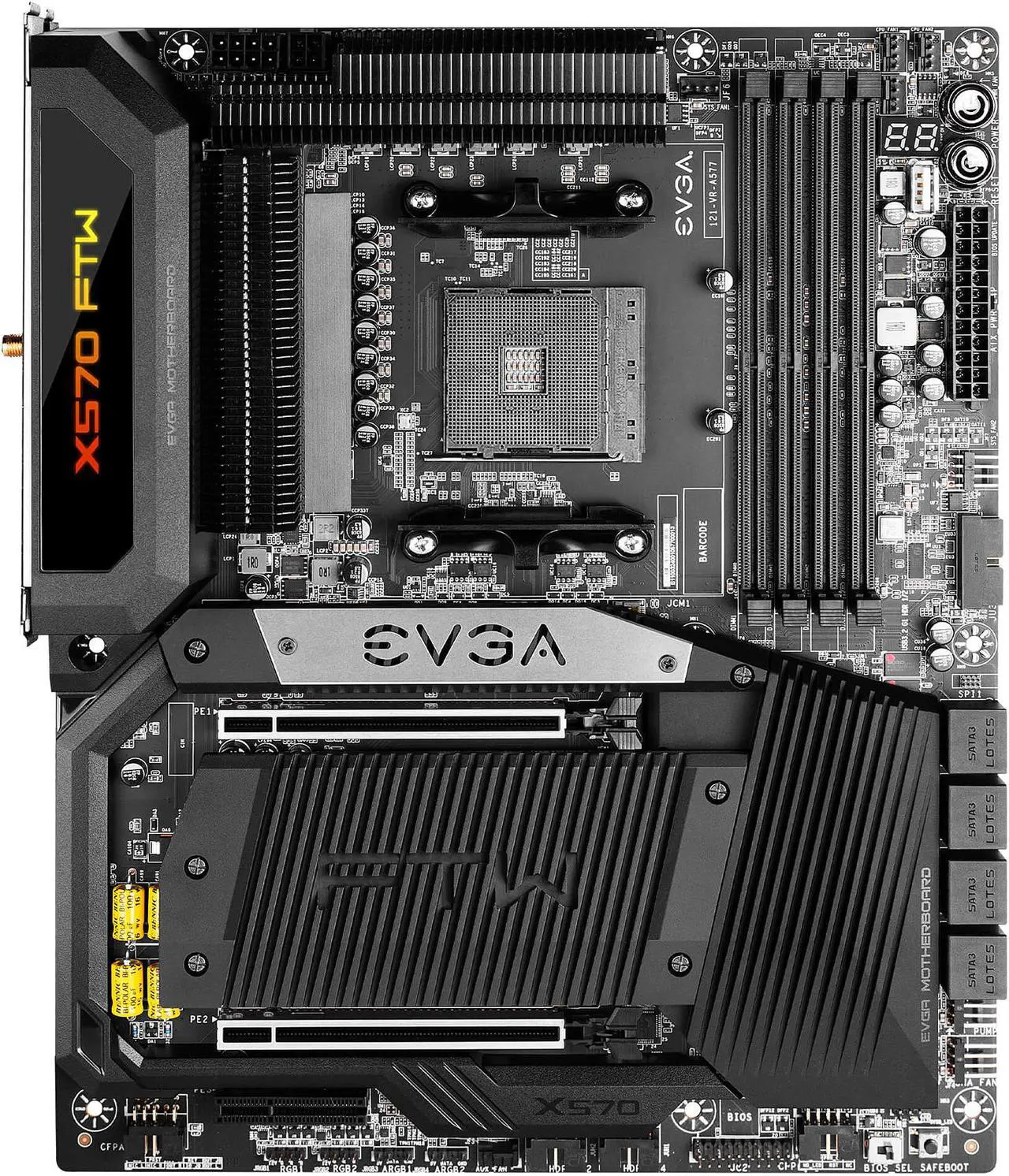

EVGA X570 FTW WIFI, 121-VR-A577-KR, AM4, AMD X570, PCIe Gen4, SATA 6Gb/s, Wi-Fi 6/BT5.2, USB 3.2 Gen2, M.2, ATX, AMD Motherboard

(6)(1) Write a Review
  • AMD X570 Chipset, Supports AMD Ryzen 5000 and 3000 Series processors for the AMD AM4 socket
  • PCIe Gen4, M.2 Gen4, ATX Form Factor, 15 Phase PWM, Metal Reinforced PCIe Slots, NVIDIA SLI Ready, Preinstalled rear I/O cover
  • 4 DIMM Dual-Channel supports up to 128GB 4600+ MHz, 3 USB 3.2 Gen2 Ports (2x Type A, 1x Type-C), DP 1.4/HDMI 2.0
  • 8 SATA 6Gb/s, 2x M.2 Key-M 110mm, 1x M.2 Key-E 32mm with installed Wi-Fi 6/BT 5.2, Intel Gigabit NIC
  • Onboard ARGB lighting + 2x ARGB / 2x RGB Headers fully customizable through EVGA ELEET X1
🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available
Specs
Reviews (6)
avatar

Any questions? Our AI beta will help you find out quickly.

Try me now

Learn more about the EVGA X570 FTW WIFI

Model
Brand EVGA
Model X570 FTW WIFI
Part Number 121-VR-A577-KR
Supported CPU
CPU Socket Type AM4
CPU Type Supports AMD Ryzen 5000 / 5000G / 4000G / 3000 Series processors
Chipsets
Chipset AMD X570
Memory
Number of Memory Slots 4x288pin (DDR4)
Memory Standard AMD Ryzen 5000 Series
- Support DDR4 4800(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3733(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ (O.C.)/ 3200/ 3000/ 2800/ 2666/ 2400/ 2133

AMD Ryzen 5000 G Series
- Support DDR4 5100(O.C.)/ 5000(O.C.)/ 4800(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3733(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ (O.C.)/ 3200/ 3000/ 2800/ 2666/ 2400/ 2133

AMD Ryzen 4000 G Series
- Support DDR4 5100(O.C.)/ 4800(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3733(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ (O.C.)/ 3200/ 3000/ 2666/ 2400/ 2133

AMD Ryzen 3000 Series
- Support DDR4 4400(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3733(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ (O.C.)/ 3200/ 3000/ 2666/ 2400/ 2133
Maximum Memory Supported 128GB
Channel Supported Dual Channel
Expansion Slots
PCI Express 4.0 x16 2 x PCI Express 4.0 x16
PCI Express x4 1 x PCIe 4.0 x4
Other Slots 1 x M.2 Key-E 32mm
Storage Devices
Serial ATA (SATA) 8 x SATA 6Gb/s
M.2 2 x M.2 Key-M 110mm PCIe Gen4 (Up to 64Gb/s)
SATA RAID 0/1/10
Onboard Audio
Audio Chipset Realtek 1220
Audio Channels 7.1 Channels
Onboard LAN
LAN Chipset Intel I211-AT Gigabit NIC
Max LAN Speed 1Gbps
Wireless LAN Intel Wi-Fi 6 AX200 Wi-Fi 6
Bluetooth Bluetooth 5.2

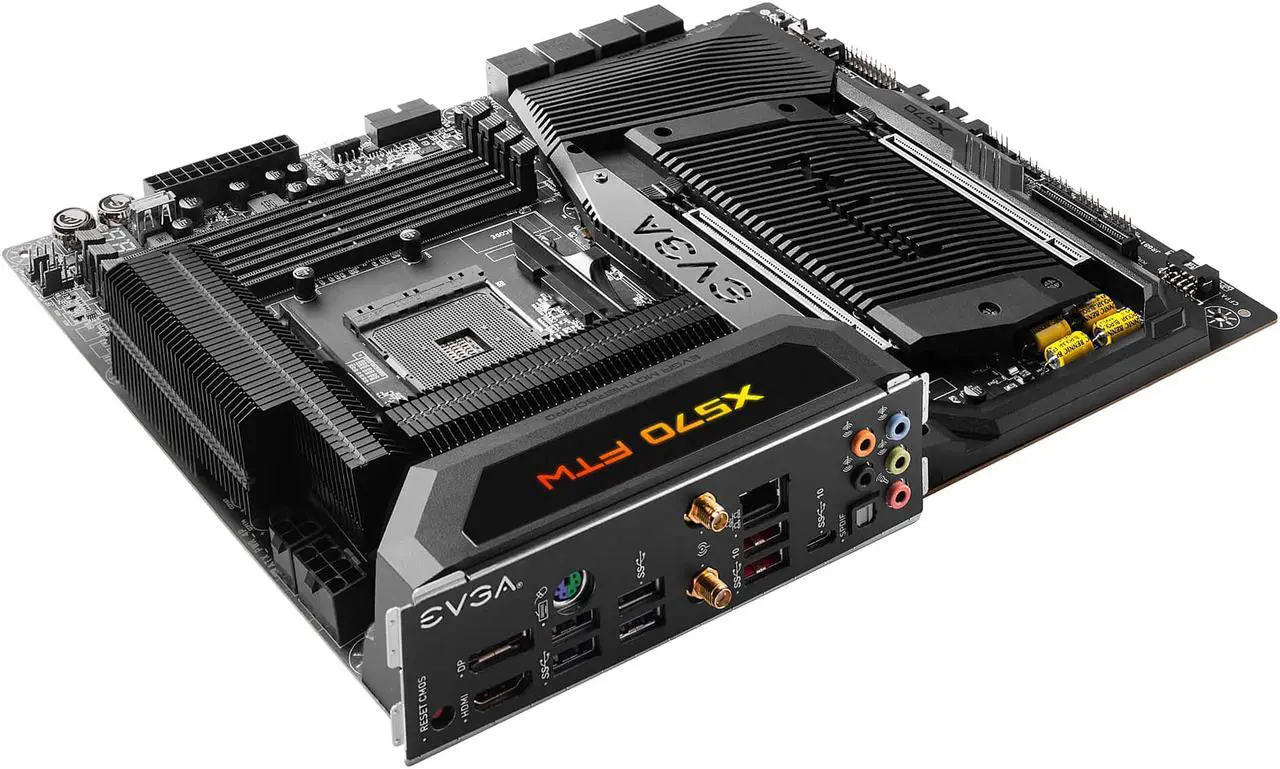

Rear Panel Ports
Back I/O Ports 1 x BIOS / CMOS Reset
1 x DisplayPort 1.4
1 x HDMI 2.0
1 x LAN (RJ45)
2 x Antenna Bracket
1 x Optical S/PDIF Out
5 x Audio Jacks
1 x PS/2 Keyboard/Mouse Combo
1 x USB 3.2 Gen 2 Type-C
2 x USB 3.2 Gen 2 Type-A
4 x USB 3.2 Gen 1 Type-A
Internal I/O Connectors
Onboard USB 1 x USB 2.0 Port (for BIOS update)
2 x USB 2.0 Headers, 1 x USB 3.2 Gen1 Header
Physical Spec
Form Factor ATX
LED Lighting RGB

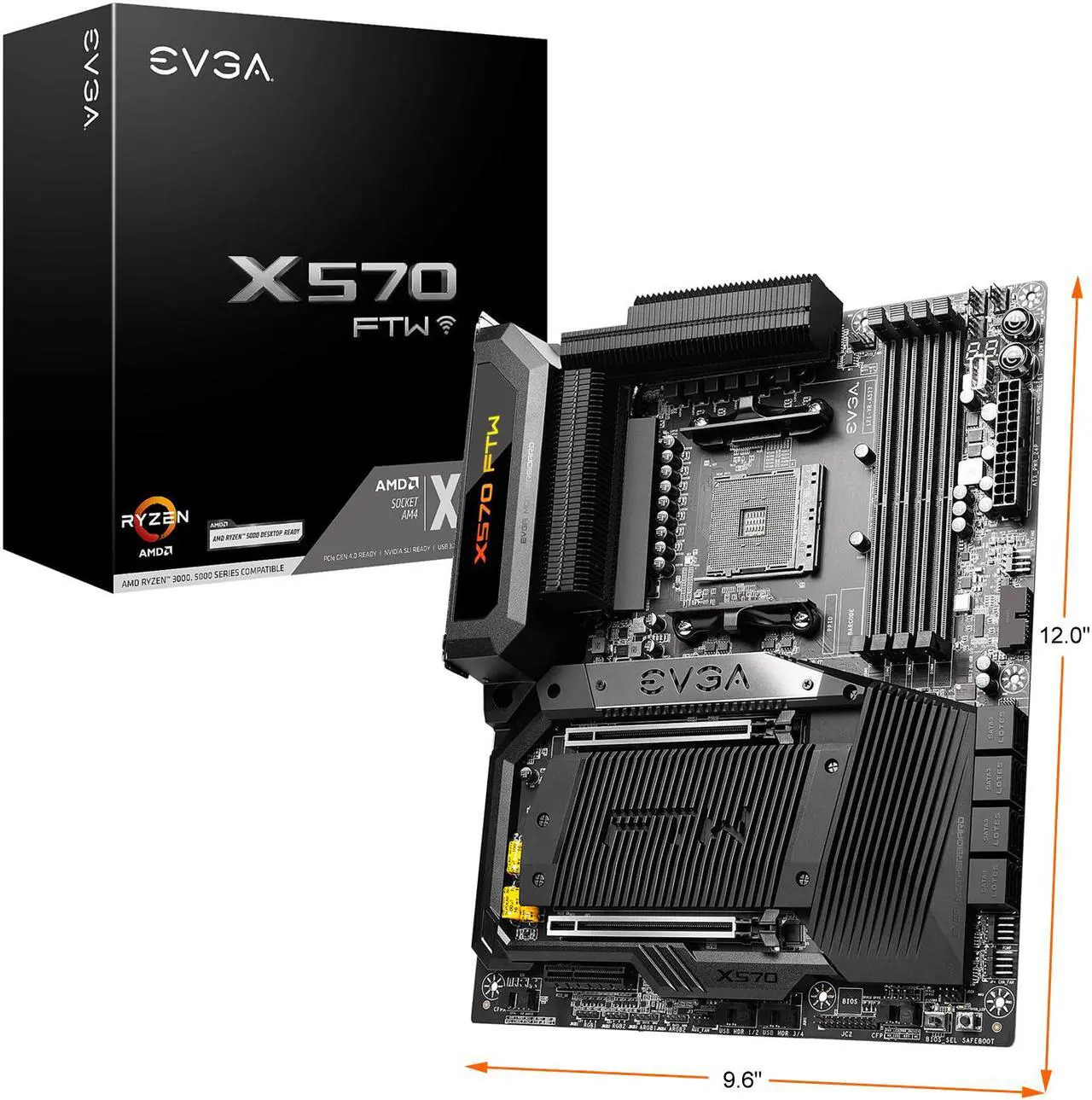

Dimensions (W x L) 12.0" x 9.6"
Power Pin 24 Pin
Packaging

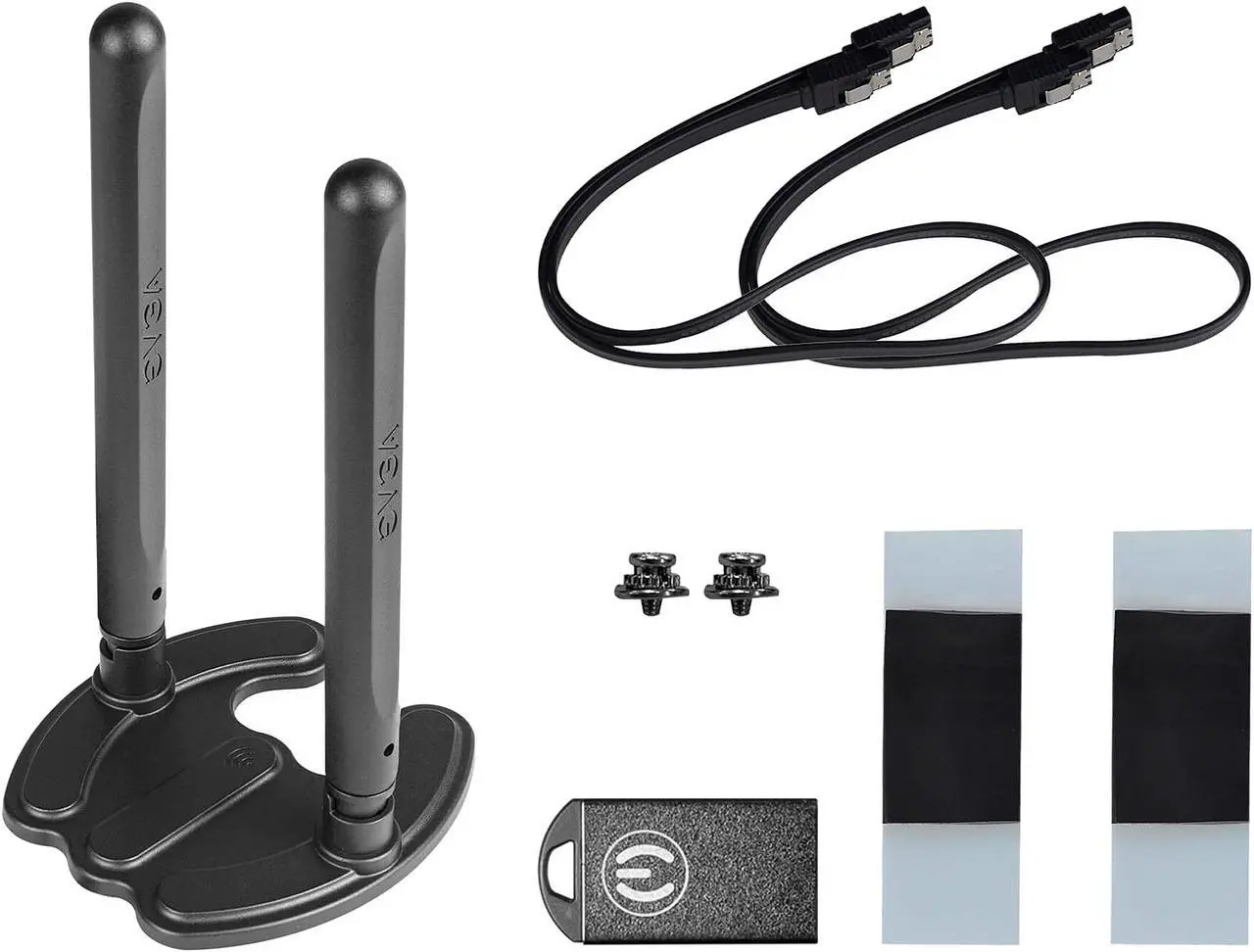

Package Contents ACCESSORIES

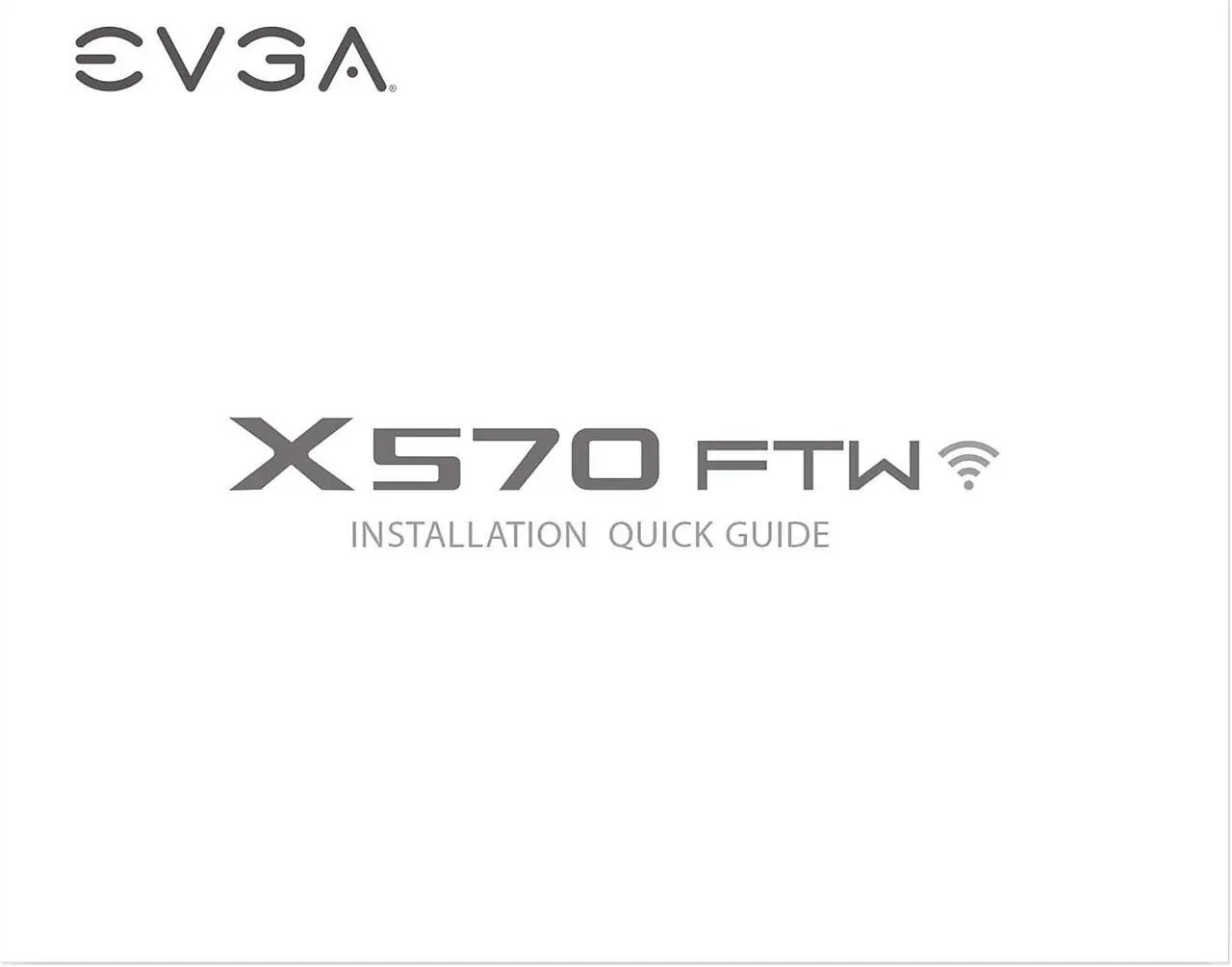

EVGA Quick Installation Guide
2 x SATA 6Gb/s Data Cables
M.2 Thermal Pads
M.2 Screw Kit
EVGA Wi-Fi/BT Antenna
USB Flash drive with driver and manual
Additional Information
Date First Available February 14, 2022

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

  • Limited Warranty period (parts): 3 years
  • Limited Warranty period (labor): 3 years
