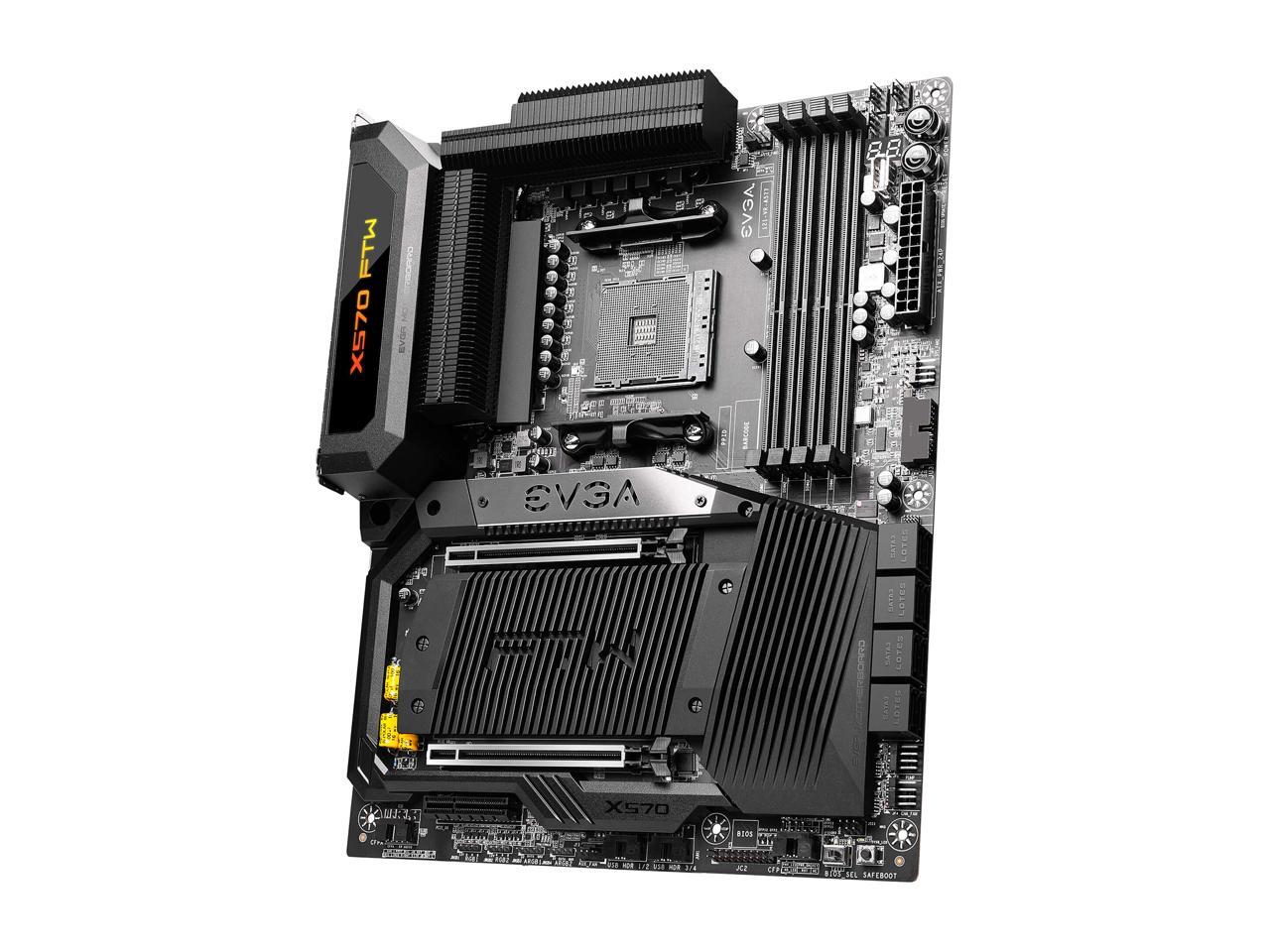

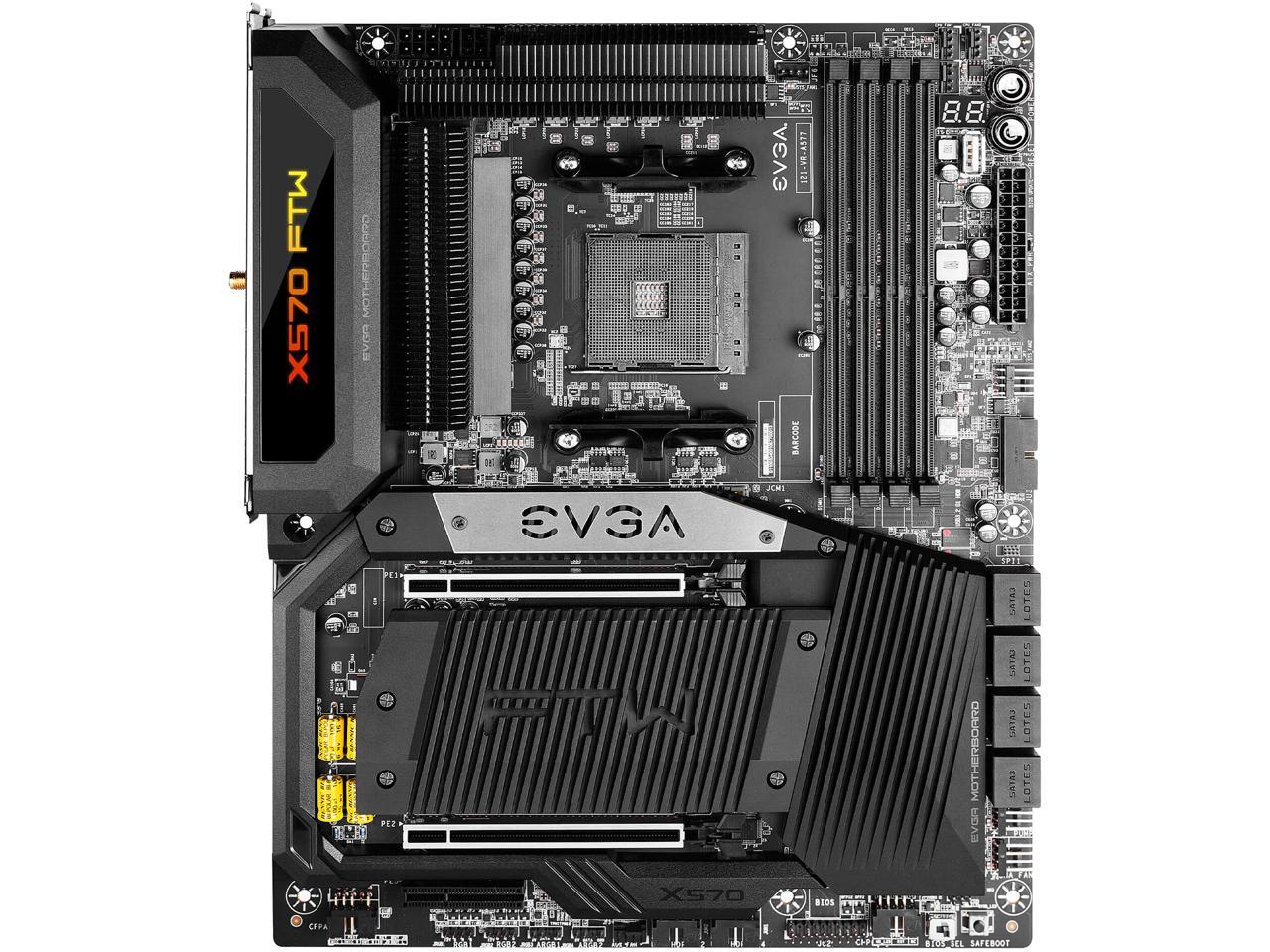

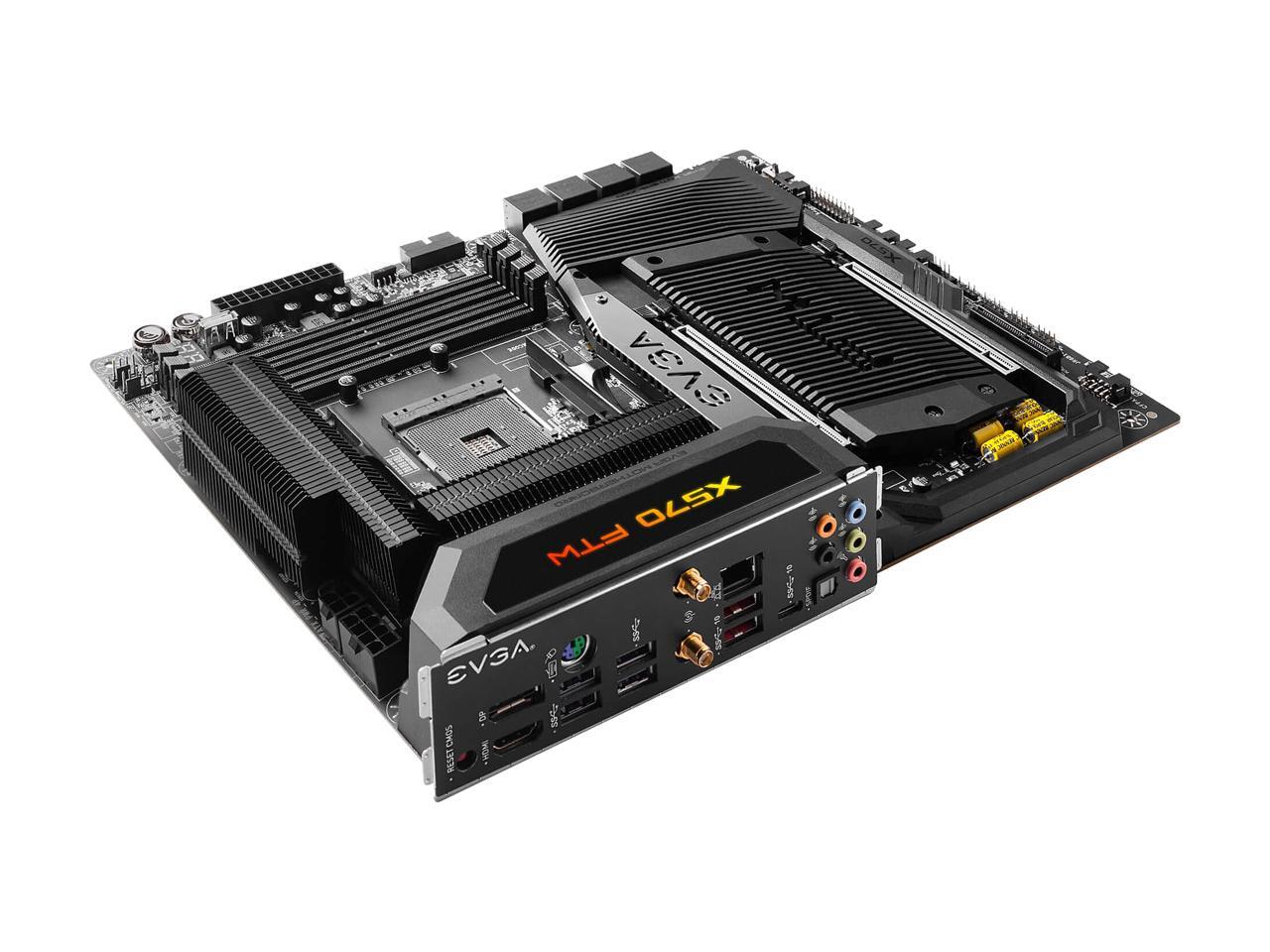

EVGA X570 FTW WIFI, 121-VR-A577-KR, AM4, AMD X570, PCIe Gen4, SATA 6Gb/s, Wi-Fi 6/BT5.2, USB 3.2 Gen2, M.2, ATX, AMD Motherboard

(6)(1) Write a Review
See more "evga x570"
In stock. Limit 8 per customer.
Ships from United States.
  • X570 DARK
  • X570 FTW WIFI
  • AMD X570 Chipset, Supports AMD Ryzen 5000 and 3000 Series processors for the AMD AM4 socket
  • PCIe Gen4, M.2 Gen4, ATX Form Factor, 15 Phase PWM, Metal Reinforced PCIe Slots, NVIDIA SLI Ready, Preinstalled rear I/O cover
  • 4 DIMM Dual-Channel supports up to 128GB 4600+ MHz, 3 USB 3.2 Gen2 Ports (2x Type A, 1x Type-C), DP 1.4/HDMI 2.0
  • 8 SATA 6Gb/s, 2x M.2 Key-M 110mm, 1x M.2 Key-E 32mm with installed Wi-Fi 6/BT 5.2, Intel Gigabit NIC
  • Onboard ARGB lighting + 2x ARGB / 2x RGB Headers fully customizable through EVGA ELEET X1
Specs
Reviews

Learn more about the EVGA X570 FTW WIFI

Model
Brand EVGA
Model X570 FTW WIFI
Part Number 121-VR-A577-KR

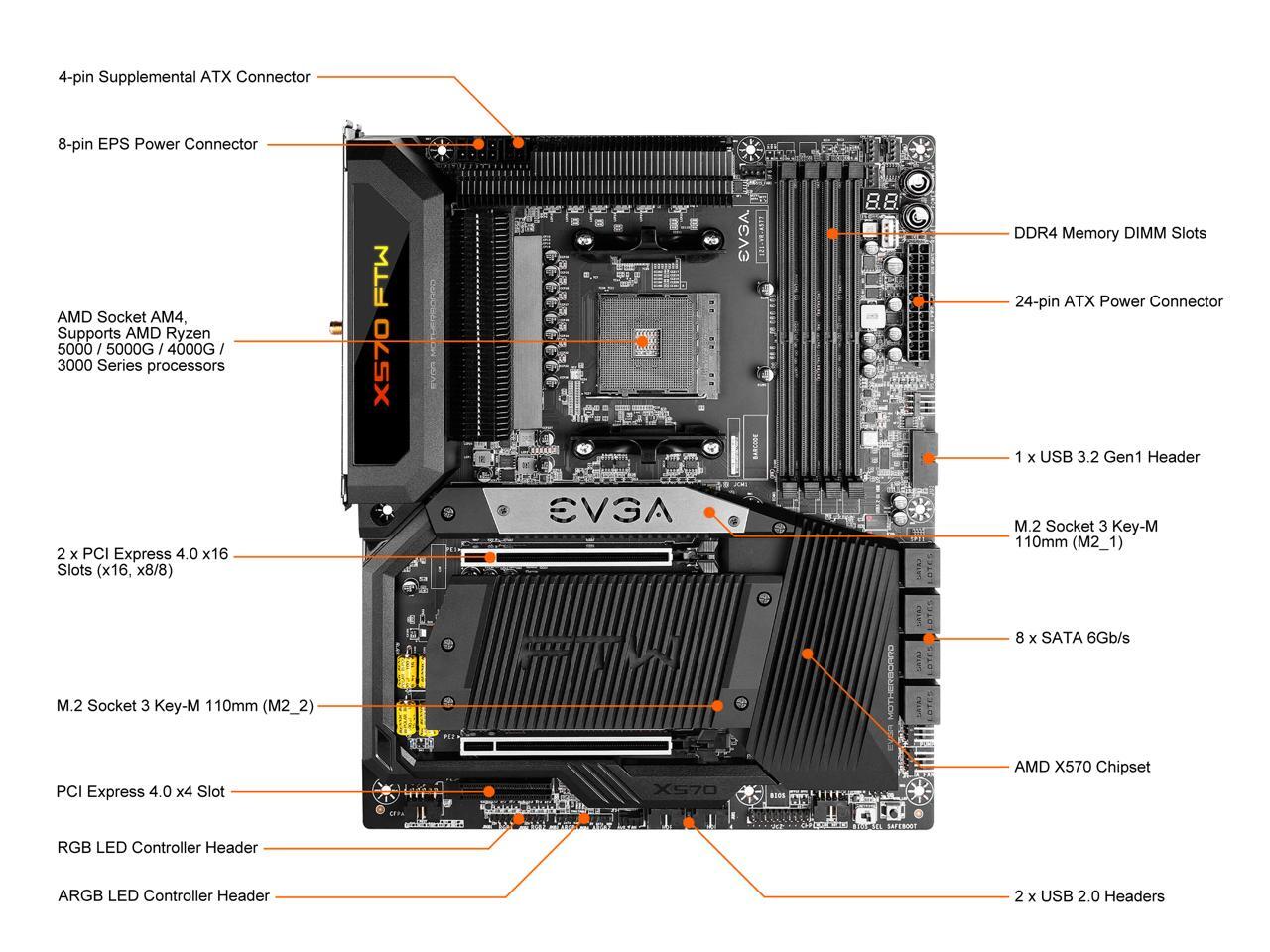

Supported CPU
CPU Socket Type AM4
CPU Type Supports AMD Ryzen 5000 / 5000G / 4000G / 3000 Series processors
Chipsets
Chipset AMD X570
Memory
Number of Memory Slots 4x288pin (DDR4)
Memory Standard AMD Ryzen 5000 Series
- Support DDR4 4800(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3733(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ (O.C.)/ 3200/ 3000/ 2800/ 2666/ 2400/ 2133

AMD Ryzen 5000 G Series
- Support DDR4 5100(O.C.)/ 5000(O.C.)/ 4800(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3733(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ (O.C.)/ 3200/ 3000/ 2800/ 2666/ 2400/ 2133

AMD Ryzen 4000 G Series
- Support DDR4 5100(O.C.)/ 4800(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3733(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ (O.C.)/ 3200/ 3000/ 2666/ 2400/ 2133

AMD Ryzen 3000 Series
- Support DDR4 4400(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3733(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ (O.C.)/ 3200/ 3000/ 2666/ 2400/ 2133
Maximum Memory Supported 128GB
Channel Supported Dual Channel
Expansion Slots
PCI Express 4.0 x16 2 x PCI Express 4.0 x16
PCI Express x4 1 x PCIe 4.0 x4
Other Slots 1 x M.2 Key-E 32mm
Storage Devices
SATA 6Gb/s 8 x SATA 6Gb/s
M.2 2 x M.2 Key-M 110mm PCIe Gen4 (Up to 64Gb/s)
SATA RAID 0/1/10
Onboard Audio
Audio Chipset Realtek 1220
Audio Channels 7.1 Channels
Onboard LAN
LAN Chipset Intel I211-AT Gigabit NIC
Max LAN Speed 10/100/1000Mbps
Wireless LAN Intel Wi-Fi 6 AX200 Wi-Fi 6
Bluetooth Bluetooth 5.2
Rear Panel Ports
Back I/O Ports 1 x BIOS / CMOS Reset
1 x DisplayPort 1.4
1 x HDMI 2.0
1 x LAN (RJ45)
2 x Antenna Bracket
1 x Optical S/PDIF Out
5 x Audio Jacks
1 x PS/2 Keyboard/Mouse Combo
1 x USB 3.2 Gen 2 Type-C
2 x USB 3.2 Gen 2 Type-A
4 x USB 3.2 Gen 1 Type-A
Internal I/O Connectors
Onboard USB 1 x USB 2.0 Port (for BIOS update)
2 x USB 2.0 Headers, 1 x USB 3.2 Gen1 Header
Physical Spec
Form Factor ATX
LED Lighting RGB

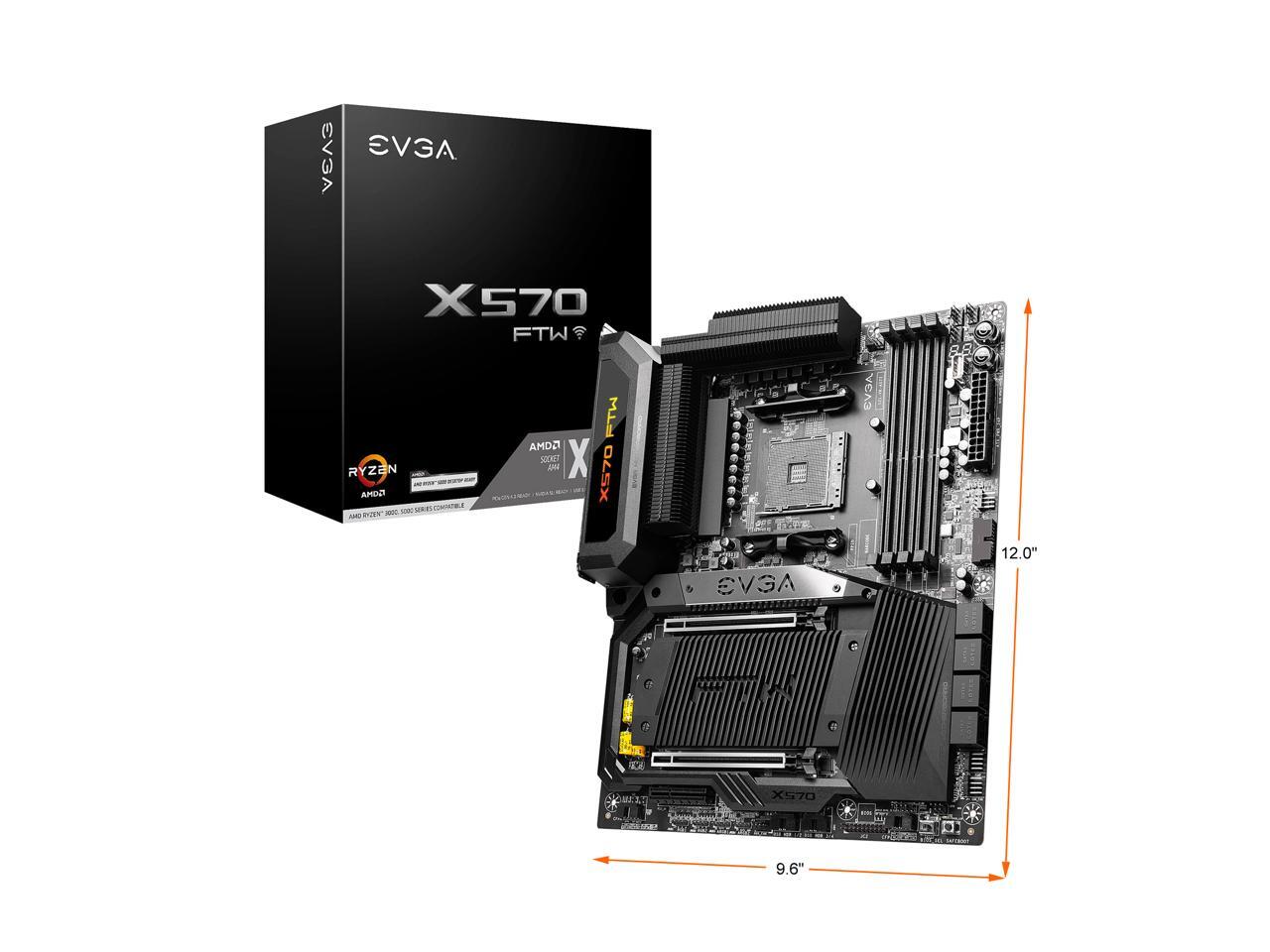

Dimensions (W x L) 12.0" x 9.6"
Power Pin 24 Pin
Packaging

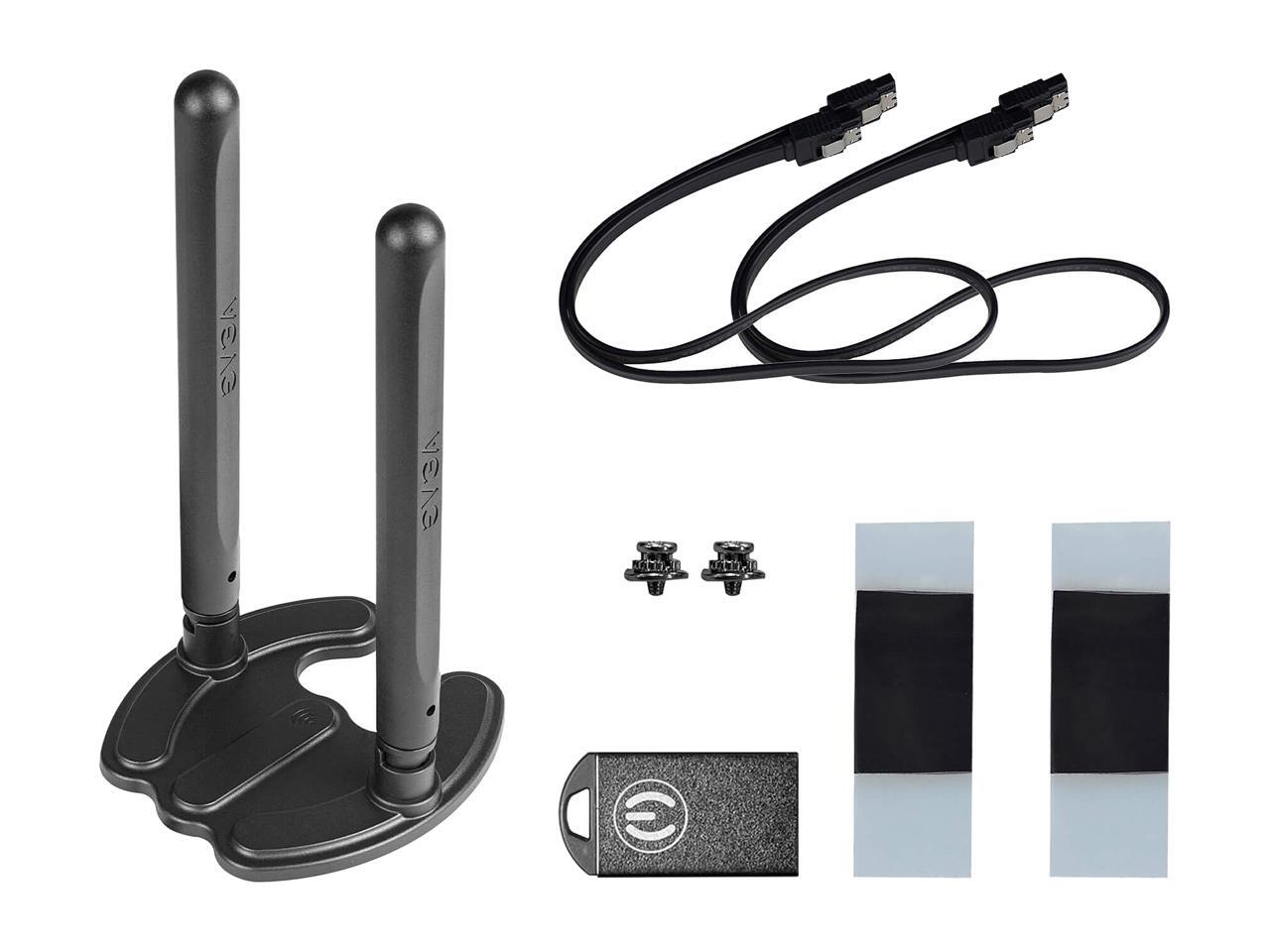

Package Contents ACCESSORIES
EVGA Quick Installation Guide
2 x SATA 6Gb/s Data Cables
M.2 Thermal Pads
M.2 Screw Kit
EVGA Wi-Fi/BT Antenna
USB Flash drive with driver and manual
Additional Information
Date First Available February 14, 2022

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

  • Limited Warranty period (parts): 3 years
  • Limited Warranty period (labor): 3 years
