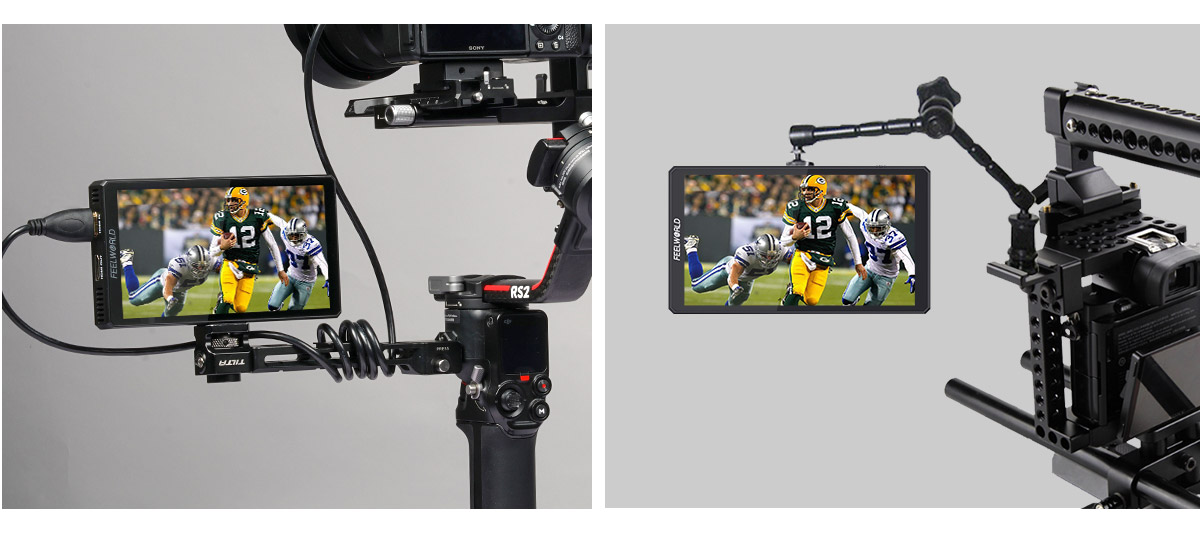

When you've put together rigs made up of powerful equipment, you want to be able to see shots that so much work has now gone into getting to that point. No matter the setup, whether it's a shoulder rig, gimbal, tripod, or handheld, you need a FEELWORLD monitor for all your setups which allow you to see, in perfect definition, make sure your shot in focus and accurate exposure, what you are shooting so that you know that the shot you are working hard to get is truly stellar.

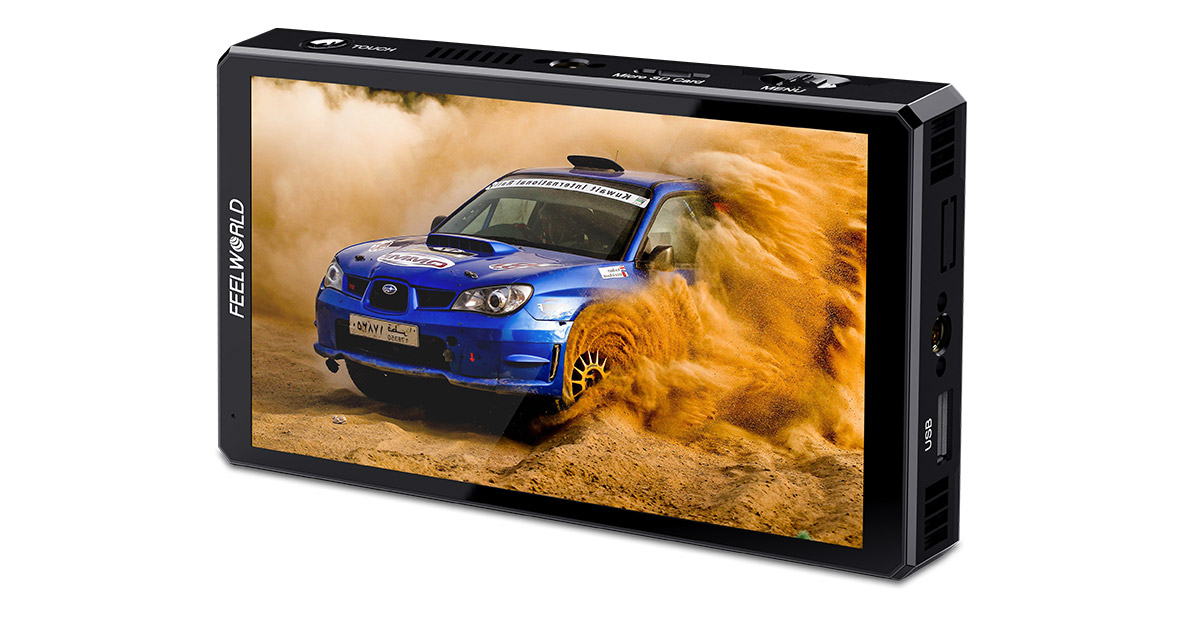

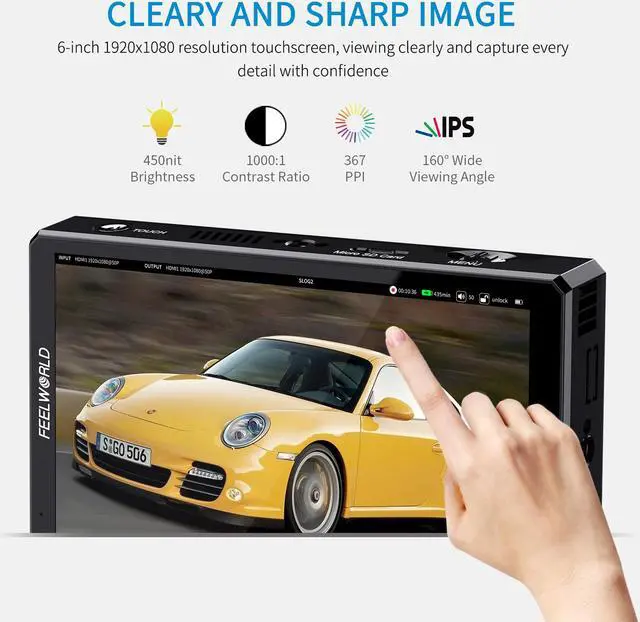

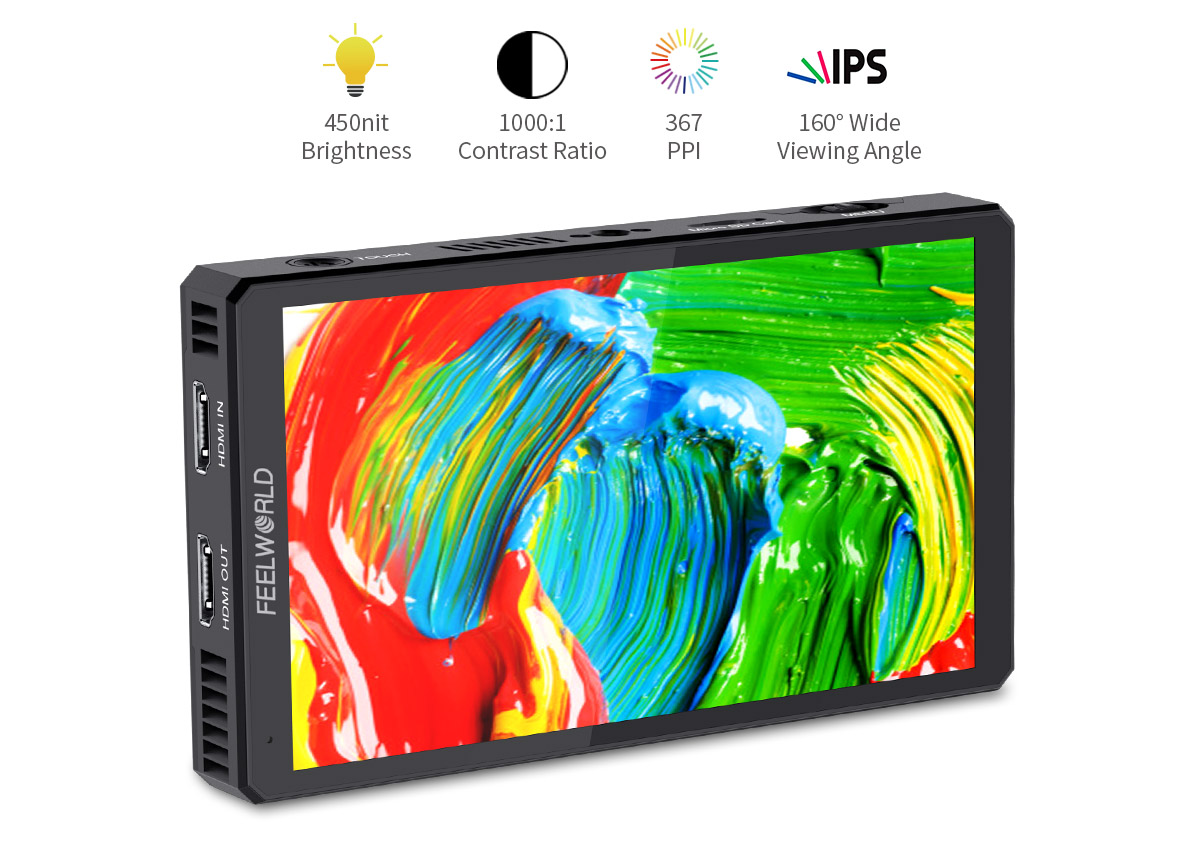

CUT6S is equipped with 6-inch 1920x1080 high resolution touch screen, 8bit color depth, provides excellent details, make you enjoy clearer, richer color image and video.

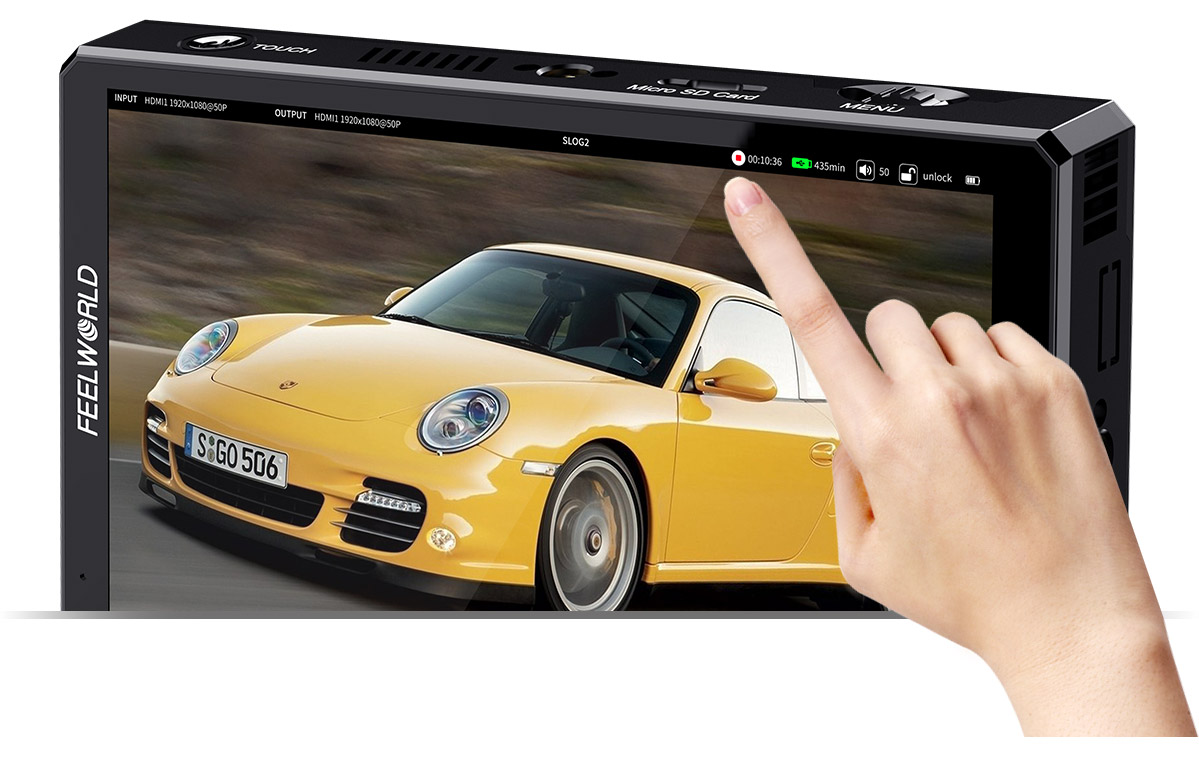

The CUT6S adopts full touchscreen user interface provides incredible control, you can use simple tap and swipe gestures for the important monitoring functions without buttons. New UI menu, take the software functions are iconized, and the values at a glance. It is more convenient and quickly to operate the function. You also can operate via wheel button on the top of the monitor.

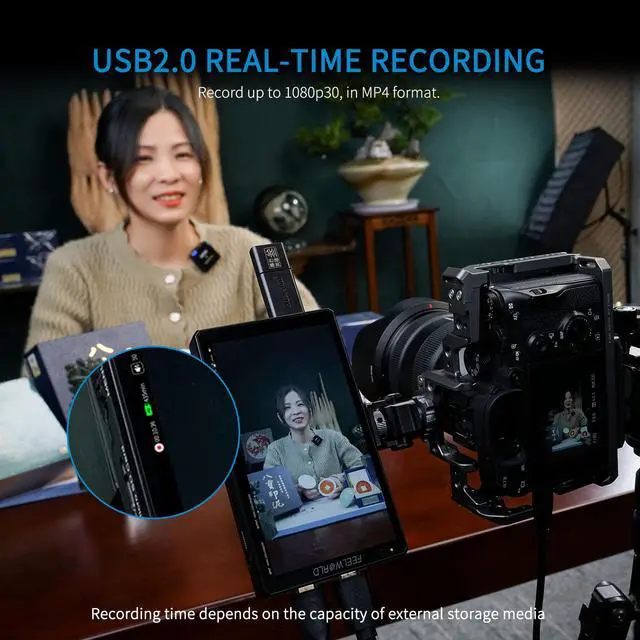

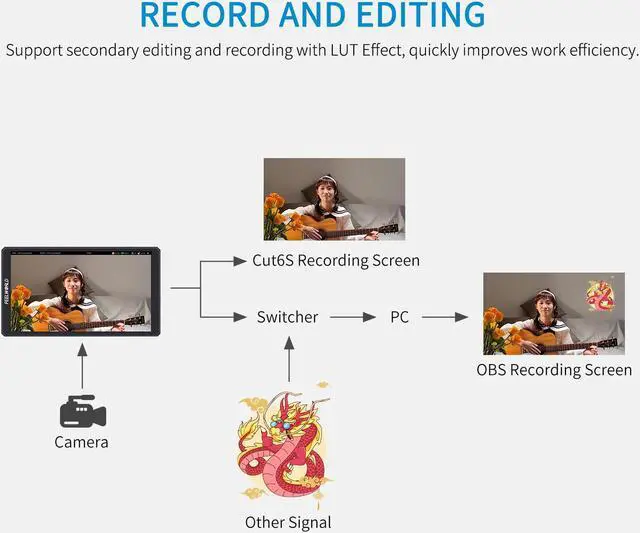

On the top of the screen with red recording key and display the recording time . When the recording is about 1 minute, the information displayed on the top of the screen will be hidden automatically. You can click anywhere on the screen to view the recording time or click the recording key again to end the recording.

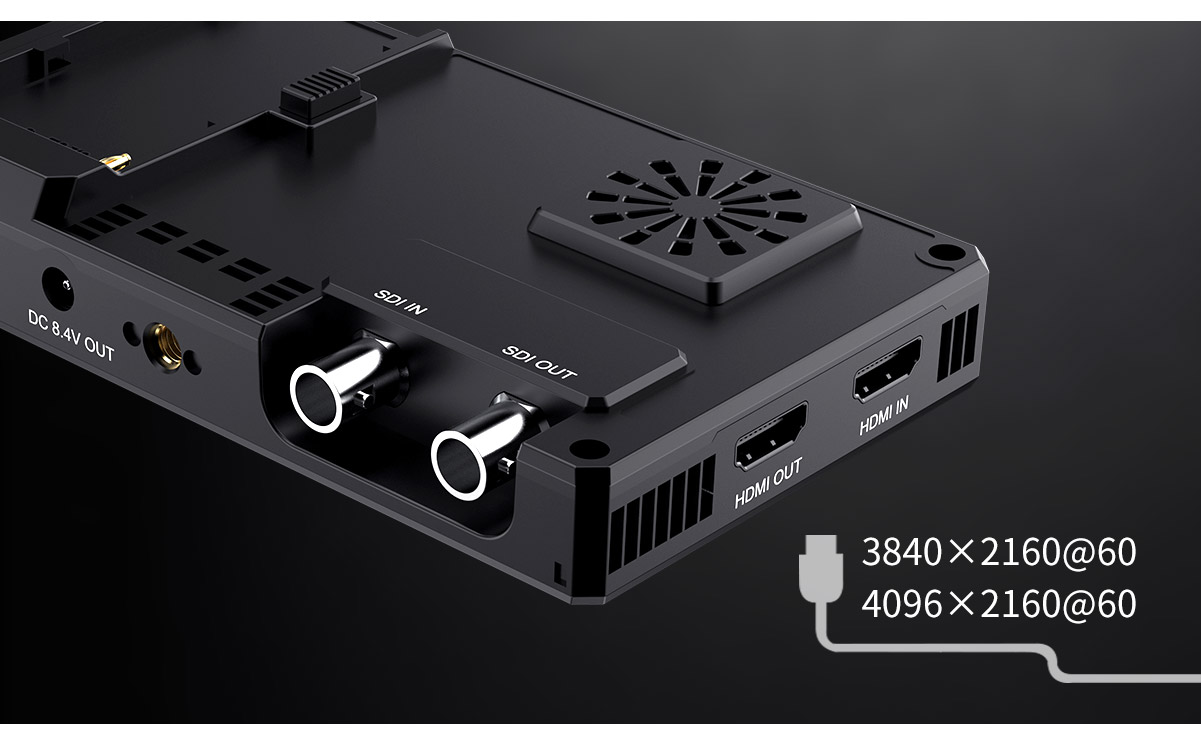

CUT6S comes with 3G-SDI input and output; HDMI 2.0 input that supports 4K 60Hz signal, HDMI output supports up to 1080p60. Compatible with film camera, DSLR camera, mirrorless camera, realize simultaneous monitoring by directors, photographers. For audio, CUT6S can record the follow audio of HDMI, and provides 3.5mm headphone jack to monitor audio.
Note: Under the 1080i signal, there will be a missing pixel at the edge of the image. For example, the frame will missing when inputting a panorama with frame, but it does not affect the using almost.

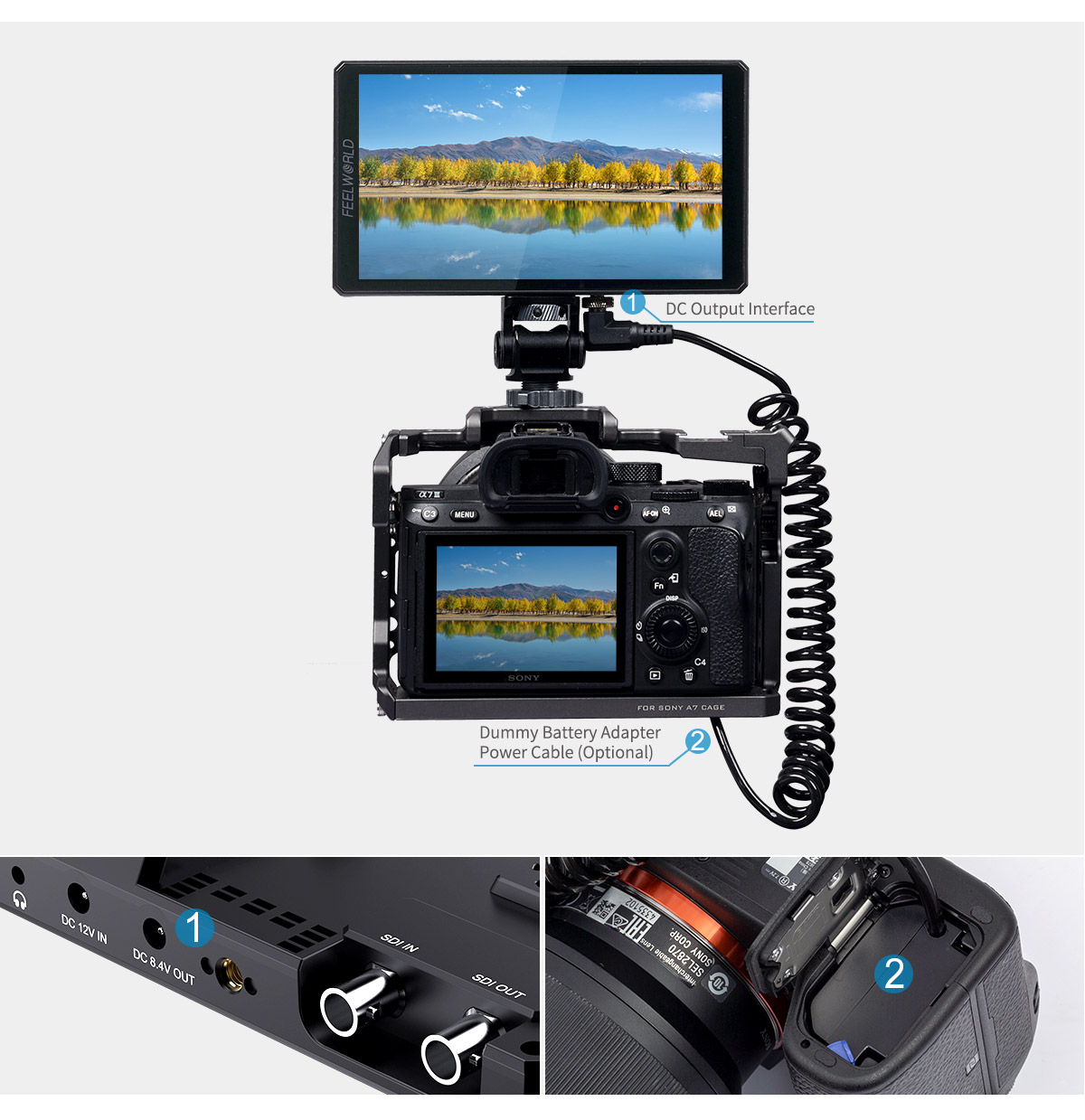

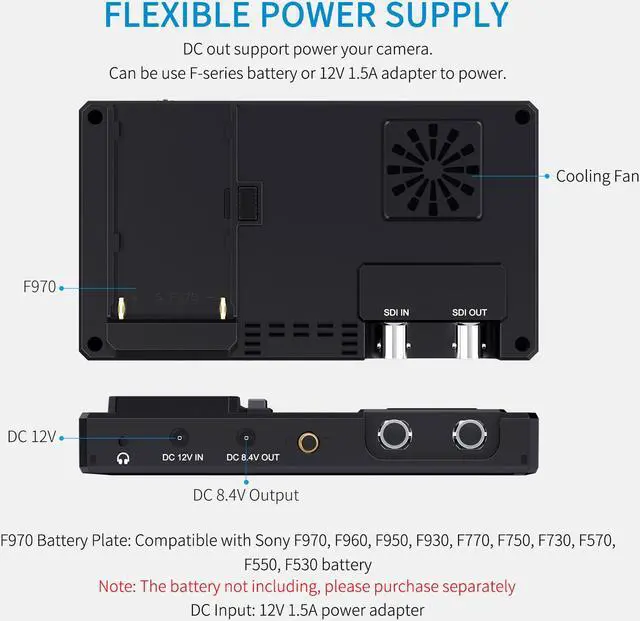

Provides auxiliary power out (DC OUT 8.4V) allowing shooters to power their cameras. With a battery adapter cable (Optional), the CUT6S extends camera run-time, while providing a more usable display.
Barrel output for powering your camera with a separately available DC coupler via adapter (NP-FW50 Sony & LP-E6 Canon & DMW-BLF19 Panasonic). More adapters coming soon.
Note: since different brands and models of cameras require different power for normal operation, the camera may not be able to take pictures or video normally. Therefore, when using batteries to power the monitor, in order to use the camera normally, it is recommended to use a large-capacity fully charged battery.

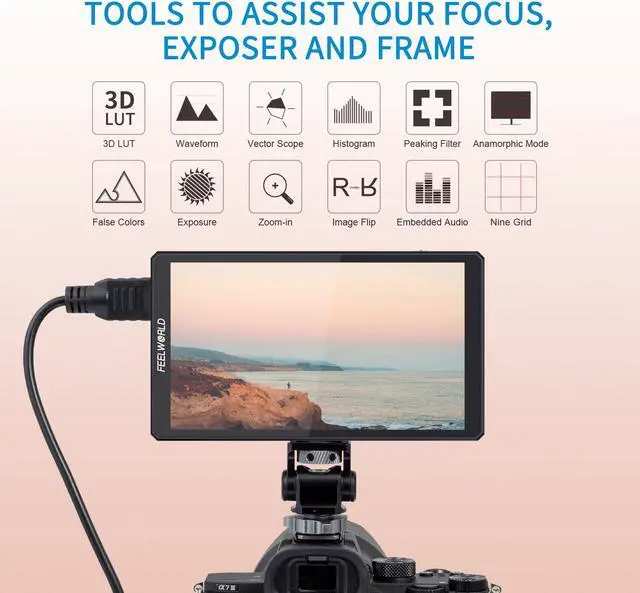

Our flexible OS is packed with an extensive suite of scopes, all 1-touch away and simple to use. The Video OS includes tools for focus, framing & exposure (waveform, RGB parade, vector, RGB histogram, histogram, embedded audio, focus peaking, zoom, zebra, false color, safe frames, etc.) as well as a flexible 3D LUT implementation (use built-in LOG to Rec.709 video or upload .cube files).

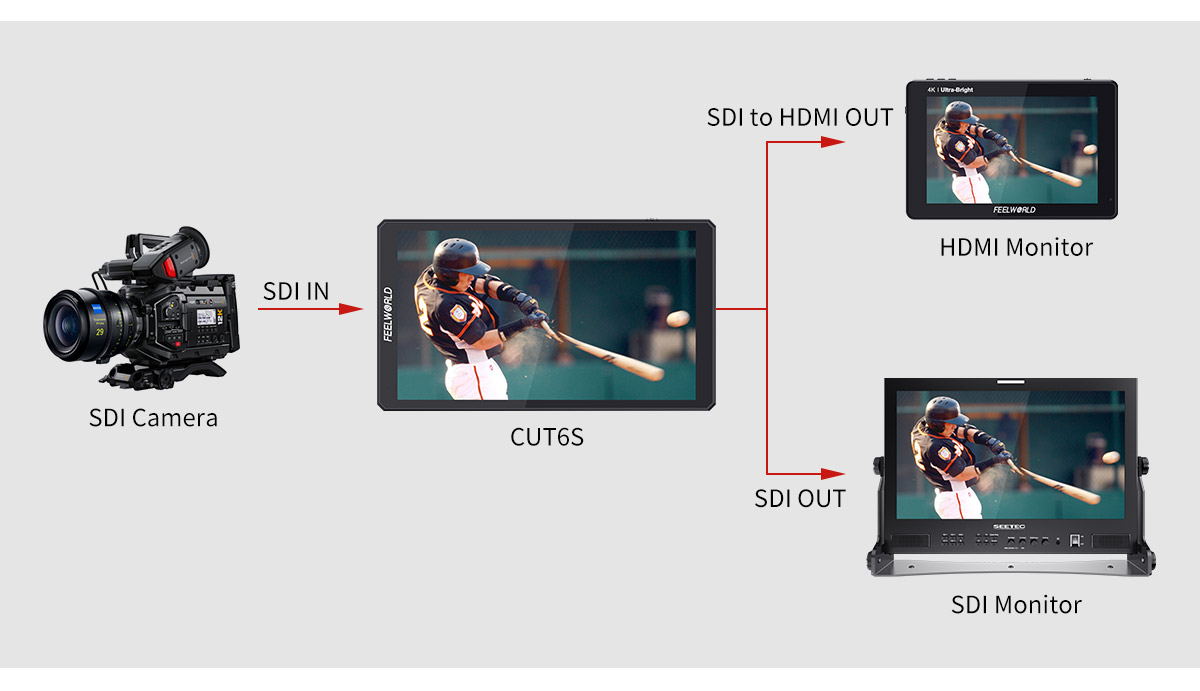

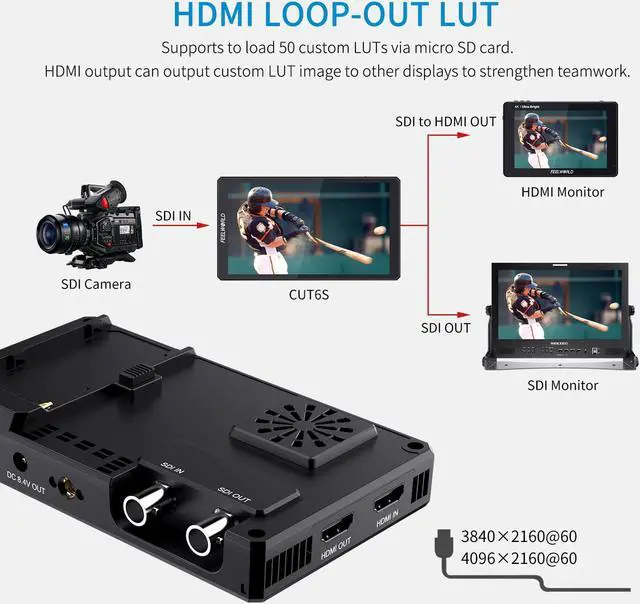

CUT6S supports SDI to HDMI, you can input SDI signal then HDMI and SDI outputs at the same time, realizing multi-person monitoring.
The LUT loading function makes the color calibration easier and more intuitive, optimizes the workflow and improves the work efficiency in the early stage of shooting. You could use built-in LOG or upload .cube files. CUT6S allows you to load internally up to custom LUTs (Up to 50 user files can be imported), looks or profiles at any time via micro SD card . Slot and instantly select between them, maintaining creative intent, always.

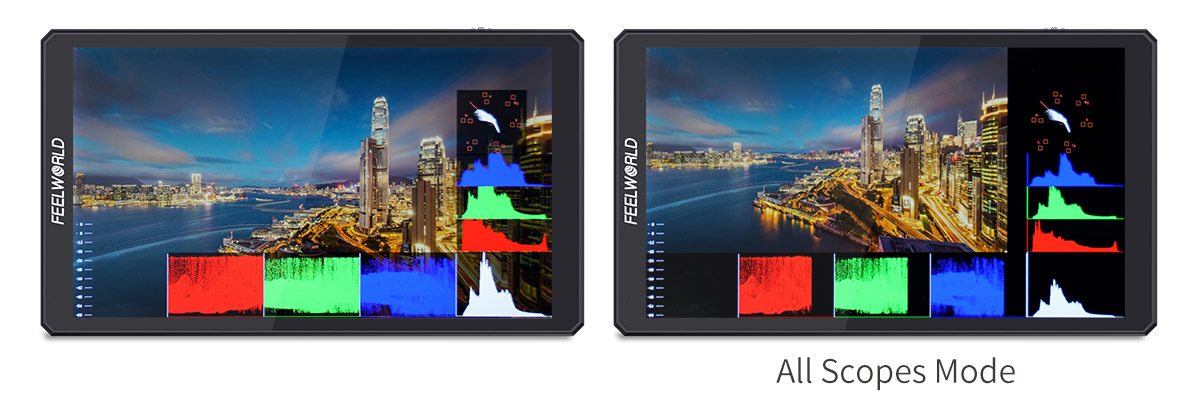

When you need to analyze image quality more accurately than simply looking at the picture then use CUT6S built in all wave monitoring! Under all wave mode, you can choose from waveform (RGB/YUV), vector, histogram (Y, RGB, Y+RGB), audio phase and level displays, and get broadcast accurate waveform monitoring that shows everything you need to know technically about your video and audio signals. The functions can be opened separately, and also support one key to open all scope mode. CUT6S becomes the ideal choice for live production monitoring, so you no longer need to use a separate expensive scopes!
HDR could bring bigger dynamic range and more image details, for incredible clarity , which could restore the true color. There are HLG2020, HLG709, HLG P3 modes for optional.
The monitor is equipped with 3 standard 1/4mounting threads (top, bottom, right side), you can easily mount it on the camera or other types of equipment with a magic arm, bracket, etc.. Whether it is horizontal or vertical shooting, you can accurately monitor.
| Screen Size | 6" IPS |
|---|---|
| Resolution | 1920x1080 pixels |
| Pixel Pitch | 0.069 (H) × 0.069 (V) (mm) |
| Aspect Ratio | 16:9 |
| Brightness | 450cd/m2 |
| Contrast Ratio | 1000:1 |
| Backlight | LED |
| Viewing Angle | 80/80(L/R)degrees 80/80(U/D)degrees |
| Input | HDMI, SDI, DC 12V IN |
|---|---|
| Output | HDMI, SDI, DC 8.4V OUT, 3.5 Stereo Headphone |
| Input Voltage | DC7 - 14V |
| Power Consumption | 11W |
| Working Temperature | -20 - +50Celsius degree |
| Storage Temperature | -30 - +65 Celsius degree |
| Install Way | 1/4"-20 Thread Socket ( Right, Top, Bottom) |
| Unit Size | 152Lx86Hx23D(mm) |
