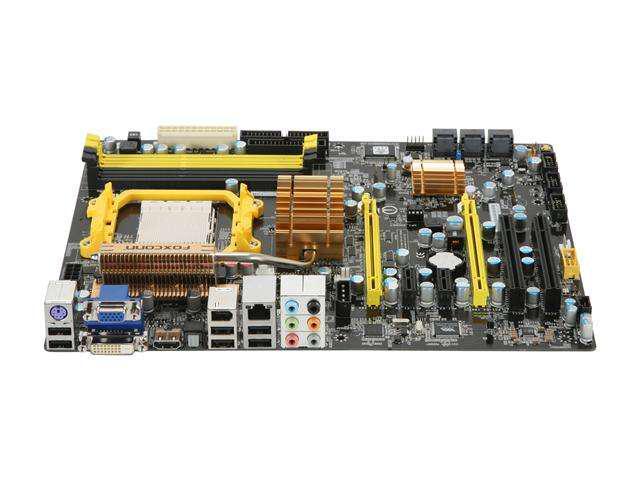

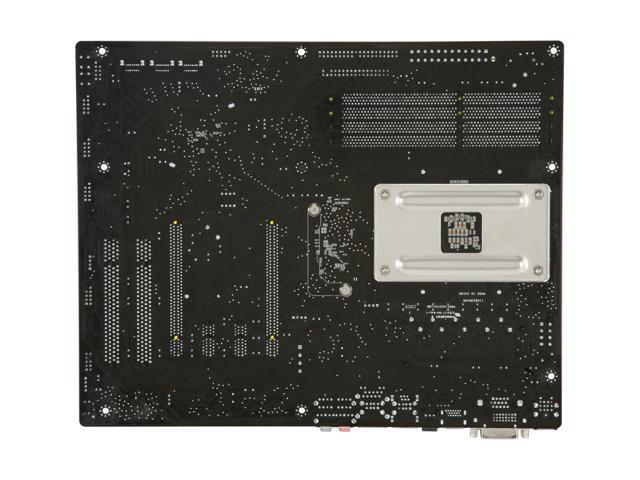

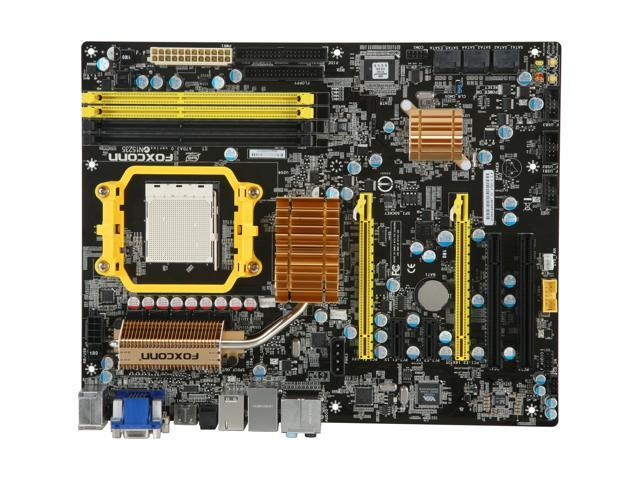

Foxconn A7DA-S 3.0 AM3 AMD 790GX HDMI ATX AMD Motherboard

Used - Very Good Product Type
Comes with motherboard and IO shield only, no additional accessories.
In stock.
Ships from United States.
  • AMD 790GX
  • Phenom II
  • DDR3 1333
Specs

Learn more about the Foxconn A7DA-S 3.0

Model
Brand Foxconn
Model A7DA-S 3.0
Supported CPU
CPU Socket Type AM3
CPU Type Phenom II
FSB 2600 MHz
Chipsets
Chipset AMD 790GX
South Bridge AMD SB750
Memory
Number of Memory Slots 4x240pin
Memory Standard DDR3 1333
Maximum Memory Supported 8GB
Channel Supported Dual Channel
Expansion Slots
PCI Express 2.0 x16 2 x PCI Express 2.0 x16
PCI Express x1 2 x PCI Express 2.0 x1
PCI Slots 2 x PCI Slots
Storage Devices
PATA 1 x ATA133 2 Dev. Max
SATA 3Gb/s 5 x SATA 3Gb/s
SATA RAID 0/1/5/10/JBOD
Onboard Video
Onboard Video Chipset ATI Radeon HD 3300
Onboard Audio
Audio Chipset Realtek ALC888-GR
Audio Channels 8 Channels
Onboard LAN
LAN Chipset Broadcom BCM5784
Max LAN Speed 10/100/1000Mbps
Rear Panel Ports
PS/2 1
Video Ports D-Sub + DVI
HDMI 1 x HDMI
USB 1.1/2.0 6 x USB 2.0
IEEE 1394 1 x IEEE 1394a
S/PDIF Out 1 x Optical
Audio Ports 6 Ports
Internal I/O Connectors
Onboard USB 3 x USB 2.0 headers support additional 6 ports
Onboard 1394 1 x 1394a
Physical Spec
Form Factor ATX
Dimensions (W x L) 12.0" x 9.6"
Power Pin 24 Pin
Additional Information
Date First Available August 10, 2021
