Foxconn Cinema Premium AM3/AM2+/AM2 AMD 785G HDMI Micro ATX AMD Motherboard
- AMD 785G
- Phenom II / Phenom / Athlon II / Athlon64 /Sempron
- DDR2 1066/800
Specs
Reviews (43)
Learn more about the Foxconn Cinema Premium
| Brand | Foxconn |
|---|---|
| Model | Cinema Premium |
| CPU Socket Type | AM3/AM2+/AM2 |
|---|---|
| CPU Type | Phenom II / Phenom / Athlon II / Athlon64 /Sempron |
| FSB | 2600 MHz |
| Chipset | AMD 785G |
|---|---|
| South Bridge | AMD SB710 |
| Number of Memory Slots | 4x240pin |
|---|---|
| Memory Standard | DDR2 1066/800 |
| Maximum Memory Supported | 8GB |
| Channel Supported | Dual Channel |
| PCI Express 2.0 x16 | 1 x PCI Express 2.0 x16 |
|---|---|
| PCI Express x1 | 2 x PCI Express x1 |
| PCI Slots | 1 x PCI Slot |
| SATA RAID | 0/1/5/10 |
|---|
| Onboard Video Chipset | ATI Radeon HD 4200 |
|---|
| Audio Channels | 8 Channels |
|---|
| Max LAN Speed | 1Gbps |
|---|

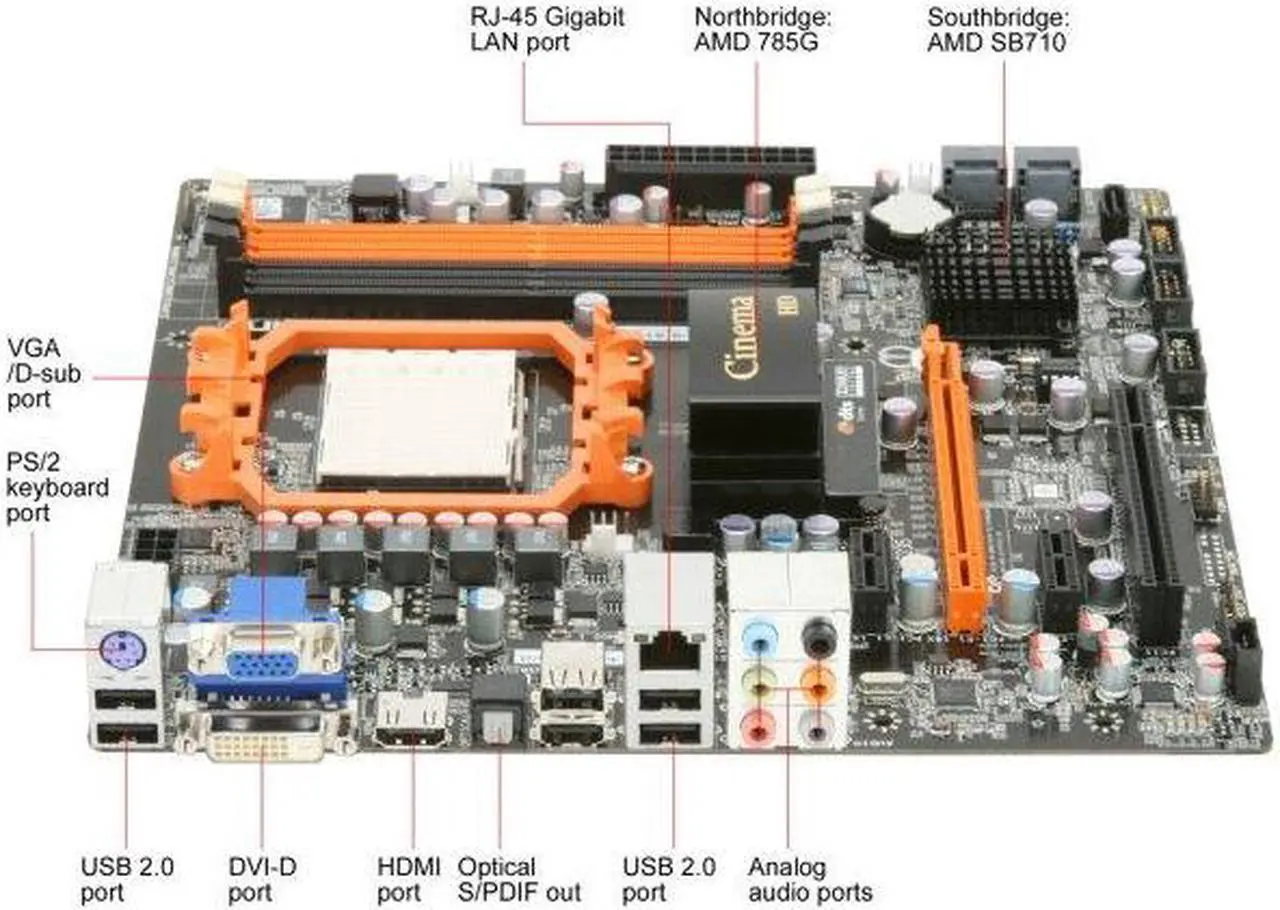

| Back I/O Ports | 1 x D-Sub / 1 x DVI / 1 x HDMI / 1 x PS/2 / 6 x Audio Jacks / 6 x USB 2.0/1.1 |
|---|---|
| PS/2 | 1 |
| Video Ports | D-Sub + DVI |
| HDMI | 1 x HDMI |
| USB 1.1/2.0 | 6 x USB 2.0 |
| S/PDIF Out | 1 |
| Audio Ports | 6 Ports |
| Onboard USB | 3 x USB 2.0 connectors support additional 6 ports |
|---|
| Form Factor | Micro ATX |
|---|---|
| Dimensions (W x L) | 9.6" x 9.6" |
| Power Pin | 24 Pin |
| Features | 1 x eSATA header |
|---|
| Date First Available | September 18, 2009 |
|---|
