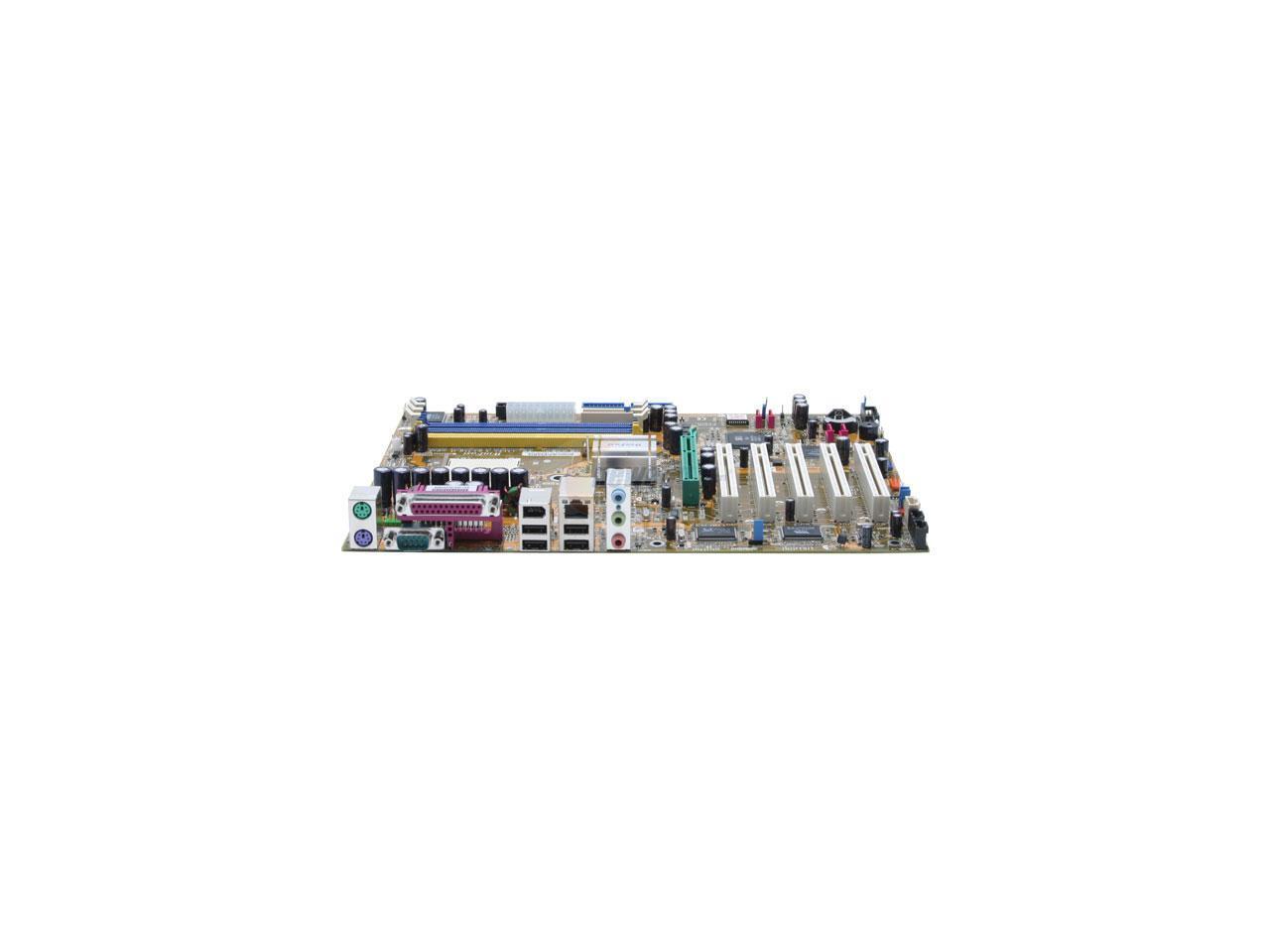

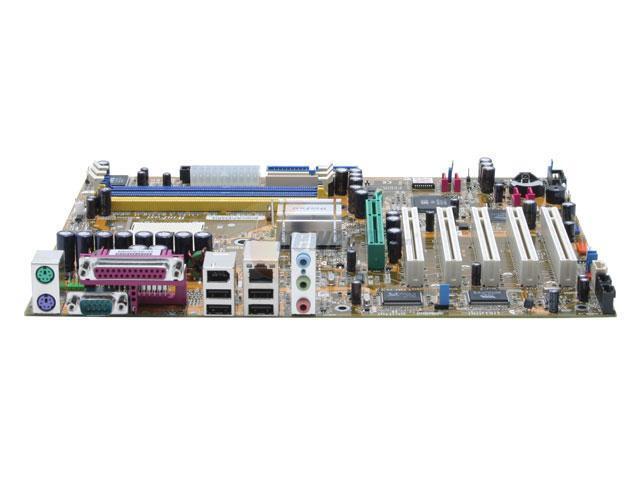

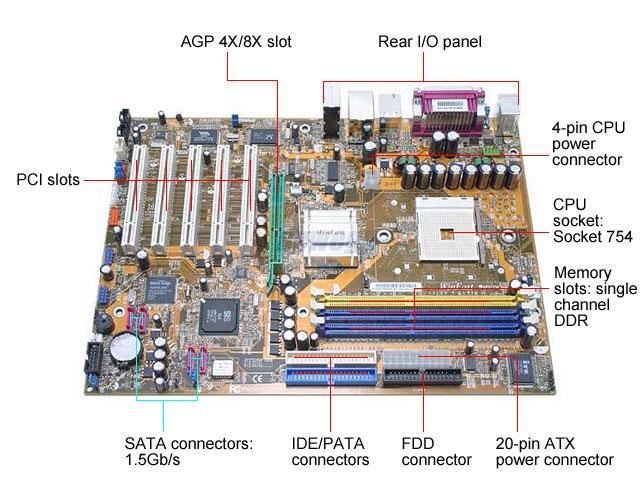

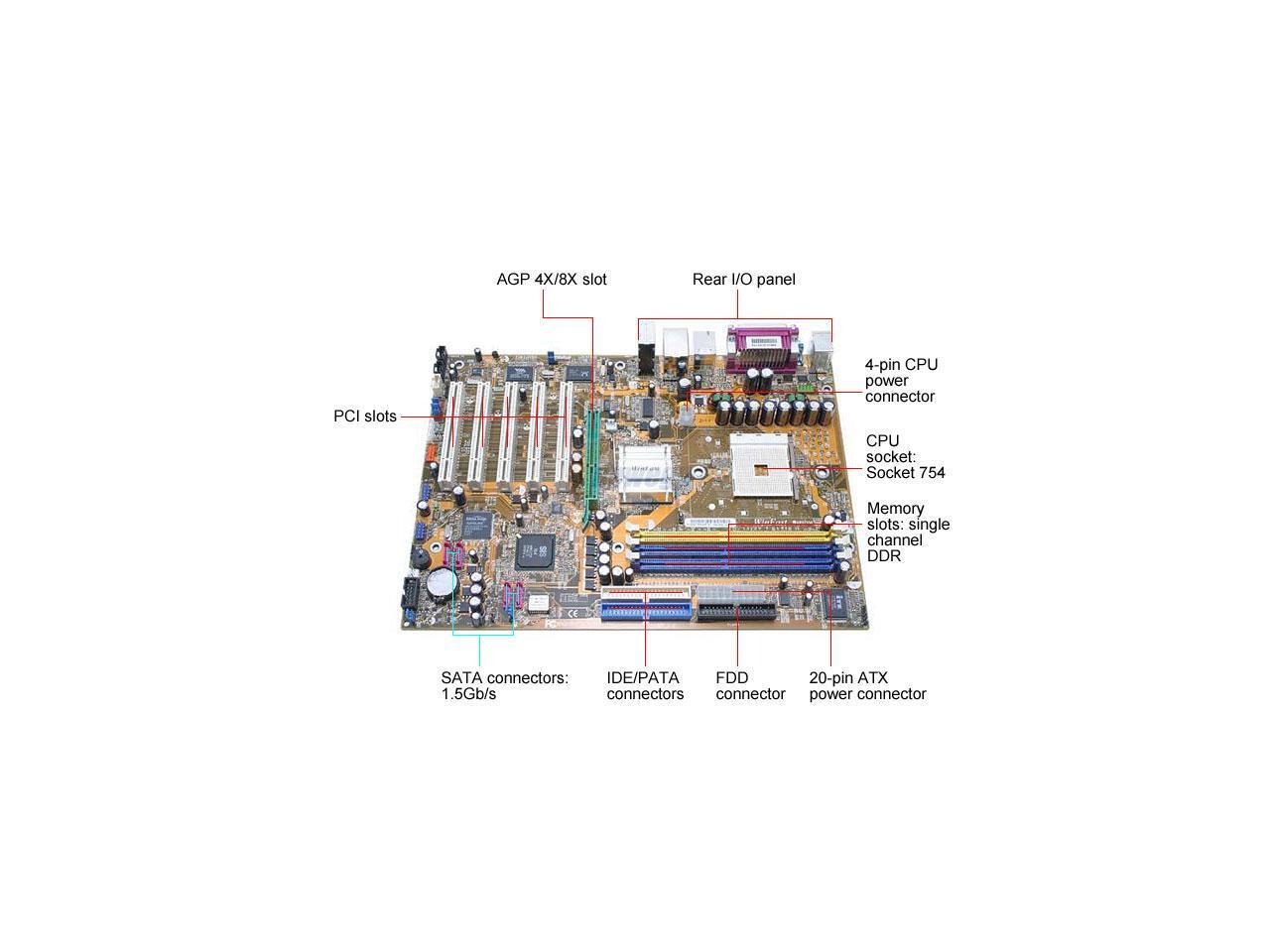

Foxconn K8S755A-6EKRS 754 SiS 755 ATX AMD Motherboard

OUT OF STOCK.
  • SiS 755
  • Athlon 64 / Sempron
  • DDR 400
LOADING...
Specs
Reviews

Learn more about the Foxconn K8S755A-6EKRS

Model
Brand Foxconn
Model K8S755A-6EKRS
Supported CPU
CPU Socket Type 754
CPU Type Athlon 64 / Sempron
FSB 800 MHz
Chipsets
Chipset SiS 755
South Bridge SiS 964
Memory
Number of Memory Slots 3×184pin
Memory Standard DDR 400
Maximum Memory Supported 3GB
Expansion Slots
AGP Slots 1 x AGP 4X / 8X
PCI Express x16 None
PCI Slots 5 x PCI Slots
Storage Devices
PATA 2 x ATA100 4 Dev. Max
SATA 1.5 Gb/s 4 x SATA 1.5 Gb/s
SATA RAID 0/1/JBOD
Additional RAID Controller Sil 3112
Onboard Video
Onboard Video Chipset None
Onboard Audio
Audio Chipset Realtek ALC655
Audio Channels 6 Channels
Onboard LAN
LAN Chipset Realtek 8110S
Max LAN Speed 10/100/1000Mbps

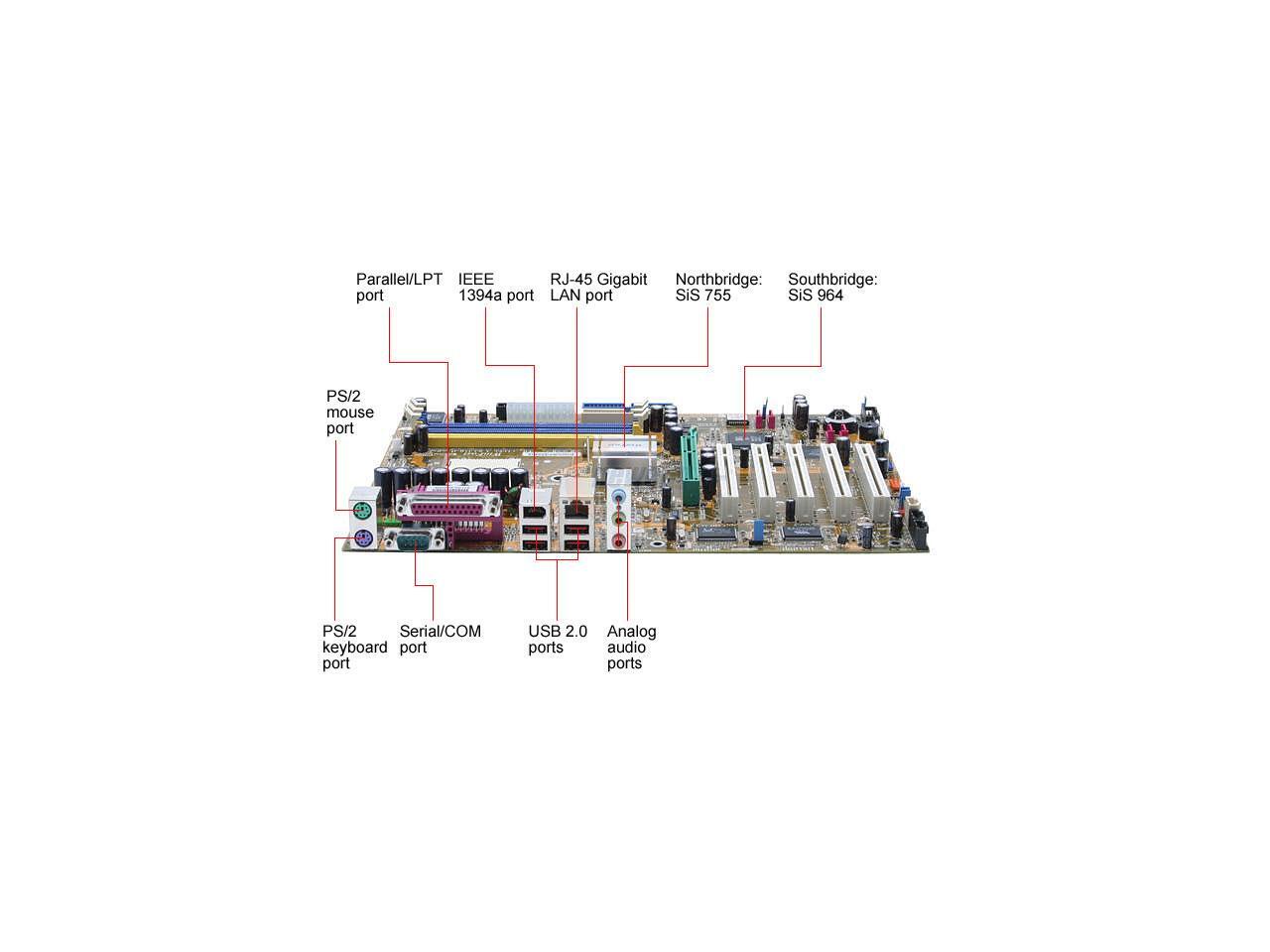

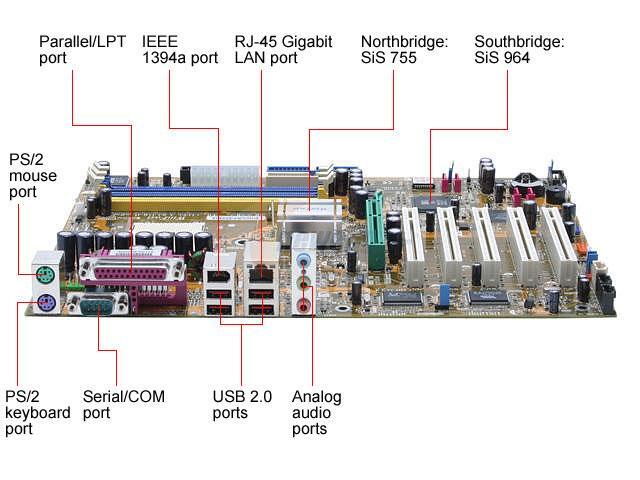

Rear Panel Ports
PS/2 2
COM 1
LPT 1
USB 1.1/2.0 4 x USB 2.0
IEEE 1394 1 x IEEE 1394a
Audio Ports 3 Ports
Internal I/O Connectors
Onboard USB 4 x USB 2.0
Onboard 1394 1 x 1394a
Physical Spec
Form Factor ATX
Dimensions (W x L) 12.0" x 8.8"
Power Pin 20 Pin
Packaging

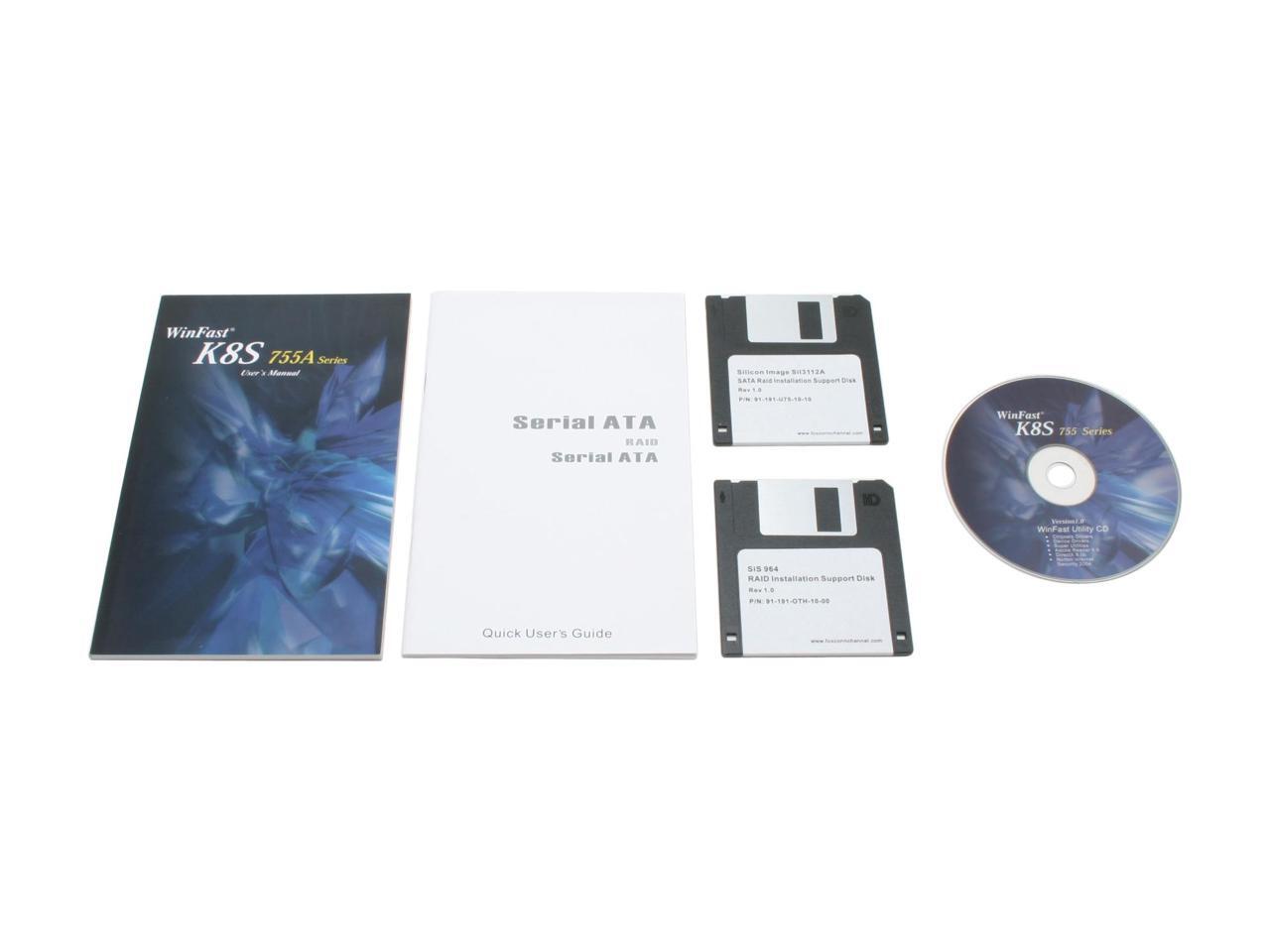

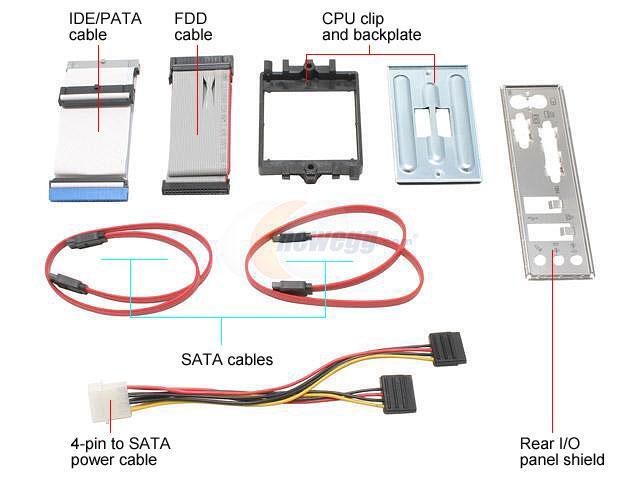

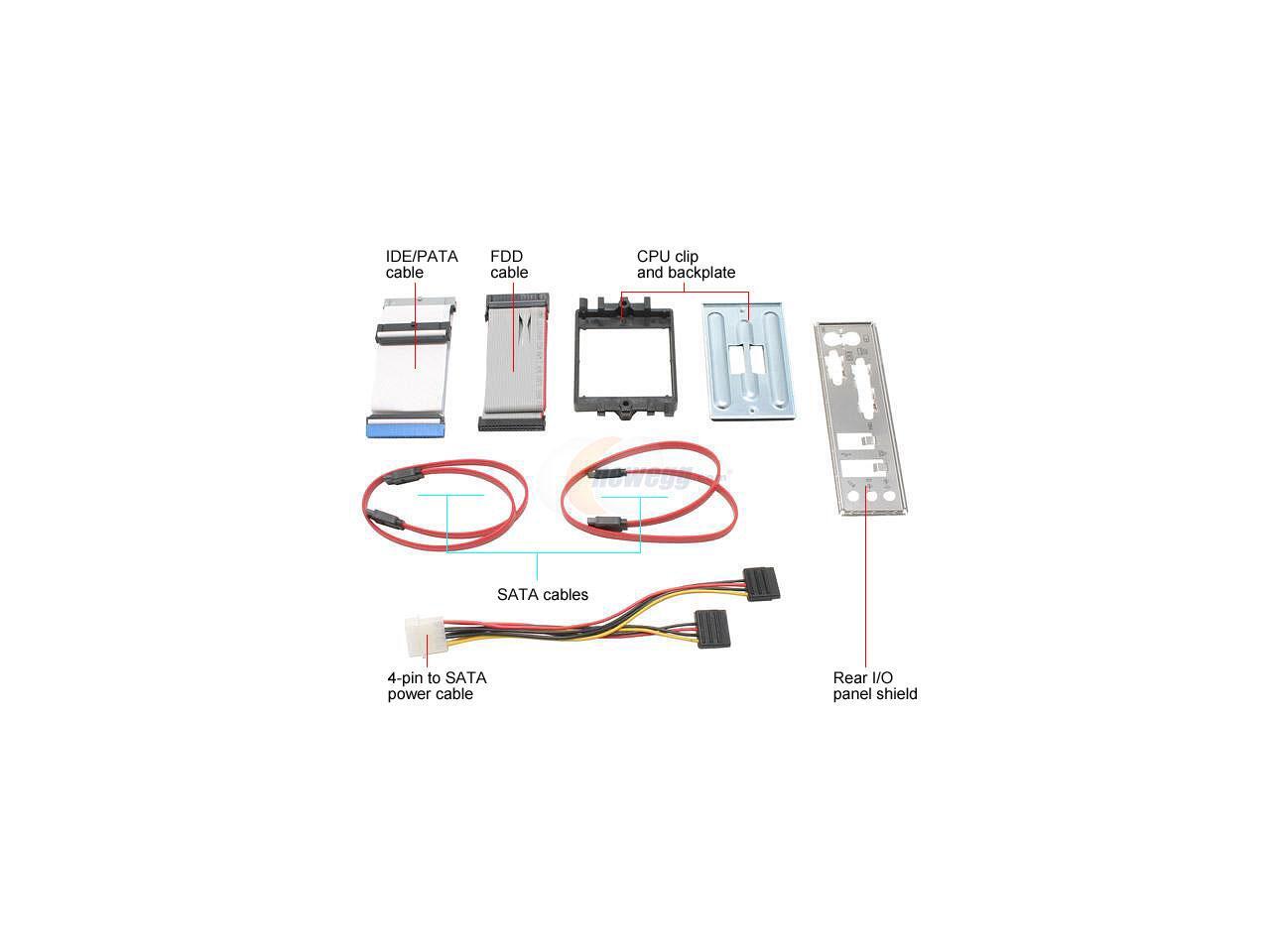

Package Contents K8S755A-6EKRS
User Manual
Driver Disk
Rear I/O Panel Shield
IDE/PATA Cable
FDD Cable
2 x SATA Cable
Power Cable
CPU Clip
2 x Floppy Drive Diskette
Other Accessories
Additional Information
Date First Available July 29, 2005

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

  • Limited Warranty period (parts): 3 years
  • Limited Warranty period (labor): 3 years
  • Read full details

Return Policies

  • Return for refund within: 30 days
  • Return for replacement within: 30 days
  • This item is covered by Newegg.com's Standard Return Policy
