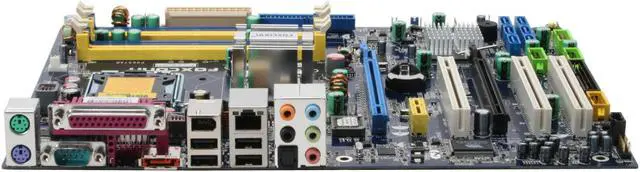

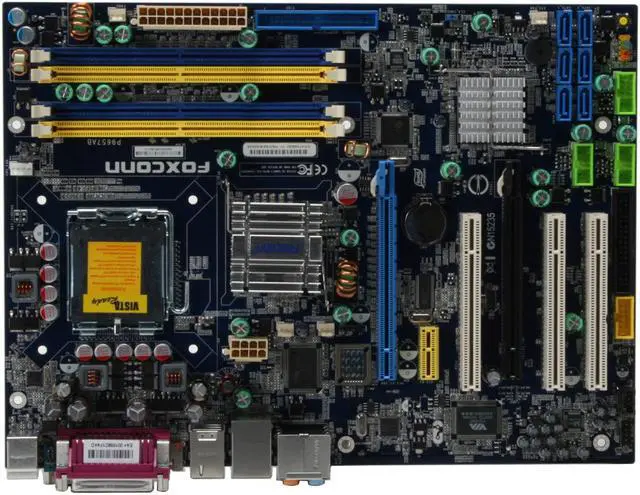

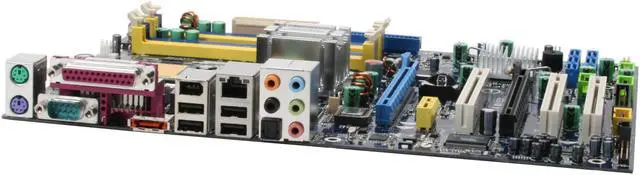

Foxconn P9657AB-8EKRS2H LGA 775 Intel P965 Express ATX Intel Motherboard
- Intel P965 Express
- Core 2 Quad / Core 2 Extreme / Core 2 Duo
- DDR2 800
Specs
Reviews (72)
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the Foxconn P9657AB-8EKRS2H
| Brand | Foxconn |
|---|---|
| Model | P9657AB-8EKRS2H |
| CPU Socket Type | LGA 775 |
|---|---|
| CPU Type | Core 2 Quad / Core 2 Extreme / Core 2 Duo |
| Chipset | Intel P965 Express |
|---|---|
| South Bridge | Intel ICH8R |
| Onboard Video Chipset | None |
|---|
| Number of Memory Slots | 4x240pin |
|---|---|
| Memory Standard | DDR2 800 |
| Maximum Memory Supported | 8GB |
| Channel Supported | Dual Channel |
| PCI Express x16 | 2 x PCIe x16(run x16 + x4 mode, support dual graphics card technology) |
|---|---|
| PCI Express x1 | 1 x PCI Express x1 |
| PCI Slots | 3 x PCI Slots |
| SATA RAID | 0/1/0+1/5 |
|---|
| Audio Chipset | Realtek ALC883 |
|---|---|
| Audio Channels | 8 Channels |
| LAN Chipset | Marvell 88E8056 |
|---|---|
| Max LAN Speed | 1Gbps |
| PS/2 | 2 |
|---|---|
| COM | 1 |
| LPT | 1 |
| USB 1.1/2.0 | 4 x USB 2.0 |
| IEEE 1394 | 1 x IEEE 1394a |
| eSATA | 1 x eSATA 3Gb/s |
| S/PDIF Out | 1 x Optical |
| Audio Ports | 5 Ports |
| Onboard USB | 6 x USB 2.0 |
|---|
| Form Factor | ATX |
|---|---|
| Dimensions (W x L) | 12.0" x 8.8" |
| Power Pin | 24 Pin |

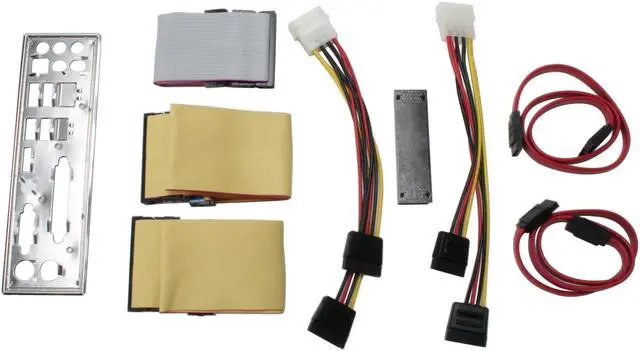

| Package Contents | P9657AB-8EKRS2H Driver Disk User Manual Rear I/O Panel Shield 2 x IDE/PATA Cable FDD Cable 2 x SATA Cable 4-pin to SATA Power Cable SLI Bridge |
|---|
| First Listed on Newegg | May 30, 2007 |
|---|
