Name: Fractal Design Ion SFX 500G 80 PLUS Gold Certified 500W Full Modular SFX-L Power Supply with UltraFlex Cables, PSU-ION-SFX-500G-BK
Brand: Fractal Design
SKU: N82E16817580025
Rating: 4 (19 reviews)

Fractal Design Ion SFX 500G 80 PLUS Gold Certified 500W Full Modular SFX-L Power Supply with UltraFlex Cables, PSU-ION-SFX-500G-BK

New UltraFlex cables that twist and bend to fit your installation
80 PLUS Gold Efficiency for optimized performance and reduced heat
Semi-passive mode guarantees silent operation under lighter loads
Great electrical output quality, with tight voltage regulation and low ripple
Fully modular design for reduced clutter and maximum ease of installation
Premium Japanese 105° C capacitors provide maximum reliability and durability
10 year warranty and a full electrical protection suite for peace of mind
Comes with SFX-to-ATX mounting bracket

🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available

The Ion SFX Gold side view and some cables

The Ion SFX Gold is a high-performance fully modular PSU with enhanced cable flexibility and superior output quality.

The semi-passive Zero RPM mode maintains total silence under light loads, and the custom-tailored 120 mm fan with FDB bearings ensures discrete operation even under heavy use. Revolutionary UltraFlex cables with ultra-high strand count wire and special insulation bend and twist effortlessly to make installation and cable-routing a breeze.

All Ion SFX Gold power supplies are 80 PLUS Gold Certified and backed with a 10-year warranty and full electrical protection suite for your peace of mind.

The Ion SFX Gold internal cable close-up

GAME-CHANGING CABLES

New UltraFlex DC wires twist and bend to fit your build – not fight it.

SLIM FDB BEARING FAN

120 mm slim FDB bearing fan minimizes noise and maximizes lifespan.

The Ion SFX Gold side view and 80 plus gold icon

80 PLUS GOLD CERTIFIED

High-efficiency performance wastes less energy and reduces heat generation.

SEMI-PASSIVE ZERO RPM MODE

Experience pure silence under lighter loads.

The Ion SFX Gold internal structure display

DEPENDABLE POWER

Quality components consistently deliver tight voltage regulation with low ripple and noise.

FULLY MODULAR DESIGN

Reduced clutter results in a clean and simple installation.

The Ion SFX Gold has Japanese CAPACITORS close-up

PREMIUM CAPACITORS

Premium Japanese 105°C capacitors provide superior reliability and durability.

The Ion SFX Gold top view and side view and 10 year warranty icon

PROTECTION GUARANTEED

Extensive 10 year warranty and a full electrical protection suite provides peace of mind.

The Ion SFX Gold font view and fan close-up

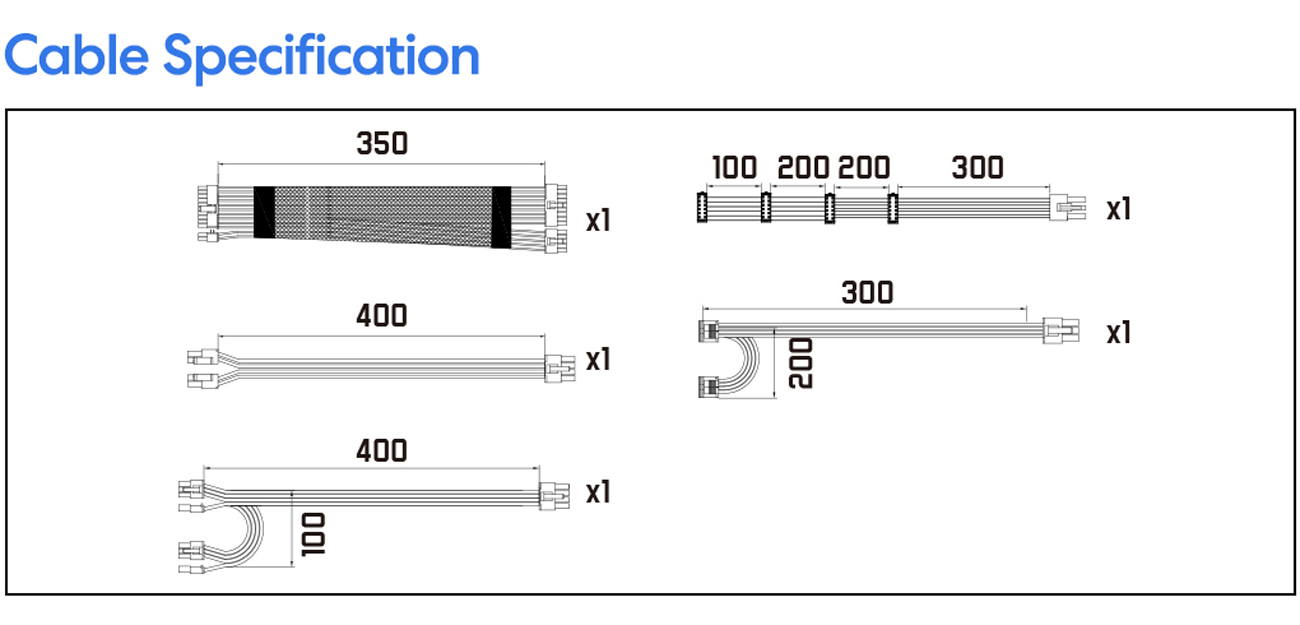

The Ion SFX Gold cable specifications graph

Brand	Fractal Design
Series	Ion SFX Gold Series
Model	FD-PSU-ION-SFX-500G-BK

Type	SFX-L
Maximum Power	500 W
Fans	Slim FDB bearing 120 mm fan
PFC	Active
Main Connector	20+4Pin
+12V Rails	Single
PCI-Express Connector	2 x 6+2-Pin
SATA Power Connector	4
Max PSU Length	125 mm
Modular	Full Modular
Energy-Efficient	80 PLUS GOLD Certified
Over Voltage Protection	Yes
Input Voltage	100 - 240 V
Input Frequency Range	50/60 Hz
Input Current	6/3 A
Output	+3.3V@ 20A, +5V@20A, +12V@41A, [email protected], +5VSB@3A
MTBF	100,000 hours
Approvals	CE, FCC, TUV, cTUVus, EAC, RCM, CCC, BSMI, CB, RoHS, WEEE
Connectors	1 x 20+4 pin ATX 1 x 4+4 pin EPS/ATX12V 2 x 6+2 pin PCIe 4 x SATA 2 X Peripheral

Dimensions	2.50" x 4.92" x 4.92"
Weight	2.45 lbs.
