Question 1

does this come with case fans? and how much case fans can it hold?

Accepted Answer

No it doesn’t come with fans, it’s possible to fit a 120 in the bottom, but most power supplies will interfere as the clearance is very tight. I ended up ditching it ans the cable bends would have been too tight.   Air flow will be handled from gpu and cpu coolers and a mid range system runs perfectly cool in the case.  I did a 7700 / 470 combo in it that works well with temps maxing in high 70’s under heavy loads with rest temps in the 40’s.  It’s a tight case to build in, but it’s pretty case and really well laid out.

Question 2

Can this fit a triple height GPU?

Accepted Answer

The adjustable spine in the case should allow for a triple height GPU but you have to be aware of the height of your CPU cooler as the height of the CPU cooler will reduce the space available for the GPU

Question 3

I'm not a gamer and wouldn't be installing a GPU into this box.  But I love the design and colors.  Does any ITX mobo fit?  Am I wasting money if on this box if I'm not a gamer?

Accepted Answer

The Fractal Design Terra Jade Mini-ITX Small Form Factor PC Case is compatible with Mini ITX motherboards. The case is valued for its design and aesthetics, which might appeal to users even if they are not gamers. It features a space-saving design, elegant solid walnut panel, and an anodized aluminum exterior, which could justify its purchase for someone who appreciates design and compactness, regardless of gaming use.

Question 4

I am considering a Corsair SF Series (2024) SF850, 80 PLUS Platinum, Fully Modular SFX Power Supply, CP-9020256-NA for this case.  It is an SFX psu, dimensions are 4.92*3.94*2.50, max length is 125mm. The PC builder flags it as incompatible with this case?  Am I missing something, the case specs state a SFX supply will work? Thanks.

Accepted Answer

The Fractal Design Terra Jade Mini-ITX PC Case is compatible with SFX power supplies, and it specifies a maximum PSU length of 130 mm. However, your Corsair SF Series PSU has a length of 125 mm, which should technically fit. There may be other factors in the PC builder tool that are causing it to flag as incompatible, such as cable management or additional components that you plan to use which might affect the space available for the PSU.

Question 5

What size PSU fits in this case? I ordered it with a Seasonic FOCUS GX-750 and it did not fit. 😢 I'm building it with a Ryzen 5 and RX7900 GRE... I guess I need ~700W, any suggestions?

Accepted Answer

The Fractal Design Terra Jade Mini-ITX Small Form Factor PC Case is compatible with SFX and SFX-L power supplies, with a maximum PSU length of 130 mm.

Question 6

Do you think a 323mm GPU would fit even though it's rated for a max 322mm GPU??

Accepted Answer

The product is rated to support GPUs up to a maximum length of 322 mm. Therefore, a 323 mm GPU would exceed the specified limit and may not fit properly.

Question 7

Can this fit a triple height GPU?

Accepted Answer

Yes, this case can fit a triple height GPU. The maximum GPU height supported is 131 - 145 mm depending on the thickness.

Type	Small Form Factor
Color	Jade
Case Material	Aluminum / Steel
With Power Supply	No
Power Supply	SFX/SFX-L
Power Supply Mounted	Rear
Motherboard Compatibility	Mini ITX
Side Panel Window	No

Internal 2.5" Drive Bays	2 (included)
Expansion Slots	3 in Max GPU Config, 2 in Max CPU Config

Fan Options	Total fan mounts: 1x 120 mm Bottom: 1x 120 mm
Radiator Options	Side: 120 mm (Max 121 mm wide w/ GPU up to 200 mm long and no 2.5" drives)

Max GPU Length	322 mm Max GPU Height: 131 - 145 mm depending on thickness Max GPU Thickness: 62 - 72 mm depending on height (Max GPU config)
Max CPU Cooler Height	77 mm in Max CPU config, 48 mm in Max GPU config
Max PSU Length	130 mm
Dimensions (H x W x D)	343 x 153 x 218 mm 343 x 153 x 198 mm w/o feet/screws/protrusions
Weight	3.1 kg

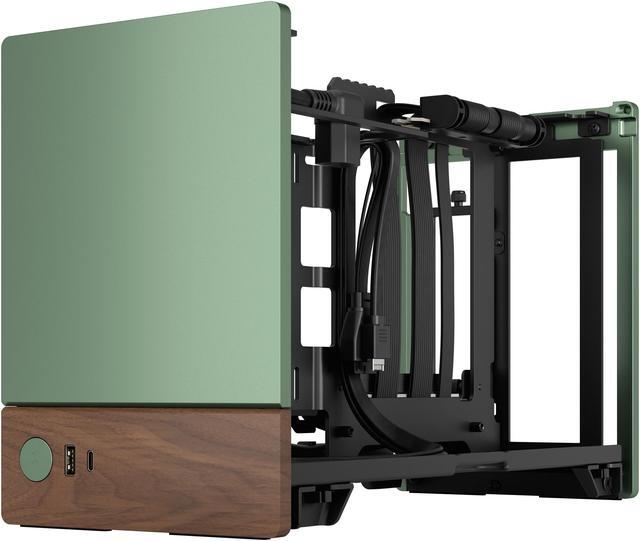

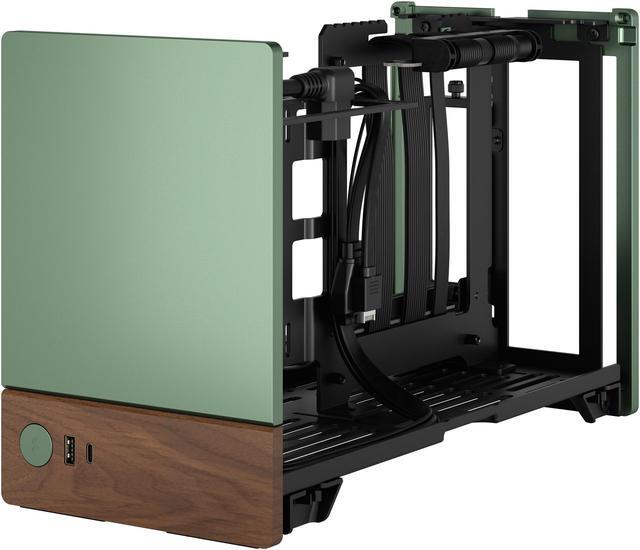

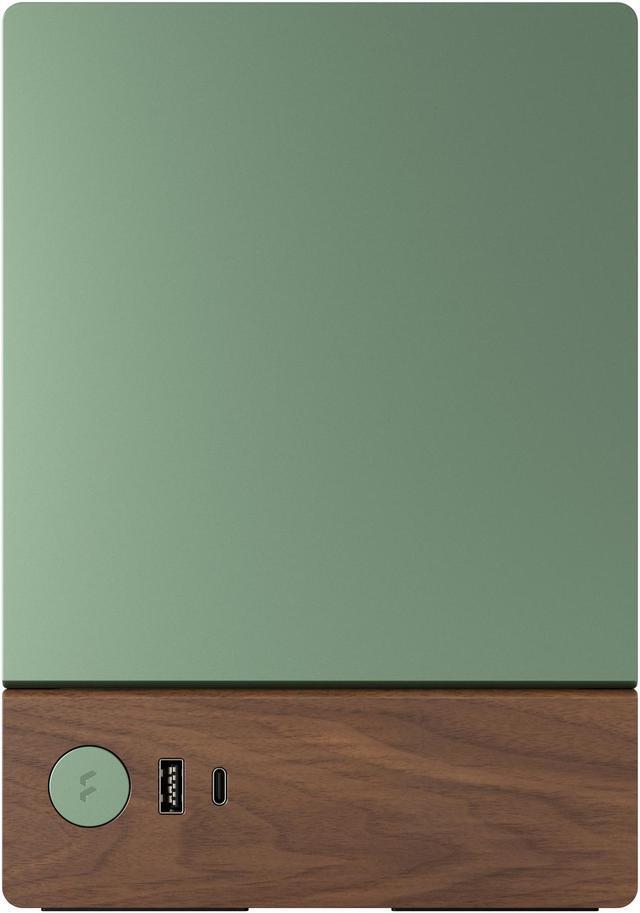

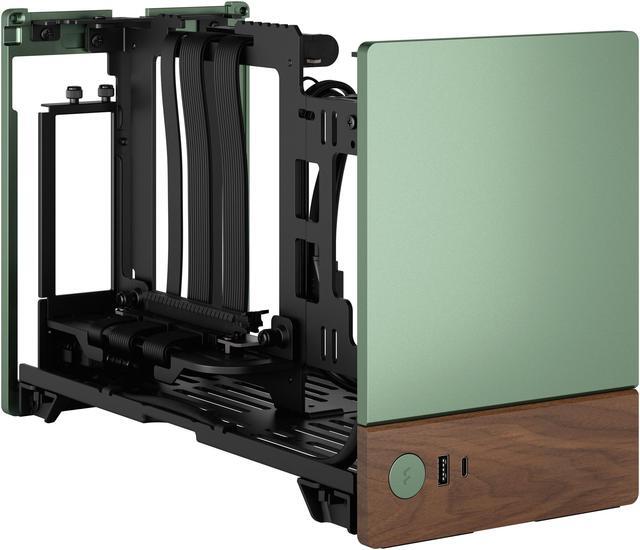

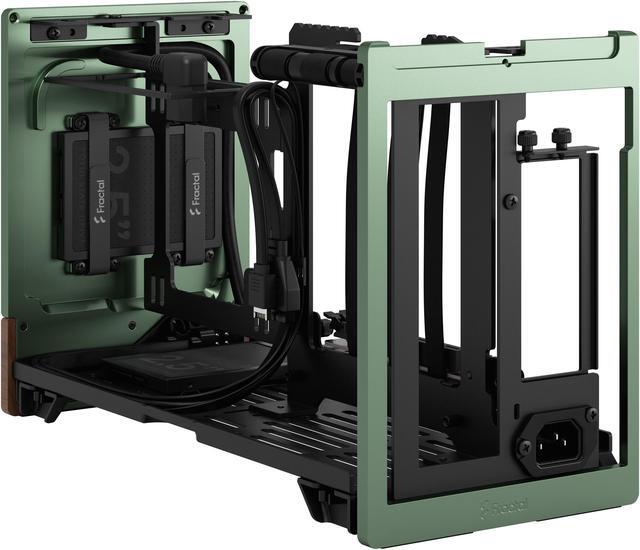

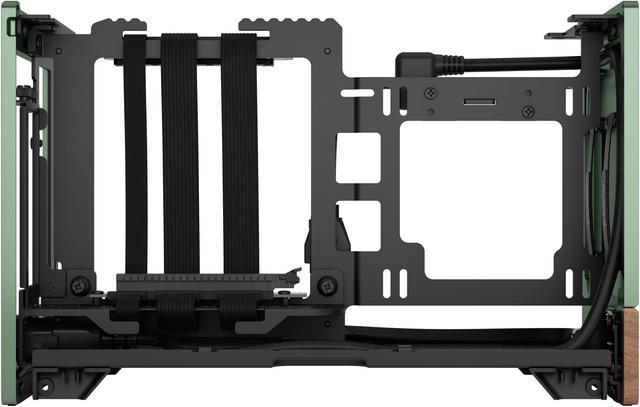

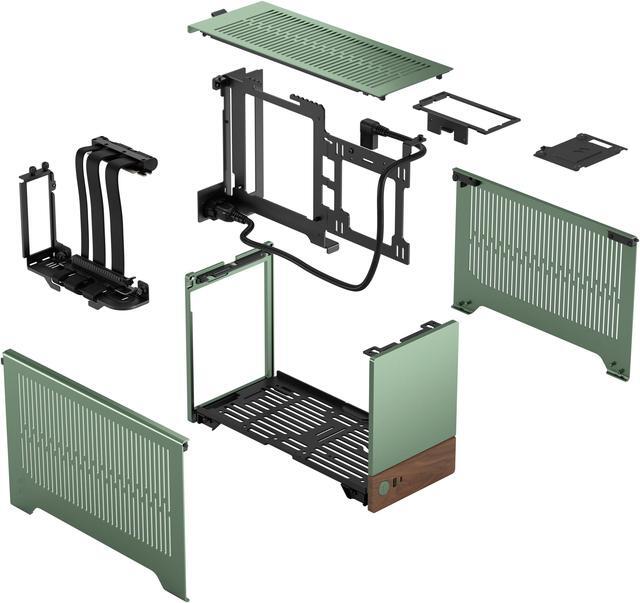

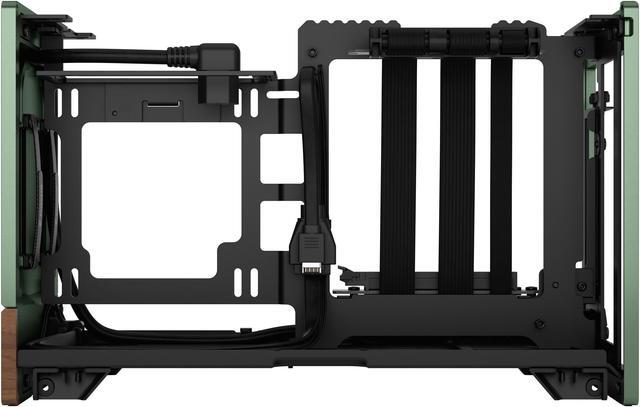

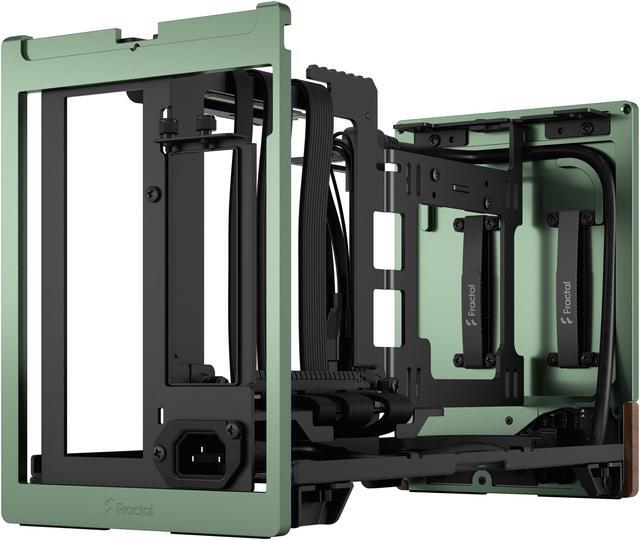

Features	• Install your choice of high-performing GPU up to 322 mm in length, in a space-saving 10.4 L case • Add natural materials to your setup with a front-facing panel cut from FSC-certified solid walnut • Enjoy a sleek anodized aluminum exterior including an 8 mm-thick aluminum front • Find your build’s ideal balance with 30 mm of internal flexibility provided by a stepless, slidable central wall • Front-facing I/O featuring an aluminum power button and two USB ports including one USB Type-C 20Gbps • Get a head start on your build with the included PCIe 4.0 Riser cable • Store up to two SSDs in the dedicated 2.5” drive mounts • Swing open the side panels or slide off the top with an integrated tab for easy access • Make the most of natural airflow through the ventilated top, side and bottom panels • Transport your finished build safely with lockable top and side panels • GPU max dimensions (LxWxH): 322 x 72 x 131 mm / 322 x 62 x 145 mm in Max GPU Config, 322 x 43 x 131 mm / 322 x 33 x 145 mm in Max CPU Config • Radiator support: 120 mm side mounted (121 mm width max with GPU up to 200 mm long and no SSDs) Position of the motherboard spine can be adjusted left or right as needed for the ideal combination of max GPU width and CPU cooler height to suit the specific needs of the build. Adjusting board position off-center will allow greater GPU width at the cost of CPU cooler height and vice versa. Note that max GPU width also depends on GPU height with different restrictions for cards under or exceeding 131mm tall. See manual for further details.
Package Content	Terra Case Accessory box Manual

Best Sellers

Meet Your Seller

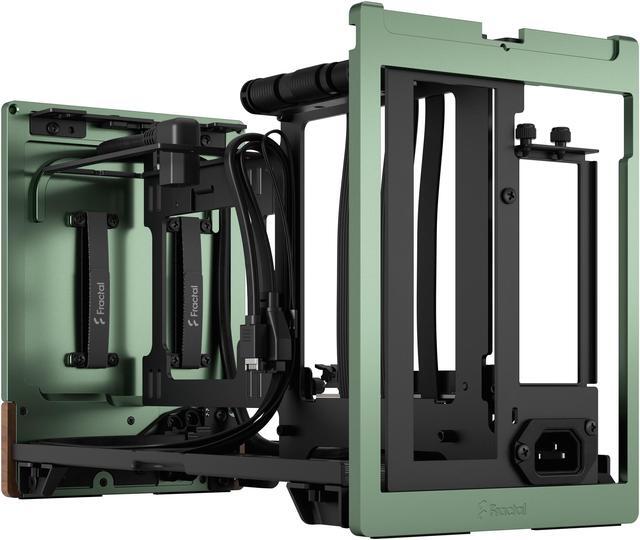

Fractal Design Terra Jade Mini-ITX Small Form Factor PC Case with PCIe 4.0 Riser
