Gamdias ASTRAPE P1-650W ATX12V / EPS12V SLI CrossFire 80 PLUS GOLD Certified Full Modular Power Supply with RGB (GD-ASTRAPE P1 650W)

Ships from United States. Most customers receive within 4-8 days.

Sold and Shipped by Etronix World a-seller

Purchases from these Sellers are generally covered under our Newegg Marketplace Guarantee.
Marketplace Seller
  • ATX12V / EPS12V
  • Full Modular
  • 80 PLUS GOLD Certified
  • 100 - 240 V 47 - 63 Hz
  • +3.3V@22A, +5V@22A, +12V@54.2A, +5VSB@3A, -12V@0.3A
  • ATX 12V / EPS 12V

LOADING... LOADING...
  • Overview
  • Specifications
  • Warranty & Returns
  • Reviews
ASTRAPE P1-650W
ASTRAPE P1-650W-G
ASTRAPE P1-650W
Extraordinary Efficiency

With less heat converted by the remaining power, ASTRAPE P1-650W comes with 80 PLUS Gold certification and ensures up to 90% energy efficiency. Accordingly, it won’t waste power and trigger excess heat. The less the heat output generates, the less noise arises.

ASTRAPE P1-650W

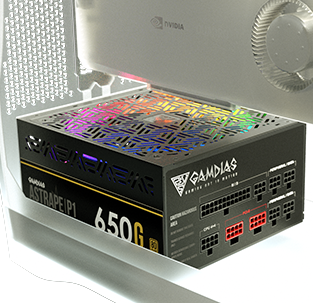

Visual Adventure

ASTRAPE P1-650W equipped with Neon-Flex RGB offers gamers the unparalleled lightings to create their glory. By pressing one button, the lighting can be easily switched among 26 effects including RGB, Multi-color, and LED off.

ASTRAPE P1-650W

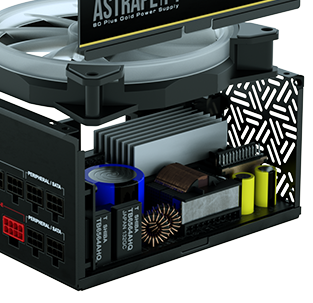

Best-in-class Quality

ASTRAPE P1-650W is built with the highest quality in the pursuit of perfection. Coming with 10-year warranty, it is fully guaranteed for its solid power delivery.

ASTRAPE P1-650W
Carry Performance

ASTRAPE P1-650W is designed for incredibly reliable and durable performance with 100% Japanese capacitors. The stable electricity supply carries an excellent durability.

ASTRAPE P1-650W
Ultimate Aesthetics and Airflow

With the design of fully modular, ASTRAPE P1-650W allows you have a clean-looking system without the messy cables. You can attach the flat cables only when you need and keep the airflow and cable management to a maximum.

ASTRAPE P1-650W
Winning Both Visual and Cooling at the Same Time!

ASTRAPE P1-650W provides you with an additional choice to place the fan in a face-up way. Not merely can you easily access the fascinating lighting effects, but the improved ventilation allows your PC to have more efficient heat dissipation.

ASTRAPE P1-650W
As Quiet as a Mouse

ASTRAPE P1-650W is built with the Silent Mode to offer an incredible performance in ultimate silence. By switching on the Silent Mode, the fan speed will automatically optimize according to its temperature. Thus, the level of noise triggered by the operation will be strikingly decreased. When the Silent Mode is switched off, the power supply will achieve maximum heat dissipation at full speed.

ASTRAPE P1-650W-G Summary

"Game-dominating Performance"
ASTRAPE P1-650W combines the Neon-Flex RGB with outstanding electrical performance. The side ventilation design making lighting more visible distinguishes ASTRAPE P1-650W from other power supplies. Built up with 80 Plus Gold efficiency, it delivers steady power output and ensures the impeccable quality for professional gamers.

Features
  • 80 PLUS® Gold Certified up to 90% Efficiency
  • 10 Years Warranty
  • 100% Japanese Capacitors
  • Fully Modular & Flat Cables
  • One Touch to Easily Switch 26 Lighting Effects Including White Light, Neon-Flex RGB, Multi-color, and LED off
  • 135mm FDB silent fan
  • Multi-GPU ready:Support nVIDIA SLI and ATI CrossFire
  • DC to DC design for steady voltage output and powerful single +12V rail
  • Multi-GPU ready:Support nVIDIA SLI and ATI CrossFire
  • Support ATX12V v2.4, EPS 2.92, ERP 2013 Lot6
  • Complete protections: OVP, UVP, OPP, OCP, SCP, SP, ICP
  • Face-up Placement for Better Cooling
  • Silent mode

Learn more about the GAMDIAS Technology GD-ASTRAPE P1 650W

Warranty, Returns, And Additional Information
  • Warranty
  • Limited Warranty period (parts): 10 years
  • Limited Warranty period (labor): 10 years
  • Read full details
5/ 5
Gamdias ASTRAPE Gold rated 650W RGB Full Modular PSU 7/12/2018 4:20:39 PM

Pros: +
Fully Modular.
650 Watt, 80+ Gold rated, up to 90% efficiency.
Quiet 135mm fan cools the PSU components.
Toggle switch for 100% fan speed, or silent fan mode.
Flat ribbon style Main, CPU, GPU, SATA and peripheral cabling (non-sleeved)
Stand alone RGB, no software or special cables required.
26 Selectable RGB modes, including off, will enhance just about any case aesthetic.
Wires are pliable and easy to bend.
Powder coat paint finish.
Unique Gamdias airflow cooling vent design.
Zip ties, and mounting screws included.
10 Year warranty.

This power supply has been absolutely fantastic to work with. Installation was a breeze, it took me less than 10 minutes to have it completely installed (plus a few for the cable management). The modular cables simplified the process of snaking the cabling through my case cable channeling and grommets. The flat cables look great for presentation, while saving space and remaining nearly hidden.
The all black design matches my case, and the silent/low noise operation is perfectly inline with my build specs.
The RGB has been a great addition with 26 different modes and colors, its pretty easy to find a look that suits your build, and if RGB isn’t on your list, you can always shut off the LEDs for a black out look.

The voltage has been perfectly smooth and stable, I have had no issues with the build I installed it into.

Cons: -
I had no problems with the power supply, the only issue I found is with the modular cables:
The cables are soft, flexible and pliable.
Soft wiring is great for cable management, channeling through cases ports and keeping a clean minimal look in the component area of your case.
However; the vinyl insulation of the wire can easily be nicked or cut as a result.

Overall Review: ~
I would absolutely recommend this Power Supply series to anyone looking for an excellent mid range PSU.
The fit and finish separates this power supply into the mid-high end category, and should be on a comparison list for anyone serious about building.

The power supply is the one PC component you really shouldn't cheap out on: it’s the foundation of any build. Every other piece of hardware is dependent on the PSU delivering reliable and consistent voltage and amperage.

This PSU is Gold Rated 80+, meaning it will deliver up to 90% efficiency at around 50% load (power supplies typically have peak efficiency at 50% load, and will slightly diminish at higher or lower loads). The voltage has been perfectly smooth and stable, I have had no issues with the build I installed it into.

This PSU has 54.2A on the +12V rail, which is substantial enough to run a single high end graphics card, or a pair of low to mid range cards in SLI / crossfire, and still have a little head room for some mild to moderate overclocking.

I determine the PSU wattage I need for my build, by measuring what my current build uses on load, and then double that to target peak efficiency (my current build uses around 280W peak load, so that puts me a little under the target for peak efficiency with a 650 Watt PSU).
Current build:
i7 8700
1060 6GB (OC version)
16GB DD4 @3200
Z370 Mobo (wifi / bluetooth)
2 SSD
2 HD
Blu-ray Optical drive
4x 140mm fans, 2x 120mm fans (air CPU cooler fans incl.)

I have used this power supply for the past 30 days with zero hiccups or issues. The power has been smooth and stable, and hasn’t missed a beat. Gamdias is offering a hefty 10 year warranty on this PSU, a sign that they are serious about these power supplies and stand by their quality. I have had nothing but a flawless experience using this PSU.
5 eggs.

2 out of 2 people found this review helpful. Did you?
Eggxpert Review

Eggxpert Review

Through the Newegg EggXpert Review Program, Newegg invites its best reviewers, known as EggXperts, to post opinions about new and pre-release products to help their fellow customers make informed buying decisions.Click here for more details.

5/ 5
Great Product From A New Company 6/13/2018 4:38:16 PM

Pros: - RGB on a PSU!
- 10 Year Warranty!
- Fully Modular!
- Abnormally well ventilated

Cons: -Loud setting on fan is unusually loud, but it's really only meant for small cases where it's doing double duty as an exhaust system fan.
- Red connectors can work on the PSU end, but really shouldn't be on the Video card end.
- Pricing suffers from the RGB tax, but hopefully it will go down a bit in the future.

Overall Review: Gamdias is a pretty new brand, and overall this is a pretty impressive outing. Honestly the biggest issue is the red connector and the pricing. The red connector is an easy enough fix, and a decent price drop would really make this an in demand product.

0 out of 1 people found this review helpful. Did you?
Anonymous
Eggxpert Review

Eggxpert Review

Through the Newegg EggXpert Review Program, Newegg invites its best reviewers, known as EggXperts, to post opinions about new and pre-release products to help their fellow customers make informed buying decisions.Click here for more details.

4/ 5
Great looking PSU with some minor cons 5/10/2018 7:52:59 PM

Pros: This is a very nice looking PSU with the RGB running, the fan even rivals some of the higher end RGB fans from other makers going on the looks.
Fully modular, all the inputs are labeled, and the cables look pretty nice when plugged into the components.
The RGB fan is controlled with a push button on the back of the PSU, you can cycle through a bunch of effects and static colors or spectrum and even shut it off if you don't want it which many companies who make RGB parts forget to include.
You can also put the fan RPM into quiet mode with a rocker switch next to the RGB switch on the rear.
Overall the RGB effect looks really nice, just make sure you have a case with a removable PSU shroud or else it will be completely wasted, though it might give some case underglow.
I did have a look inside the unit and it looks like a pretty clean layout and design, unfortunately I could not find out who is the OEM for the internals online, but its either CWT or SeaSonic in most cases.
There is also plenty of connectors for whatever you want to plug in 24 pin mobo connector (note: this is not 20+4 pin), 4x 6+2 pin PCI-E, 2x 4+4 pin CPU, 9 SATA, 3 molex, even 1x floppy connector for whatever reason you would need that in 2018.
And finally the unit is 80 PLUS GOLD certified which adds a nice bit of efficiency on top of a great unit.

Cons: Fan runs at full rpm and is very loud regardless of the psu temperature, the silent mode switch is pretty much a requirement. Many psu's from other manufacturers features fan control that regulates with the PSU temperature and even shuts the fan off if its cool enough, no such function on this PSU exists.
The PSU is very expensive for only a 650W GOLD rated.
PCI-E cable plugs are red for some odd reason, they should have just been black like the rest of the connectors, makes is looks cheap and clashes if you don't have a red color scheme.
The yellow that is advertised on the box for the RGB fan is really just a light green when using it, a little disappointing in that as the other colors seem to display fine.

Overall Review: Because of the price, I simply cannot give it a full 5 egg rating. There are psu's from competitors for half the price with the same features (minus the rgb fan). I think if this was priced more competitively I could truly recommend it.
There is also the fan speed issue which I am not sure if the whole thing was just over looked.
The company its self (Taiwan based) has been trying to break into the US market for a while now, it does have very stiff competition from very well established brand names. I think if they did some more advertising, and readjust the pricing on a few products would be a good way to start getting the brand some attention. I also own a Gamdias extended mouse pad and it is a quality product from the 3 months I have been using it, they just need more brand recognition.

2 out of 3 people found this review helpful. Did you?
Eggxpert Review

Eggxpert Review

Through the Newegg EggXpert Review Program, Newegg invites its best reviewers, known as EggXperts, to post opinions about new and pre-release products to help their fellow customers make informed buying decisions.Click here for more details.

5/ 5
Pricey, but worth it 4/26/2018 10:39:36 AM

Pros: -Addressing the price tag:

It’s a hefty price tag among its competitors, I don’t dispute that. The pricing is a bit on the high end but in the case of the Astrape it can be justified for a few reasons. This PSU is (in a way) a ‘specialist’ PSU. It features all of the luxuries of a great PSU while offering options for very specific use (more on that below).

-Addressing who makes the PSU? (The OEM):

I reached out to Gamdias directly and surprisingly got my answer. Typically it’s easy to locate a UL number and trace to the manufacturer but this PSU seemed to keep its secrets well. Gamdias requested I not share for the moment, for reasons relating to other company projects. I can say it is a solid manufacturer with several Bronze/Silver/Gold/Platinum and even Titanium rated PSU’s under their belt. Rest assured, the OEM choice is impressive.

-Addressing Modularity:

The Astrape is fully modular and offers some unexpectedness. This is what I mean by stating it’s a bit of a specialist PSU:

The CPU power pins can accommodate twin 8 pin sockets (2x 4x4). If you’re looking to power a twin Xeon board (for example), you should be well accommodated.

All black cables (with the exception of PCI-E) is safe bet, modding cables can be a pain, perhaps we will see custom kits for the new high end Astrape soon. The 24pin PSU connection is a bit on the unique side as it splits and connects rather differently. I can’t say for sure why it is split the way it is, but I will guess it has something to do with how they achieve the efficiency rating.

-Addressing Sound:

On the back is a switch for quiet mode. Quiet mode is the way to go, this PSU can take a heat pounding and running standard mode is unnecessary. Turning off quiet mode will make you sad based on how loud it is. This is not specifically the PSU’s fault, this falls on the Aeolus fan within it. The Aeolus fan seems to be a bit on the loud end when it spins up to max.

-Addressing RGB:

If you have a shroudless or otherwise exposed grill/opening, the RGB is pretty stellar. Gamdias has battled with light hot spotting and uneven lighting, however, the Aeolus fan delivers great even lighting. I’m typically an intake in kind of guy but I can’t help myself here, its face up for the fan in a 275R tower and can be seen perfectly.

The switch on the back can rotate through a plethora of static colors, and a handful of lighting modes. If you don’t want the lights on, they can also be turned off.

Cons: I don’t like the choice to cap the PCI-E’s in red. This is less than discrete.

Other than this I don’t have any real complaints. This is a pretty awesome PSU.

Overall Review: Color me impressed… So it is a PSU, and a lot of people don’t put that much stock in to their PSU. You can get decent, efficient PSU’s for pretty affordable prices. A lot of companies have small innovations that make PSU’s great, but being honest, they aren’t usually the thing we as PC builders invest a lot of thought in to. Maybe that’s more of a self-admittance and doesn’t accurately reflect you personally.

This isn’t a con, this is just me being a nerd. The marketing team should have a nerd auditor in their employ for this type of thing… it made me smile when I read it. On the box, it reads ATI Crossfire support. If you’ve been doing this a while then you know why that’s snicker-worthy. ATI hasn’t been ATI since 2008.

I like this PSU a lot It’s a 5 out of 5 from me.

2 out of 3 people found this review helpful. Did you?
Eggxpert Review

Eggxpert Review

Through the Newegg EggXpert Review Program, Newegg invites its best reviewers, known as EggXperts, to post opinions about new and pre-release products to help their fellow customers make informed buying decisions.Click here for more details.

5/ 5
Great paired up with other Gamdias gear! 4/19/2018 8:22:15 AM

Pros: Generous 10 year warranty!

NVidia SLI and AMD Crossfire Ready!

100% modular with all the flat cables you need!

Improved side ventilation design ensures better air flow and makes the lighting more visible.

135mm FDB low noise level fan (Fluid Dynamic Bearing) - Fluid-dynamic fan bearings have the greatest lifespan, ranging anywhere from 100,000 hours on the low end (40-70C) to upwards of 300,000 hours.

One touch switch located on backside for changing colors and patterns of the lights is easy to access since it is near the power switch. No extra connections or software is needed to tweak out the color or patterns that you want.

When Silent Mode is turned on, the fan will automatically optimize its speed according to the power supplies temperature. While the level of fan noise will be greatly decreased, the more power that is used will cause it to speed up and cool as needed. When Silent Mode is turned off, the power supply fan will run at constant maximum speed for heat dissipation.

The 80 PLUS GOLD performance specifications require power supplies in computers and servers to be 80% or greater energy efficient at 10, 20, 50 and 100% of rated load with a true power factor of 0.9 or greater. This makes an 80 PLUS certified power supply substantially more efficient than typical power supplies.

If you are thinking about purchasing this power supply I would suggest checking out the Gamdias ASTRAPE P1-750W version which is only about $10 more!

While it is expensive, keep in mind you are getting a 10 year warranty! So paying a bit more kind of justifies the cost.

Cons: Just that the peripheral/sata cables are a bit short, which makes them impossible to hide.

Overall Review: Watch for sales, and after a while the price will probably drop!

No manual, but connecting everything is a no-brainer.

If you really need a manual, on their site under the download section you can find the PDF manual for this power supply.

0 out of 1 people found this review helpful. Did you?
Eggxpert Review

Eggxpert Review

Through the Newegg EggXpert Review Program, Newegg invites its best reviewers, known as EggXperts, to post opinions about new and pre-release products to help their fellow customers make informed buying decisions.Click here for more details.

4/ 5
Nice power supply, but with some shortcomings and a hefty price hike over similar models without LED lighting 4/18/2018 3:10:04 PM

Pros: Connectors are color coded, labeled, and keyed so that they cannot be put in the wrong spot or backwards.

Lots of SATA power (3 cords with 3 straight plugs each), but see cons.

26 color presets to choose from (well, 25 plus off). Each effect is available in rainbow, red, light green, dark green, darker cyan, blue, purple, light cyan. It also remembers your selection even if unplugged for an extended period.
- Pulsing (slowly changes from off to on to off, etc..)
- Solid brightness
- Rotating – with rainbow, the colors rotate, with solid color, 1/3 of the display is dark as it rotates
- The last effect is the same as pulsing, but each time it goes dark, it comes back on with the next color in the palette.

With “silent mode” on, the fan speed is reduced considerably and the fan noise is completely eliminated. It then increases speed, and noise level, based on load.

Velcro bag to store unused cables.

10 year warranty.

Cons: With “silent mode” off, the fan appears to be full on, and is louder than any power supply I have ever used. Considering it's a 140mm fan and how much noise it makes, it sure doesn't move much air. I am sure they have tested this, but I would be concerned about this power supply overheating if it was heavily loaded for an extended period of time. Perhaps the fan will increase in speed (and noise) if that starts to happens.

Some of the cable lengths were not thought out very well. For example, I like to run my motherboard cables behind the motherboard to keep them out of the way. The included motherboard cable was not long enough to do that, however the 8-pin motherboard power cable was, but only if you just need 1 of the connectors. I also like to keep my SATA power and data connections on the back, but the included SATA power cables are way too short to reach. Then, at the other extreme, the PCIe 6+2 power cords are way longer than they need to be, forcing you to tie them up and stuff them out of the way.

Motherboard cable strangeness. The power supply end has an extra 6-pin connector with 20 AWG wire which taps into pins 11 (12v), 13 (3.3v), 17 and 19 (both ground), and 23 (5v) on the motherboard end. Not sure why they have done this, it seems like it would have been cleaner to connect these internally inside the power supply rather than have another piece of split ribbon cable to deal with. Perhaps they are monitoring the rails at the motherboard?

Overall Review: The 21 LEDs are part of the fan itself, so you must mount this power supply such that the fan is sucking air from your case (rather than fresh air),

The first picture in Newegg's picture browser is grossly over-exposed and greatly exaggerates how bright the lighting is. The pictures in the Overview tab are what it actually looks like.

Miniature (42”) power cord

In case you were wondering what all of the acronyms in “Complete Protections” are, here you go:
- OVP: Over Voltage Protection
- UVP: Under Voltage Protection
- OPP: Over Power Protection
- OCP: Over Current Protection
- SCP: Short Circuit Protection
- SP: Self Protect
- ICP: Integrated Circuit-Piezoelectric (see also IEPE or Integrated Electronics Piezo-Electric)


Who thought of the name of this product?!


Final thoughts:

At the end of the day, this power supply does what it says. It has a lot of connectors, and if you don't care about cable management, they will work fine for you. But, it is one of the most expensive 650W power supplies available here at Newegg, and the noisiest I have ever used, with the only real difference being the addition of LED lighting. If it were my build, I would buy a different brand power supply with the same specs, albeit without LED lighting, for half the price and put the savings towards a more meaningful upgrade.

1 out of 2 people found this review helpful. Did you?
ICON Loading...
Selected Items
  • Add to Wish List

Best Sellers

  • TELeasy

    775 (79% Positive)

    Sold and Shipped by: TELeasy Email This Seller
    Ask TELeasy about:
    • Gamdias ASTRAPE P1-650W ATX12V / EPS12V SLI CrossFire 80 PLUS GOLD Certified Full Modular Power Supply with RGB (GD-ASTRAPE P1 650W)
    • We won't share your email with anybody. We'll only use your
      email to contact you
    • Submit

    Ships from United States.
    On-Time
    Delivery
    82.95%
    Product
    Accuracy
    87.52%
    Customer Service
    SATISFACTION
    73.12%

    View All Seller's Reviews

Are you an E-Blast Insider?

Subscribe Newegg e-Blast
PayPal
Shop without retyping payment details. Secure shopping made faster.
Check out with PayPal.
Price Available at Checkout
Why can’t we show you details of this product?

Some manufacturers place restrictions on how details of their products may be communicated.

If the Adobe Reader does not appear when you click on a link for a PDF file, you can download Adobe Reader from the Adobe web site.

Your Personal Data

Newegg’s website and online services use cookies and similar technology for a number of reasons: Some technologies allow the site to function. These functional cookies are required to use the site and complete purchases. Another set of technologies improve the browsing experience and personalize it. Here are all the details about Newegg’s Cookie and Privacy Policies. Please select and accept your settings before you continue. Thank you.

Your Personal Data

Newegg’s website and online services use cookies and similar technology for a number of reasons: Some technologies allow the site to function. These functional cookies are required to use the site and complete purchases. Another set of technologies improve the browsing experience and personalize it. Here are all the details about Newegg’s Cookie and Privacy Policies. Please select and accept your settings before you continue. Thank you.

Your Personal Data

To use this third-party content we need your approval to share your data with them. Here are all the details about Newegg’s Cookie and Privacy Policies. Please accept if you wish to continue with third-party features. Thank you.
