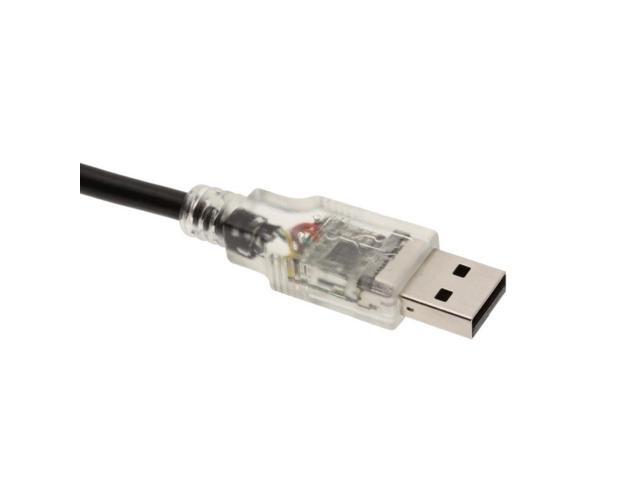

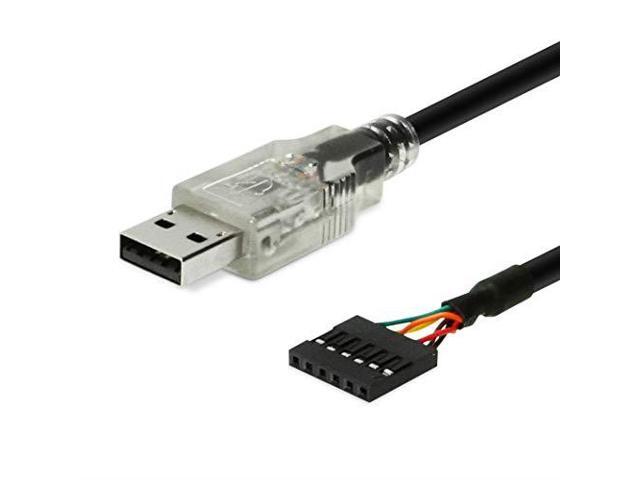

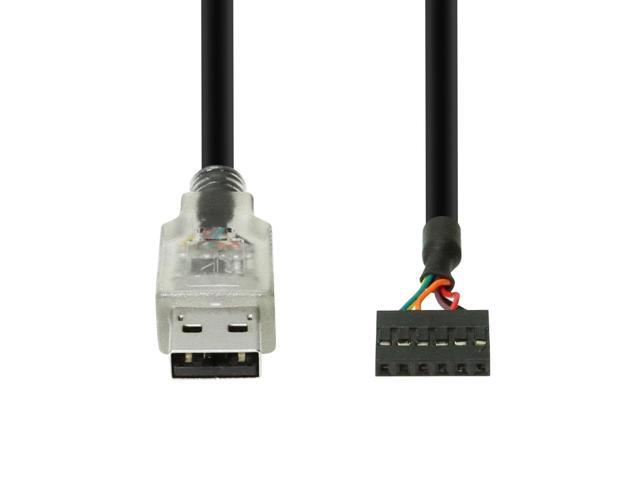

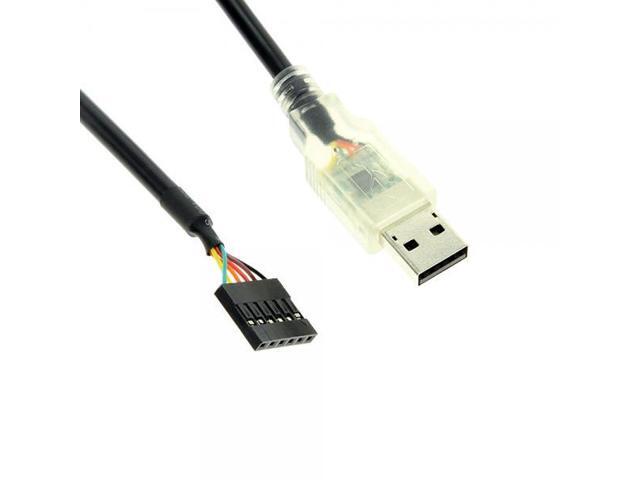

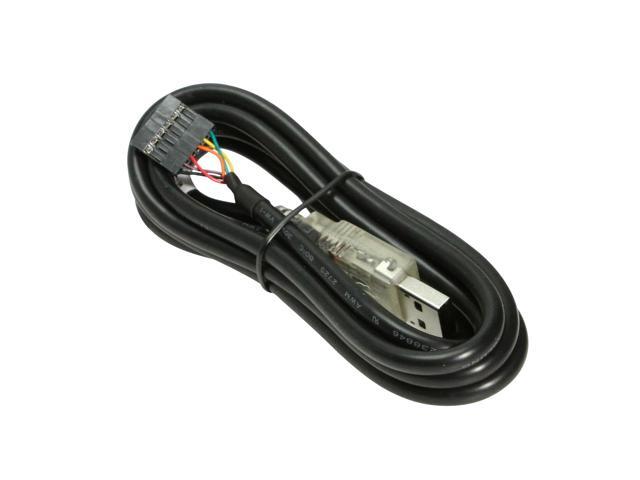

Gearmo USB to 5v TTL Header Like FTDI TTL-232R-5V - Supports Windows 10

In stock.
Ships from United States.
  • The Cable provides a USB to TTL Serial interface to 6-pin header
  • Single board USB to asynchronous serial data transfer interface
  • Utilizes newest FTDI FT232QR chip, +5V output allows ex
Overview
Specs
Reviews

Introduction:
This USB to Serial UART (TTL level) adapter allows you to connect your computer through USB port and use it as a regular serial communication port. All USB protocol is handled within this adapter. There is no other device or programming required.


Product Details:

The adapter is perfect for embedded systems that require a serial connection to a computer. The board attaches directly to the USB bus via a standard type A receptacle connector. It shows up on any Windows computer as a standard serial COM port. Any applications that talk to this COM port is automatically convert to USB and back to UART to your target board.

Additional Features

  • The Cable provides a USB to TTL Serial interface to 6-pin header.
  • Single board USB to asynchronous serial data transfer interface
  • Entire USB protocol handled by the electronics in the cable USB
  • UART interface support for 7 or 8 data bits 1 or 2 stop bits and odd / even / mark / space / no parity
  • Fully assisted hardware (RTS#/CTS#) or X-On / X-Off software handshaking.
  • Data transfer rates from 300 baud to 3 Mbaud at TTL levels.
  • +5V output allows external logic to be powered from the USB port
  • Transmit and receive LEDs
  • UHCI / OHCI / EHCI host controller compatible
  • Low USB bandwidth consumption.


OS Support:

Windows 98 Me XP 2000 2003 CE Vista Windows 7 8 and 10
Linux and Mac OS 10. X

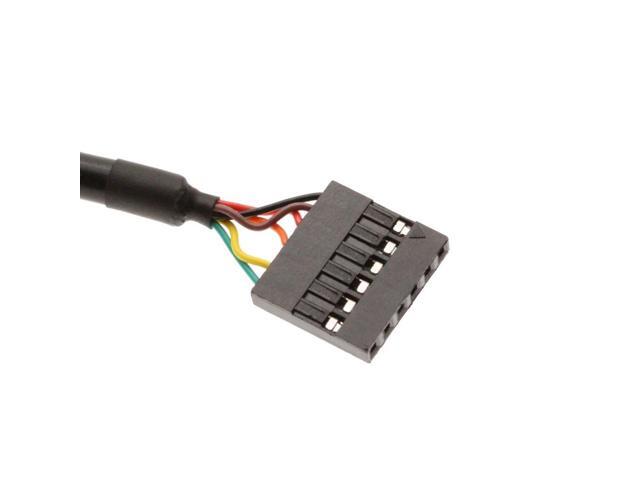

6-Pin Header Assignment:

  • Pin 1 GND
  • Pin 2 CTS
  • Pin 3 VCC
  • Pin 4 TXD
  • Pin 5 RXD
  • Pin 6 RTS
