Enables DVI source to be displayed on VGA monitor or projector
Supports resolutions up to 1920 x 1200
EDID Management for rapid integration of source and display
+
+
Overview
Specs
Reviews

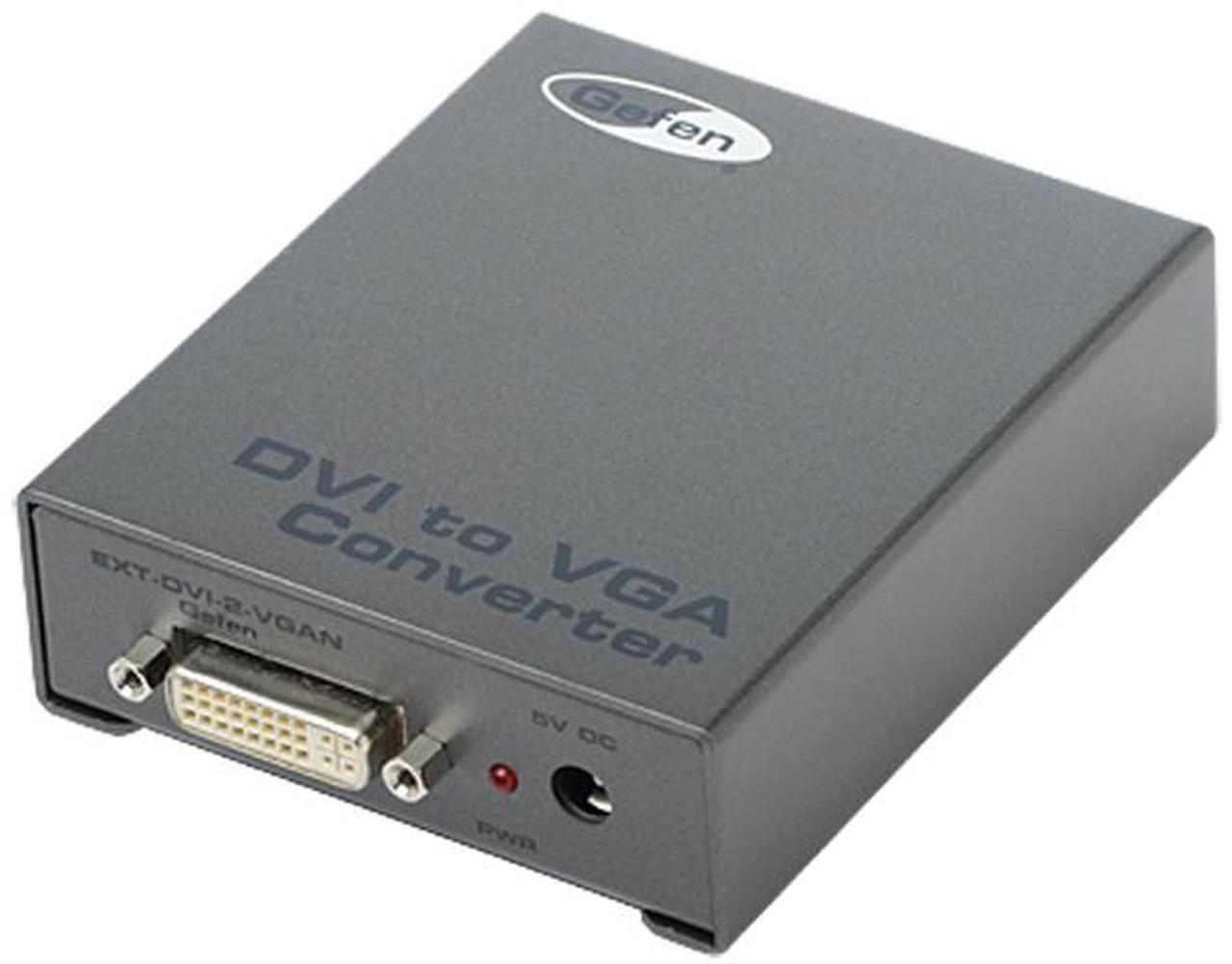

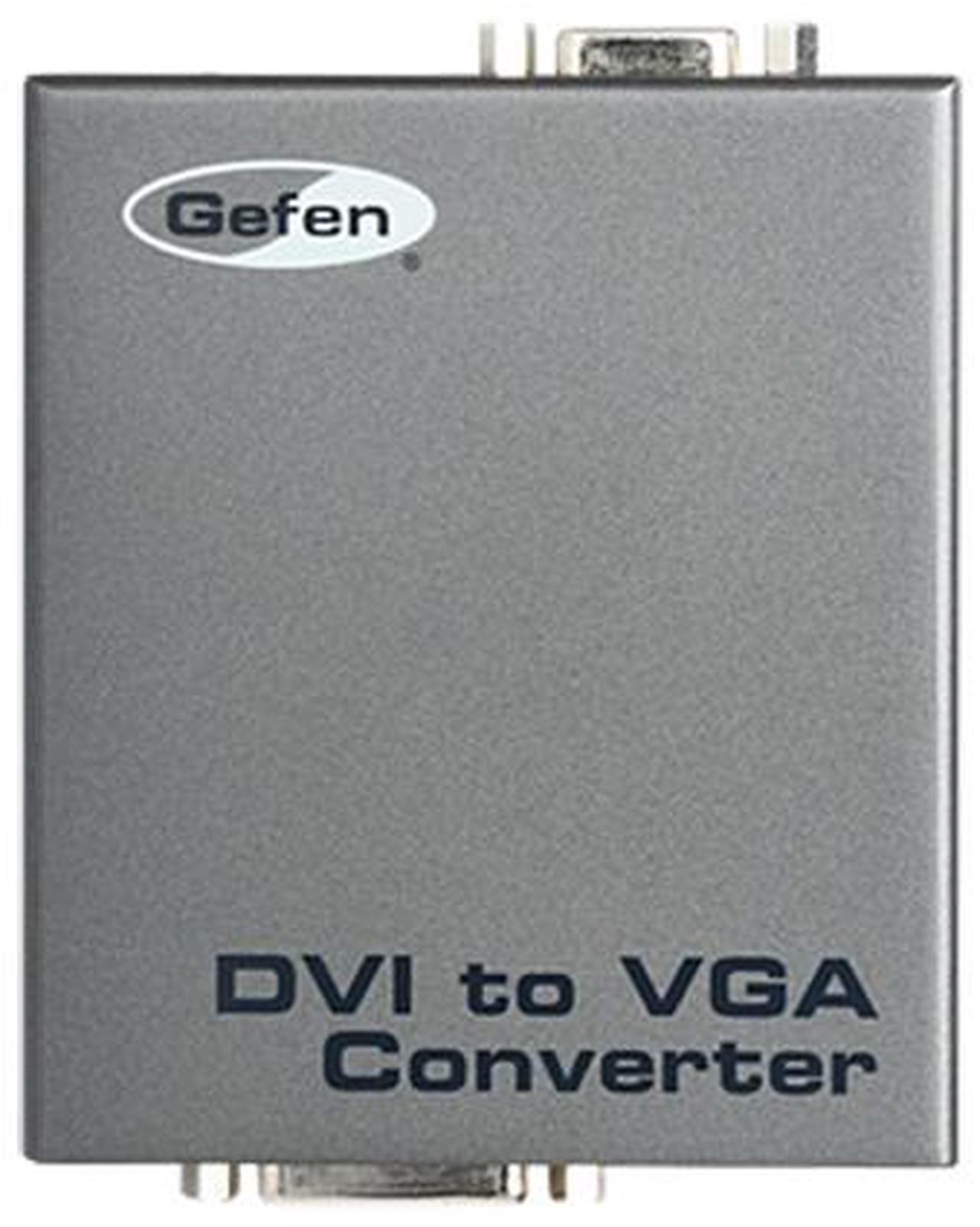

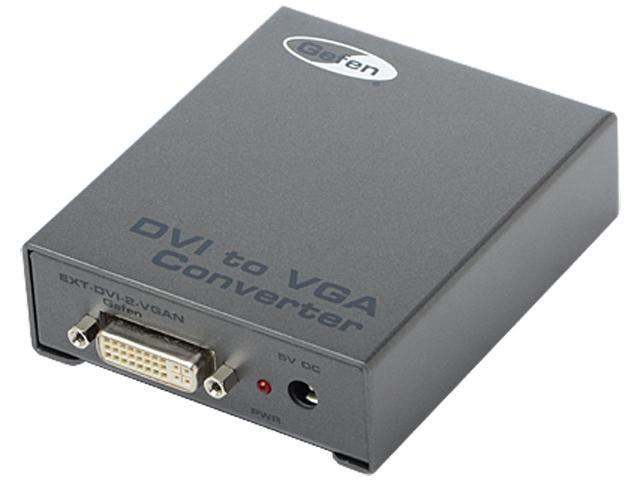

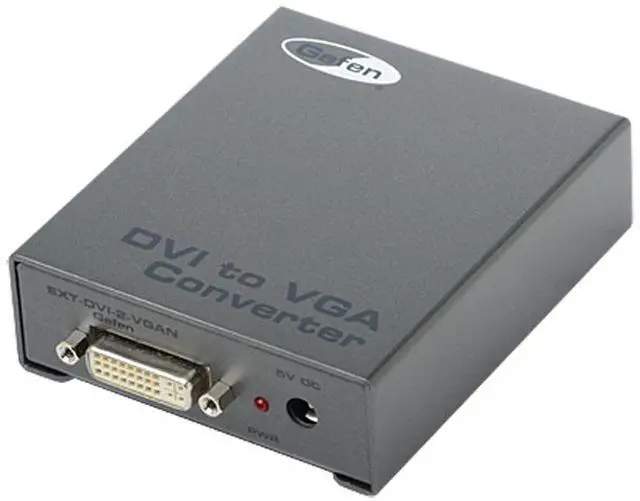

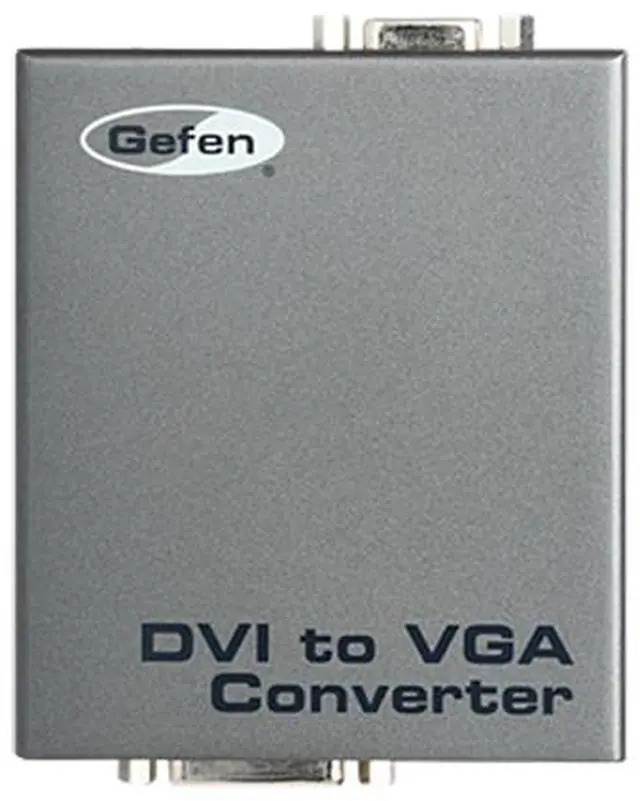

The Gefen DVI to VGA Converter is a small box solution that converts DVI-D to VGA Analog PC/RGB, enabling digital sources to connect with any monitor, projector or TV using VGA. Output resolutions up to 1920x1200 are supported. The Gefen DVI to VGA Converter features EDID management that allows rapid integration of the source and monitor.Functions: Signal ConversionMaximum Resolution: 1920 x 1200VGA: YesDVI: YesHeight: 3.8Width: 3"Depth: 1"Package Contents: Signal Converter1 x Power Supply1 x 6 ft DVI Cable1 x User ManualLimited Warranty: 2 YearPackage ContentsSignal Converter1 x Power Supply1 x 6 ft DVI Cable1 x User Manual"
Featuring a DVI input and a VGA output, the Gefen EXT-DVI-2-VGAN DVI-to-VGA Converter allows content from a DVI source to be displayed on VGA monitor or projector, thus saving you the cost and hassle of upgrading to a DVI display. It supports output resolutions up to 1920x1200. And the compact footprint allows an easy fit into any setting.
How It Works
Connect a DVI cable from the DVI source to the DVI input. Connect a monitor to the VGA output connector. Connect the supplied 5V DC power supply to the unit, and connect the included AC power cord to an available electrical outlet.
Note:
This product does not support HDCP-protected content.
High Resolution SupportSupports output resolutions up to 1920 x 1200 for high picture quality.
EDID SupportFeatures EDID Management for rapid integration of source and display. The built-in EDID switch allows a choice between local EDID and external EDID.
Learn more about the Gefen EXT-DVI-2-VGAN
Model
Brand
Gefen
Model
EXT-DVI-2-VGAN
Power
Power Consumption
5W (max.)
Power Supply
5V DC
Specification
Specification
Maximum Pixel Clock: 165MHz (DVI)
Analog Video Bandwidth: 350MHz (VGA)
Input Video Signal: 1.2V p-p
Input DDC Signal: 5V p-p (TTL)

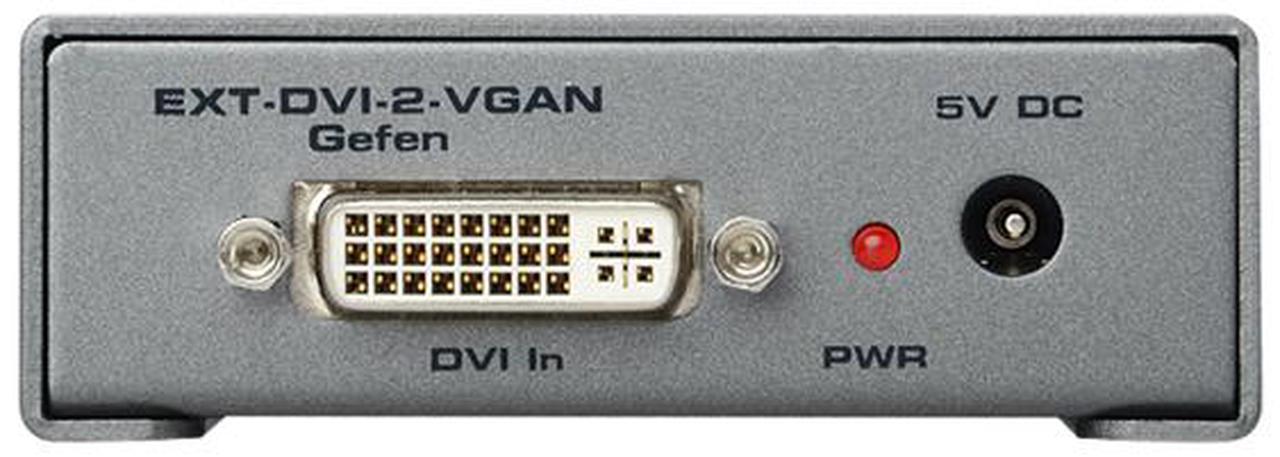

Video Input Connector: (1) DVI-I 29-pin, female digital only

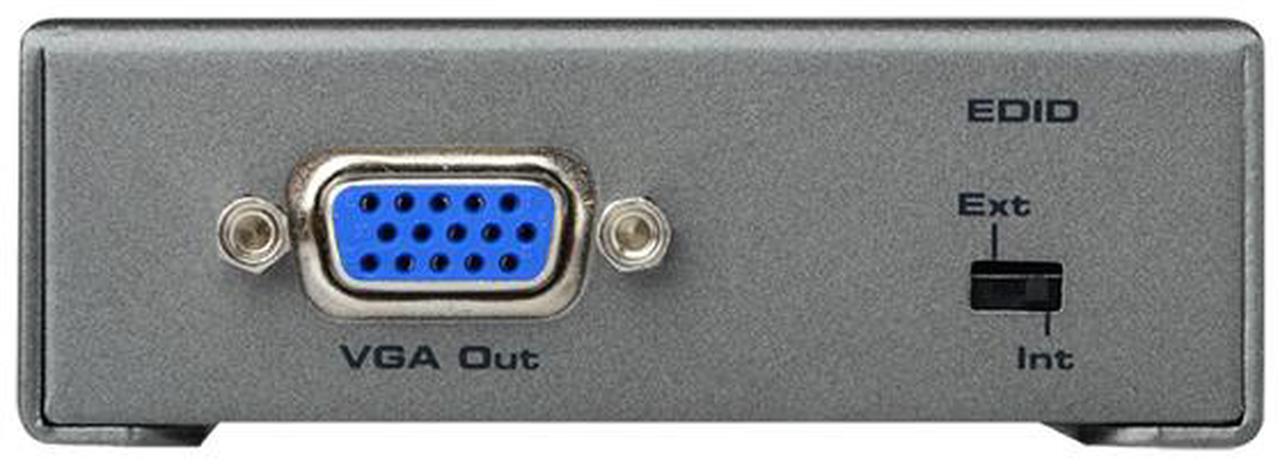

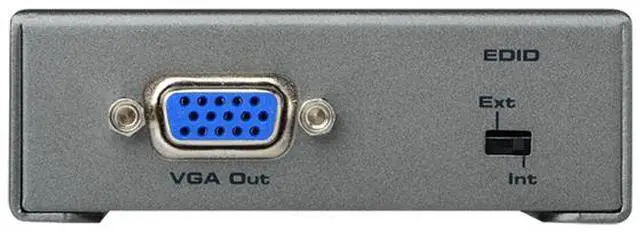

Video Output Connector: (1) VGA HD-15, female
Feature
Feature
Enables DVI source to be displayed on VGA monitor or projector
Supports resolutions up to 1920 x 1200
EDID Management for rapid integration of source and display
Built-in EDID switch allows choice between local EDID and external EDID
Dimensions & Weight
Dimensions
1.0"H x 3.0" W x 3.8"D
Weight
2lbs
Package Contents
Package Content
Gefen DVI to VGA Converter- (EXT-DVI-2-VGAN) 5V DC Power Supply - (EXT-PS51AIP-O) 6 ft. DVI cable (M-M) -(CAB-DVIC-DLN-06MM) User Manual - (MA-DVI-2-VGAN)
