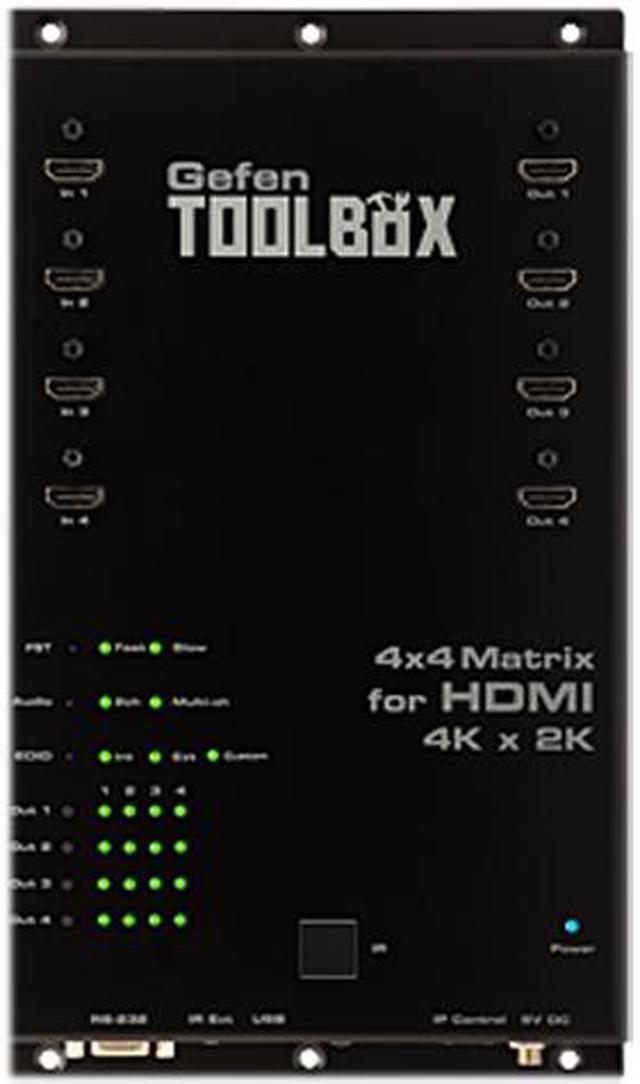

Main image of Gefen 4 x 4 Matrix for HDMI 4K x 2K GTB-HD4K2K-444-BLK

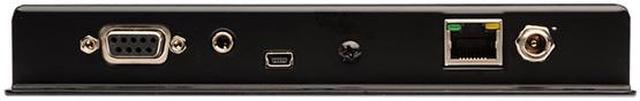

Alt view image 2 of 2 - Gefen 4 x 4 Matrix for HDMI 4K x 2K GTB-HD4K2K-444-BLK

Shop All Gefen Products

Gefen 4 x 4 Matrix for HDMI 4K x 2K GTB-HD4K2K-444-BLK

Be the first to review this product...

4 x HDMI Inputs
4 x HDMI Outputs
Resolutions up to Ultra HD 3840x2160/30p
3DTV / Lip Sync Pass-Through
12-Bit Deep Color Support
Fast Switching Technology
RS-232 Serial Interface / IP Control

Overview

Specs

Reviews

Any questions? Our AI beta will help you find out quickly.

Try me now

Gefen 4x4 Matrix for HDMI with Ultra HD 4K x 2K Support - 3840 - 2160 - 4 x 4 - 4 x HDMI Out

General
Brand	Gefen
Model	GTB-HD4K2K-444-BLK

Performance
3D Support	Yes

Connection
HDMI	HDMI Input Connectors: 4 x Type A 19-pin female, locking HDMI Output Connectors: 4 x Type A 19-pin female, locking
Serial Interface	1 x DB-9, female
Network Interface	1 x RJ-45
USB Port	1 x Mini-B

Indicater
LED Indicator	Power Indicator: 1 x LED, blue FST Indicators: 2 x LED, green Audio Indicators: 2 x LED, green EDID Indicators: 3 x LED, green Routing Indicators: 16 x LED, green

Power
Power Consumption	13 Watts (max.)
Power Supply	5V DC

Specification
Specification	Maximum Pixel Clock: 300 MHz FST Selector: 1 x tact-type, recessed push-button Audio Selector: 1 x tact-type, recessed push-button EDID Selector: 1 x tact-type, recessed push-buttons Routing Selectors: 4 x tact-type push-buttons IR Sensor: 1 x, on front panel IR Extender Port: 1 x 3.5mm mini-stereo jack DC Power Connector: 1 x Locking type Operating Temperature: +32 to 104 F (0 to +40 C)

Feature
Feature	Routes four Ultra Hi-Def sources to four Ultra HD displays Supports resolutions up to Ultra HD 4K x 2K (3840 x 2160 @ 30Hz) and 1080p Full HD Supports 12-bit Deep Color 3DTV pass-through Lip Sync pass-through Push button controls for Routing, FST Modes, Audio, and EDID management FST Technology speeds up HDCP authentication process Advanced EDID Management for rapid integration of sources and displays Supports LPCM 7.1, Dolby TrueHD, Dolby Digital Plus, and DTS-HD Master Audio Supports the use of DVI sources and DVI displays with HDMI-to-DVI adapters (not included) RS-232 Serial interface for remote control using a computer or automation control system IP control via Telnet, UDP, and the built-in web server interface IR remote control Field-upgradeable firmware via Mini-USB and IP ports Locking Power Supply Surface-mountable

Dimension
Dimensions	11.9"(H) x 6.9"(W) x 1.0"(D)

Package
Package Content	1 x 4x4 Matrix for HDMI 4Kx2K (GTB-HD4K2K-444/GTB-HD4K2K-444-BLK) 1 x DB-9 Cable (CAB-DB9-6MF) 1 x IR Remote (RMT-16IRN) 1 x 5V DC Power Supply (EXT-PS54AULPN) 1 x AC Power Cord (CAB-POWERCORD-XX) 1 x Quick-Start Guide (QSG-GTB-HD4K2K-444)

Additional Information
Date First Available	May 20, 2014
