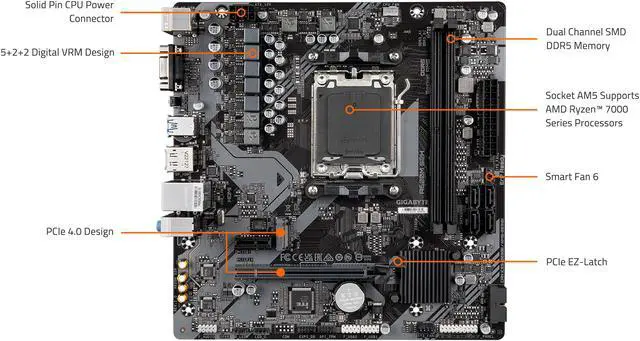

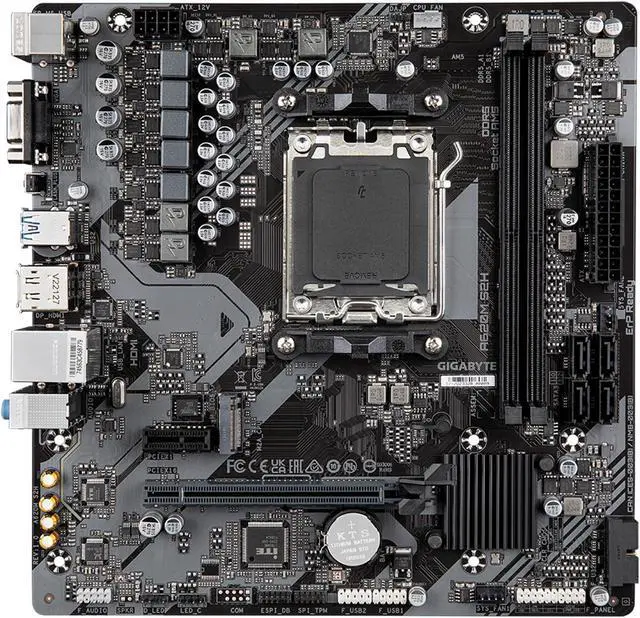

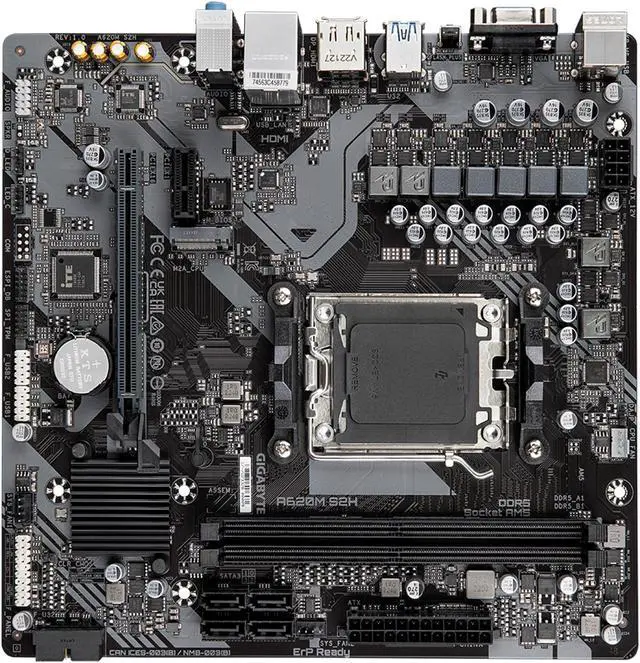

GIGABYTE A620M S2H AM5 LGA 1718 AMD A620 M-ATX Motherboard with 3-Year Warranty, DDR5, Single M.2, PCIe 4.0, USB 3.2 Gen1, Realtek 1GbE LAN, Q-Flash Plus, PCIe EZ-Latch
- "AMD Socket AM5:Supports AMD Ryzen 7000 / Ryzen 8000 / Ryzen 9000 Series Processors
- Dual Channel DDR5:2*SMD DIMMs with AMD EXPO & Intel XMP Memory Module Support
- Unparalleled Performance: 5+2+2 Phases Digital VRM Solution
- EZ-Latch Plus: PCIe x16 & M.2 Connectors with a Quick Release & Screwless Design
- Stable Networking: Realtek 1GbE LAN
- Fine Tuning Features: Smart Fan 6, Q-Flash"
+
+
Specs
Reviews (4)
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the GIGABYTE A620M S2H
| Brand | GIGABYTE |
|---|---|
| Model | A620M S2H |
| CPU Socket Type | AM5 |
|---|---|
| CPU Type | Ryzen 7000 Series |
| Chipset | AMD A620 |
|---|
| Number of Memory Slots | 2x288pin (DDR5) |
|---|---|
| Memory Standard | Support for DDR5 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory modules |
| Maximum Memory Supported | 96GB |
| Channel Supported | Dual Channel |
| Memory Feature | 2 x DDR5 DIMM sockets supporting up to 96 GB (48 GB single DIMM capacity) of system memory Dual channel memory architecture Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for AMD EXtended Profiles for Overclocking (AMD EXPO) and Extreme Memory Profile (XMP) memory modules (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" for more information.) |
| PCI Express 4.0 x16 | CPU: - 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 |
|---|---|
| PCI Express x1 | Chipset: - 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1 |
| Serial ATA (SATA) | 4 x SATA 6Gb/s |
|---|---|
| M.2 | CPU: - 1 x M.2 connector (Socket 3, M key, type 2580 PCIe 4.0 x4/x2 SSD support) |
| SATA RAID | RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices RAID 0, RAID 1, and RAID 10 support for SATA storage devices |
| Audio Chipset | Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel |
|---|---|
| Audio Channels | 7.1 Channels |
| LAN Chipset | Realtek GbE LAN chip (1 Gbps/100 Mbps/10 Mbps) |
|---|---|
| Max LAN Speed | 1Gbps |

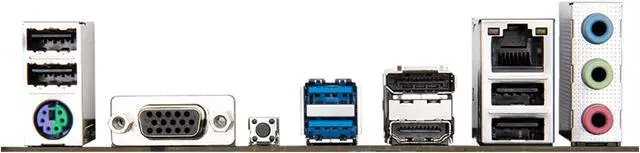

| Back I/O Ports | 4 x USB 2.0/1.1 ports 1 x PS/2 keyboard/mouse port 1 x D-Sub port 1 x Q-Flash Plus button 2 x USB 3.2 Gen 1 ports 1 x DisplayPort 1 x HDMI port 1 x RJ-45 port 3 x audio jacks |
|---|
| Onboard USB | 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers |
|---|---|
| Other Connectors | 1 x CPU fan header 2 x system fan headers 1 x addressable LED strip header 1 x RGB LED strip header 1 x M.2 Socket 3 connector 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) 1 x Clear CMOS jumper |
| Form Factor | Micro ATX |
|---|---|
| Dimensions (W x L) | 23.0cm x 22.5cm |
| Power Pin | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector |
| Windows 11 | Supported |
|---|
| Features | Support for GIGABYTE Control Center (GCC) * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. Support for Q-Flash Support for Q-Flash Plus |
|---|
| Date First Available | July 25, 2025 |
|---|
