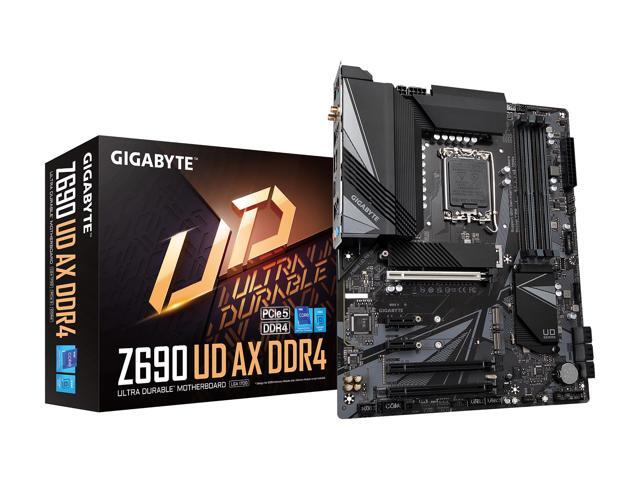

GIGABYTE Z690 UD AX DDR4 LGA 1700 Intel Z690 ATX Motherboard with DDR4, Triple M.2, PCIe 5.0, USB 3.2 Gen2X2 Type-C, WiFi 6, 2.5GbE LAN

In stock. Limit 10 per customer.
Ships from United States.
  • Z690 AERO D
  • Z690 AERO G
  • Z690 AERO G DDR4
  • Z690 AORUS ELITE AX
  • Z690 AORUS ELITE AX DDR4
  • Z690 AORUS MASTER
  • Z690 AORUS PRO
  • Z690 AORUS TACHYON
  • Z690 AORUS ULTRA
  • Z690 AORUS XTREME
  • Z690 AORUS XTREME WATERFORCE
  • Z690 GAMING X
  • Z690 GAMING X DDR4
  • Z690 UD DDR4
  • Z690 UD AX DDR4
  • Z690I AORUS ULTRA LITE
  • Z690I AORUS ULTRA LITE DDR4
  • Z690I AORUS ULTRA PLUS
  • Z690I AORUS ULTRA PLUS DDR4
  • Intel LGA 1700 Socket: Supports 12th Gen Intel Core Series Processors
  • DDR4 Compatible: Dual Channel Non-ECC Unbuffered DDR4
  • Sturdy Power Design: 16+1+2 Digital VRM Design with 60A Power Stage with Tantalum Polymer Capacitor
  • Comprehensive Thermal Design: Ultra performance VRM Heatsinks
  • Next Gen Connectivity: PCIe 5.0, Triple NVMe PCIe 4.0 x4 M.2, SuperSpeed USB 3.2 Gen 2x2 Type-C
  • Fast Networking: WiFi 6 802.11, 2.5GbE LAN, BT5
  • Fine Tuning Features: RGB FUSION 2.0, Supports Addressable LED & RGB LED Strips, Smart Fan 6, Q-Flash Plus Update BIOS without installing, CPU, Memory, and GPU
  • Dedicated LGA1700 mounting bracket is required
Specs
Reviews

Learn more about the GIGABYTE Z690 UD AX DDR4

Best Seller Ranking #64 in Intel Motherboards
Model
Brand GIGABYTE
Model Z690 UD AX DDR4
Supported CPU
CPU Socket Type LGA 1700

* Dedicated LGA1700 mounting bracket is required.
CPU Type Supports 12th Gen Intel Core / Pentium / Celeron Processors
Chipsets
Chipset Intel Z690
Onboard Video
Onboard Video Chipset Supported only by CPU with integrated graphic
Memory
Number of Memory Slots 4x288pin (DDR4)
Memory Standard DDR4 5333(OC) / DDR4 5133(OC) / 5000(OC) / 4933(OC) / 4800(OC) / 4700(OC) / 4600(OC) / 4500(OC) / 4400(OC) / 4300(OC) / 4266(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3666(OC) / 3600(OC) / 3466(OC) / 3400(OC) / 3333(OC) / 3300(OC) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133
Maximum Memory Supported 128GB
Channel Supported Dual Channel
Expansion Slots
PCI Express 5.0 x16 1 x PCI Express 5.0 x16

* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
PCI Express 3.0 x16 2 x PCI Express 3.0 x16

* PCIEX4 running at x4.
* PCIEX1_4 running at x1.
PCI Express x1 2 x PCI Express 3.0 x1
Storage Devices
SATA 6Gb/s 6 x SATA 6Gb/s
M.2 CPU:
1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)

Chipset:
1 x M.2 connector (Socket 3, M key, type 2260/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)
1 x M.2 connector (Socket 3, M key, type 2260/2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB)
Intel Optane Ready Intel Optane Memory Ready

* System acceleration with Intel Optane Memory can only be enabled on the M.2 connectors supported by the Chipset.
SATA RAID 0/1/5/10
Onboard Audio
Audio Chipset Realtek Audio CODEC
Audio Channels 7.1 Channels

* To configure 7.1-channel audio, you need to open the audio software and select Device advanced settings > Playback Device to change the default setting first. Please visit GIGABYTE's website for details on configuring the audio software.
Onboard LAN
LAN Chipset Realtek 2.5GbE LAN chip
Max LAN Speed 10/100/1000/2500Mbps
Wireless LAN Intel Wi-Fi 6 AX201
WIFI a/b/g/n/ac/ax
Bluetooth Bluetooth 5.2
Rear Panel Ports
Back I/O Ports 1 x PS/2 keyboard/mouse port
2 x SMA antenna connectors (2T2R)
1 x DisplayPort
1 x HDMI port
1 x USB Type-C port, with USB 3.2 Gen 2x2 support
1 x USB 3.2 Gen 2 Type-A port (red)
4 x USB 3.2 Gen 1 ports
4 x USB 2.0/1.1 ports
1 x RJ-45 port
3 x audio jacks
Internal I/O Connectors
Onboard USB 1 x USB Type-C header, with USB 3.2 Gen 1 support
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
Other Connectors 1 x CPU fan header
1 x water cooling CPU fan header
3 x system fan headers
1 x system fan/water cooling pump header
2 x addressable LED strip headers
2 x RGB LED strip headers
1 x front panel header
1 x front panel audio header
1 x S/PDIF Out header
1 x serial port header
2 x Thunderbolt add-in card connectors
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
1 x reset button
1 x reset jumper
1 x Q-Flash Plus button
1 x Clear CMOS jumper

* All fan headers are subject to support AIO_Pump, Pump and high performance fan with the capability of delivering up to 2A/12V @ 24W.
Physical Spec
Form Factor ATX
LED Lighting RGB
Dimensions (W x L) 12.0" x 9.6"
Power Pin 1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x 4-pin ATX 12V power connector
Windows Compatibility
Windows 11 Supported
Features
Features Multi-Graphics Technology:
Support for AMD Quad-GPU CrossFire and 2-Way AMD CrossFire technologies

I/O Controller:
iTE I/O Controller Chip

H/W Monitoring:
Voltage detection
Temperature detection
Fan speed detection
Water cooling flow rate detection
Fan fail warning
Fan speed control
* Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.

BIOS:
1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Unique Features:
Support for APP Center
* Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
@BIOS
EasyTune
Fast Boot
Game Boost
ON/OFF Charge
RGB Fusion
Smart Backup
System Information Viewer
Support for Q-Flash Plus
Support for Q-Flash
Support for Xpress Install

Bundled Software:
Norton Internet Security (OEM version)
Realtek Gaming LAN Bandwidth Control Utility

Operating System:
Support for Windows 10 64-bit
Additional Information
Date First Available October 27, 2021

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

  • Limited Warranty period (parts): 3 years
  • Limited Warranty period (labor): 3 years
