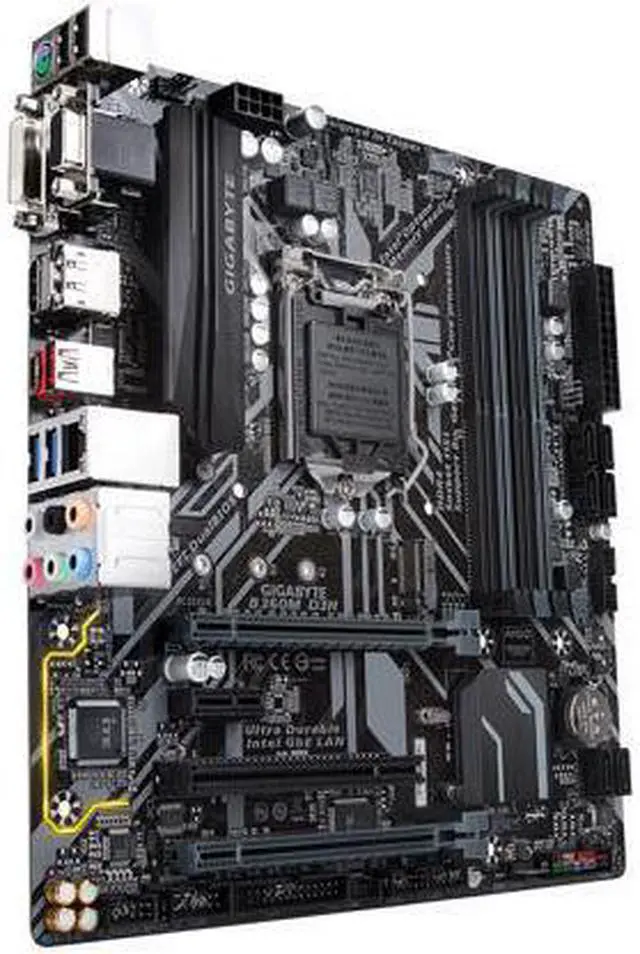

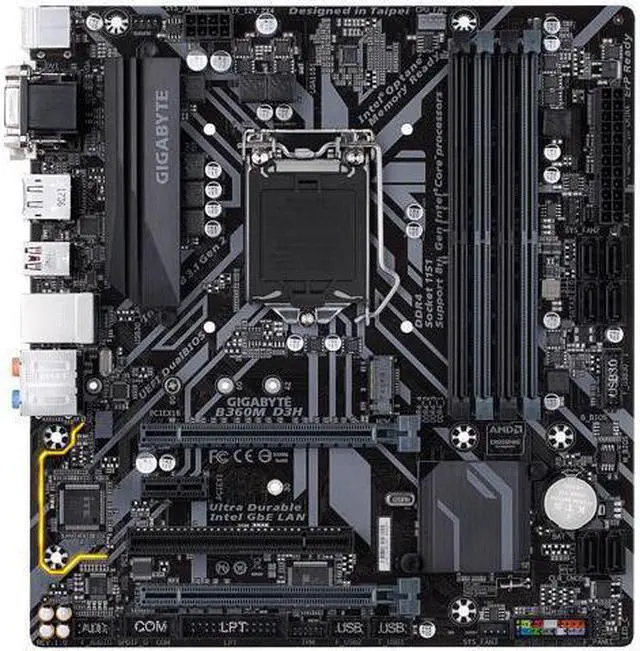

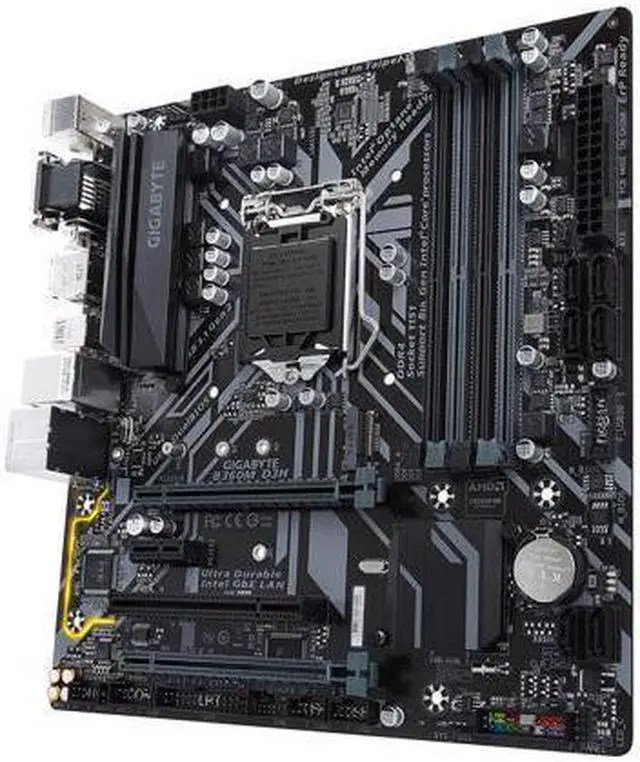

Gigabyte B360M D3H Motherboard INTEL B360
Learn more about the GIGABYTE B360M D3H
Model
Brand
GIGABYTE
Model
B360M D3H
Supported CPU
CPU Socket Type
LGA 1151 (300 Series)
CPU Type
Core i7 / i5 / i3 (8th Gen, LGA1151)
Chipsets
Chipset
INTEL B360
Onboard Video
Onboard Video Chipset
Supported only by CPU with integrated graphic
Memory
Number of Memory Slots
4x288pin (DDR4)
Memory Standard
DDR4 2666
Maximum Memory Supported
64GB
Channel Supported
Dual Channel
Expansion Slots
PCI Express 3.0 x16
2 x PCI Express 3.0 x16
PCI Express x1
1 x PCI Express x1
PCI Slots
1 x PCI Slot
Storage Devices
Serial ATA (SATA)
6 x SATA 6Gb/s
M.2
1 x M.2
Onboard Audio
Audio Chipset
Realtek ALC892
Audio Channels
7.1 Channels
Onboard LAN
LAN Chipset
Intel GbE LAN
Max LAN Speed
1Gbps

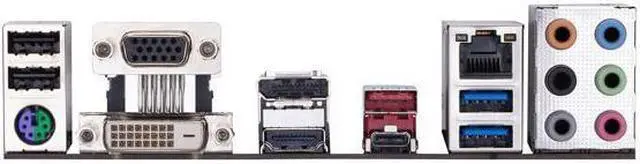

Rear Panel Ports
PS/2
1 x PS/2 keyboard/mouse port
Video Ports
D-Sub + DVI
HDMI
1 x HDMI
RJ45
1 x RJ45
DisplayPort
1 x DisplayPort
USB 3.1
3 x USB 3.1
USB 1.1/2.0
2 x USB 2.0
USB Type-C
1 x USB 3.1
Audio Ports
6 Ports
Internal I/O Connectors
Onboard USB
2 x USB 3.1 + 4 x USB 2.0
Other Connectors
1 x CPU fan header3 x system fan headers1 x RGB LED strip header1 x front panel header1 x front panel audio header1 x S/PDIF Out header1 x Trusted Platform Module (TPM) header (2x6-pin, for the GC-TPM2.0_S module only)1 x serial port header1 x parallel port header1 x Clear CMOS jumper
Physical Spec
Form Factor
Micro ATX
LED Lighting
RGB
Dimensions (W x L)
9.6" x 9.1"
Power Pin
24 Pin
Features
Features
Multi-Graphics Technology:Support for AMD Quad-GPU CrossFire and 2-Way AMD CrossFire technologiesI/O Controller:iTE I/O Controller ChipH/W Monitoring:Voltage detectionTemperature detectionFan speed detectionOverheating warningFan fail warningFan speed control* Whether the fan speed control function is supported will depend on the cooler you install.BIOS:2 x 128 Mbit flashUse of licensed AMI UEFI BIOSSupport for DualBIOSPnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0Unique Features:Support for APP Center* Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.3D OSD@BIOSAutoGreenCloud StationEasyTuneFast BootGame BoostON/OFF ChargePlatform Power ManagementRGB FusionSmart BackupSmart KeyboardSmart TimeLockSmart HUDSystem Information ViewerUSB BlockerV-TunerSupport for Q-FlashSupport for Xpress InstallBundle Software:Norton Internet Security (OEM version)cFosSpeedOperating System:Support for Windows 10 64-bit
