The item is in very good condition. The BIOS has been upgraded to the latest version. Tested, only the motherboard and I/O shield are included in the package. please leave a message if you need screws.

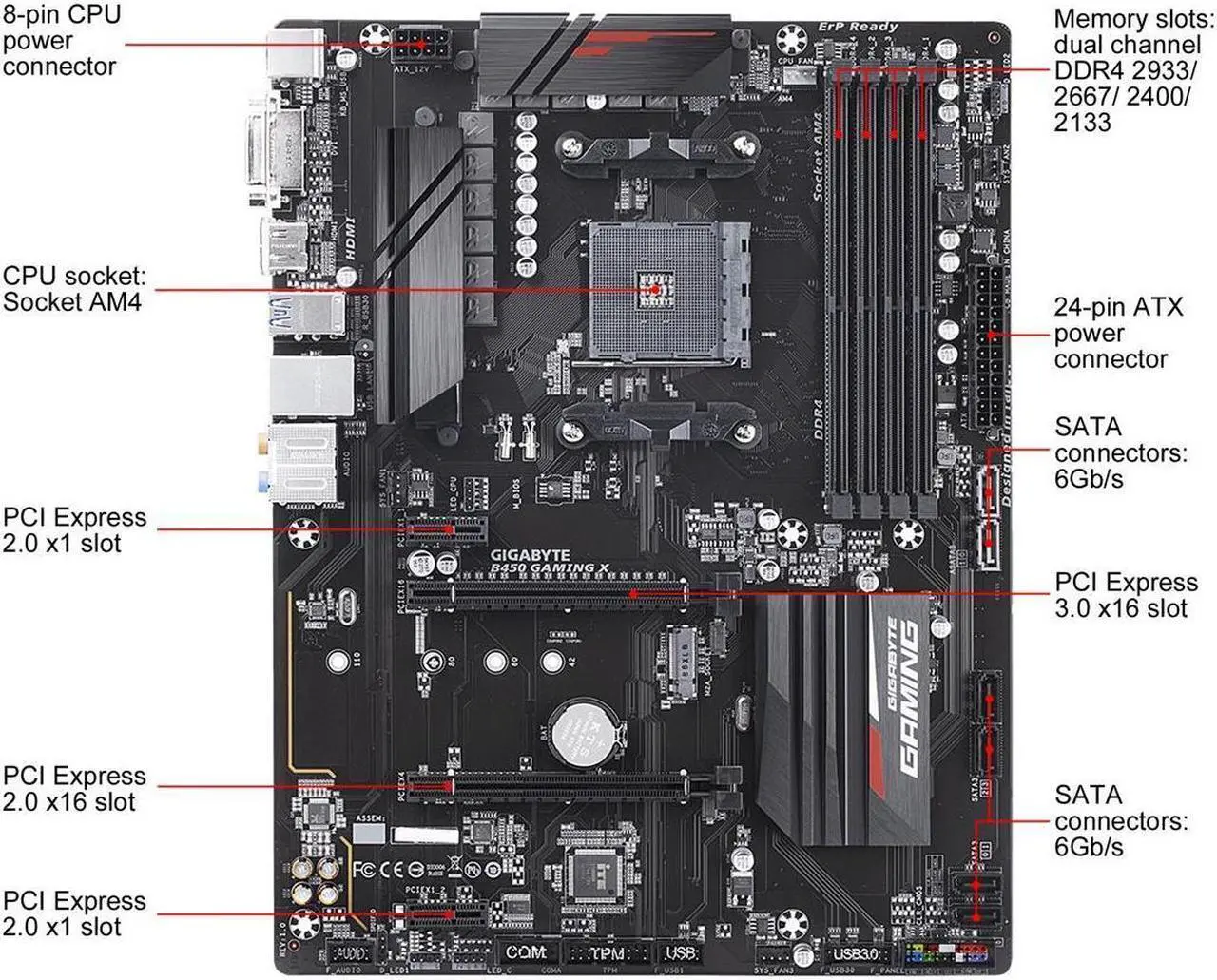

1 x PCI Express x16 slot, running at x16 (PCIEX16) * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. ** Actual support may vary by CPU. (The PCIEX16 slot conforms to PCI Express 3.0 standard.)
PCI Express 2.0 x16
1 x PCI Express x16 slot, running at x4 (PCIEX4) * The PCIEX4 slot shares bandwidth with the PCIEX1_2 slot. The PCIEX4 slot operates at up to x2 mode when the PCIEX1_2 slot is populated. The PCIEX4 slot operates at up to x4 mode when the PCIEX1_2 is empty.
PCI Express x1
2 x PCI Express x1 slots (The PCIEX4 and PCIEX1 slots conform to PCI Express 2.0 standard.)
Storage Devices
Serial ATA (SATA)
6 x SATA 6Gb/s
M.2
1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 PCIe 3.0 x4/x2 SSD support)
SATA RAID
0/1/10
Onboard Video
Onboard Video Chipset
Supported only by CPU with integrated graphic:
1 x DVI-D port, supporting a maximum resolution of 1920x1200@60Hz * The DVI-D port does not support D-Sub connection by adapter. 1 x HDMI port, supporting a maximum resolution of 4096x2160@60Hz * Support for HDMI 2.0 version and HDCP 2.2. ** Actual support may vary by CPU.
Maximum shared memory of 16GB
Onboard Audio
Audio Chipset
Realtek ALC892
Audio Channels
2/4/5.1/7.1-channel Support for S/PDIF Out
Onboard LAN
LAN Chipset
Realtek GbE LAN chip
Max LAN Speed
1Gbps
Rear Panel Ports
Back I/O Ports

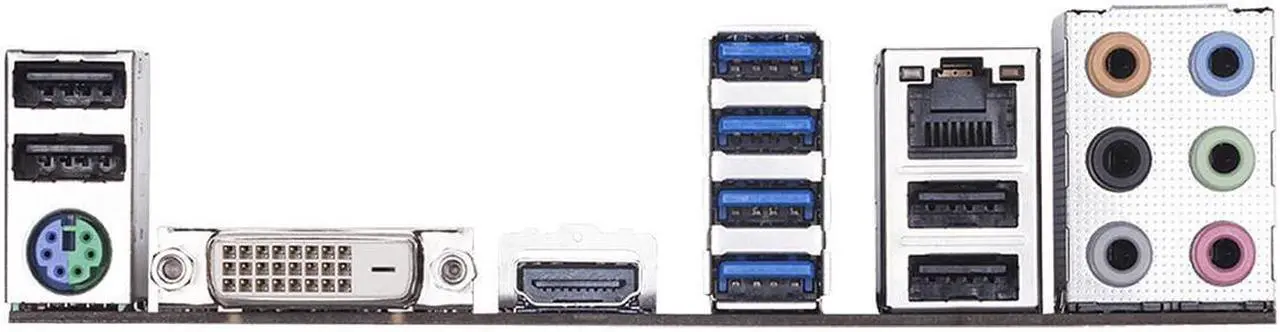

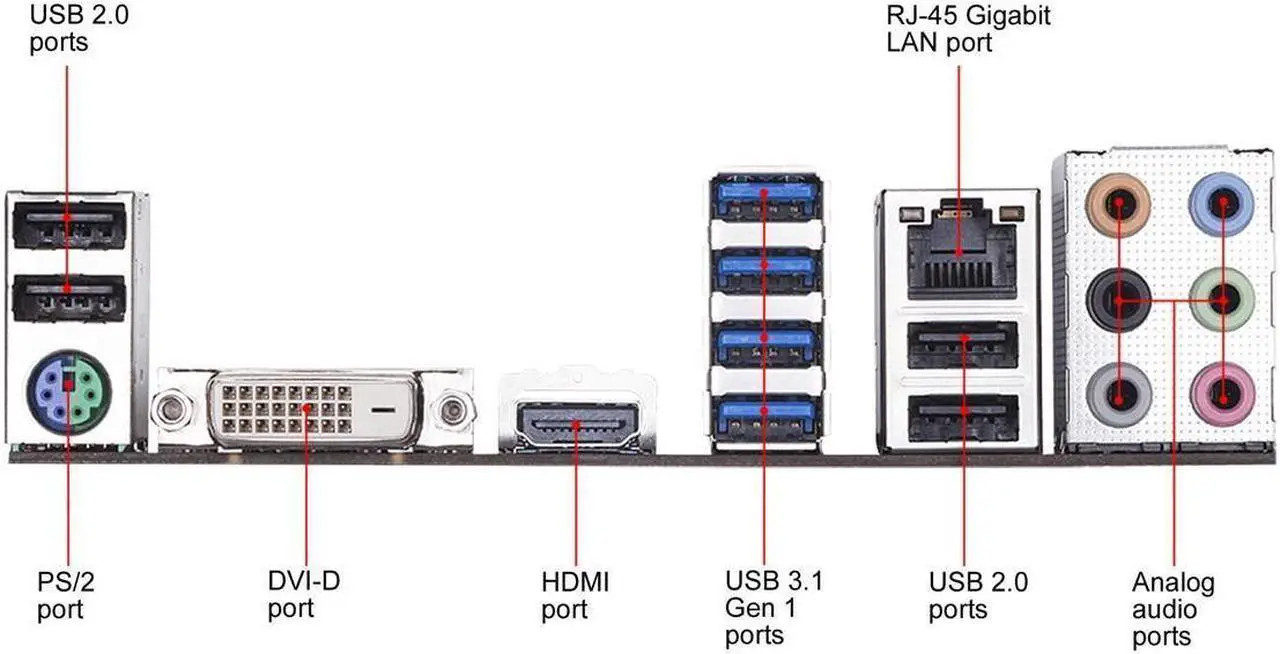

1 x PS/2 keyboard/mouse port 1 x DVI-D port 1 x HDMI port 4 x USB 3.1 Gen 1 ports 4 x USB 2.0/1.1 ports 1 x RJ-45 port 6 x audio jacks
Internal I/O Connectors
Onboard USB
1 x USB 3.1 Gen 1 header 1 x USB 2.0/1.1 header
Other Connectors
1 x CPU fan header 3 x system fan headers 1 x CPU cooler LED strip/RGB LED strip header 1 x RGB LED strip header 2 x addressable LED strip headers 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x Trusted Platform Module (TPM) header (2x10-pin, for the GC-TPM2.0 module only) 1 x serial port header 1 x Clear CMOS jumper
Physical Spec
Form Factor
ATX
LED Lighting
RGB
Dimensions (W x L)
12.0" x 9.3"
Power Pin
1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector
Features
Features
Multi-Graphics Technology: Support for AMD Quad-GPU CrossFire and 2-Way AMD CrossFire technologies
I/O Controller: iTE I/O Controller Chip
H/W Monitoring: Voltage detection Temperature detection Fan speed detection Overheating warning Fan fail warning Fan speed control * Whether the fan speed control function is supported will depend on the cooler you install.
BIOS: 1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features: Support for APP Center * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. 3D OSD @BIOS AutoGreen Cloud Station EasyTune Fast Boot Game Boost ON/OFF Charge RGB Fusion Smart Backup Smart Keyboard Smart TimeLock Smart HUD Smart Survey System Information Viewer USB Blocker Support for Q-Flash Support for Xpress Install
Bundled Software: Norton Internet Security (OEM version) Realtek 8118 Gaming LAN Bandwidth Control Utility
Operating System: Support for Windows 10 64-bit Support for Windows 7 64-bit * To support Windows 7 64-bit, you must install an AMD Pinnacle Ridge & Summit Ridge CPU. * Please download the "Windows USB Installation Tool" from GIGABYTE's website and install it before installing Windows 7.
