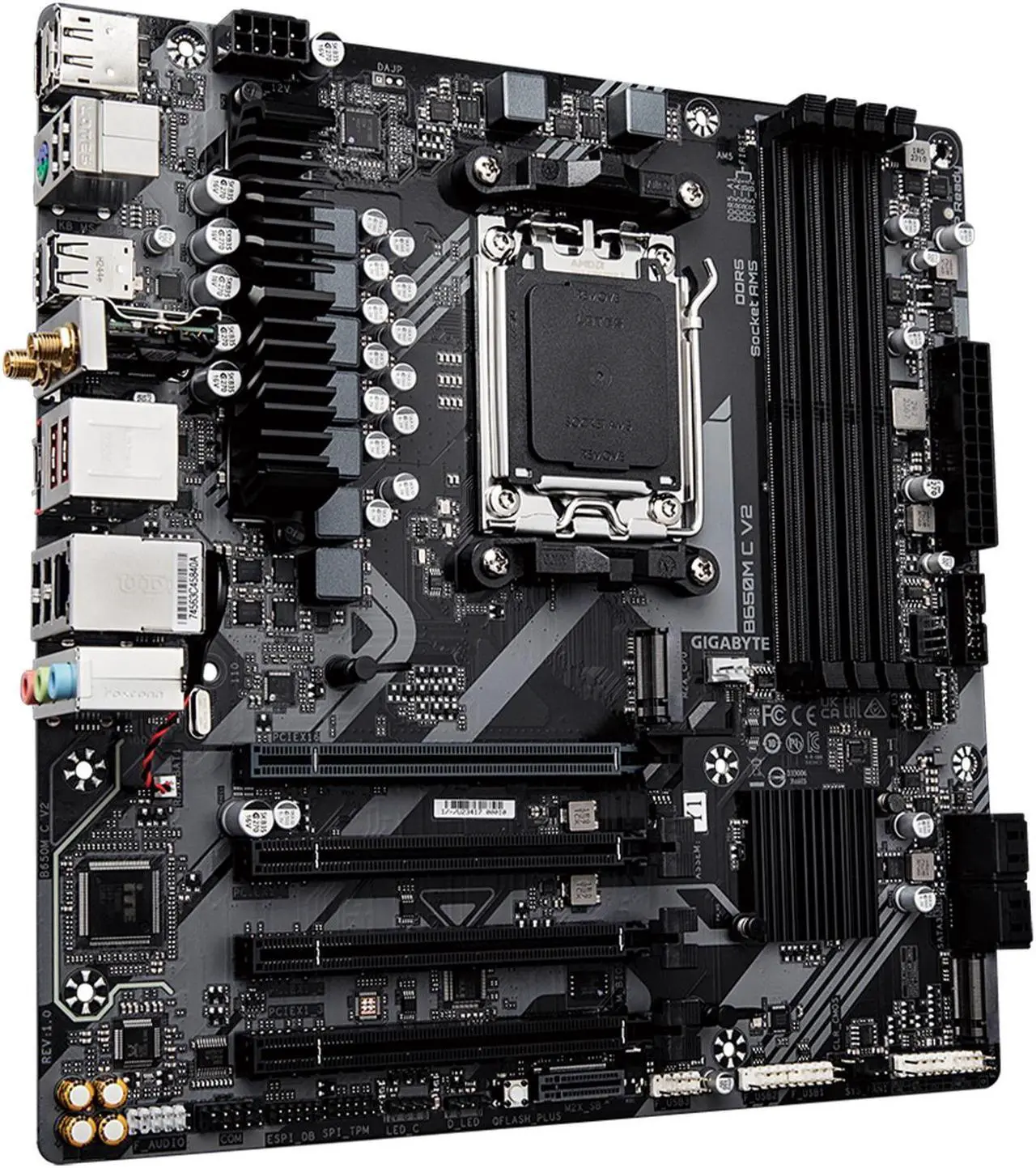

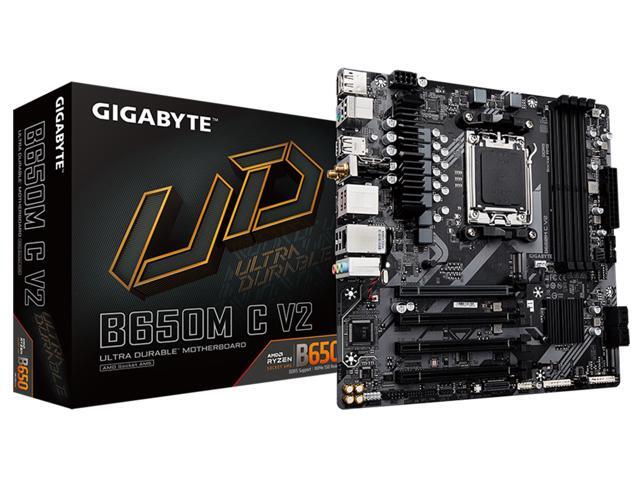

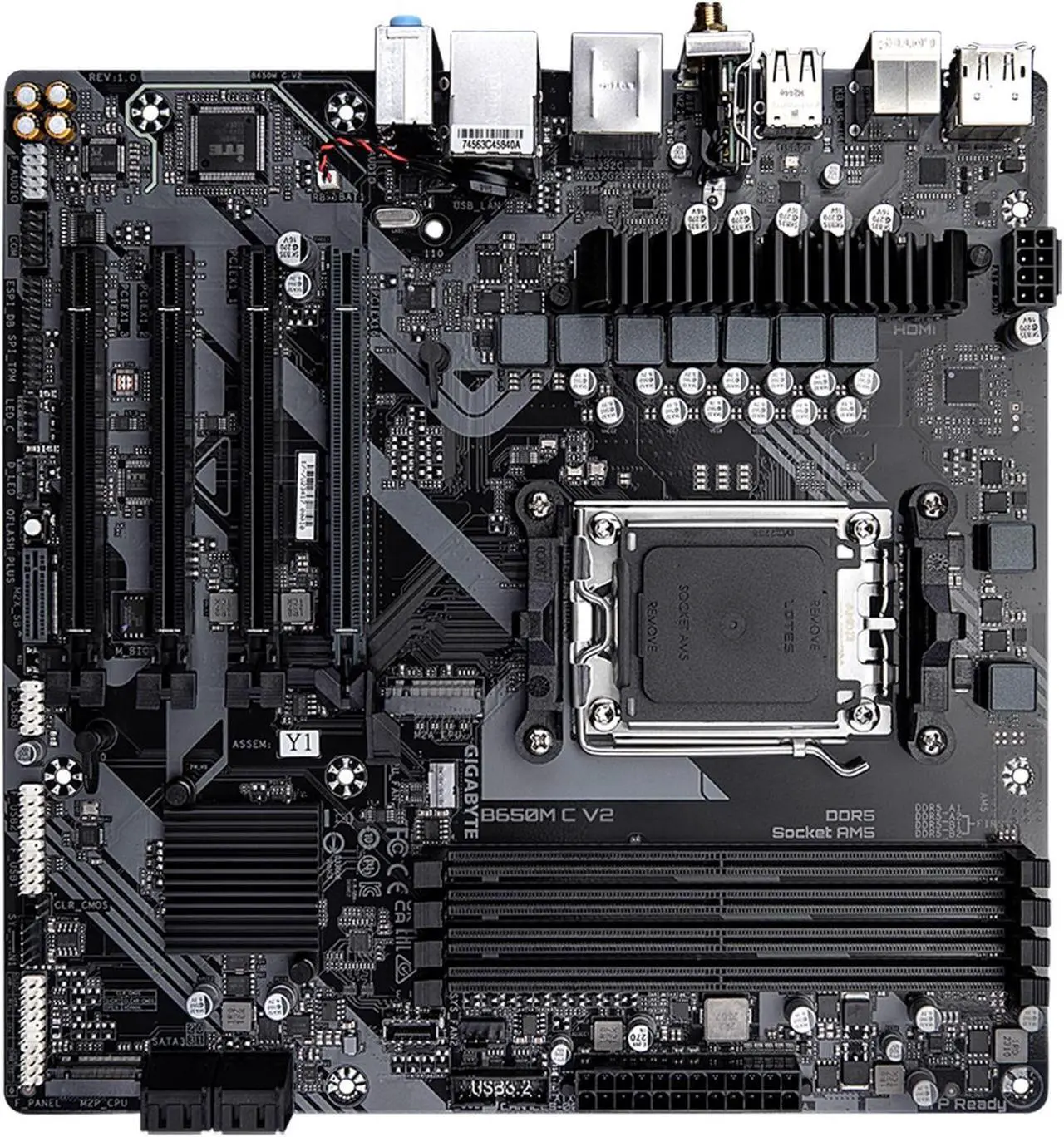

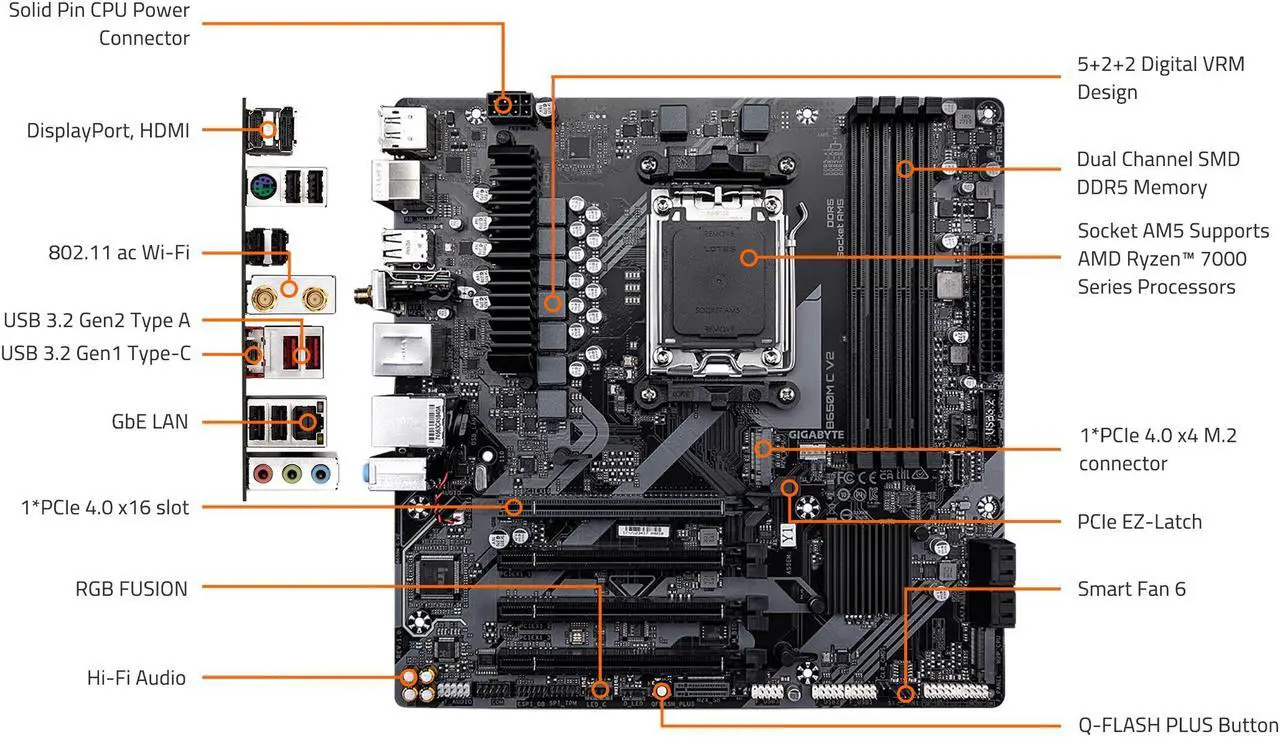

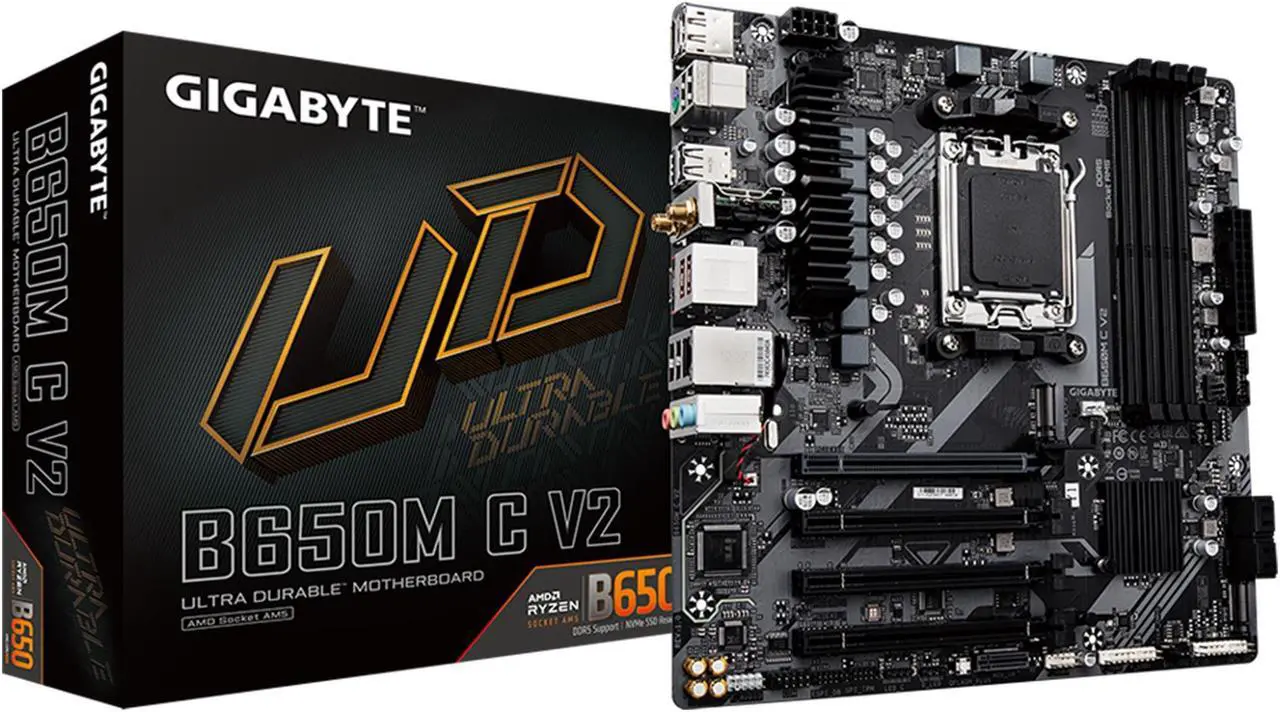

Brand | GIGABYTE |
---|---|
Model | B650M C V2 |
CPU Socket Type | AM5 |
---|---|
CPU Type | Ryzen 7000 Series |
Chipset | AMD B650 |
---|
Number of Memory Slots | 4x288pin (DDR5) |
---|---|
Memory Standard | Support for DDR5 7600(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5600(OC)/ 5200/ 4800 MT/s memory modules |
Maximum Memory Supported | 192GB |
Channel Supported | Dual Channel |
ECC Supported | Non-ECC |
Buffer Supported | Un-buffered |
Memory Feature | 4 x DDR5 DIMM sockets supporting up to 192 GB (48 GB single DIMM capacity) of system memory Dual channel memory architecture Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for AMD EXtended Profiles for Overclocking (AMD EXPO) and Extreme Memory Profile (XMP) memory modules (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.) |
PCI Express 4.0 x16 | CPU: - 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. |
---|---|
PCI Express 3.0 x16 | Chipset: - 3 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1 |
Serial ATA (SATA) | 4 x SATA 6Gb/s |
---|---|
M.2 | CPU: - 1 x M.2 connector (Socket 3, M key, type 2580/25110 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) - 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 3.0 x2 SSD support) (M2P_CPU) Chipset: - 1 x M.2 connector (Socket 3, M key, type 2260 PCIe 3.0 x1 SSD support) (M2X_SB) |
SATA RAID | RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices RAID 0, RAID 1, and RAID 10 support for SATA storage devices |
Audio Chipset | Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. |
---|---|
Audio Channels | 7.1 Channels |
LAN Chipset | Realtek GbE LAN chip (1 Gbps/100 Gbps/10 Mbps) |
---|---|
Max LAN Speed | 1Gbps |
Wireless LAN | AzureWave Wi-Fi AW-CB304NF (Realtek RTL8821CE) - WIFI 802.11a, b, g, n, ac, supporting 2.4/5 GHz Dual-Band - BLUETOOTH 4.2 - Support for 11ac wireless standard and up to 433 Mbps data rate (Actual data rate may vary depending on environment and equipment.) |
Bluetooth | Yes |

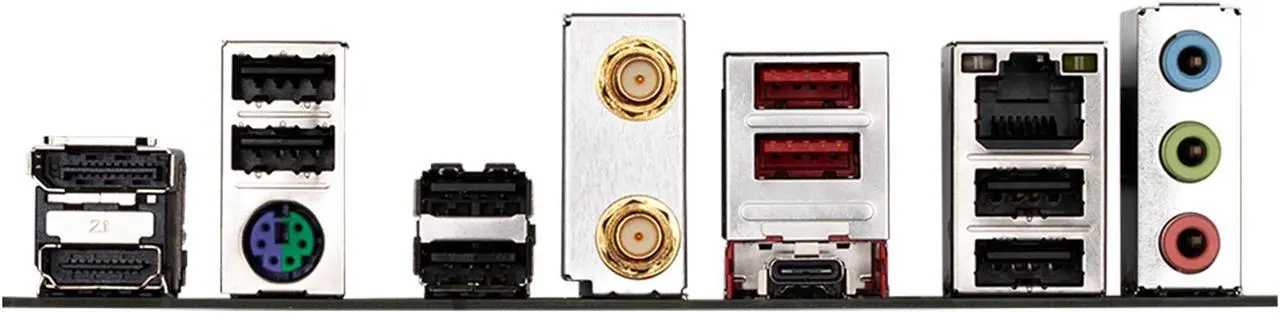

Back I/O Ports | 1 x DisplayPort 1 x HDMI port 1 x PS/2 keyboard/mouse port 1 x USB Type-C port, with USB 3.2 Gen 1 support 2 x USB 3.2 Gen 2 Type-A ports (red) 6 x USB 2.0/1.1 ports 1 x RJ-45 port 3 x audio jacks |
---|
Onboard USB | 1 x USB Type-C header, with USB 3.2 Gen 1 support 1 x USB 3.2 Gen 1 header 3 x USB 2.0/1.1 headers |
---|---|
Other Connectors | 1 x CPU fan header 2 x system fan headers 1 x addressable LED strip header 1 x RGB LED strip header 3 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) 1 x Q-Flash Plus button 1 x serial port header 1 x Clear CMOS jumper |
Form Factor | Micro ATX |
---|---|
Dimensions (W x L) | 9.6" x 9.6" |
Power Pin | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector |
Windows 11 | Supported |
---|
Features | Support for GIGABYTE Control Center (GCC) * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. Support for Q-Flash Support for Q-Flash Plus |
---|
Date First Available | July 02, 2025 |
---|
