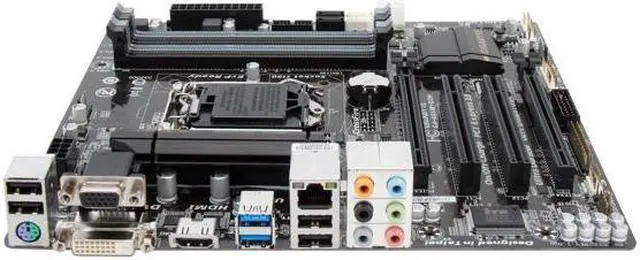

Main image of GIGABYTE B85M-D3H LGA 1150 Intel B85 HDMI SATA 6Gb/s USB 3.0 Micro ATX Intel Motherboard

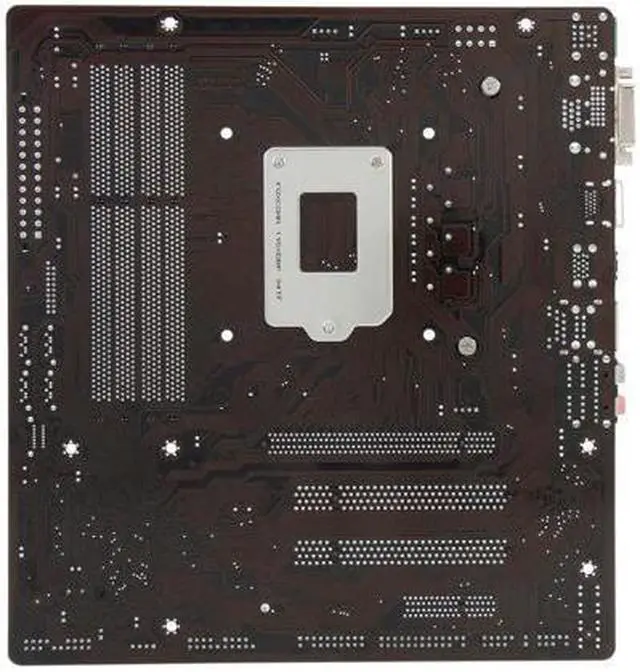

Alt view image 2 of 4 - GIGABYTE B85M-D3H LGA 1150 Intel B85 HDMI SATA 6Gb/s USB 3.0 Micro ATX Intel Motherboard

Alt view image 3 of 4 - GIGABYTE B85M-D3H LGA 1150 Intel B85 HDMI SATA 6Gb/s USB 3.0 Micro ATX Intel Motherboard

Alt view image 4 of 4 - GIGABYTE B85M-D3H LGA 1150 Intel B85 HDMI SATA 6Gb/s USB 3.0 Micro ATX Intel Motherboard

Shop All GIGABYTE Products | Visit Alex Computers Store

GIGABYTE B85M-D3H LGA 1150 Intel B85 HDMI SATA 6Gb/s USB 3.0 Micro ATX Intel Motherboard

Used - Very Good

The item is in very good condition. No original packaging. Only the motherboard and IO shield are included in the package.

Intel B85
4th-Gen Intel Core i7 / i5/ i3 (LGA1150)
DDR3 1600/1333

🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available

Overview

Specs

Any questions? Our AI beta will help you find out quickly.

Try me now

Intel B85 4th-Gen Intel Core i7 / i5/ i3 (LGA1150) DDR3 1600/1333

Model
Brand	GIGABYTE
Model	B85M-D3H

Supported CPU
CPU Socket Type	LGA 1150
CPU Type	Core i7 / i5 / i3 / Pentium / Celeron (LGA1150)
Supported CPU Technologies	Turbo Boost Technology 2.0

Chipsets
Chipset	Intel B85

Onboard Video
Onboard Video Chipset	Integrated Graphics Processor - Intel HD Graphics support:1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz* The DVI-D port does not support D-Sub connection by adapter.1 x HDMI port, supporting a maximum resolution of 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz* Support for HDMI 1.4a version.Maximum shared memory of 1GB

Memory
Number of Memory Slots	4x240pin
Memory Standard	DDR3 1600/ 1333
Maximum Memory Supported	32GB
Channel Supported	Dual Channel

Expansion Slots
PCI Express 3.0 x16	1 x PCI Express x16 slot, running at x16 (PCIEX16)* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.(The PCIEX16 slot conforms to PCI Express 3.0 standard.)
PCI Express x16	1 x PCI Express x16 slot, running at x4 (PCIEX4)
PCI Slots	2 x PCI Slots

Storage Devices
Serial ATA (SATA)	4 x SATA 6Gb/s connectors (SATA3 0/1/2/3) supporting up to 4 SATA 6Gb/s devices

Onboard Audio
Audio Channels	7.1 Channels

Onboard LAN
LAN Chipset	Realtek GbE LAN chip
Max LAN Speed	1Gbps

Rear Panel Ports
Back I/O Ports	1 x HDMI / 1 x PS/2 Keyboard/Mouse Combo / 2 x USB 3.0 / 4 x USB 2.0/1.1
PS/2	1 x PS/2 keyboard/mouse port
Video Ports	1 x D-Sub port1 x DVI-D port
HDMI	1 x HDMI
RJ45	1 x RJ45
USB 3.0	2 x USB 3.0
USB 1.1/2.0	4 x USB 2.0
Audio Ports	6 x audio jacks (Center/Subwoofer Speaker Out/Rear Speaker Out/Side Speaker Out/Line In/Line Out/Microphone)

Internal I/O Connectors
Onboard USB	1 x USB 3.0/2.0 header2 x USB 2.0/1.1 headers
Other Connectors	1 x 24-pin ATX main power connector1 x 8-pin ATX 12V power connector1 x CPU fan header3 x system fan headers1 x front panel header1 x front panel audio header1 x S/PDIF Out header1 x serial port header1 x parallel port header1 x Trusted Platform Module (TPM) header1 x Clear CMOS jumper

Physical Spec
Power Pin	24 Pin

Additional Information
First Listed on Newegg	May 06, 2019
