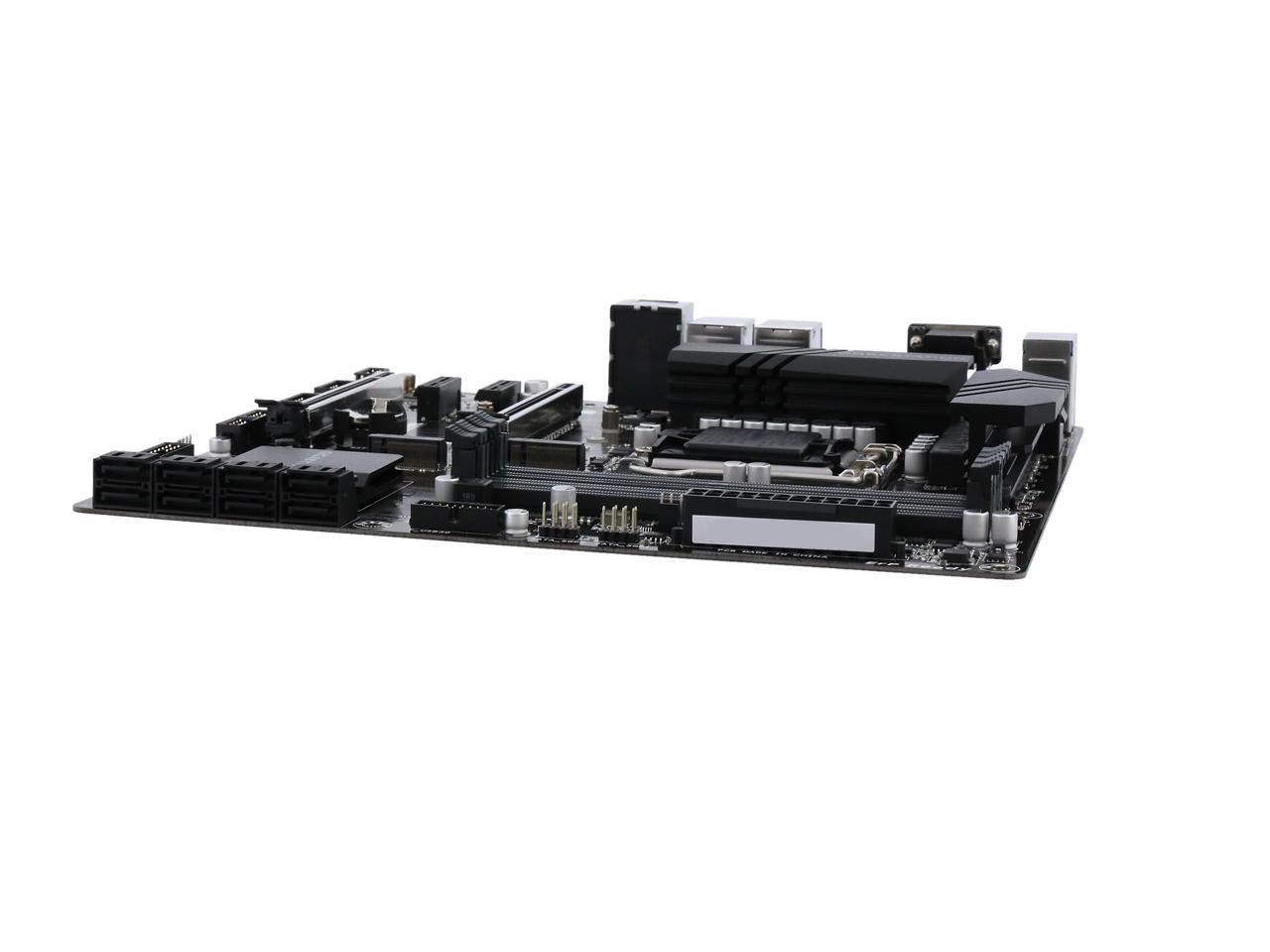

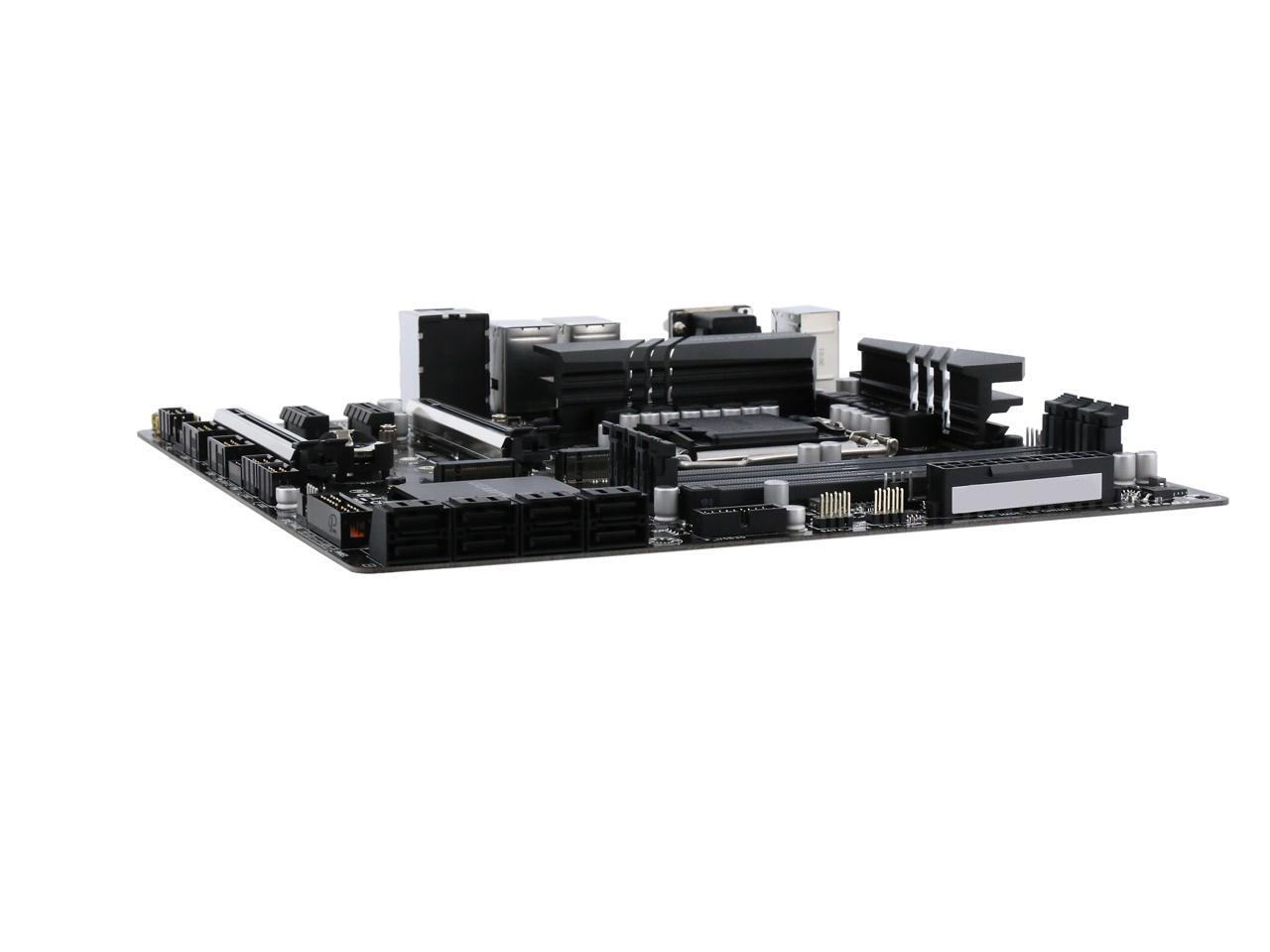

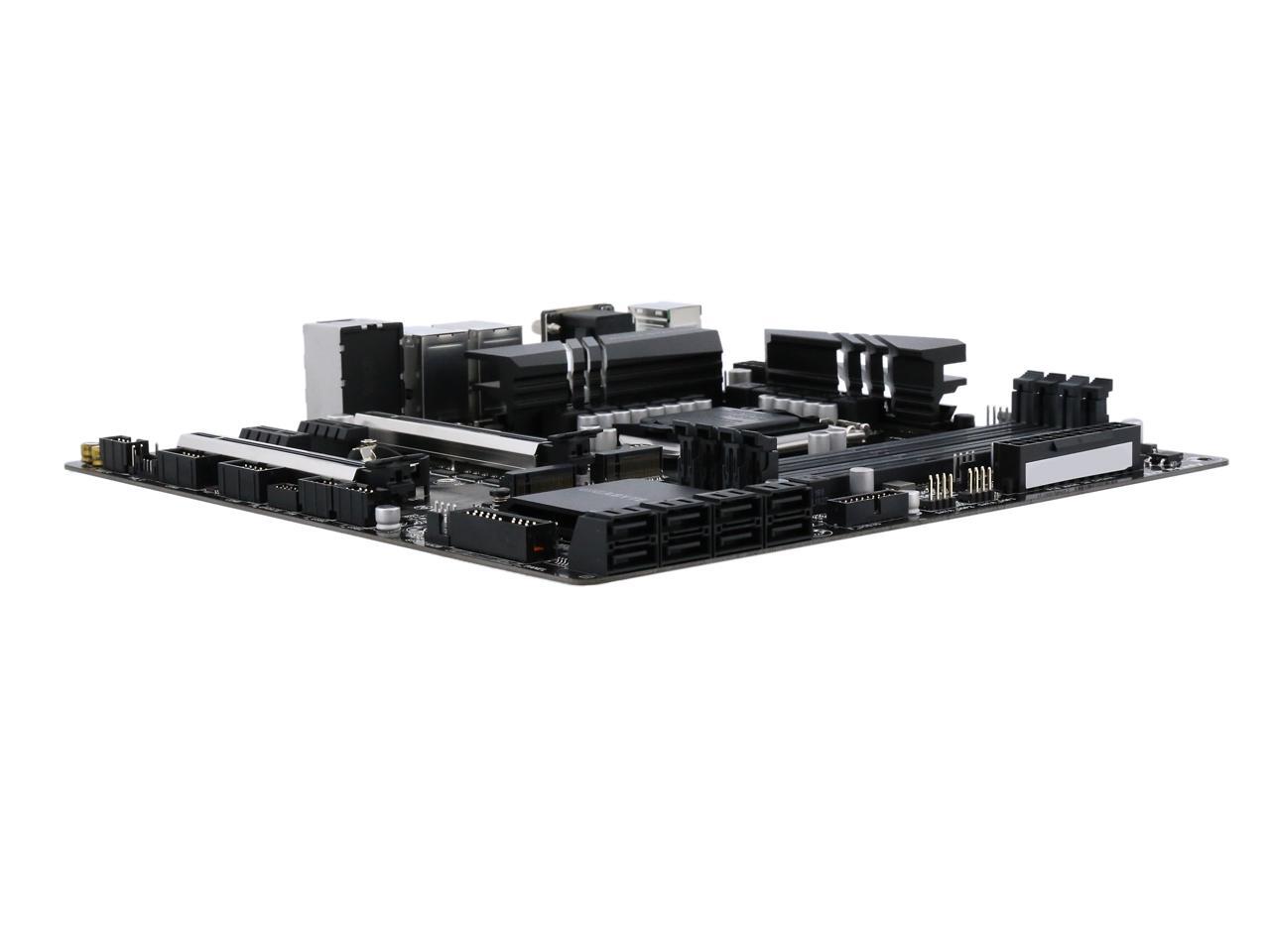

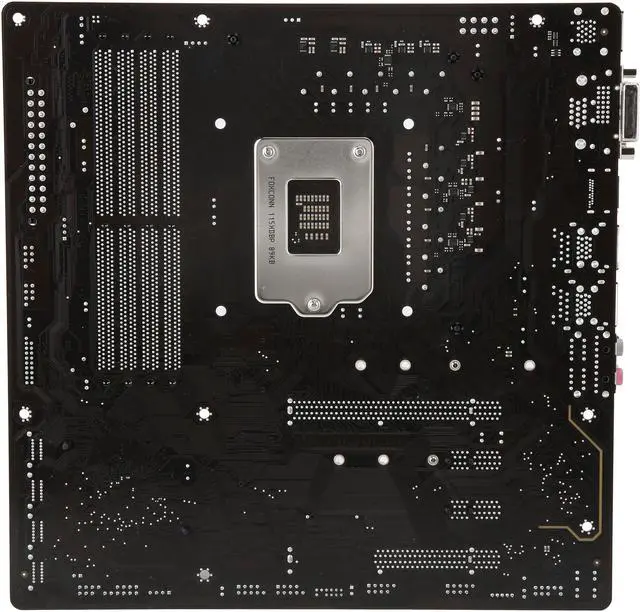

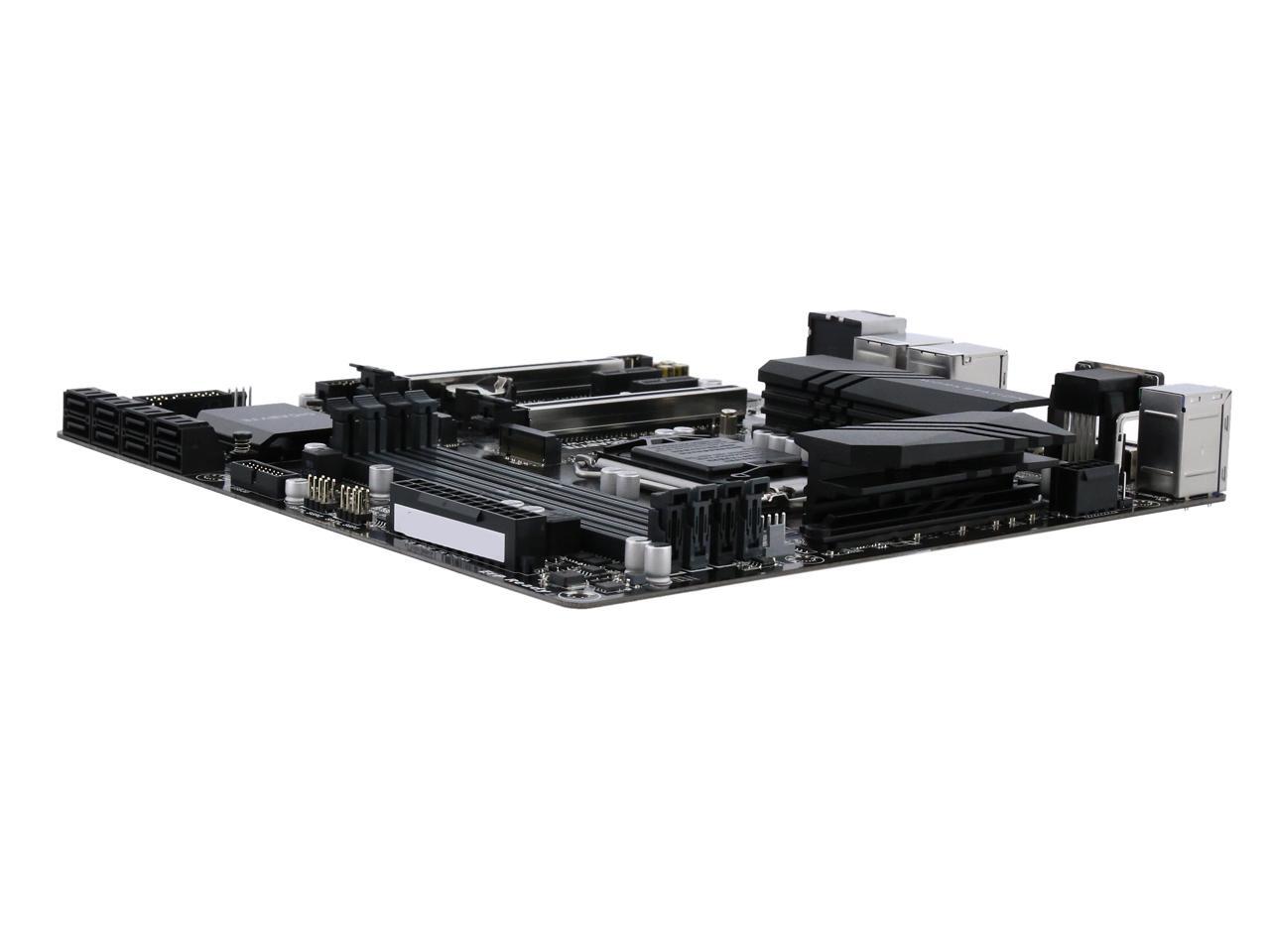

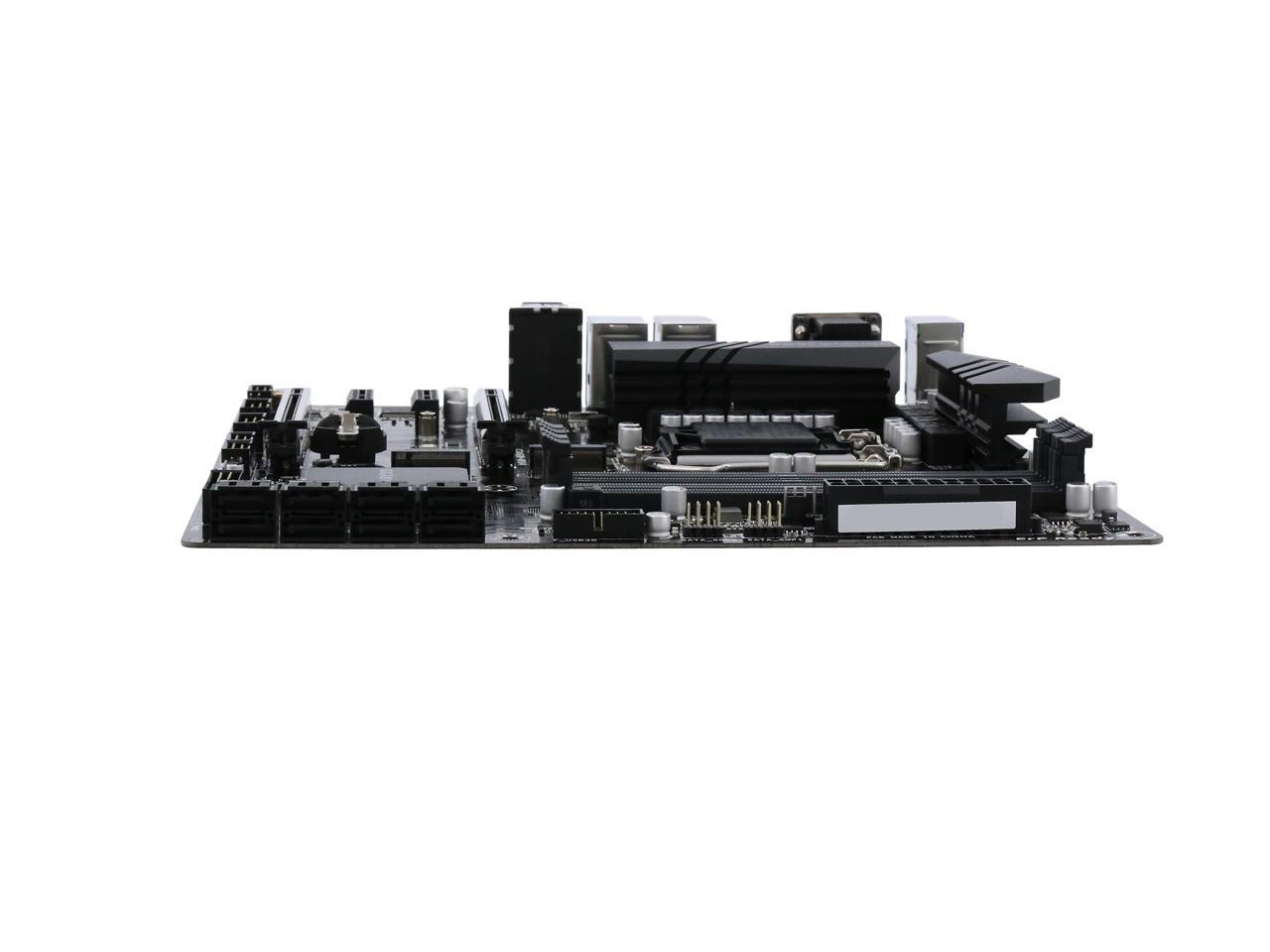

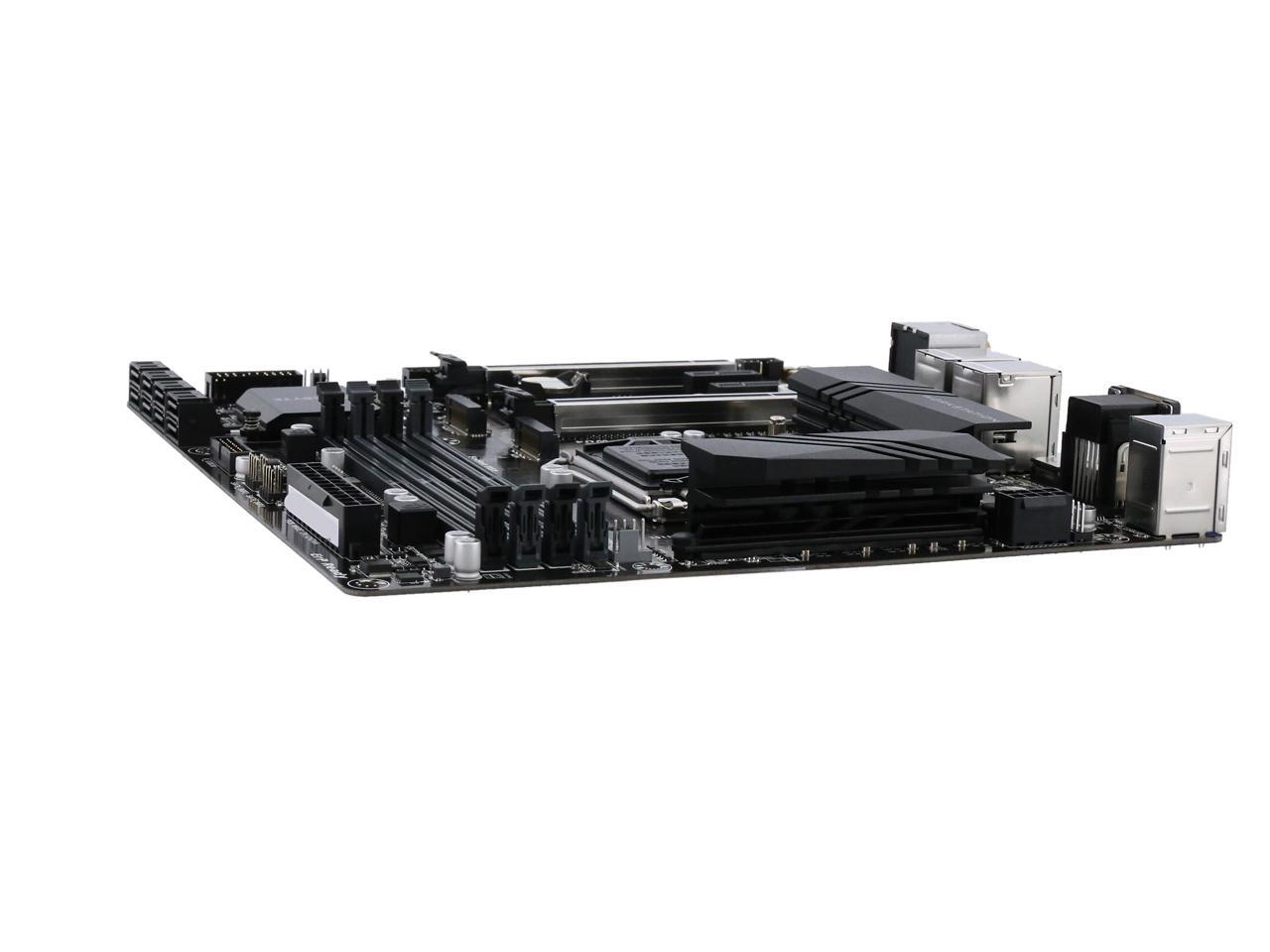

    GIGABYTE C246M-WU4 LGA 1151 (300 Series) Intel C246 USB 3.1 Micro ATX Intel Motherboard

    (13) Write a Review
    • C246-WU4
    • C246M-WU4
    • Intel C246
    • LGA1151 package:
    • Intel Xeon E series processors
    • 9th and 8th Generation Intel Core processors / Intel Pentium processors / Intel Celeron processors
    • DDR4 2666/ 2400/ 2133
    🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available
    +
    +
    Specs
    Reviews (13)
    avatar

    Any questions? Our AI beta will help you find out quickly.

    Try me now

    Learn more about the GIGABYTE C246M-WU4

    Model
    Brand GIGABYTE
    Model C246M-WU4
    Supported CPU
    CPU Socket Type LGA 1151 (300 Series)
    CPU Type LGA1151 package:
    Intel Xeon E series processors
    9th and 8th Generation Intel Core processors / Intel Pentium processors / Intel Celeron processors
    * Not backward compatible with older generation of LGA 1151 CPUs
    Chipsets
    Chipset Intel C246
    Onboard Video
    Onboard Video Chipset Integrated Graphics Processor - Intel UHD Graphics support:
    1 x D-Sub port, supporting a maximum resolution of 1920x1200@60Hz
    1 x DVI-D port, supporting a maximum resolution of 1920x1200@60Hz
    * The DVI-D port does not support D-Sub connection by adapter.
    1 x DisplayPort, supporting a maximum resolution of 4096x2304@60Hz
    * Support for DisplayPort 1.2 version, HDCP 2.2, and HDR.

    Support for up to 3 displays at the same time
    Maximum shared memory of 1GB
    Memory
    Number of Memory Slots 4x288pin (DDR4)
    Memory Standard DDR4 2666/ 2400/ 2133
    Maximum Memory Supported 64GB
    Channel Supported Dual Channel
    Expansion Slots
    PCI Express 3.0 x16 1 x PCI Express x16 slot, running at x16 (PCIEX16)
    * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
    1 x PCI Express x16 slot, running at x8 (PCIEX8)
    * The PCIEX8 slot shares bandwidth with the PCIEX16 slot. When the PCIEX8 slot is populated, the PCIEX16 slot operates at up to x8 mode.
    * If you install a graphics card in the PCIEX16 slot and the GC-TITAN RIDGE card in the PCIEX8 slot, make sure to set the PCIE Bifurcation Support item to PCIE x8/x8 in BIOS Setup.
    PCI Express x1 2 x PCI Express x1 slots
    (All of the PCI Express slots conform to PCI Express 3.0 standard.)
    Storage Devices
    Serial ATA (SATA) 8 x SATA 6Gb/s connectors (SATA3 0~7)
    M.2 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 PCIe x4/x2 SSD support) (M2M)
    1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x4/x2 SSD support) (M2A)
    Intel Optane Ready Yes
    SATA RAID 0/1/5/10
    Onboard Audio
    Audio Chipset Realtek ALC892
    Audio Channels 2/4/5.1/7.1-channel
    Support for S/PDIF Out
    Onboard LAN
    LAN Chipset 2 x Intel GbE LAN chips
    Max LAN Speed 2 x 1Gbps

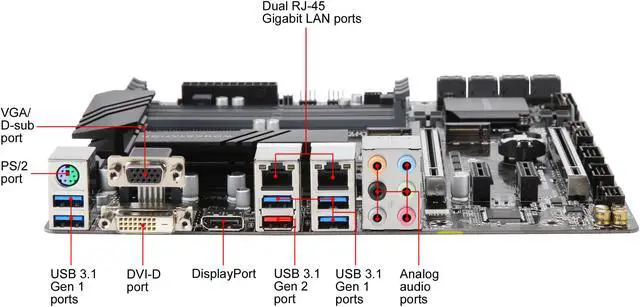

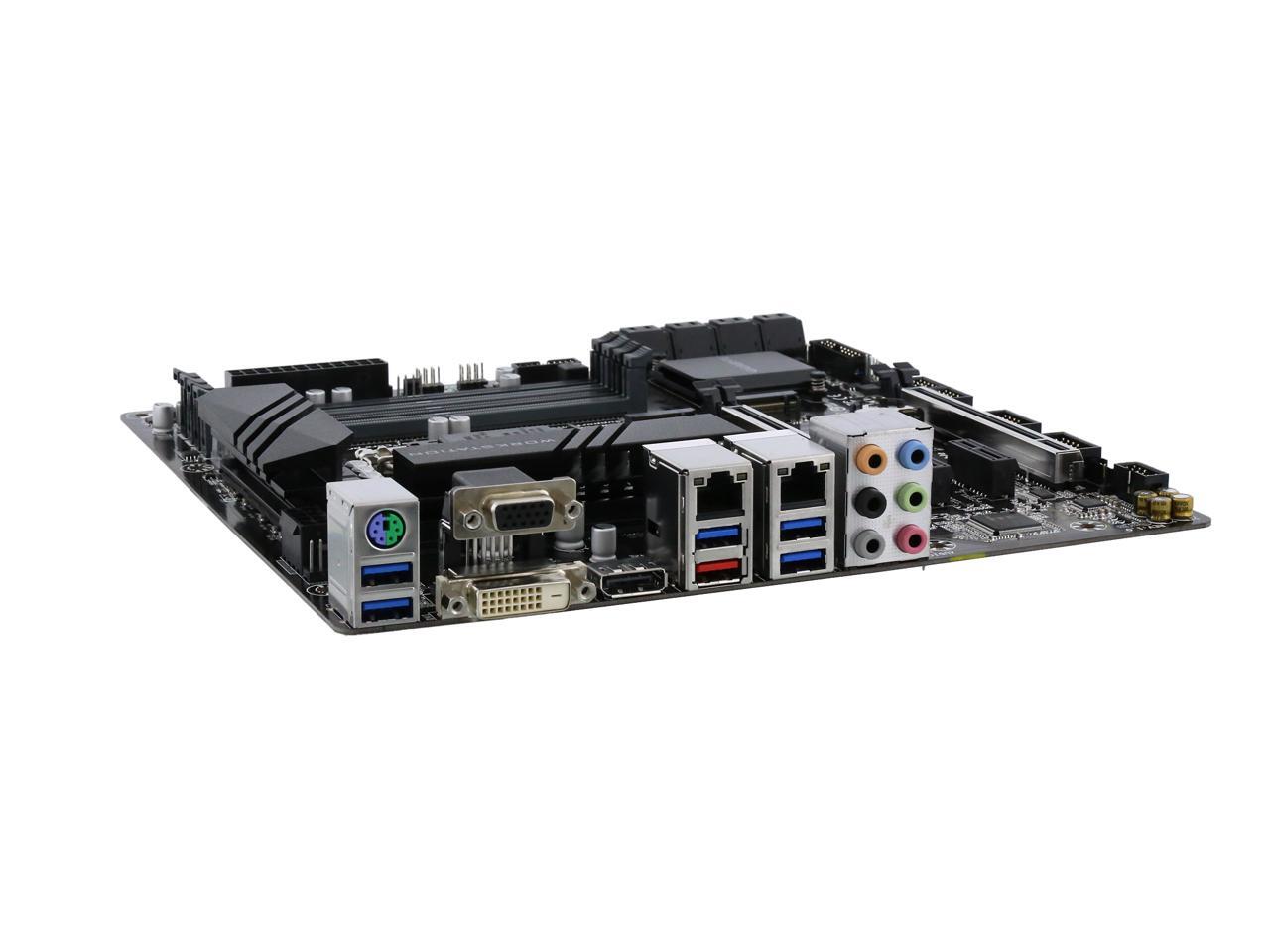

    Rear Panel Ports
    PS/2 1 x PS/2 keyboard/mouse port
    Video Ports 1 x D-Sub port
    1 x DVI-D port
    RJ45 2 x RJ45
    DisplayPort 1 x DisplayPort
    USB 3.1 1 x USB 3.1 Gen 2 Type-A port (red)
    5 x USB 3.1 Gen 1 ports
    Audio Ports 6 Ports
    Internal I/O Connectors
    Onboard USB 1 x USB 3.1 Gen 1 header
    2 x USB 2.0/1.1 headers
    Other Connectors 2 x SATA detection headers
    1 x CPU fan header
    3 x system fan headers
    1 x front panel header
    1 x front panel audio header
    1 x S/PDIF Out header
    1 x Thunderbolt add-in card connector
    1 x Trusted Platform Module (TPM) header (2x6-pin, for the GC-TPM2.0_S module only)
    2 x serial port headers
    1 x Clear CMOS jumper
    Software Feature
    Windows 11 Supported
    Physical Spec
    Form Factor Micro ATX

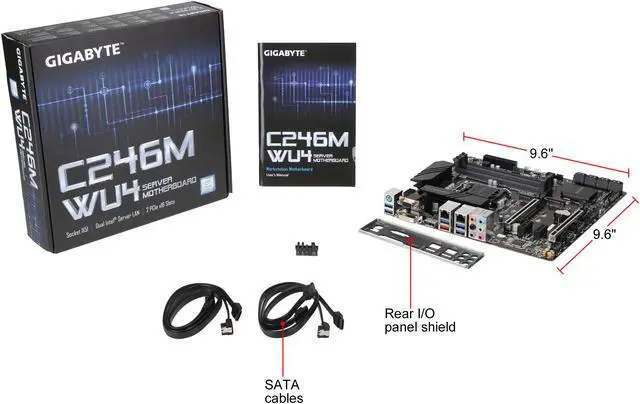

    Dimensions (W x L) 9.6" x 9.6"
    Power Pin 1 x 24-pin ATX main power connector
    1 x 8-pin ATX 12V power connector
    Features
    Features OS Supported:
    Support for Windows 10 64-bit

    Multi-Graphics Technology:
    Support for AMD Quad-GPU CrossFire and 2-Way AMD CrossFire technologies

    I/O Controller:
    iTE I/O Controller Chip

    Hardware Monitor:
    Voltage detection
    Temperature detection
    Fan speed detection
    Overheating warning
    Fan fail warning
    Fan speed control
    * Whether the fan speed control function is supported will depend on the fan you install.

    BIOS:
    1 x 128 Mbit flash
    Use of licensed AMI UEFI BIOS
    PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

    Unique Features:
    Support for APP Center
    * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
    @BIOS
    System Information Viewer
    Support for Q-Flash

    Bundled Software:
    Norton Internet Security (OEM version)
    cFosSpeed
    Additional Information
    First Listed on Newegg June 19, 2025
