is this mother board compatible with generation 6 intel i7 6700?

Yes, the motherboard is compatible with the 6th generation Intel i7 6700 processor.

$119^.00

Free 30-day Returns

Limit 99999 per customer.

Ships from Hong Kong.

Price alert

Add to wish list

Sold by C.N.E Technology

Top Rated

4.3 (20 seller ratings)

Shipped by C.N.E Technology

Meet Your Seller

C.N.E Technology

See Seller Store

Get Educated

Make informed decisions with expert advice. Learn More

Main image of Gigabyte LGA1151 Intel Z170 ATX DDR4 Motherboards GA-Z170X-Gaming 3

Alt view image 2 of 6 - Gigabyte LGA1151 Intel Z170 ATX DDR4 Motherboards GA-Z170X-Gaming 3

Alt view image 3 of 6 - Gigabyte LGA1151 Intel Z170 ATX DDR4 Motherboards GA-Z170X-Gaming 3

Alt view image 4 of 6 - Gigabyte LGA1151 Intel Z170 ATX DDR4 Motherboards GA-Z170X-Gaming 3

Alt view image 5 of 6 - Gigabyte LGA1151 Intel Z170 ATX DDR4 Motherboards GA-Z170X-Gaming 3

Alt view image 6 of 6 - Gigabyte LGA1151 Intel Z170 ATX DDR4 Motherboards GA-Z170X-Gaming 3

Shop All GIGABYTE Products | Visit C.N.E Technology Store

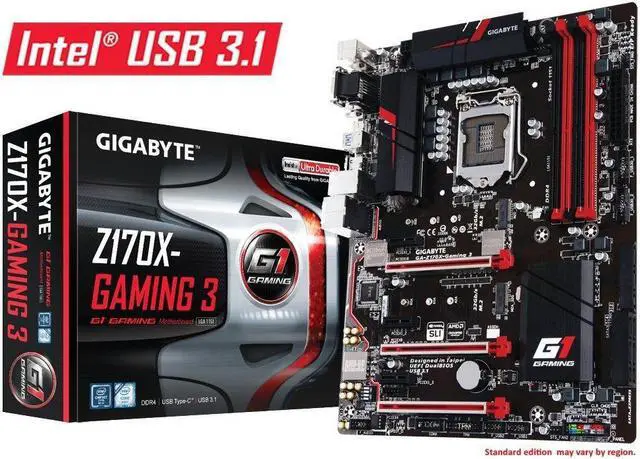

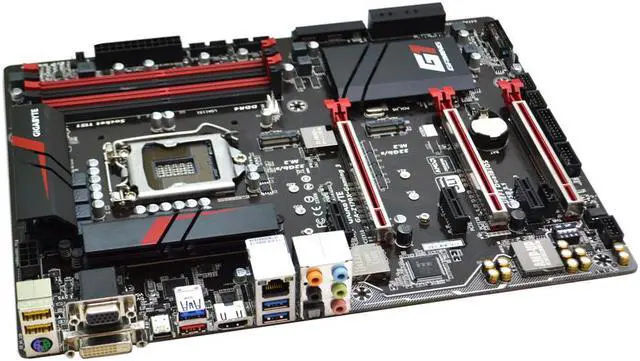

Gigabyte LGA1151 Intel Z170 ATX DDR4 Motherboards GA-Z170X-Gaming 3

REFURBISHED

(1) Write a Review

Memory: 4x DDR4 DIMM Slots, Dual Channel
Slots: 1x PCI-Express 3.0 x16 Slots, 1x PCI-Express 3.0 x8, 1x PCI-Express 3.0 x4, 2x PCI-Express 3.0 x1
Audio: Realtek ALC1150 7.1-Channel High Definition

🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available

Overview

Specs

Reviews (1)

See all Q & A

Any questions? Our AI beta will help you find out quickly.

Try me now

Audio Noise Guard with LED path lighting. Realtek ALC1150 with gain boost cover audio noise guard. 2-way SLI and 3-way Cross Fire support. SATA Express support for 16 Gb/s data transfer. M. 2 for SSDs drives with up to 32 Gb/s data transfer. Long lifespan Durable Solid caps. APP Center including Easy Tune and Cloud Station utilities. GIGABYTE UEFI Dual BIOS. ATX Form Factor; 30.5 cm x 23.5 cm

LGA 1151
Memory: 4x DDR4 DIMM Slots, Dual Channel
Slots: 1x PCI-Express 3.0 x16 Slots, 1x PCI-Express 3.0 x8, 1x PCI-Express 3.0 x4, 2x PCI-Express 3.0 x1
Audio: Realtek ALC1150 7.1 -Channel High Definition Audio CODEC
Storage Interface: 3 x SATA Express, 6 x SATA 3, 2 x M. 2
USB: 1 x USB 3.1 (A+C) ports; 7 x USB 3.0 ports; 6 x USB 2.0 ports
ATX Form Factor; 30.5 cm x 23.5 cm

Model
Brand	GIGABYTE
Series	G1 Gaming
Model	GA-Z170X-Gaming 3

Supported CPU
CPU Socket Type	LGA 1151
CPU Type	Core i7 / i5 / i3 / Pentium / Celeron (LGA1151)

Chipsets
Chipset	Intel Z170

Onboard Video
Onboard Video Chipset	Integrated Graphics Processor-Intel HD Graphics support1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz* The DVI-D port does not support D-Sub connection by adapter.1 x HDMI port, supporting a maximum resolution of 4096x2160@24 Hz* Support for HDMI 1.4 version.Support for up to 3 displays at the same timeMaximum shared memory of 512 MBMulti-Graphics Technology Support for 3-Way/2-Way AMD CrossFire and 2-Way NVIDIA SLI Technology

Memory
Number of Memory Slots	4x288pin (DDR4)
Memory Standard	DDR4 3466(O.C.)/ 3400/ 3333/ 3300/ 3200/ 3000/ 2800/ 2666/ 2400/ 2133
Maximum Memory Supported	64GB
Channel Supported	Dual Channel

Expansion Slots
PCI Express 3.0 x16	1 x PCI Express x16 slot, running at x16 (PCIEX16)* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.1 x PCI Express x16 slot, running at x8 (PCIEX8)* The PCIEX8 slot shares bandwidth with the PCIEX16 slot. When the PCIEX8 slot is populated, the PCIEX16 slot will operate at up to x8 mode.1 x PCI Express x16 slot, running at x4 (PCIEX4)* The PCIEX4 slot shares bandwidth with the PCIEX1_3 slot. When the PCIEX1_3 slot is populated, the PCIEX4 slot will operate at up to x1 mode.
PCI Express x1	3 x PCI Express x1 slots(All of the PCI Express slots conform to PCI Express 3.0 standard.)

Storage Devices
Serial ATA (SATA)	6 x SATA 6Gb/s connectors
SATA Express	3 x SATA Express connectors
M.2	2 x M.2 Socket 3 connectors
SATA RAID	0/1/5/10

Onboard Audio
Audio Chipset	Realtek ALC1150
Audio Channels	2/4/5.1/7.1-channel

Onboard LAN
LAN Chipset	Qualcomm Atheros Killer E2201 LAN chip
Max LAN Speed	1Gbps

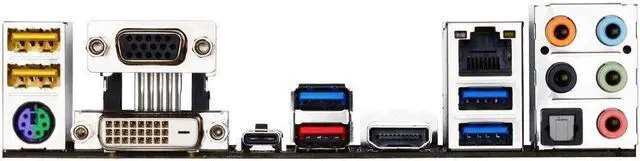

Rear Panel Ports
PS/2	1 x PS/2 keyboard/mouse port
Video Ports	1 x D-Sub port1 x DVI-D port
HDMI	1 x HDMI
RJ45	1 x RJ45
USB 3.1	1 x USB Type-C port, with USB 3.1 support1 x USB 3.1 port
USB 3.0	3 x USB 3.0
USB 1.1/2.0	2 x USB 2.0
S/PDIF Out	1 x optical S/PDIF Out connector
Audio Ports	5 x audio jacks (Center/Subwoofer Speaker Out, Rear Speaker Out, Line In, Line Out, Mic In)

Internal I/O Connectors
Onboard USB	2 x USB 3.0/2.0 headers2 x USB 2.0/1.1 headers
Other Connectors	1 x 24-pin ATX main power connector1 x 8-pin ATX 12V power connector1 x CPU fan header1 x water cooling fan header (CPU_OPT)3 x system fan headers1 x front panel header1 x front panel audio header1 x S/PDIF Out header1 x Trusted Platform Module (TPM) header1 x Thunderbolt™ add-in card connector1 x serial port header1 x Clear CMOS jumper1 x audio gain control switch

Physical Spec
Form Factor	ATX
Dimensions (W x L)	12.01" x 9.25"

Features
Features	I/O Controller iTE I/O Controller ChipH/W Monitoring System voltage detectionCPU/System/Chipset temperature detectionCPU/CPU OPT/System fan speed detectionCPU/System/Chipset overheating warningCPU/CPU OPT/System fan fail warningCPU/CPU OPT/System fan speed control* Whether the fan speed control function is supported will depend on the cooler you install.BIOS 2 x 64 Mbit flashUse of licensed AMI UEFI BIOSSupport for DualBIOSPnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0Unique Features Support for APP Center* Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.3D OSD@BIOSAmbient LEDAutoGreenCloud StationEasyTuneEasy RAIDFast BootSmart TimeLockSmart KeyboardSmart BackupSystem Information ViewerUSB BlockerSupport for Q-FlashSupport for Smart SwitchSupport for Xpress InstallBundle Software Norton Internet Security (OEM version)Intel Smart Response TechnologyOperating System Support for Windows 10/8.1/7
