GIGABYTE GA-970A-D3P (rev. 1.0) AM3+/AM3 AMD 970 SATA 6Gb/s USB 3.0 ATX AMD Motherboard

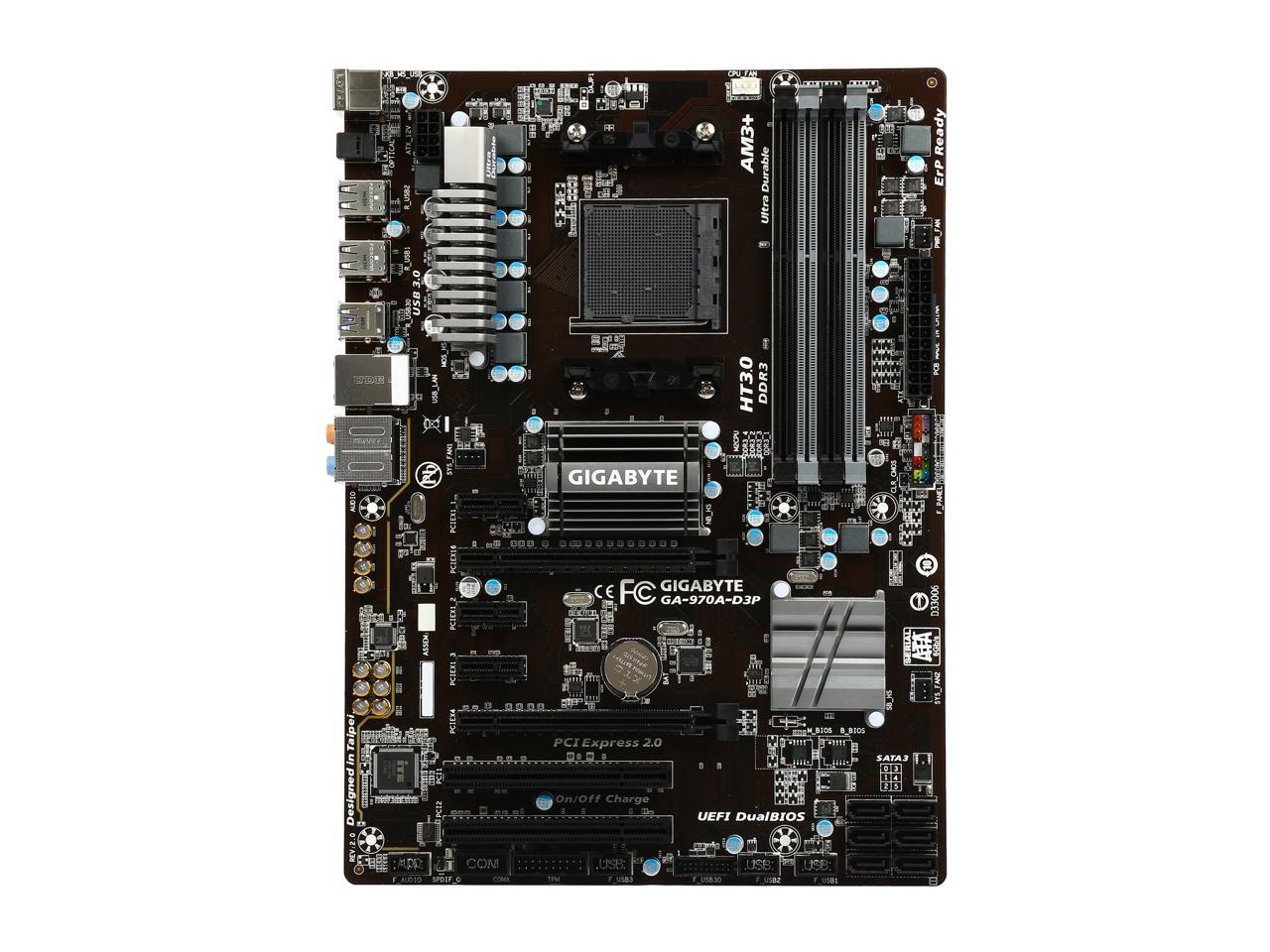

GIGABYTE GA-970A-D3P

---

GIGABYTE Ultra Durable™ 4 Classic

---

Humidity Protection

Humidity can wreak havoc on a motherboard's circuitry. GIGABYTE's new Glass Fabric PCB design helps protect against electrical shorts due to humidity by reducing the gaps in spacing between PCB filaments.

---

Electrostatic Protection

GIGABYTE Ultra Durable 4 Classic motherboards feature High ESD Resistance ICs which help protect the motherboard against electrostatic discharge.

---

Get Ready for the New Generation of 32nm AMD AM3+ CPUs

GIGABYTE's AMD motherboards are ready to support a new generation of 32nm AMD AM3+ multi-core processors, delivering the very best platform for multitasking, multimedia and high performance gaming.

---

On/Off Charge Technology

GIGABYTE On/Off Charge technology allows you to charge your iPhone, iPad and iPod Touch regardless of whether your PC is on, in standby mode, or even off. A derivative of GIGABYTE's highly acclaimed 3X USB Power feature, On/Off Charge enables devices to draw more current from GIGABYTE motherboard USB ports than standard USB ports allow, so charging from your PC can be as fast as with a charger.

---

GIGABYTE Digital Power Engine

GIGABYTE Ultra Durable motherboards take advantage of an exclusive Digital PWM controller array, to deliver maximum and stable power to latest processors. Using digital controllers means that more precise power delivery to the motherboard's most power hungry and energy sensitive components is possible. This Digital Power system, with Precise Auto Voltage Compensation to make real-time adjustments and deliver a steady flow of power to the system, no matter the loading. This all new, digital power system provides enthusiast users with exceptional control over the overclocking potential of their GIGABYTE motherboard.

---

Supports the Next Generation of 45nm AMD AM3 CPUs

This motherboard is designed with Split Power Plane and 4 + 1 phase VRM to support the latest 45nm AMD AM3 Phenom™II / Athlon™II processors, delivering a great performance enhancement to your system and ultimate scalability for hardware expansion.

---

Power Failure Protection

Permanent damage from power surges or failures during a BIOS update can be avoided with GIGABYTE DualBIOS, which automatically enables a secondary, back up BIOS.
GIGABYTE also uses Anti-Surge ICs to protect the motherboard against power surges.

---

High Temperature Protection

GIGABYTE uses All Solid Caps (Capacitors) and Low RDS(on) MOSFETs which are rated to work at higher temperatures.

---

UEFI DualBIOS™ Technology

With a superior graphical interface capable of 32-bit color imaging and fluid user-friendly mouse navigation, UEFI DualBIOS™ makes BIOS configuration a new and exciting experience for novice and experienced users alike. UEFI BIOS also brings native support for large hard drives on 64-bit operating systems.

---

Multi-Display Support with AMD CrossFire

Flexible graphics capabilities - up to two VGA cards are supported for 2-way AMD CrossFire™ (running at x16, x4 bandwidth), delivering the ultimate in graphics performance for gaming enthusiasts who demand the highest frame rates without compromising on resolution.

---

108dB Signal-to-Noise Ratio Playback

GIGABYTE motherboards feature higher capability audio solutions with 108dB Signal-to-Noise ratio (SNR) playback quality to deliver high-performance, multi-channel HD audio. SNR is a comparison of the amount of signal to the amount of noise - such as hiss - present in the signal (expressed in Decibels). A higher SNR equals a better audio experience. For example, 108dB, is a high audio specification, as this means the audio signal is 108dB higher than the level of the noise.

---

GIGABYTE 333 Onboard Acceleration

GIGABYTE motherboards feature GIGABYTE 333 Onboard Acceleration, a range of the latest technologies that are designed help speed up data transfer, including SuperSpeed USB 3.0 technology, SATA Revision 3.0 (6Gbps) technology, and an unprecedented 3X USB power boost on USB ports for more power hungry USB devices.

---

Introduction

The 970A-D3P motherboard is designed to offer a stable, high-speed platform for delivering amazingly fast data transfer via the GIGABYTE 333 onboard acceleration technologies. Featuring the USB 3.0 controller, AMD 900 series motherboards allow users to take advantage of super fast USB transfer rates of up to 5Gbps, delivering 10X faster data transfer compared to USB 2.0. Utilizing the industry's first Serial ATA Revision 3.0 solution via AMD's SB950 chipset, GIGABYTE AMD 900 series motherboards offer six native ports of next generation high speed data storage device support with data transfer speeds of up to 6Gbps with RAID 0, 1, 5, 10. The AMD 900 series motherboards introduce a unique hardware design with lower resistance fuses for ensuring lower voltage drops and providing more stable and plentiful power delivery. USB ports also benefit from a 3X power boost for better power delivery to power hungry USB devices.

---

Energy-Related Products Directive Lot 6 support

The Energy-Related Products Directive (ErP) is part of the European Union's environmental regulations policy. It is based on concern for the environment as the proliferation of electronic devices continues, and how to improve energy efficiency for a better and greener life. GIGABYTE supports ErP and produces motherboards that help you effectively improve system efficiency.

---
