Which revision is this? Manufacture site has rev. 2 and 3. Please specify. Thank you!

If you have the original box it shipped with it is listed on the UPC bar code box. If you do not have the box you can enter the BIOS settings at system startup and find it in system info and/or look on the actual face of the motherboard and there is usually a "rev. x.0" listed. Assuming you are a prospective buyer I do not think you will know which version it is until you actually receive item.

$41^.98

Free 30-day Returns

Limit 99999 per customer.

Ships from China.

Price alert

Add to wish list

Sold by Smith's Computer Market

Top Rated

3.9 (131 seller ratings)

Shipped by Smith's Computer Market

Meet Your Seller

Smith's Computer Market

See Seller Store

More Resources

GA-A75M-DS2 Memory Compatibility

GA-A75M-DS2 CPU Compatibility

Main image of GIGABYTE GA-A75M-DS2 FM1 AMD A75 (Hudson D3) USB 3.0 Micro ATX AMD Motherboard with UEFI BIOS

Alt view image 2 of 5 - GIGABYTE GA-A75M-DS2 FM1 AMD A75 (Hudson D3) USB 3.0 Micro ATX AMD Motherboard with UEFI BIOS

Alt view image 3 of 5 - GIGABYTE GA-A75M-DS2 FM1 AMD A75 (Hudson D3) USB 3.0 Micro ATX AMD Motherboard with UEFI BIOS

Alt view image 4 of 5 - GIGABYTE GA-A75M-DS2 FM1 AMD A75 (Hudson D3) USB 3.0 Micro ATX AMD Motherboard with UEFI BIOS

Alt view image 5 of 5 - GIGABYTE GA-A75M-DS2 FM1 AMD A75 (Hudson D3) USB 3.0 Micro ATX AMD Motherboard with UEFI BIOS

Shop All GIGABYTE Products | Visit Smith's Computer Market Store

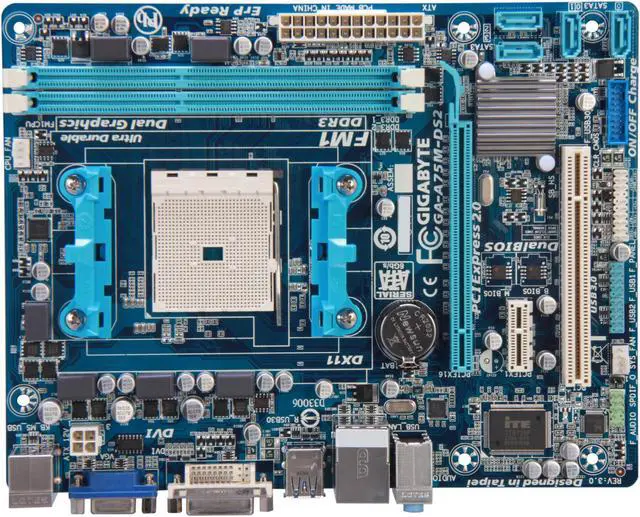

GIGABYTE GA-A75M-DS2 FM1 AMD A75 (Hudson D3) USB 3.0 Micro ATX AMD Motherboard with UEFI BIOS

Used - Good

AMD A75 (Hudson D3)
A4 / A6 / A8 / E2 APU
DDR3 2400(OC) /1866

🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available

Specs

Any questions? Our AI beta will help you find out quickly.

Try me now

Learn more about the GIGABYTE GA-A75M-DS2

Model
Brand	GIGABYTE
Model	GA-A75M-DS2

Supported CPU
CPU Socket Type	FM1
CPU Type	AMD A series/E2 series/Athlon II series/Sempron series

Chipsets
Chipset	AMD A75 (Hudson D3)

Memory
Number of Memory Slots	2x240pin
Memory Standard	DDR3 2400(OC) / 1866 / 1600 / 1333 / 1066
Maximum Memory Supported	64GB
Channel Supported	Dual Channel

Expansion Slots
PCI Express 2.0 x16	1 x PCI Express 2.0 x16
PCI Express x1	1 x PCI Express x1
PCI Slots	1 x PCI Slot

Storage Devices
Serial ATA (SATA)	4 x SATA 6Gb/s
SATA RAID	0/1/10/JBOD

Onboard Video
Onboard Video Chipset	None

Onboard Audio
Audio Chipset	Realtek ALC887
Audio Channels	7.1 Channels

Onboard LAN
LAN Chipset	Realtek 8111E
Max LAN Speed	1Gbps

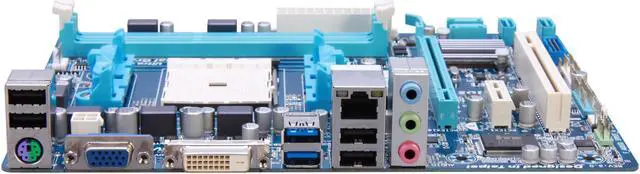

Rear Panel Ports
Back I/O Ports	1 x D-Sub / 1 x DVI / 1 x PS/2 / 2 x USB 3.1 Gen 1 / 3 x Audio Jacks / 4 x USB 2.0/1.1
PS/2	1 x PS/2 keyboard/mouse port
Video Ports	D-Sub + DVI
USB 3.0	2 x USB 3.0
USB 1.1/2.0	4 x USB 2.0
Audio Ports	3 Ports

Internal I/O Connectors
Onboard USB	2 x USB 3.0 + 4 x USB 2.0
Other Connectors	1 x 24-pin ATX main power connector 1 x 4-pin ATX 12V power connector 1 x APU fan header 1 x system fan header 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x clear CMOS jumper

Physical Spec
Form Factor	Micro ATX
Dimensions (W x L)	8.86" x 6.85"
Power Pin	24 Pin

Features
Features	GIGABYTE Ultra Durable 4 Classic Humidity Protection Electrostatic Protection Power Failure Protection High Temperature Protection IGABYTE 333 Onboard Acceleration MD Dual Graphics: Unrivalled Upgradability Integrated DVI Interface On/Off Charge Technology

Additional Information
Date First Available	May 13, 2025
