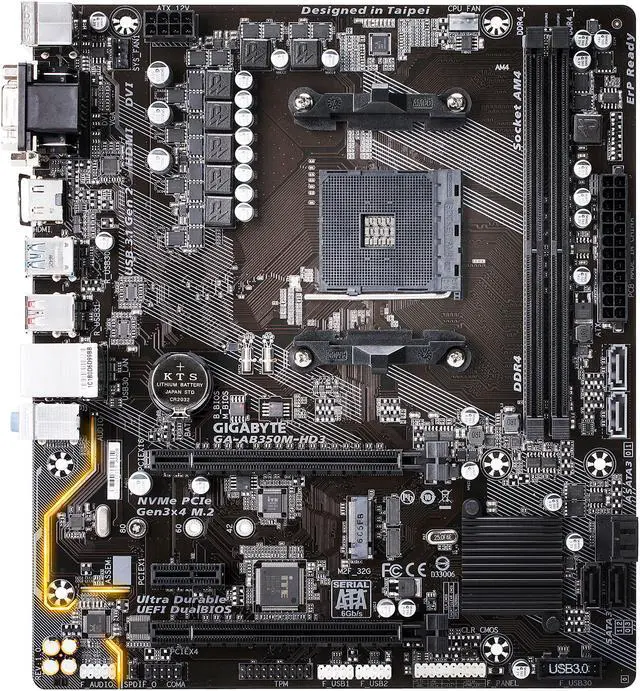

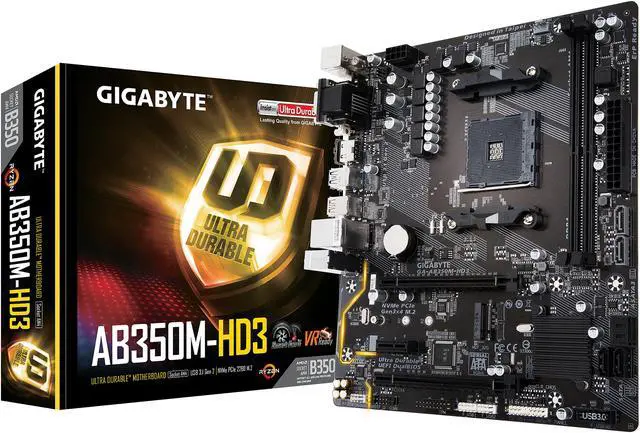

GIGABYTE GA-AB350M-HD3 (rev. 1.0) AM4 AMD B350 USB 3.1 HDMI Micro ATX AMD Motherboard
OPEN BOX Product Type
- AMD B350
- Ryzen / 7th Gen A-series / Athlon
- DDR4 3200(O.C.)/ 2933(O.C.)/ 2667*/ 2400/ 2133
- * Support for higher than DDR4 2667 MHz may vary by CPU.
Specs
Learn more about the GIGABYTE GA-AB350M-HD3 (rev. 1.0)
| Brand | GIGABYTE |
|---|---|
| Model | GA-AB350M-HD3 (rev. 1.0) |
| CPU Socket Type | AM4 |
|---|---|
| CPU Type | Ryzen / 7th Gen A-series / Athlon |
| Chipset | AMD B350 |
|---|
| Number of Memory Slots | 2x288pin (DDR4) |
|---|---|
| Memory Standard | DDR4 3200(O.C.)/ 2933(O.C.)/ 2667*/ 2400/ 2133 * Support for higher than DDR4 2667 MHz may vary by CPU. |
| Maximum Memory Supported | 32GB |
| Channel Supported | Dual Channel |
| PCI Express 3.0 x16 | 1 x PCI Express x16 slot, running at x16 (PCIEX16) * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. * Actual support may vary by CPU. (The PCIEX16 slot conforms to PCI Express 3.0 standard.) |
|---|---|
| PCI Express 2.0 x16 | 1 x PCI Express x16 slot, running at x4 (PCIEX4) * Actual support may vary by CPU. |
| PCI Express x1 | 1 x PCI Express x1 slot (The PCIEX4 and PCI Express x1 slots conform to PCI Express 2.0 standard.) |
| Serial ATA (SATA) | 6 x SATA 6Gb/s |
|---|---|
| M.2 | 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x4*/x2 SSD support) * Actual support may vary by CPU. |
| SATA RAID | 0/1/10 |
| Onboard Video Chipset | Integrated Graphics Processor: 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz * The DVI-D port does not support D-Sub connection by adapter. 1 x HDMI port, supporting a maximum resolution of 4096x2160@24 Hz * Support for HDMI 1.4 version. Support for up to 3 displays at the same time Maximum shared memory of 2GB * Actual support may vary by CPU. |
|---|
| Audio Chipset | Realtek ALC887 |
|---|---|
| Audio Channels | 7.1 Channels |
| LAN Chipset | Realtek GbE LAN chip |
|---|---|
| Max LAN Speed | 1Gbps |

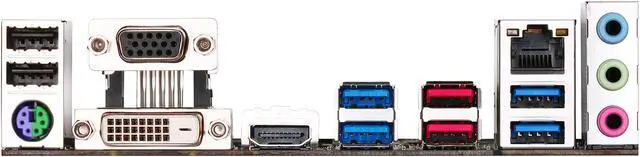

| Back I/O Ports | 1 x D-Sub / 1 x DVI-D / 1 x HDMI / 1 x LAN (RJ45) / 1 x PS/2 / 2 x USB 2.0/1.1 / 2 x USB 3.1 Gen 2 Type-A / 3 x Audio Jacks / 4 x USB 3.1 Gen 1 |
|---|---|
| PS/2 | 1 x PS/2 keyboard/mouse port |
| Video Ports | 1 x D-Sub port 1 x DVI-D port |
| HDMI | 1 x HDMI |
| RJ45 | 1 x RJ45 |
| USB 3.1 | 4 x USB 3.1 Gen 1 ports 2 x USB 3.1 Gen 2 Type-A ports (red) |
| USB 1.1/2.0 | 2 x USB 2.0 |
| Audio Ports | 3 x audio jacks (Line In, Line Out, Mic In) |
| Onboard USB | 1 x USB 3.1 Gen 1 header 2 x USB 2.0/1.1 headers |
|---|---|
| Other Connectors | 1 x CPU fan header 1 x system fan header 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x Trusted Platform Module (TPM) header 1 x serial port header 1 x Clear CMOS jumper |
| Form Factor | Micro ATX |
|---|---|
| Dimensions (W x L) | 9.6" x 8.5" |
| Power Pin | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector |
| Features | Multi-Graphics Technology - Support for AMD Quad-GPU CrossFire and 2-Way AMD CrossFire technologies I/O Controller - iTE I/O Controller Chip H/W Monitoring - Voltage detection - Temperature detection - Fan speed detection - Overheating warning - Fan fail warning - Fan speed control * Whether the fan speed control function is supported will depend on the fan you install. BIOS - 2 x 128 Mbit flash - Use of licensed AMI UEFI BIOS - Support for DualBIOS - PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 Unique Features - Support for APP Center * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. @BIOS 3D OSD AutoGreen Ambient LED BIOS Setup Cloud Station Color Temperature EasyTune Fast Boot Game Boost ON/OFF Charge Smart Backup Smart Keyboard Smart TimeLock System Information Viewer USB Blocker V-Tuner - Support for Q-Flash - Support for Xpress Install Bundle Software - Norton Internet Security (OEM version) - cFosSpeed Operating System - Support for Windows 10 64-bit - Support for Windows 7 64-bit * Please download the "Windows USB Installation Tool" from GIGABYTE's website and install it before installing Windows 7. |
|---|
| First Listed on Newegg | December 20, 2017 |
|---|
