$79.99
Make an offer
Ships from China.
Meet Your Seller
Get Educated
Make informed decisions with expert advice. Learn More

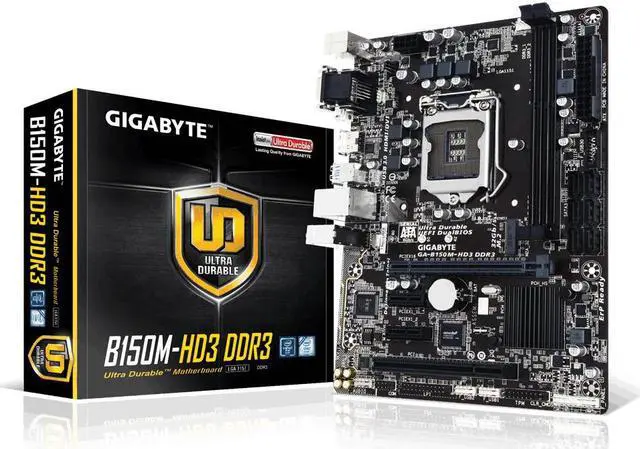

GIGABYTE GA-B150M-HD3 DDR3 LGA 1151 Intel B150 HDMI SATA 6Gb/s USB 3.0 Micro ATX Intel Motherboard
Used - Very Good Product Type
- Intel B150
- Celeron / Core i3 / Core i5 / Core i7 / Intel Core 6th Gen (LGA 1151) / Intel Core 7th Gen (LGA 1151) / Pentium
- DDR3 / DDR3L 1866 / 1600 / 1333
+
+
Specs
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the GIGABYTE GA-B150M-HD3 DDR3
| Brand | GIGABYTE |
|---|---|
| Model | GA-B150M-HD3 DDR3 |
| CPU Socket Type | LGA 1151 |
|---|---|
| CPU Type | Celeron / Core i3 / Core i5 / Core i7 / Intel Core 6th Gen (LGA 1151) / Intel Core 7th Gen (LGA 1151) / Pentium |
| Chipset | Intel B150 |
|---|
| Onboard Video Chipset | Integrated Graphics |
|---|
| Number of Memory Slots | 2 x DIMM |
|---|---|
| Memory Standard | DDR3 / DDR3L 1866 / 1600 / 1333 |
| Maximum Memory Supported | 32GB |
| Channel Supported | Dual Channel |
| PCI Express x16 | 1 x PCI Express x16 slot, running at x16 |
|---|---|
| PCI Express x1 | 2 x PCI Express x1 |
| PCI Slots | 1 x PCI Slot |
| Serial ATA (SATA) | 6 x SATA 6Gb/s |
|---|---|
| M.2 | 1 x M.2 |
| Audio Chipset | Realtek ALC887 |
|---|---|
| Audio Channels | 8 Channels |
| LAN Chipset | Realtek |
|---|---|
| Max LAN Speed | 1Gbps |

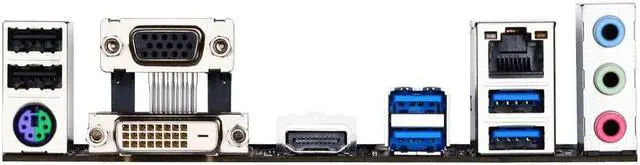

| Back I/O Ports | 1 x HDMI / 1 x PS/2 Keyboard/Mouse Combo / 2 x USB 2.0/1.1 / 4 x USB 3.0 |
|---|---|
| PS/2 | 1 x PS/2 keyboard/mouse port |
| Video Ports | 1 x DVI-D 1 x D-Sub |
| HDMI | 1 x HDMI |
| RJ45 | 1 x RJ45 |
| USB 3.0 | 3 x USB 3.0 / 2.0 |
| USB 1.1/2.0 | 2 x USB 2.0 / 1.1 |
| Audio Ports | 3 x audio jacks (Line In, Line Out, Mic In) |
| Onboard USB | 1 x USB 3.0 / 2.0 header + 2 x USB 2.0 / 1.1 headers |
|---|---|
| Other Connectors | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x M.2 Socket 3 connector 6 x SATA 6Gb/s connectors 1 x CPU fan header 1 x system fan header 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x Trusted Platform Module (TPM) header 1 x serial port header 1 x parallel port header 1 x Clear CMOS jumper |
| Form Factor | Micro ATX |
|---|---|
| Dimensions (W x L) | 9.61" x 6.85" |
| Power Pin | 24-pin ATX main power connector 8-pin ATX 12V power connector |
| Features | Supports 6th Generation Intel Core Processor Dual Channel DDR3/DDR3L, 2 DIMMs PCIe Gen3 x4 M.2 Connector with up to 32Gb/s Data Transfer (PCIe NVMe & SATA SSD support) 8-channel HD Audio with High Quality Audio Capacitors Audio Noise Guard with LED Trace Path Lighting Realtek Green GbE LAN with cFosSpeed Internet Accelerator Software APP Center Including EasyTune and Cloud Station Utilities GIGABYTE UEFI DualBIOS Technology Support Intel Small Business Basics |
|---|
| First Listed on Newegg | November 22, 2024 |
|---|
