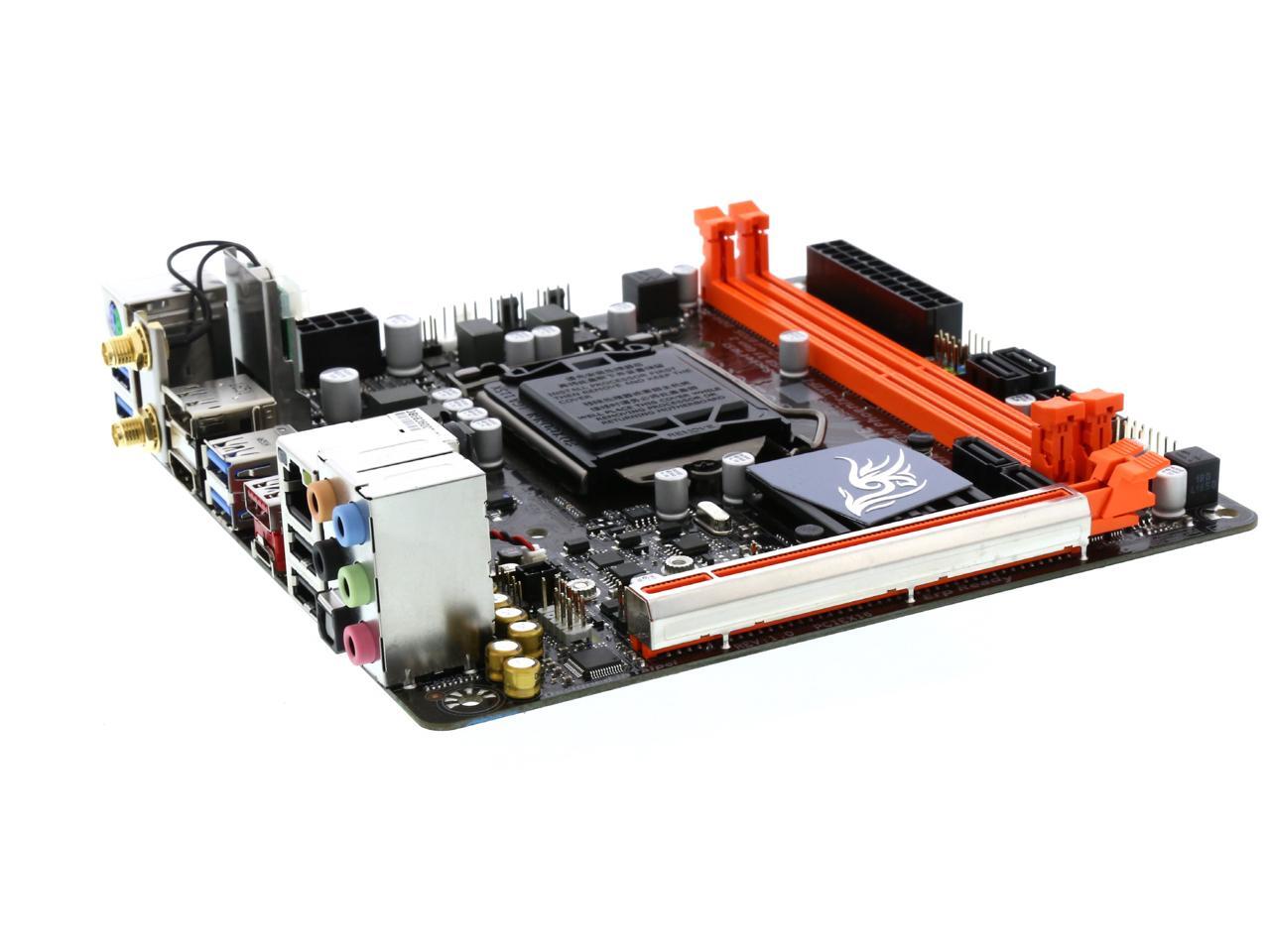

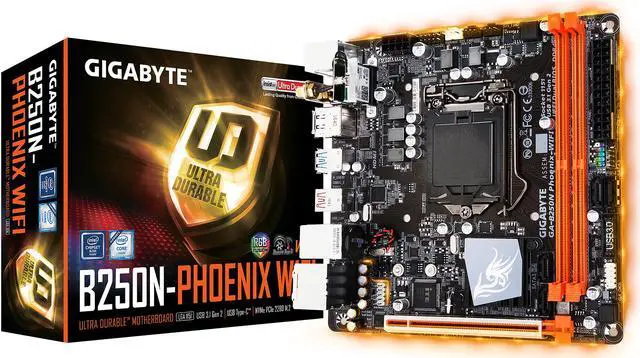

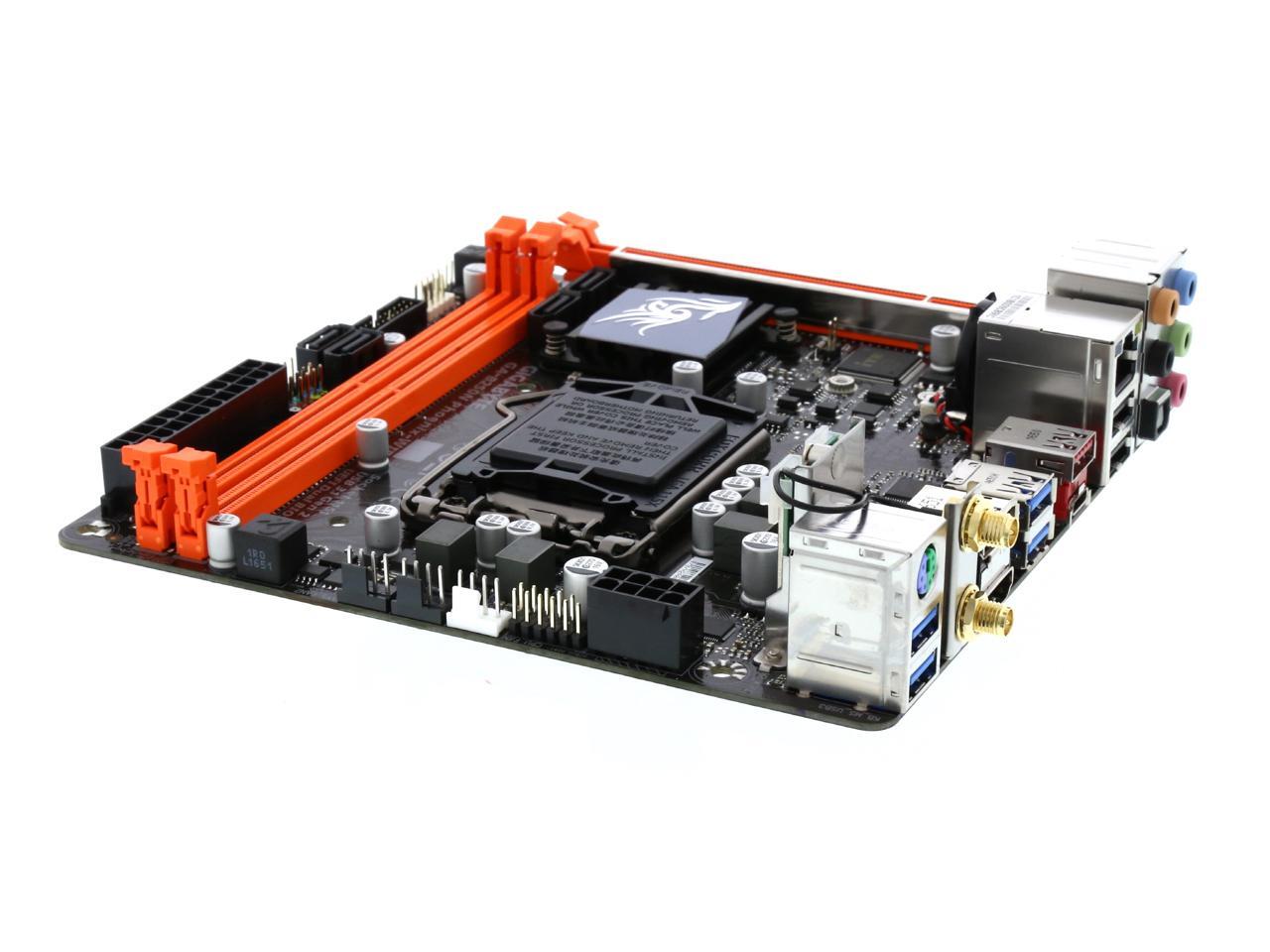

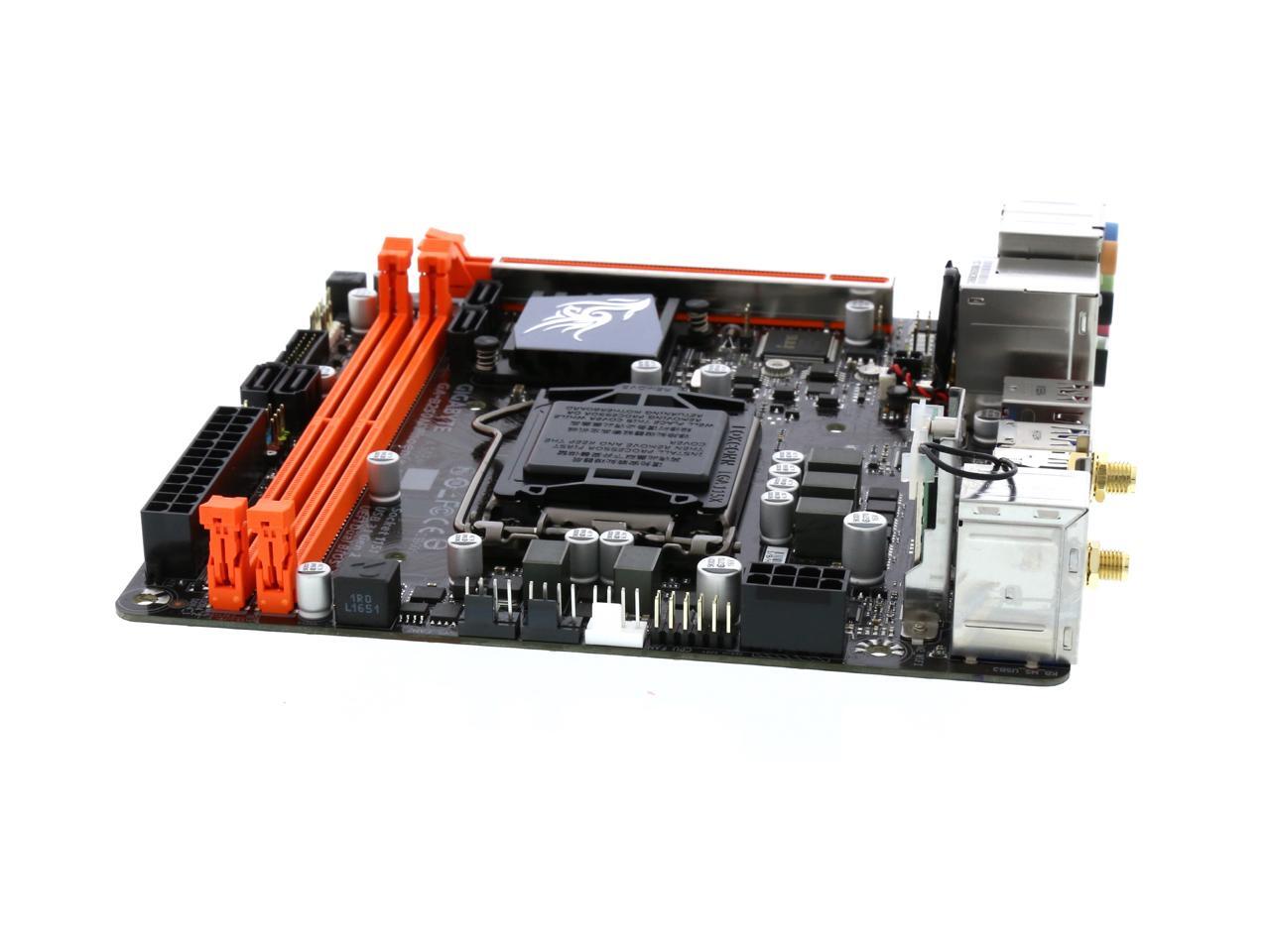

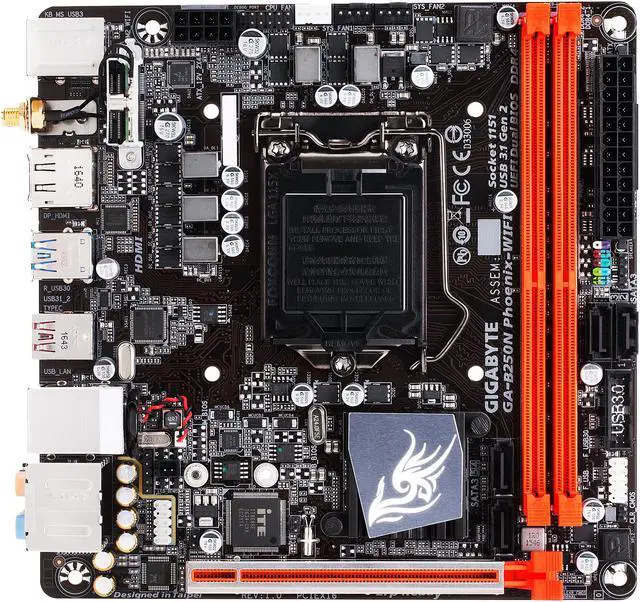

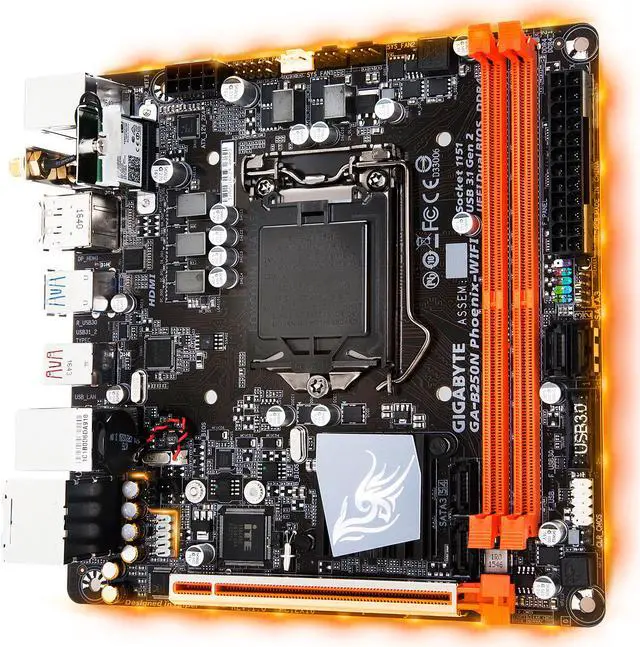

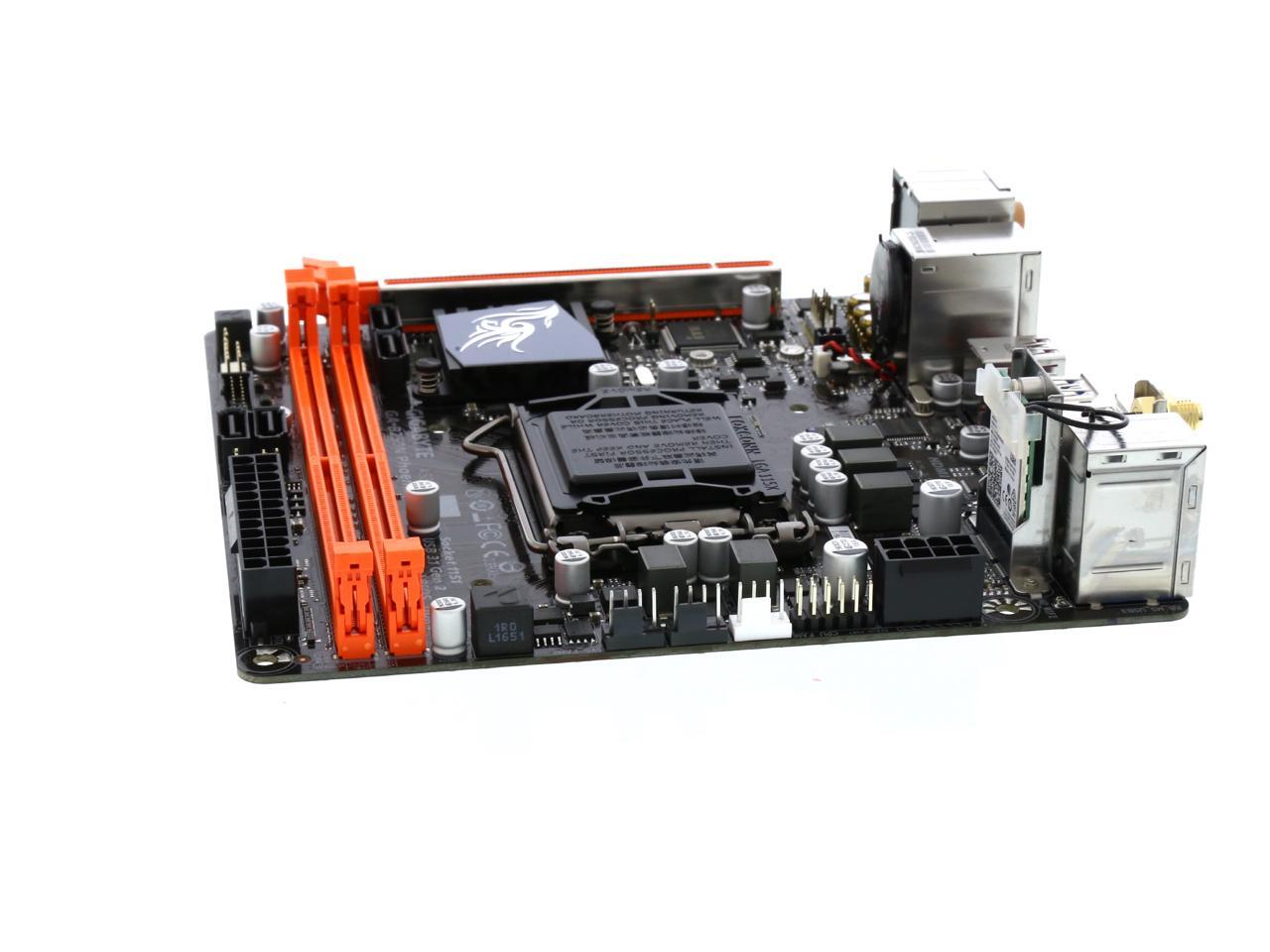

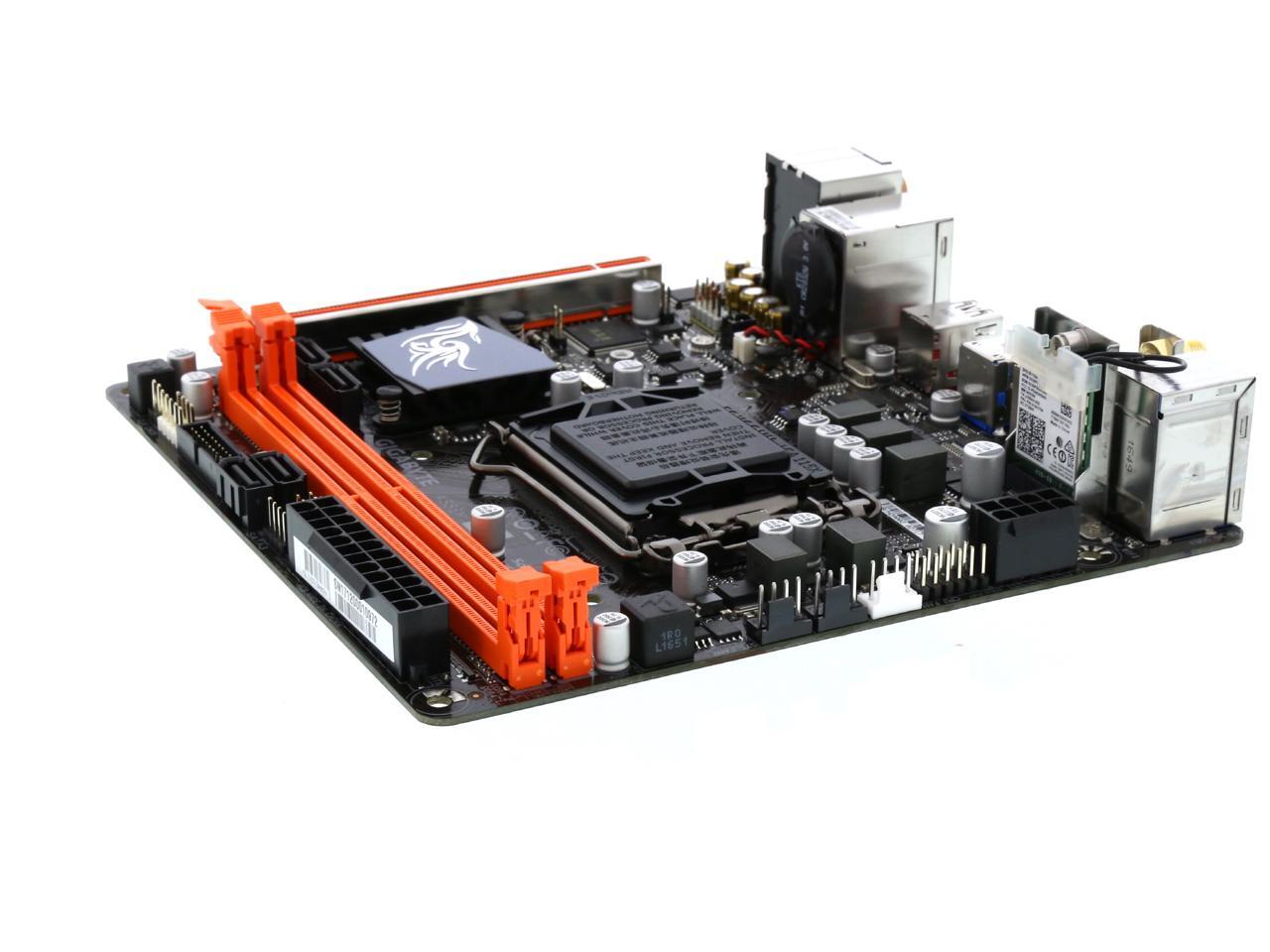

    GIGABYTE GA-B250N-Phoenix WIFI (rev. 1.0) LGA 1151 Intel B250 HDMI USB 3.1 Mini ITX Motherboards - Intel

    Used - Very Good Product Type
    • GA-B250M-D3H
    • GA-B250M-DS3H
    • GA-B250N Phoenix-WIFI
    • Intel B250
    • Celeron / Core i3 / Core i5 / Core i7 / Intel Core 6th Gen (LGA 1151) / Intel Core 7th Gen (LGA 1151) / Pentium
    • DDR4 2400/ 2133
    • * To support 2400 MHz or XMP memory, you must install a 7th generation processor.
    🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available
    +
    +
    Specs
    avatar

    Any questions? Our AI beta will help you find out quickly.

    Try me now

    Learn more about the GIGABYTE GA-B250N-Phoenix WIFI (rev. 1.0)

    Model
    Brand GIGABYTE
    Model GA-B250N-Phoenix WIFI (rev. 1.0)
    Supported CPU
    CPU Socket Type LGA 1151
    CPU Type Celeron / Core i3 / Core i5 / Core i7 / Intel Core 6th Gen (LGA 1151) / Intel Core 7th Gen (LGA 1151) / Pentium
    Supported CPU Technologies * Not Compatible with Intel 8th Gen CPUs
    Chipsets
    Chipset Intel B250
    Onboard Video
    Onboard Video Chipset Integrated Graphics Processor - Intel HD Graphics support:
    1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
    * Support for DisplayPort 1.2 version.
    1 x HDMI port, supporting a maximum resolution of 4096x2160@24 Hz
    * Support for HDMI 1.4 version.
    Maximum shared memory of 1GB
    Memory
    Number of Memory Slots 2x288pin (DDR4)
    Memory Standard DDR4 2400/ 2133
    * To support 2400 MHz or XMP memory, you must install a 7th generation processor.
    Maximum Memory Supported 32GB
    Channel Supported Dual Channel
    Expansion Slots
    PCI Express 3.0 x16 1 x PCI Express x16 slot, running at x16
    (The PCIEX16 slot conforms to PCI Express 3.0 standard.)
    Other Slots 1 x M.2 Socket 1 connector for the wireless communication module (M2_WIFI)
    Storage Devices
    Serial ATA (SATA) 4 x SATA 6Gb/s
    M.2 1 x M.2 connector on the back of the motherboard (Socket 3, M key, type 2260/2280 SATA and PCIe x4/x2 SSD support)
    Onboard Audio
    Audio Chipset Realtek ALC892
    Audio Channels 2/4/5.1/7.1-channel
    Onboard LAN
    LAN Chipset Intel GbE LAN chip
    Max LAN Speed 1Gbps
    Wireless LAN Wi-Fi 802.11 a/b/g/n/ac, supporting 2.4/5 GHz Dual-Band
    Bluetooth BLUETOOTH 4.2, 4.1, BLE, 4.0, 3.0, 2.1+EDR

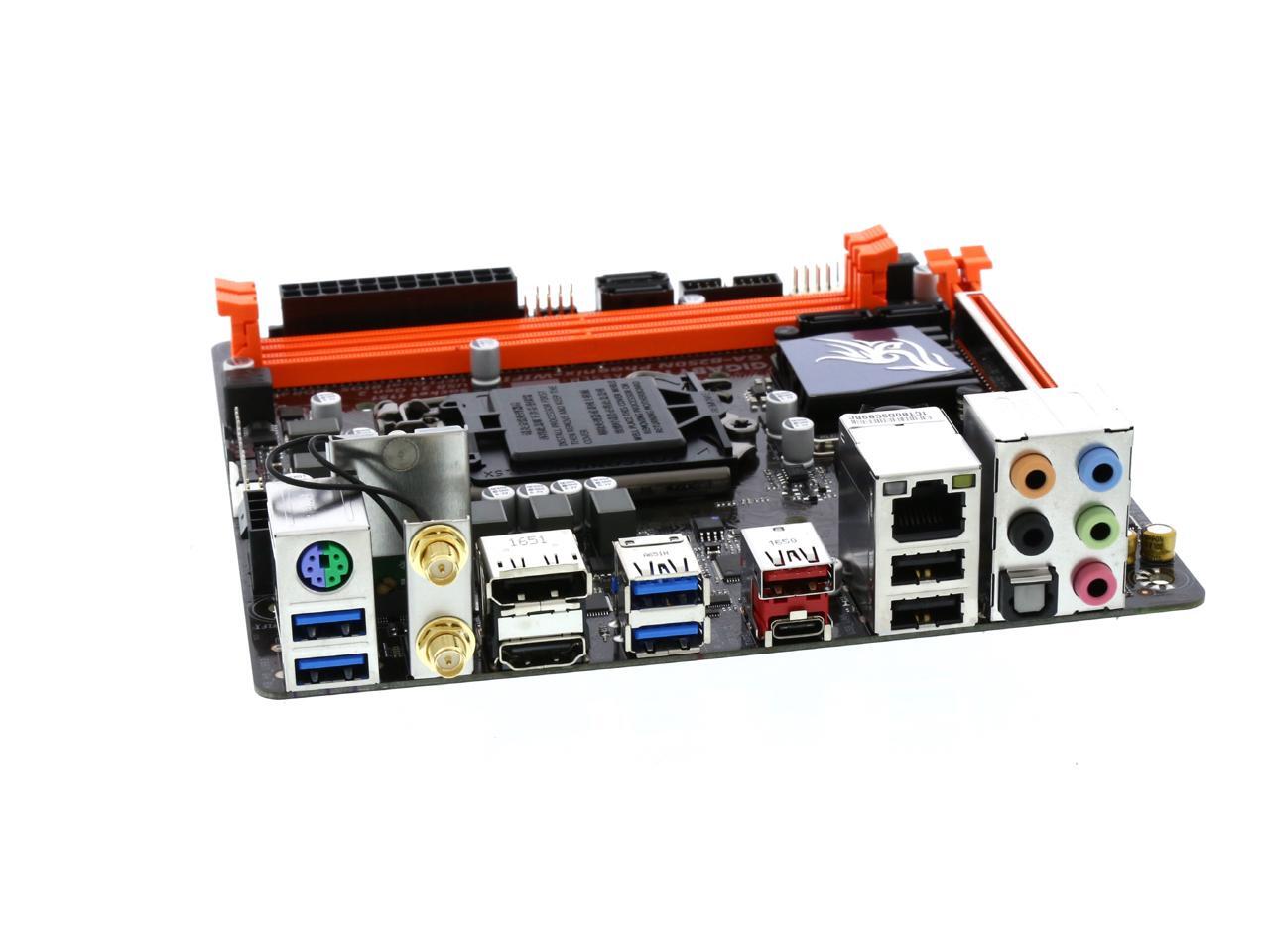

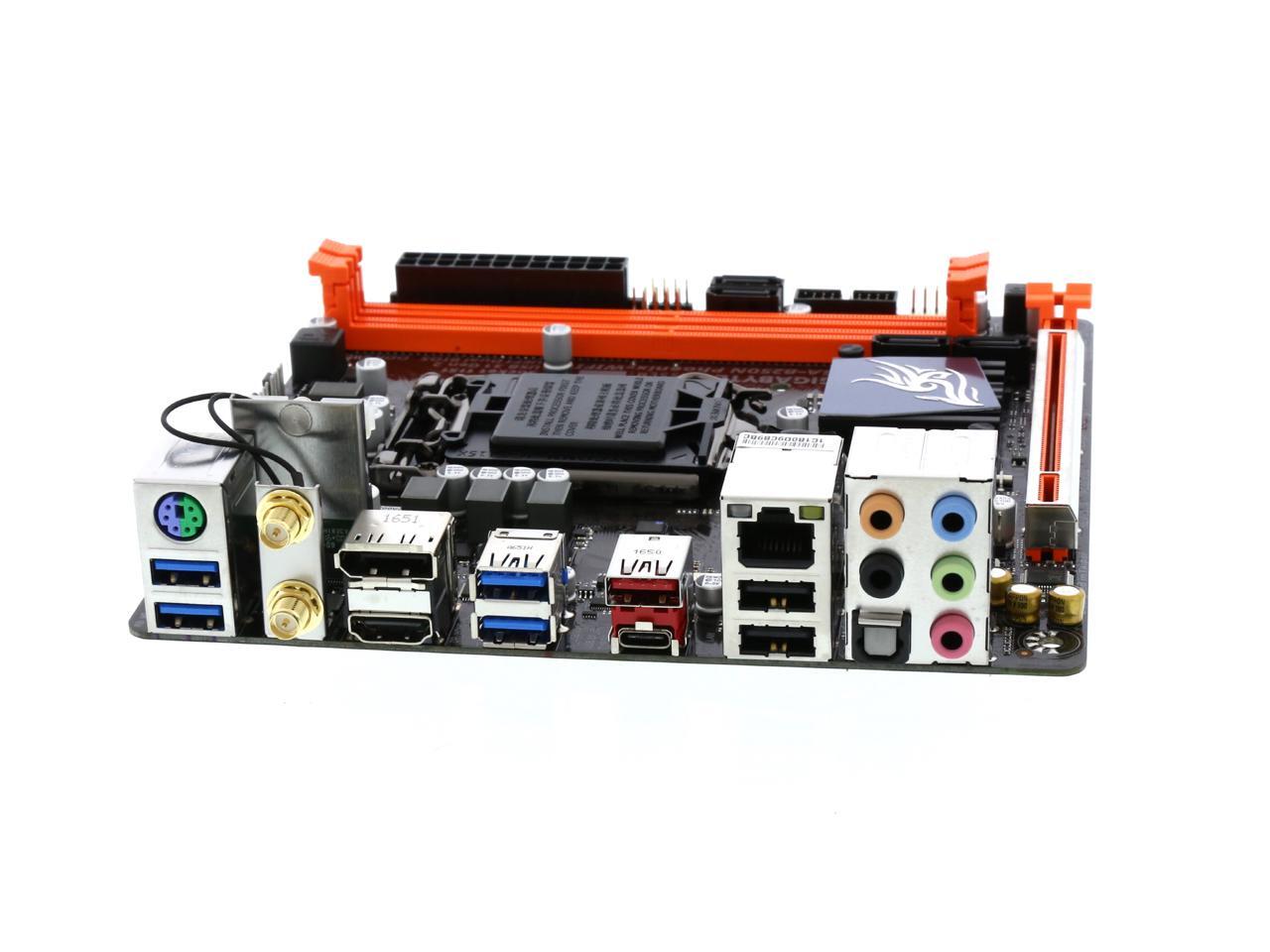

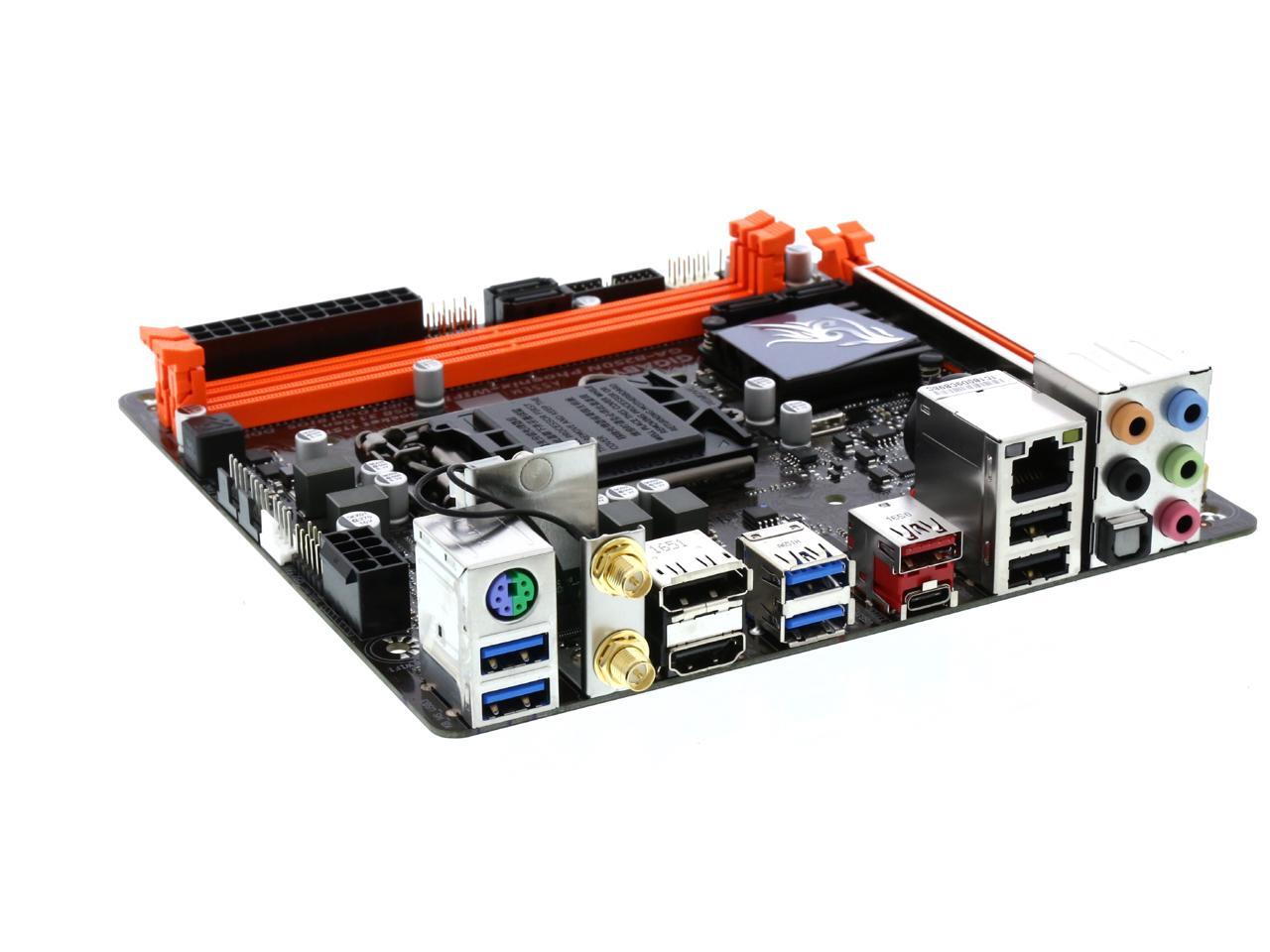

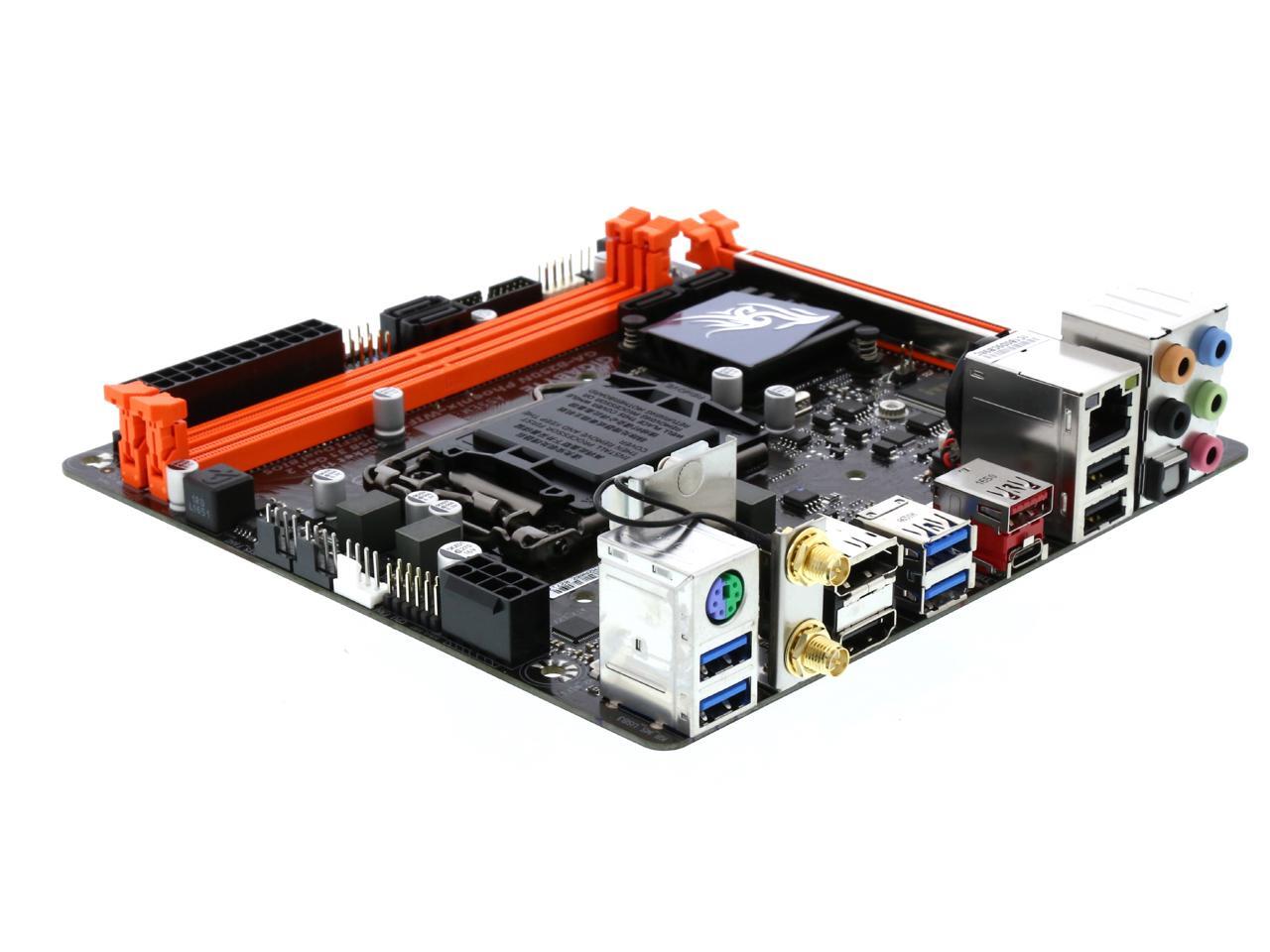

    Rear Panel Ports

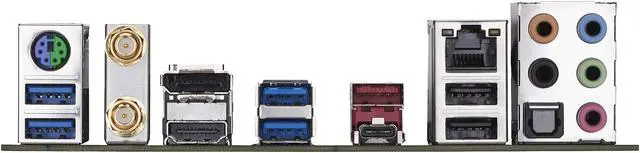

    Back I/O Ports 1 x DisplayPort / 1 x HDMI / 1 x Optical S/PDIF Out / 1 x PS/2 Keyboard/Mouse Combo / 1 x USB 3.1 Gen 2 Type-A / 1 x USB 3.1 Gen 2 Type-C / 2 x USB 2.0/1.1 / 4 x USB 3.1 Gen 1 Type-A
    PS/2 1 x PS/2 keyboard/mouse port
    HDMI 1 x HDMI
    RJ45 1 x RJ45
    DisplayPort 1 x DisplayPort
    USB 3.1 1 x USB Type-C port, with USB 3.1 Gen 2 support
    1 x USB 3.1 Gen 2 Type-A port (red)
    4 x USB 3.1 Gen 1 ports
    USB 1.1/2.0 2 x USB 2.0/1.1 ports
    S/PDIF Out 1 x Optical
    Audio Ports 5 x audio jacks (Center/Subwoofer Speaker Out, Rear Speaker Out, Line In, Line Out, Mic In)
    Antenna Connectors 2 x SMA antenna connectors (2T2R)
    Internal I/O Connectors
    Onboard USB 1 x USB 3.1 Gen 1 header
    1 x USB 2.0/1.1 header
    Other Connectors 1 x CPU fan header
    2 x system fan headers
    1 x front panel header
    1 x front panel audio header
    1 x S/PDIF Out header
    1 x speaker header
    1 x RGB (RGBW) LED strip extension cable header
    1 x Clear CMOS jumper
    1 x chassis intrusion header
    Physical Spec
    Form Factor Mini ITX
    Dimensions (W x L) 6.7" x 6.7"
    Power Pin 1 x 24-pin ATX main power connector
    1 x 8-pin ATX 12V power connector
    Features
    Features I/O Controller
    - iTE I/O Controller Chip

    H/W Monitoring
    - Voltage detection
    - Temperature detection
    - Fan speed detection
    - Overheating warning
    - Fan fail warning
    - Fan speed control
    * Whether the fan speed control function is supported will depend on the cooler you install.

    BIOS
    - 2 x 64 Mbit flash
    - Use of licensed AMI UEFI BIOS
    - Support for DualBIOS
    - PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

    Unique Features
    - Support for APP Center
    * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
    3D OSD
    @BIOS
    AutoGreen
    BIOS Setup
    Color Temperature
    Cloud Station
    EasyTune
    Fast Boot
    Game Boost
    ON/OFF Charge
    Platform Power Management
    RGB Fusion
    Smart Backup
    Smart Keyboard
    Smart TimeLock
    System Information Viewer
    USB Blocker
    V-Tuner
    - Support for Q-Flash
    - Support for Xpress Install

    Bundle Software
    - Norton Internet Security (OEM version)
    - cFosSpeed

    Operating System
    - Support for Windows 10 64-bit (for 7th Generation Intel processors)
    - Support for Windows 10 64-bit/Windows 8.1 64-bit/Windows 7 32-bit/64-bit (for 6th Generation Intel processors)
    * Please download the "Windows USB Installation Tool" from GIGABYTE's website and install it before installing Windows 7.
