Does this motherboard come with any SATA cables?

Yeah two on it straight on both ends and one it straight and L shaped

Can DDR3 1866 RAM be used with this board (even if limited to 1600 support)?

Yes it will work but only run at 1600 not 1866 it can prolong the life of the ram but a waste of money due to motherboard bottle neck

Does the onboard GPU support dual monitors?

Yes it does but you won't be running 4K however I'm not sure what the cause is if it was the CPU or the mobo it the combination of the two but it wouldn't run win 10 the CPU is a Intel Pentium g3258 duel core

$59^.99

Free 30-day Returns

Limit 99999 per customer.

Ships from China.

Price alert

Add to wish list

Sold by DoDo DIY

Hot Seller

4 (748 seller ratings)

Shipped by DoDo DIY

Meet Your Seller

DoDo DIY

See Seller Store

Get Educated

Make informed decisions with expert advice. Learn More

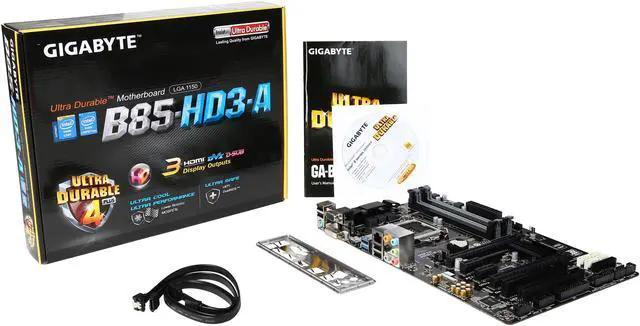

Main image of GIGABYTE GA-B85-HD3-A (rev. 1.0) LGA 1150 Intel B85 HDMI USB 3.0 ATX Intel Motherboard

100%

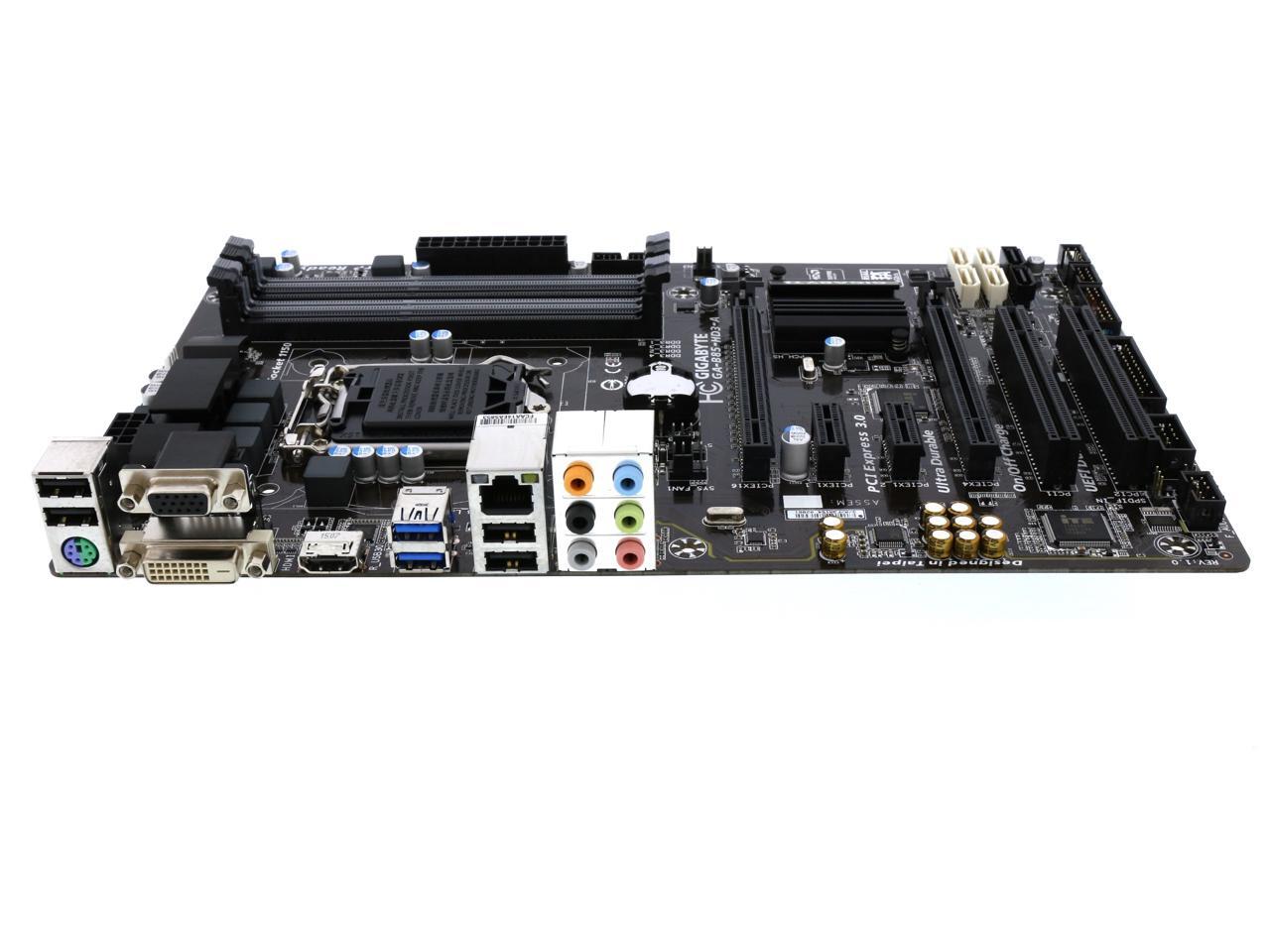

Alt view image 2 of 5 - GIGABYTE GA-B85-HD3-A (rev. 1.0) LGA 1150 Intel B85 HDMI USB 3.0 ATX Intel Motherboard

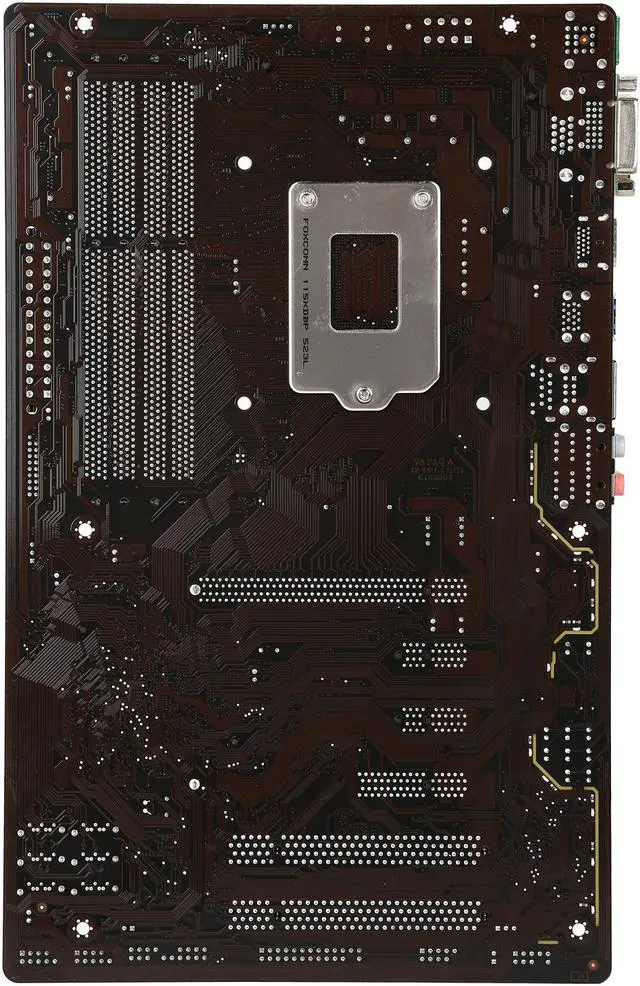

Alt view image 3 of 5 - GIGABYTE GA-B85-HD3-A (rev. 1.0) LGA 1150 Intel B85 HDMI USB 3.0 ATX Intel Motherboard

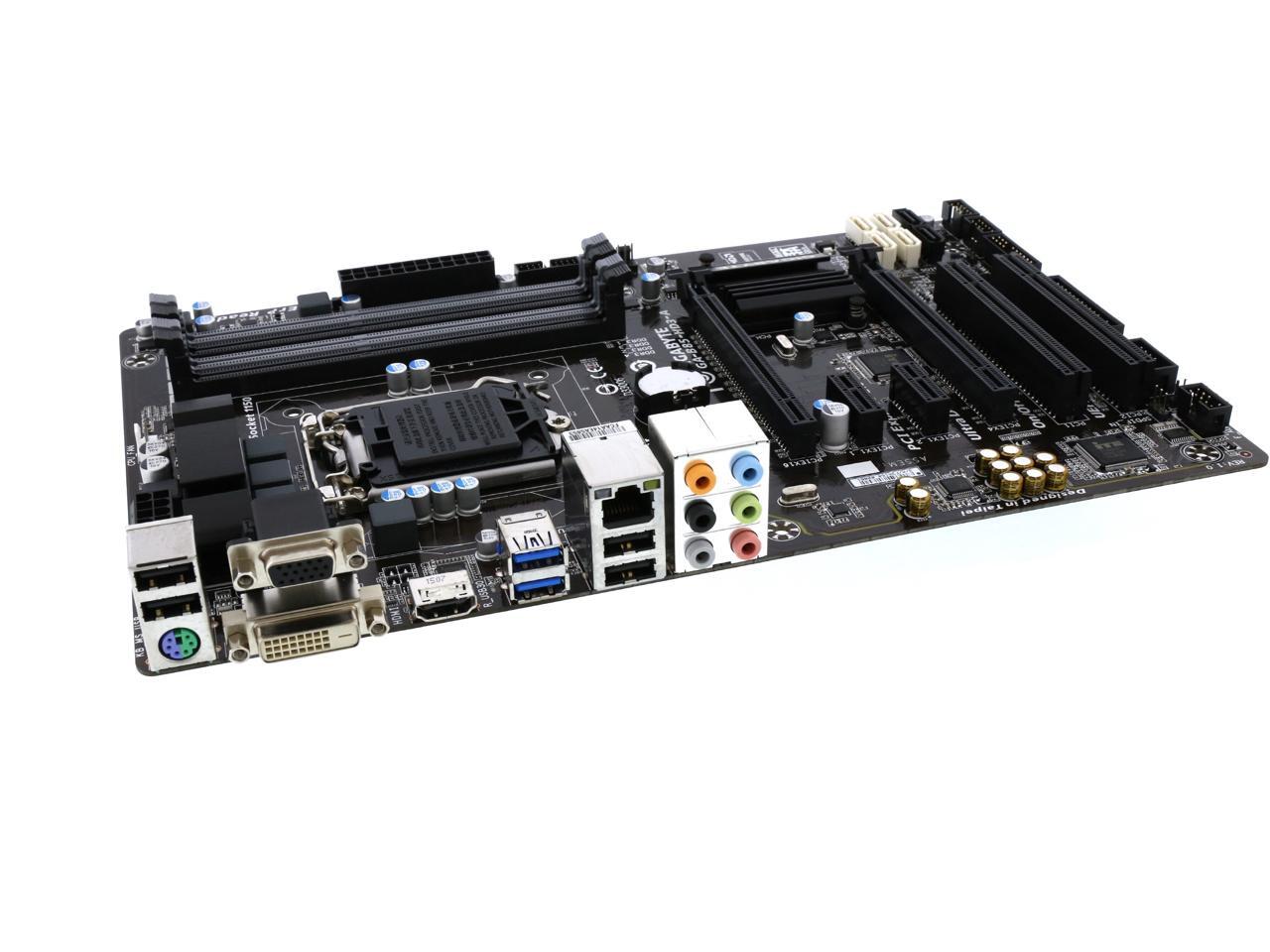

Alt view image 4 of 5 - GIGABYTE GA-B85-HD3-A (rev. 1.0) LGA 1150 Intel B85 HDMI USB 3.0 ATX Intel Motherboard

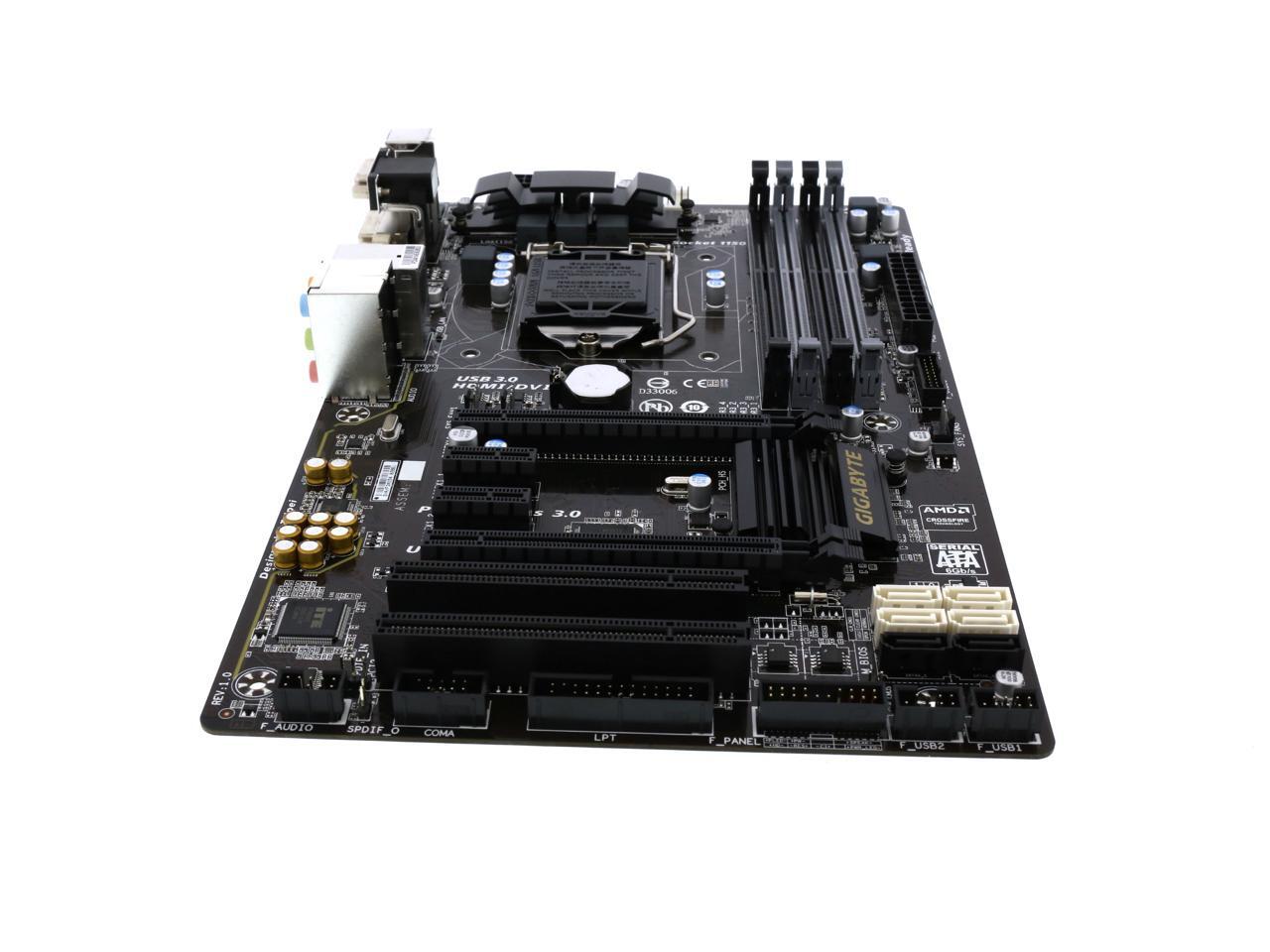

Alt view image 5 of 5 - GIGABYTE GA-B85-HD3-A (rev. 1.0) LGA 1150 Intel B85 HDMI USB 3.0 ATX Intel Motherboard

360^°

Shop All GIGABYTE Products | Visit DoDo DIY Store

GIGABYTE GA-B85-HD3-A (rev. 1.0) LGA 1150 Intel B85 HDMI USB 3.0 ATX Intel Motherboard

Used - Good

Intel B85
Celeron / Core i3 / Core i5 / Core i7 / Intel Core 4th Gen (LGA 1150) / Pentium / Xeon (LGA1150)
DDR3 1600/ 1333

🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available

Specs

Learn more about the GIGABYTE GA-B85-HD3-A (rev. 1.0)

Model
Brand	GIGABYTE
Model	GA-B85-HD3-A (rev. 1.0)

Supported CPU
CPU Socket Type	LGA 1150
CPU Type	Celeron / Core i3 / Core i5 / Core i7 / Intel Core 4th Gen (LGA 1150) / Pentium / Xeon (LGA1150)

Chipsets
Chipset	Intel B85

Onboard Video
Onboard Video Chipset	Integrated Graphics Processor - Intel HD Graphics support: 1 x D-Sub port, supporting a maximum resolution of 1920x1200 1 x DVI-D port, supporting a maximum resolution of 1920x1200 * The DVI-D port does not support D-Sub connection by adapter. 1 x HDMI port, supporting a maximum resolution of 4096x2160 * Support for HDMI 1.4a version. Maximum shared memory of 1 GB

Memory
Number of Memory Slots	4x240pin
Memory Standard	DDR3 1600/ 1333
Maximum Memory Supported	32GB
Channel Supported	Dual Channel

Expansion Slots
PCI Express 3.0 x16	1 x PCI Express x16 slot, running at x16 (The PCI Express x16 slot conforms to PCI Express 3.0 standard.) * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
PCI Express 2.0 x16	1 x PCI Express x16 slot, running at x4 (PCIEX4)
PCI Express x1	2 x PCI Express x1 slots (The PCIEX4 and PCIEX1 slots conform to PCI Express 2.0 standard.)
PCI Slots	2 x PCI Slots

Storage Devices
Serial ATA (SATA)	4 x SATA 6Gb/s connectors (SATA3 0~SATA3 3)

Onboard Audio
Audio Chipset	Realtek ALC892
Audio Channels	7.1 Channels

Onboard LAN
LAN Chipset	Realtek GbE LAN chip
Max LAN Speed	1Gbps

Rear Panel Ports
Back I/O Ports	1 x HDMI / 1 x PS/2 Keyboard/Mouse Combo / 2 x USB 3.0 / 4 x USB 2.0/1.1
PS/2	1 x PS/2 keyboard/mouse port
Video Ports	1 x D-Sub port 1 x DVI-D port
HDMI	1 x HDMI
RJ45	1 x RJ45
USB 3.0	2 x USB 3.0/2.0 ports
USB 1.1/2.0	4 x USB 2.0/1.1 ports
Audio Ports	6 x audio jacks (Center/Subwoofer Speaker Out, Rear Speaker Out, Side Speaker Out, Line In, Line Out, Mic In)

Internal I/O Connectors
Onboard USB	1 x USB 3.0/2.0 header 2 x USB 2.0/1.1 headers
Other Connectors	1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 3 x system fan headers 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x S/PDIF In header 1 x serial port header 1 x parallel port header 1 x Clear CMOS jumper

Physical Spec
Form Factor	ATX
Dimensions (W x L)	12.01" x 7.48"
Power Pin	24 Pin

Features
Features	Supports 4th Generation Intel Core processors GIGABYTE Ultra Durable 4 Plus Technology GIGABYTE Hybrid digital power engine Audio Noise Guard with LED path lighting Features high quality audio capacitors GIGABYTE UEFI DualBIOS Multi-GPU Support GIGABYTE On/Off Charge for USB devices LAN with high ESD Protection HDMI, DVI, D-SUB Multi-Graphics Technology: Support for 2-Way AMD CrossFire technology H/W Monitoring: System voltage detection CPU/System temperature detection CPU/System fan speed detection CPU/System overheating warning CPU/System fan fail warning CPU/System fan speed control * Whether the fan speed control function is supported will depend on the cooler you install. BIOS: 2 x 32 Mbit flash Use of licensed AMI UEFI BIOS Support for DualBIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 Unique Features: Support for Q-Flash Support for Xpress Install Support for APP Center * Available applications in APP Center may differ by motherboard model. Supported functions of each application may also differ depending on motherboard specifications. @BIOS EasyTune EZ Setup USB Blocker Fast Boot Smart TimeLock Smart Recovery 2 Support for ON/OFF Charge Bundle Software: Norton Internet Security (OEM version) Intel Rapid Start Technology Intel Smart Connect Technology Operating System: Support for Windows 8.1/8/7

Additional Information
