Question 1

would this work with a
AMD A6-5400K Trinity 3.6GHz?

Accepted Answer

Just looked this board up in my order history to jog my memory.

I had problems with this board using an AMD Athlon X2 340 Trinity 3.2GHz Socket FM2. I returned the board to newegg and got
MSI FM2-A75MA-E35 FM2 AMD A75 (Hudson D3) HDMI SATA 6Gb/s USB 3.0 Micro ATX AMD Motherboard, which worked well for me.

Question 2

will this motherboard run a AMD A4-4020 Richland 3.2GHz Socket FM2 65W with out updating bios?

Accepted Answer

They are both APU FM2 sockets so I don't see where there would be an issue running these two together. On a side note, it looks like this board only has usb 2.0. For another 20 bucks or so you should be able to get a good board with some 3.0 usb connections.

Question 3

can anyone reccomend a heatsink?

i cant seem to find one

Accepted Answer

If you are referring to a cpu heatsink any standard one should work including the one that comes with a cpu.

Question 4

will this CPU work with this Board?

A8-5600K Quad-Core 3.6GHz FM2 Processor

Accepted Answer

Yes, it should.  I recently put one together with a A8-6xxx series (Richland CPU), which is a newer CPU and I didn't have a problem.  The A8-5600K is a Trinity CPU and should be supported out of the box without a hitch.

Question 5

What is the recommended size for the power supply?

Accepted Answer

Recommended size for the power supply is determined by more than just the motherboard. http://images10.newegg.com/BizIntell/tool/psucalc/index.html Above is a link that will take you to Newegg's Power supply calculator page. Answer a few questions and it will give you a recommendation. Generally more is better. You do not want the draw on the ps to be anywhere near it's rated wattage. I would generally suggest for this mother board, with a dual core processor and a single hard drive, 350 watts should be adequate. With a dual hard drive setup (Raid) I would go to at least 400 watts. Get the best power supply you can afford. PC Power and Cooling makes a great line of PS units. NewEgg sells them. Good luck

Question 6

does this motherboard supports dual graphics?

Accepted Answer

Yes it does  with the selected  APU
The  A10  HD6670,HD6570
The  A8 HD6670,HD6570
The A6 6570,6450
 I figure you know how to set it up since you ask if not refer to the apu manual  or just visit  YOTUBE

Question 7

Does this mobo have uefi? I am trying to build a Steambox.

Accepted Answer

I assume you mean does it have a UEFI BIOS?  If that is your question yes it does and for those of us more accustomed to the older BIOS's it is different but it worked fine on the Windows 7 machine I just installed it in.

Question 8

Are A55 Chipsets outdated? how much better is A88X?

Accepted Answer

It's not that they're outdated...they just have fewer features.

If you're going to pair it with an A8 or A10 APU, I'd go with at least the a75 chipset, if not the a85 or a88 because overclocking is one thing that the better chipsets do...well...better.

A55 doesn't support SATA III and often doesn't support USB 3.0 (although it can).

Basically, if you're rebuilding a low level system, re-using an old case, hard drive, etc. The A55 chipset is a sweet spot for budget upgrade AS LONG AS you are not planning on any significant upgrade in the future.

If you're building new where SATA III support, USB 3.0 front panel support are important OR if you plan to use it for any gaming at all, I'd recommend going with at least the A75 chipset.

While I'm at it, I've built 4 APU based machines, two with the A55 chipset, one with the A75 and one with the A85.  They all do their jobs well...but from that experience, I can tell you that it's worth it to get the faster memory.

Question 9

I have 2 A6-360 series processors.  The socket they fit in looks different than in the picture.  The two wide apart blank areas should be on the same row of pins.  Is the picture wrong?  I need a cheap board that will work.

Accepted Answer

Go to the Gigabyte web site and check the information on that board they will tell you what processor would work in that board and see if there is a board for that processor for your performance that you are looking for newegg will carry the board. do the research

Question 10

I don't see if it supports AMD graphics controller does any one else? I have a Radeon HD 8470D graphics controller in my AMD processor and want to make sure it supports it before purchasing it. Any help will be appreciated.

Accepted Answer

I cannot get the built in graphics card to work right?  Any suggestions, or on which graphics card would be appropriate for this motherboard??

Brand	GIGABYTE
Model	GA-F2A55M-HD2

CPU Socket Type	FM2
CPU Type	APU (FM2 Socket)

Number of Memory Slots	2x240pin
Memory Standard	DDR3 2400(OC)/1866/1600/1333/1066
Maximum Memory Supported	64GB
Channel Supported	Dual Channel

PCI Express 2.0 x16	1 x PCI Express 2.0 x16
PCI Express x1	1 x PCI Express x1
PCI Slots	1 x PCI Slot

Audio Chipset	Realtek ALC887
Audio Channels	8 Channels

Meet Your Seller

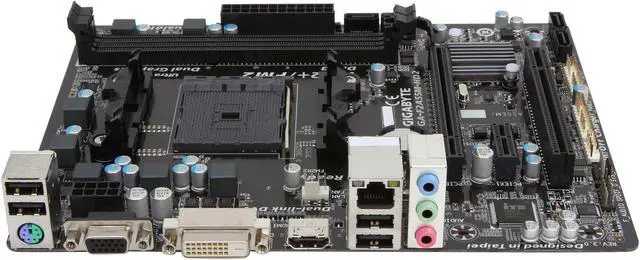

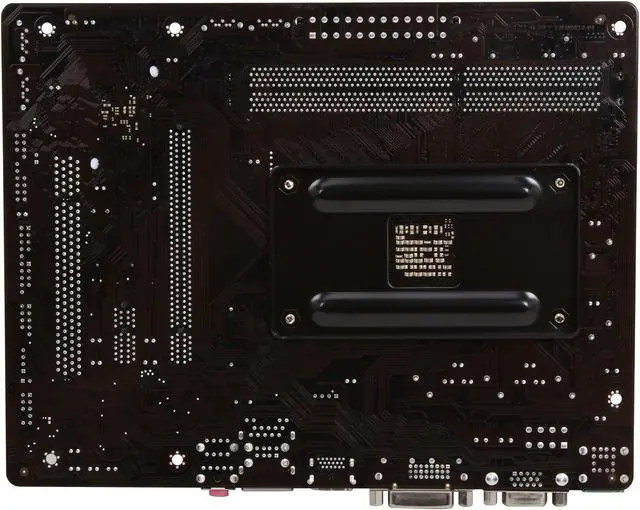

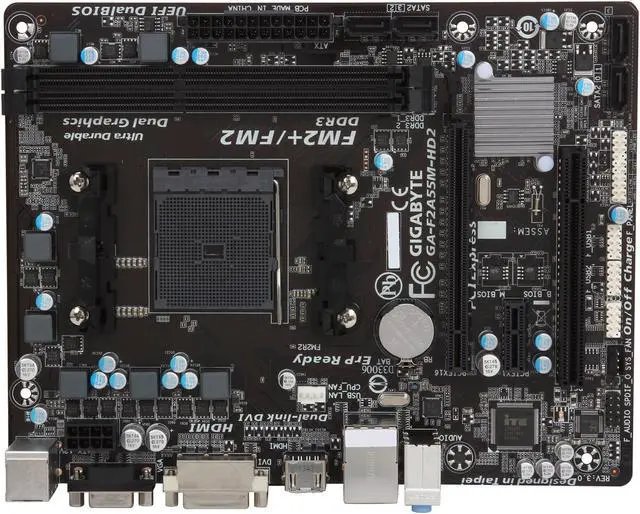

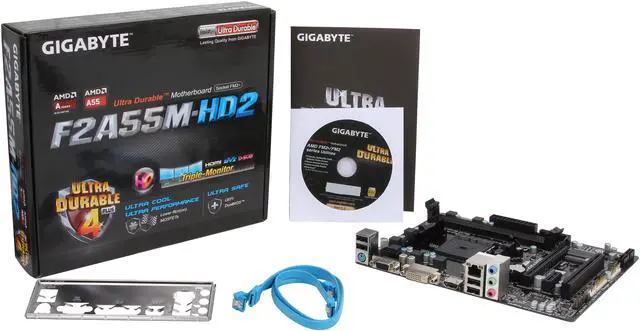

GIGABYTE GA-F2A55M-HD2 FM2 AMD A55 (Hudson D2) HDMI Micro ATX AMD Motherboard

Used - Good

Learn more about the GIGABYTE GA-F2A55M-HD2

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

Return Policies

Manufacturer Contact Info

Back I/O Ports	1 x D-Sub / 1 x DVI / 1 x HDMI / 1 x PS/2 / 3 x Audio Jacks / 4 x USB 2.0/1.1
PS/2	1 x PS/2 keyboard/mouse port
Video Ports	D-Sub + DVI
HDMI	1 x HDMI
USB 1.1/2.0	4 x USB 2.0
Audio Ports	3 Ports

Onboard USB	4 x USB 2.0
Other Connectors	1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x APU fan header 1 x system fan header 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x serial port header 1 x Clear CMOS jumper

Form Factor	Micro ATX
Dimensions (W x L)	8.86" x 6.85"
Power Pin	24 Pin

Item#: 9SIAWFGKFH8491
