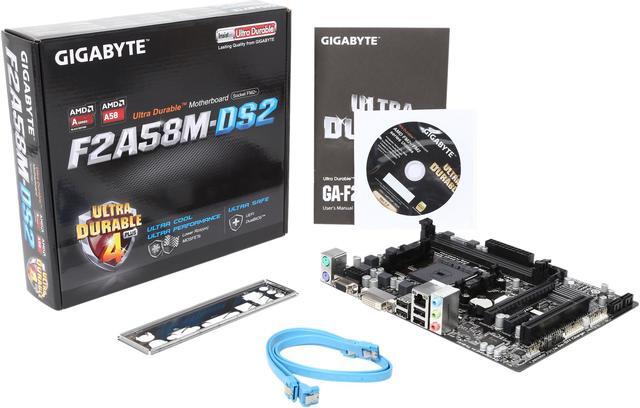

GIGABYTE GA-F2A58M-DS2 rev 3.0 FM2+ AMD A58 Micro ATX AMD Motherboard
Used - Good Product Type
- AMD A58
- AMD FM2+/FM2 A-series APU
- DDR3 2400(OC)/ 2133/ 1866/ 1600/ 1333
+
+
Specs
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the GIGABYTE GA-F2A58M-DS2
| Brand | GIGABYTE |
|---|---|
| Model | GA-F2A58M-DS2 |
| CPU Socket Type | FM2+ |
|---|---|
| CPU Type | AMD FM2+/FM2 A-series APU |
| Chipset | AMD A58 |
|---|
| Number of Memory Slots | 2x240pin |
|---|---|
| Memory Standard | DDR3 2400(OC)/ 2133/ 1866/ 1600/ 1333 |
| Maximum Memory Supported | 64GB |
| Channel Supported | Dual Channel |
| PCI Express 3.0 x16 | 1 x PCI Express x16 slot, running at x16 (The PCI Express x16 slot conforms to PCI Express 3.0 standard.) * To support PCI Express 3.0, you must install an FM2+ APU. |
|---|---|
| PCI Express x1 | 1 x PCI Express x1 slot (The PCI Express x1 slot conforms to PCI Express 2.0 standard.) |
| PCI Slots | 1 x PCI Slot |
| SATA RAID | 0/1/10/JBOD |
|---|
| Onboard Video Chipset | Integrated Graphics |
|---|
| Audio Chipset | Realtek ALC887 |
|---|---|
| Audio Channels | 2/4/5.1/7.1-channel * To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver. |
| LAN Chipset | Realtek GbE |
|---|---|
| Max LAN Speed | 1Gbps |
| Back I/O Ports | 1 x D-Sub / 1 x DVI-D / 1 x LAN (RJ45) / 1 x PS/2 / 3 x Audio Jacks / 4 x USB 2.0/1.1 |
|---|---|
| PS/2 | 1 x PS/2 keyboard/mouse port |
| Video Ports | 1 x D-Sub 1 x DVI-D |
| RJ45 | 1 x RJ45 |
| USB 1.1/2.0 | 4 x USB 2.0 |
| Audio Ports | 3 x audio jacks (Line In, Line Out, Mic In) |
| Onboard USB | 2 x USB 2.0/1.1 headers |
|---|---|
| Other Connectors | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x APU fan header 1 x system fan header 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x serial port header 1 x Clear CMOS jumper |
| Form Factor | Micro ATX |
|---|---|
| Dimensions (W x L) | 8.9" x 6.9" |
| Power Pin | 24 Pin |
| Features | Socket FM2+ supports AMD FM2+/FM2 A-series APU GIGABYTE Ultra Durable 4 Plus Technology GIGABYTE UEFI DualBIOS GIGABYTE On/Off Charge for USB devices Features Dual-link DVI for high resolution displays of up to 2560 x 1600 pixels 8 USB 2.0 and 4 SATA2 ports with RAID 0,1,10 support High ESD Protection on GbE LAN and USB ports All solid capacitors design Unique Features 1. Support for @BIOS 2. Support for Q-Flash 3. Support for Xpress Install 4. Support for EasyTune * Available functions in EasyTune may differ by motherboard model. 5. Support for Smart Recovery 2 6. Support for ON/OFF Charge |
|---|
| Date First Available | December 21, 2024 |
|---|
