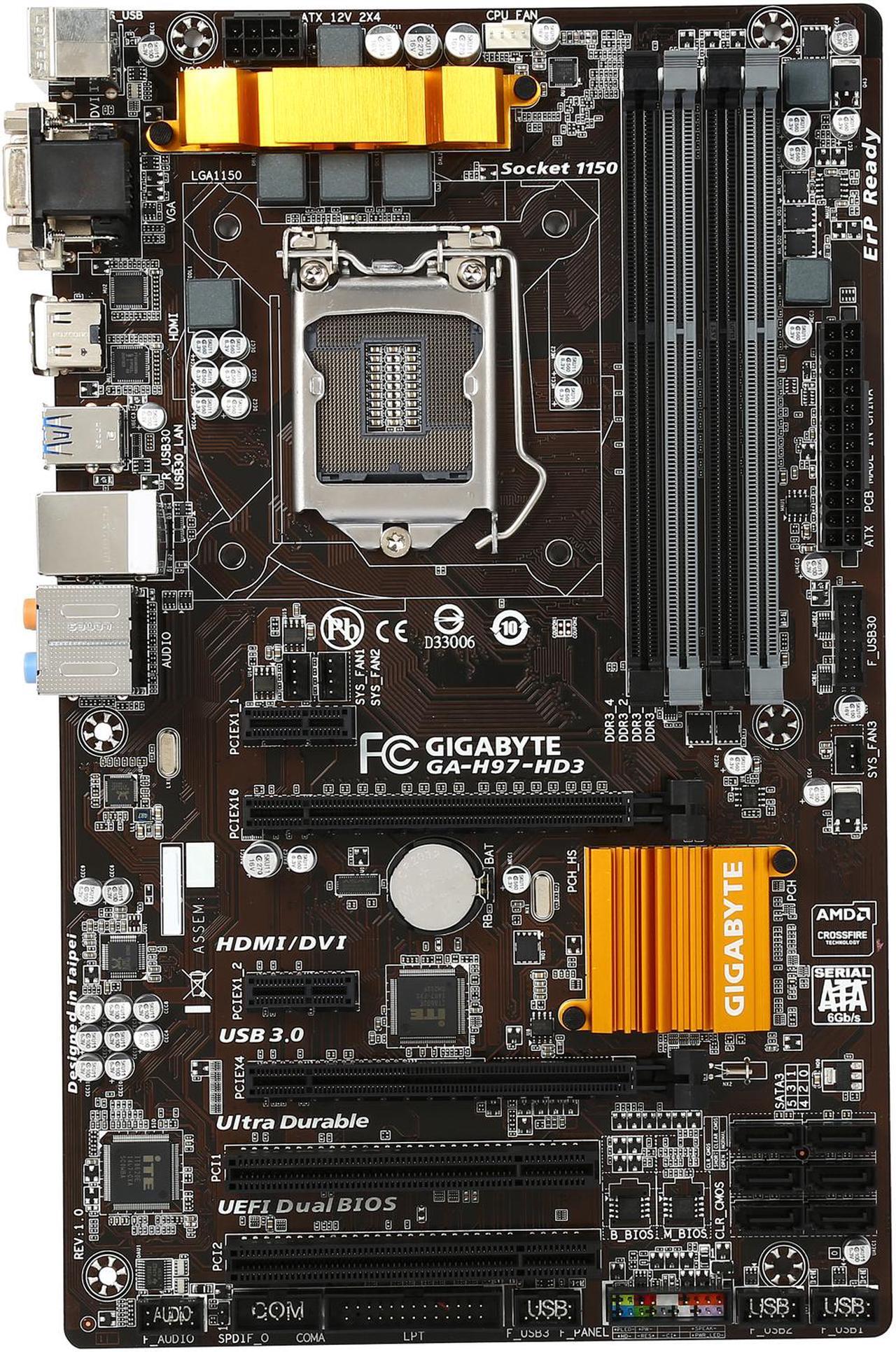

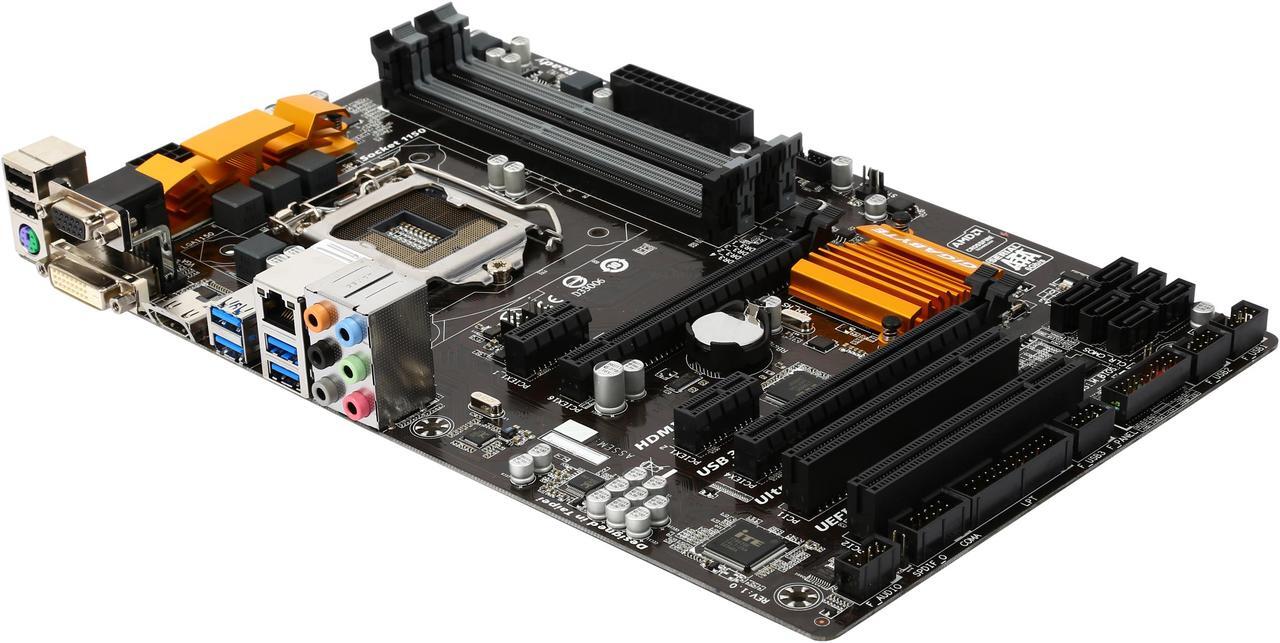

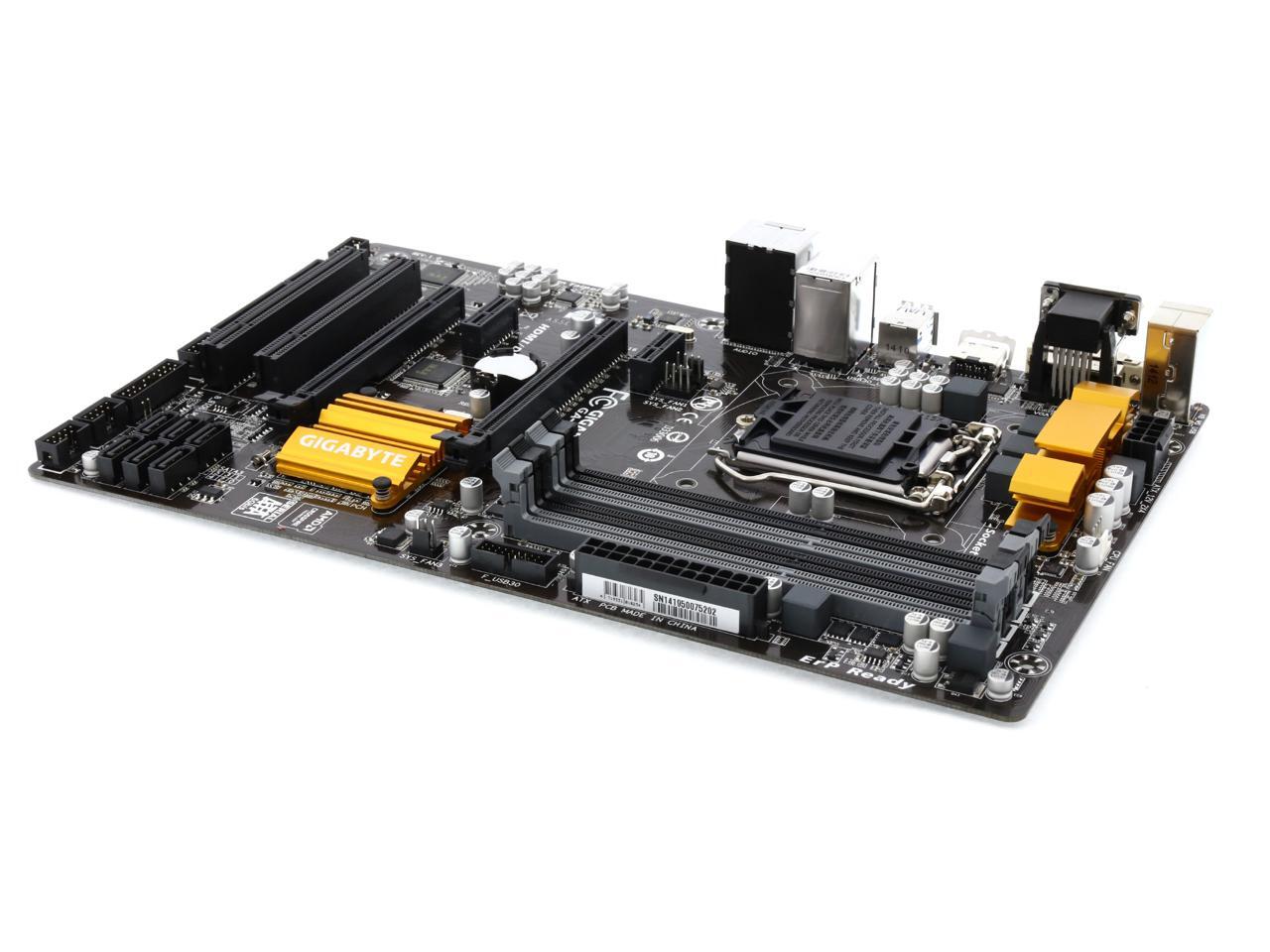

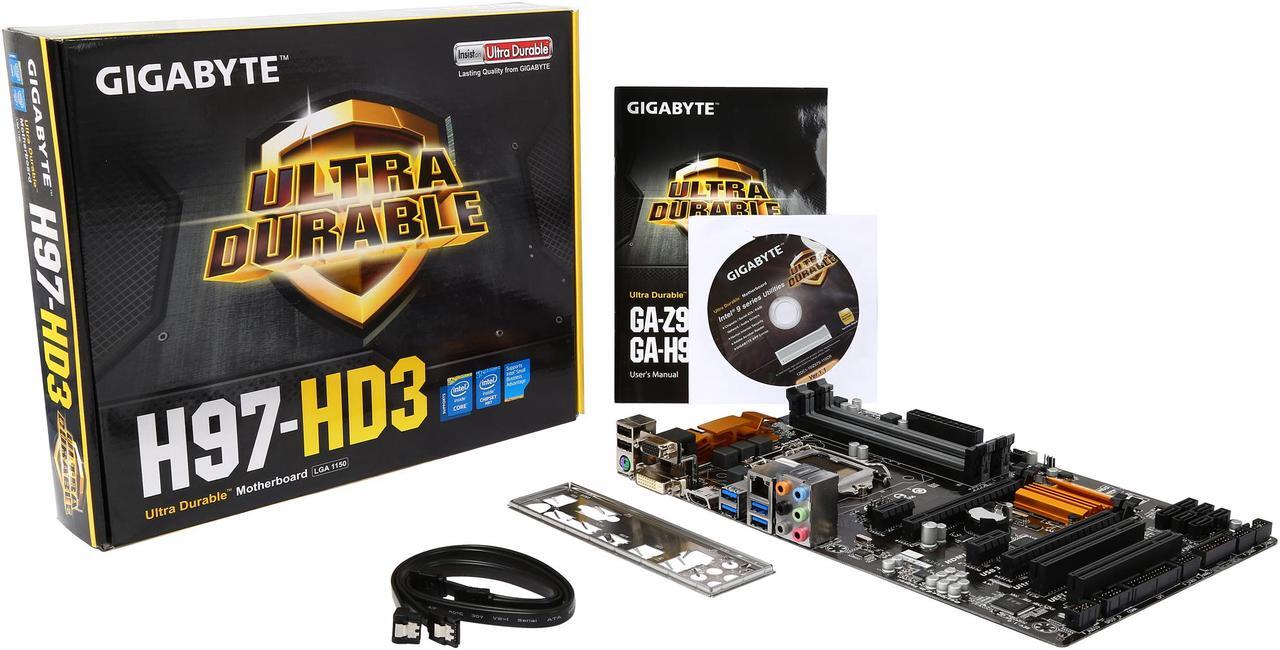

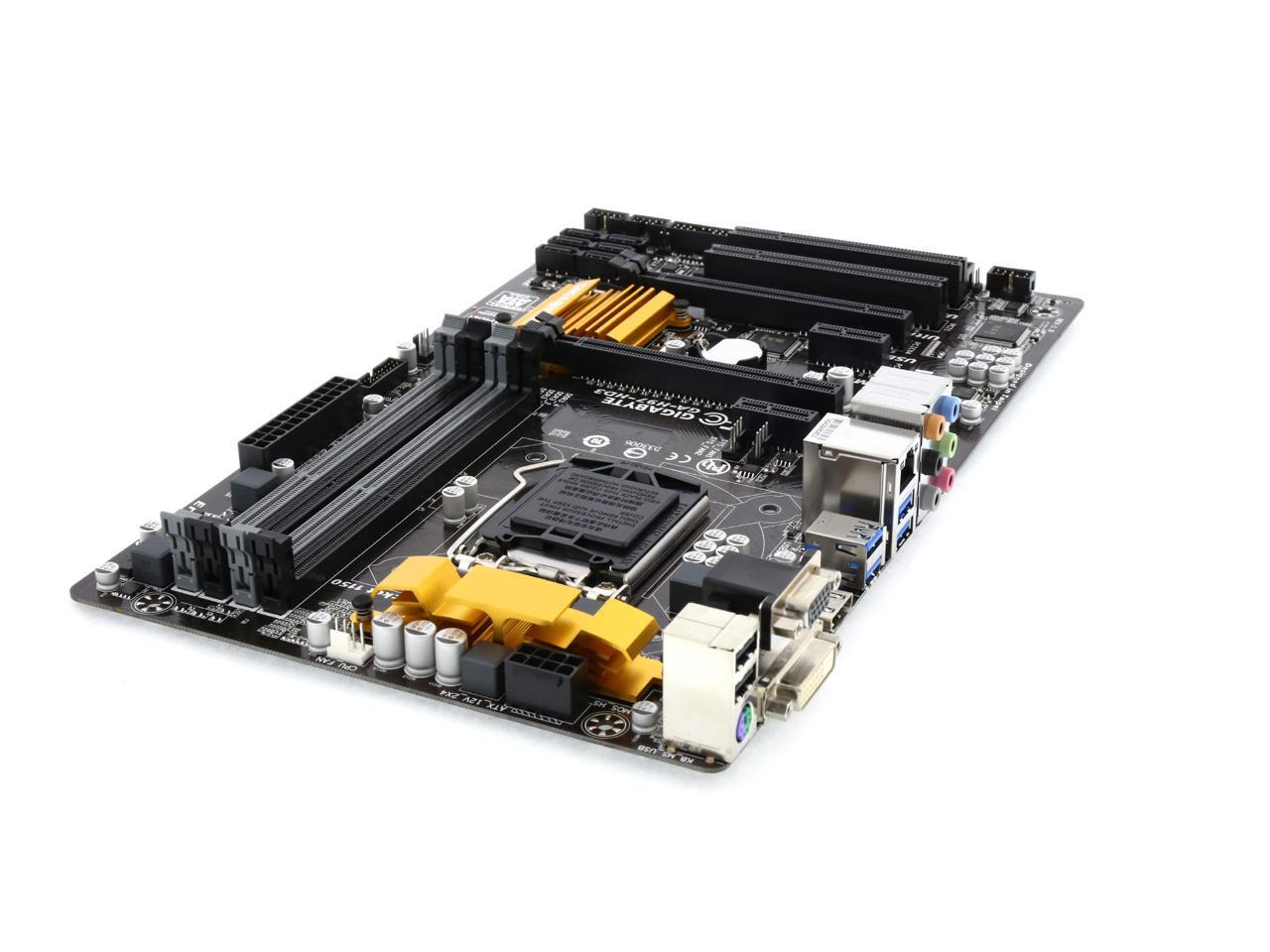

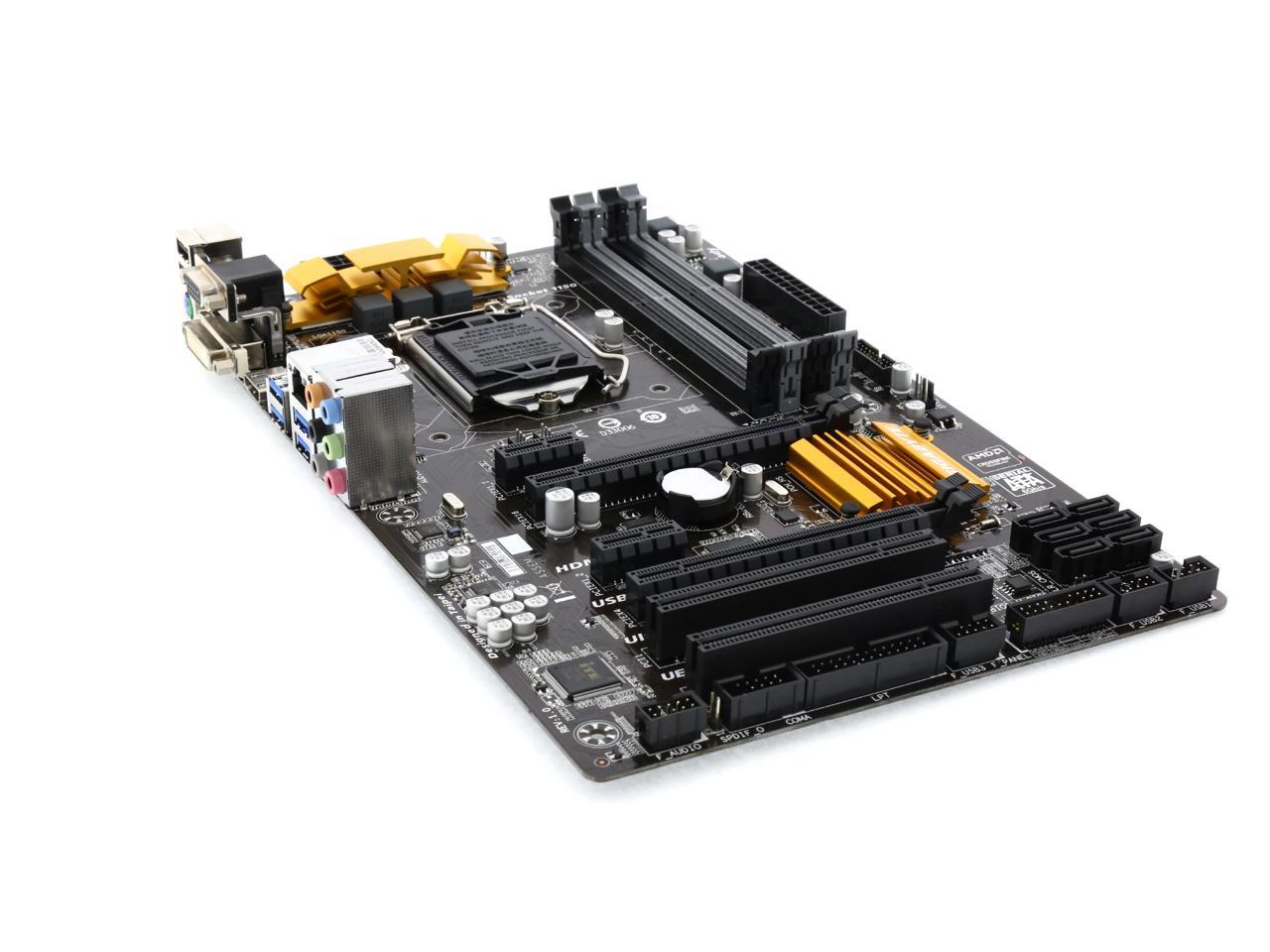

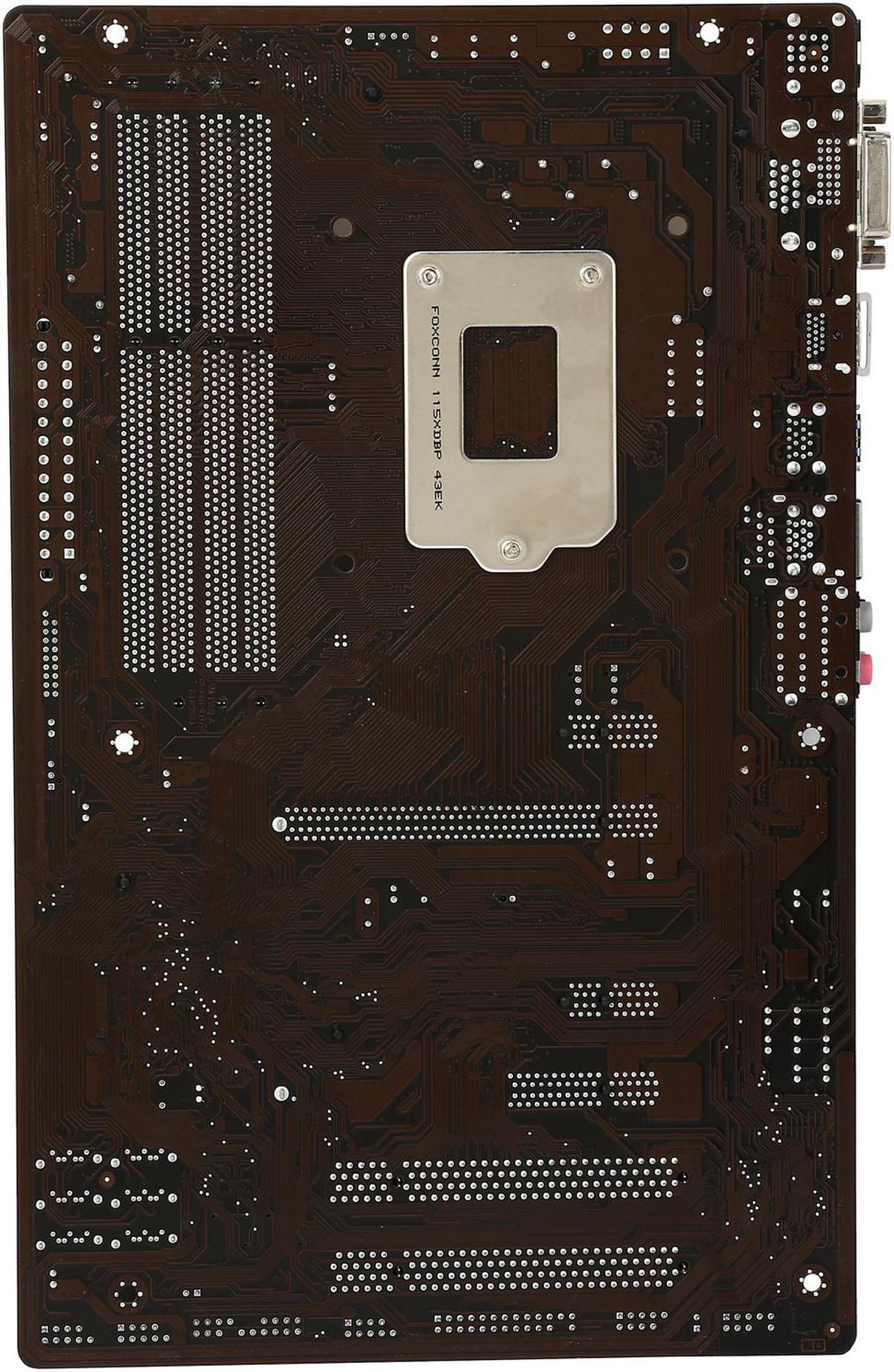

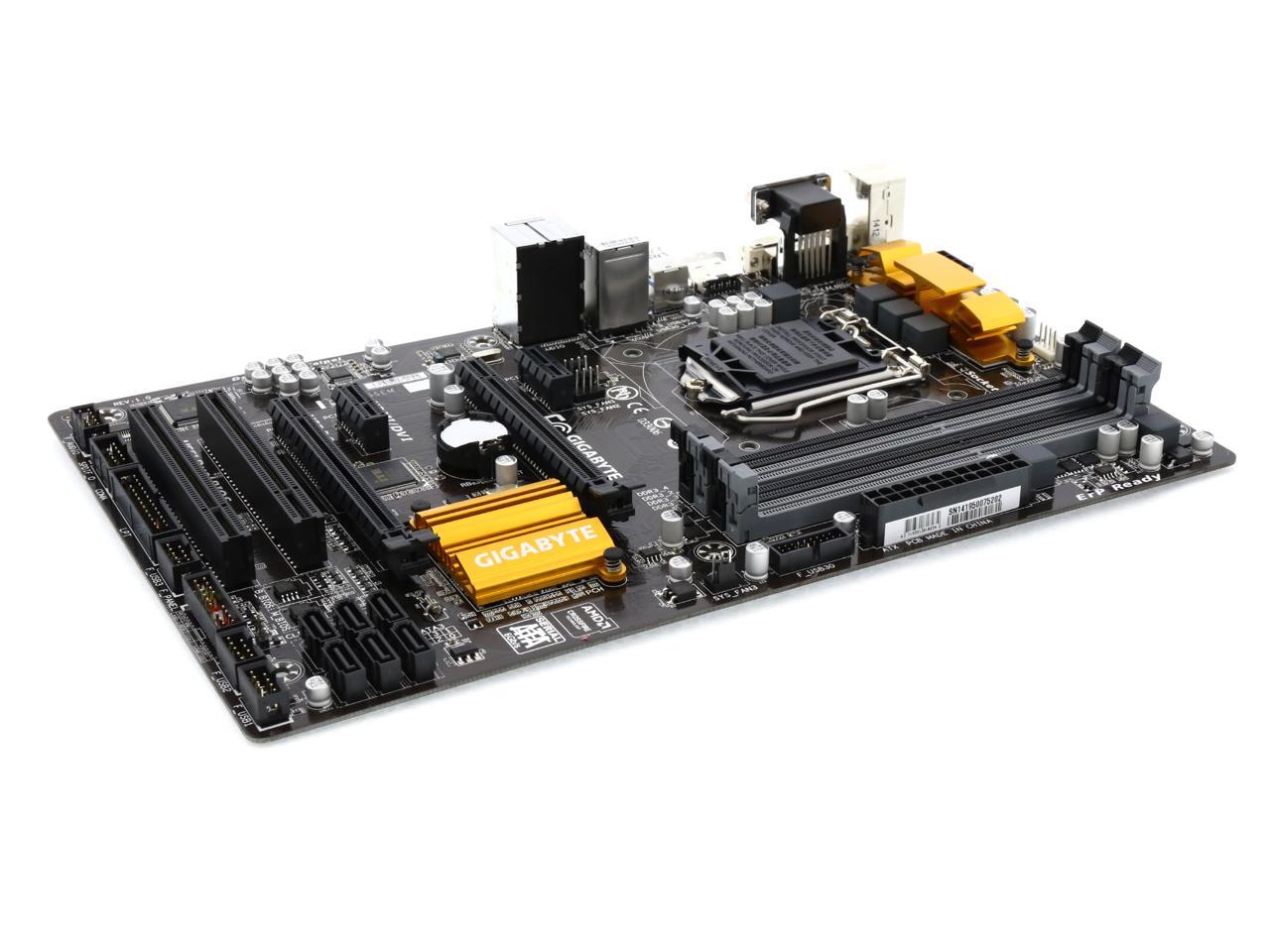

GIGABYTE GA-H97-HD3 LGA 1150 Intel H97 HDMI USB 3.0 ATX Intel Motherboard
Used - Like New Product Type
- Intel H97
- Celeron / Core i3 / Core i5 / Core i7 / Intel Core 4th Gen (LGA 1150) / Intel Core 5th Gen (LGA 1150) / Pentium
- DDR3 1600/ 1333
+
+
Specs
Learn more about the GIGABYTE GA-H97-HD3
| Brand | GIGABYTE |
|---|---|
| Model | GA-H97-HD3 |
| CPU Socket Type | LGA 1150 |
|---|---|
| CPU Type | Celeron / Core i3 / Core i5 / Core i7 / Intel Core 4th Gen (LGA 1150) / Intel Core 5th Gen (LGA 1150) / Pentium |
| Chipset | Intel H97 |
|---|
| Onboard Video Chipset | Integrated Graphics Processor - Intel HD Graphics support: 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60Hz 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60Hz * The DVI-D port does not support D-Sub connection by adapter. 1 x HDMI port, supporting a maximum resolution of 4096x2160@24Hz or 2560x1600@60Hz * Support for HDMI 1.4a version. Support for up to three displays at the same time Maximum shared memory of 512MB |
|---|
| Number of Memory Slots | 4x240pin |
|---|---|
| Memory Standard | DDR3 1600/ 1333 |
| Maximum Memory Supported | 32GB |
| Channel Supported | Dual Channel |
| PCI Express 3.0 x16 | 1 x PCI Express x16 slot, running at x16 (PCIEX16) (The PCIEX16 slot conforms to PCI Express 3.0 standard.) * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. |
|---|---|
| PCI Express x16 | 1 x PCI Express x16 slot, running at x4 (PCIEX4) * The PCIEX4 slot shares bandwidth with the PCI Express x1 slots. The PCI Express x1 slots will become unavailable when a PCIe x4 expansion card is installed. * When installing a x8 or above card in the PCIEX4 slot, make sure to set PCIE Slot Configuration (PCH) in BIOS Setup to x4. |
| PCI Express x1 | 2 x PCI Express x1 slots (The PCIEX4 and PCI Express x1 slots conform to PCI Express 2.0 standard.) |
| PCI Slots | 2 x PCI Slots |
| Serial ATA (SATA) | 6 x SATA 6Gb/s |
|---|---|
| SATA RAID | 0/1/5/10 |
| Audio Chipset | Realtek ALC887 |
|---|---|
| Audio Channels | 7.1 Channels |
| LAN Chipset | Realtek 8111F-VL |
|---|---|
| Max LAN Speed | 1Gbps |

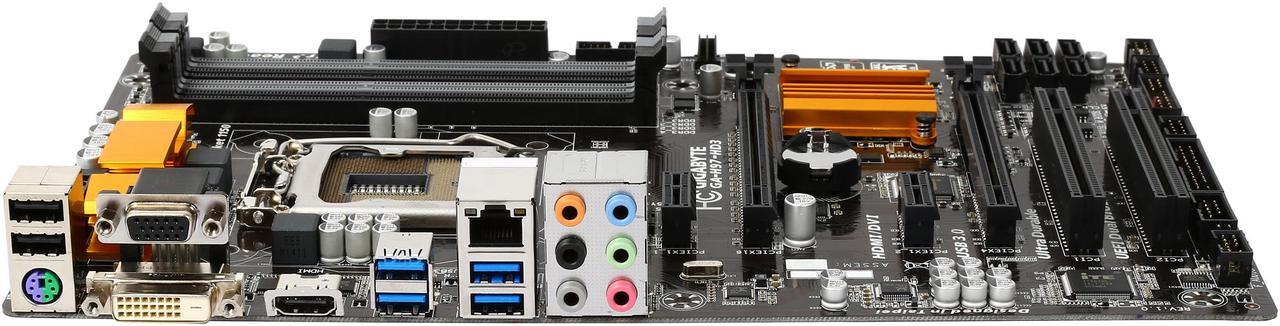

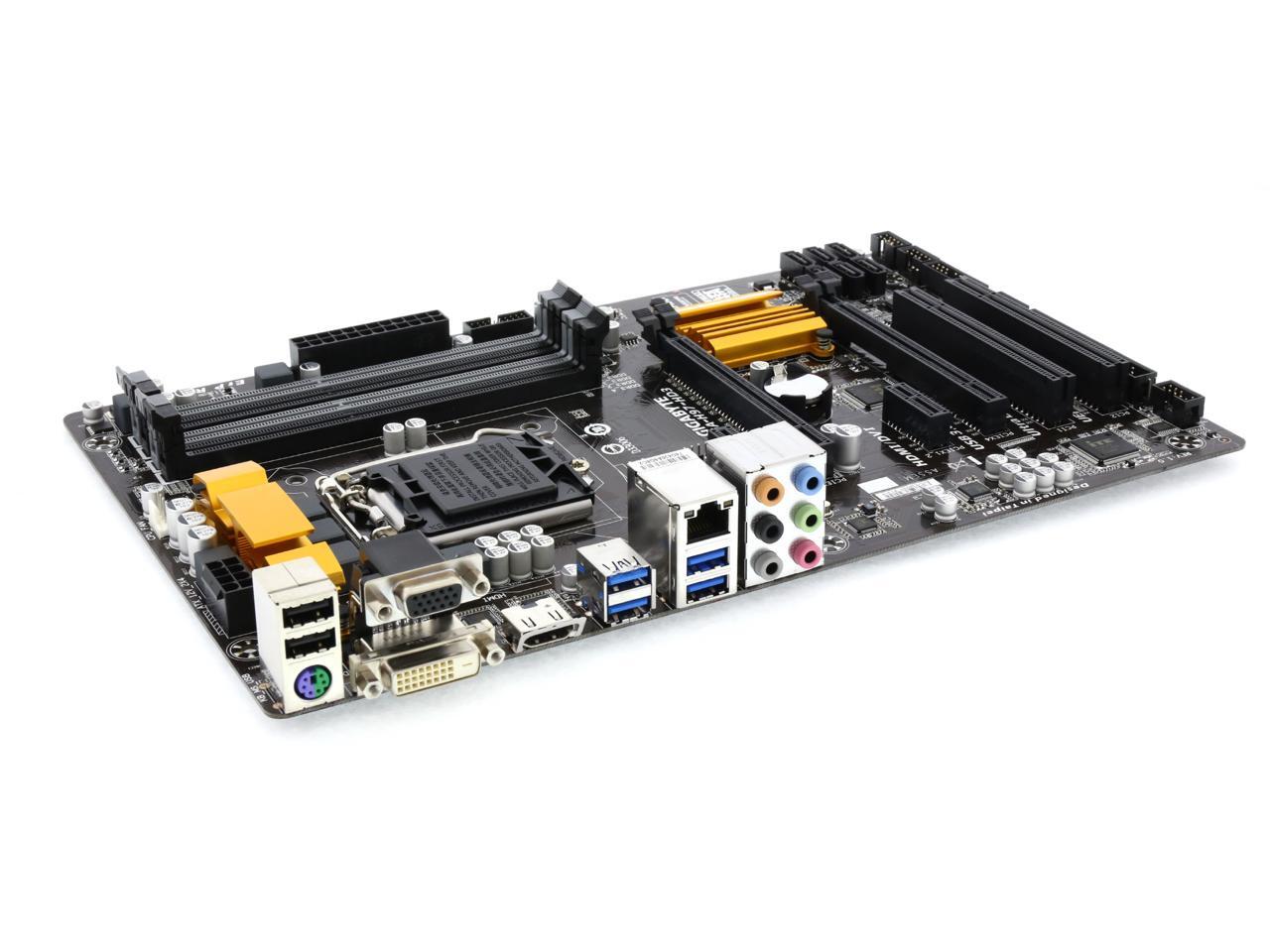

| Back I/O Ports | 1 x HDMI / 1 x PS/2 Keyboard/Mouse Combo / 2 x USB 2.0/1.1 / 4 x USB 3.0 |
|---|---|
| PS/2 | 1 x PS/2 keyboard/mouse port |
| Video Ports | 1 x DVI-D 1 x D-SUB |
| HDMI | 1 x HDMI |
| RJ45 | 1 x RJ45 |
| USB 3.0 | 4 x USB 3.0/2.0 ports |
| USB 1.1/2.0 | 2 x USB 2.0/1.1 ports |
| Audio Ports | 6 x audio jacks (Center/Subwoofer Speaker Out, Rear Speaker Out, Side Speaker Out, Line In, Line Out, Mic In) |
| Onboard USB | 1 x USB 3.0/2.0 header 3 x USB 2.0/1.1 headers |
|---|---|
| Other Connectors | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 3 x system fan headers 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x serial port header 1 x parallel port header 1 x Clear CMOS jumper |
| Form Factor | ATX |
|---|---|
| Dimensions (W x L) | 12.0" x 7.5" |
| Power Pin | 24 Pin |
| Features | Supports 4th and 5th Generation Intel Core processors Extreme multi graphics support HD Audio support LAN with high ESD Protection GIGABYTE LAN Optimizer Long lifespan Durable Solid caps APP Center including EasyTune and Cloud Station utilities GIGABYTE UEFI DualBIOS Intel Small Business Advantage Multi-Graphics Technology Support for 2-Way AMD CrossFire technology I/O Controller iTE I/O Controller Chip H/W Monitoring System voltage detection CPU/System temperature detection CPU/System fan speed detection CPU overheating warning CPU/System fan fail warning CPU/System fan speed control * Whether the fan speed control function is supported will depend on the cooler you install. BIOS 2 x 64 Mbit flash Use of licensed AMI UEFI BIOS Support for DualBIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 Unique Features Support for APP Center * Available applications in APP Center may differ by motherboard model. Supported functions of each application may also differ depending on motherboard specifications. @BIOS EasyTune EZ Setup Fast Boot ON/OFF Charge Smart TimeLock Smart Recovery 2 System Information Viewer USB Blocker Support for Q-Flash Support for Smart Switch Support for Xpress Install Bundle Software Norton Internet Security (OEM version) Intel Rapid Start Technology Intel Smart Connect Technology Intel Smart Response Technology Intel Small Business Advantage Operating System Support for Windows 8.1/8/7 |
|---|
| Date First Available | March 14, 2025 |
|---|
