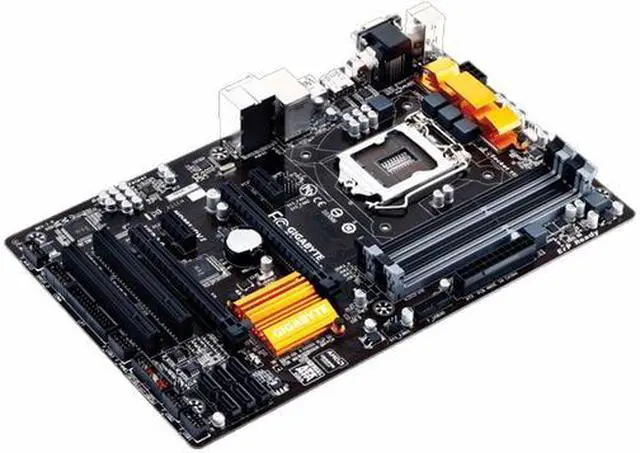

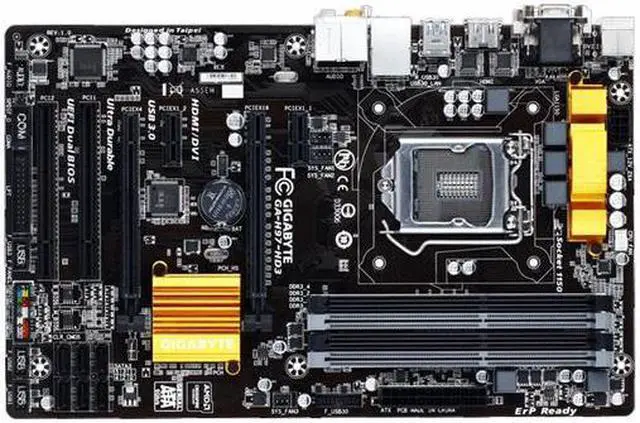

GIGABYTE GA-H97-HD3 LGA 1150 Intel H97 HDMI SATA 6Gb/s USB 3.0 ATX Motherboard

General Features:

• Intel H97
• LGA 1150
• DDR3 1600

Model

• GA-H97-D3H

Supported CPU

• CPU Socket Type: LGA 1150
• CPU Type: Core i7 / i5 / i3 / Pentium / Celeron (LGA1150)

Chipset

• Intel H97

Memory

• Number of Memory Slots: 4 x 240pin
• Memory Standard: DDR3 1600/1333
• Maximum Memory Supported: 32GB
• Channel Supported: Dual Channel

Expansion Slots

• PCI Express 3.0 x 16: 1
• PCI Express 2.0 x 16: 1 (x4)
• PCI Express x 1: 2
• PCI Slots: 3 x PCI Slots

Storage Devices

• SATA 6Gb/s: 6 x SATA 6Gb/s port (s)
• SATA Express: 1 x SATA Express
• M. 2: 1 x M. 2
• SATA RAID: 0/1/5/10

Onboard components

• Video Chipset: CPU integrated graphics
• Audio Chipset: Realtek ALC1150
• Audio Channels: 7.1
• LAN Chipset: Intel i217V
• Max LAN Speed: 10/100/1000Mbps

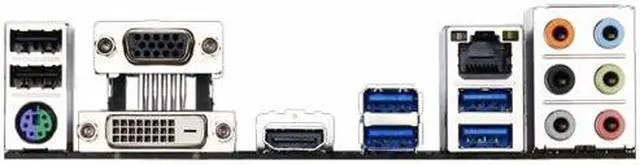

Rear Panel Ports

• Ports:
• 1 x PS/2 keyboard/mouse port
• 1 x VGA
• 1 x DVI-D
• 1 x HDMI
• 4 x USB 3.0 ports
• 2 x USB 2.0 ports
• 1 x LAN (RJ45) port
• 6 x audio jacks

Internal I/O

• Onboard USB: 2 x USB 3.0 + 6 x USB 2.0
• Connectors:
• 1 x 24-pin ATX main power connector
• 1 x 8-pin ATX 12V power connector
• 1 x CPU fan header
• 1 x water cooling fan header (CPU_OPT)
• 3 x system fan headers
• 1 x front panel header
• 1 x front panel audio header
• 1 x serial port header
• 1 x Trusted Platform Module (TPM) header
• 1 x S/PDIF Out header
• 1 x Clear CMOS jumper

Physical Specs

• Form Factor: ATX
