Brand | GIGABYTE |
---|---|
Model | GA-M51GM-S2G |
CPU Socket Type | AM2 |
---|---|
CPU Type | Athlon 64 X2 / Athlon 64 FX / Athlon 64 |
FSB | 1000 MHz |
Chipset | NVIDIA GeForce 6100 |
---|---|
South Bridge | NVIDIA nForce 430 |
Number of Memory Slots | 4x240pin |
---|---|
Memory Standard | DDR2 800 |
Maximum Memory Supported | 4GB Due to the limitation of Windows 32-bit operating system, when more than 4GB of physical memory is installed, the actual memory available for the operating system will be less than 4GB; Windows 64-bit operating system doesn't have such limitation |
Channel Supported | Dual Channel |
PCI Express x16 | 1 x PCI Express x16 |
---|---|
PCI Express x1 | 1 x PCI Express x1 |
PCI Slots | 2 x PCI Slots |
PATA | 2 x ATA100 4 Dev. Max |
---|---|
SATA 3Gb/s | 4 x SATA 3Gb/s |
SATA RAID | 0/1/0+1/5 |
Onboard Video Chipset | NVIDIA GeForce 6100 |
---|
Audio Chipset | Realtek ALC883 |
---|---|
Audio Channels | 8 Channels |
LAN Chipset | Marvell 88E1116 |
---|---|
Max LAN Speed | 10/100/1000Mbps |
PS/2 | 2 |
---|---|
COM | 1 |
LPT | 1 |
Video Ports | D-Sub |
USB 1.1/2.0 | 4 x USB 2.0 |
IEEE 1394 | 1 x IEEE 1394a |
Audio Ports | 6 Ports |
Onboard USB | 2 x USB 2.0 connectors support 4 ports |
---|---|
Onboard 1394 | 2 x 1394a conectors support 2 ports |
Form Factor | Micro ATX |
---|---|
Dimensions (W x L) | 9.6" x 9.6" |
Power Pin | 24 Pin |
Features | RoHS compliant motherboard for green computing |
---|

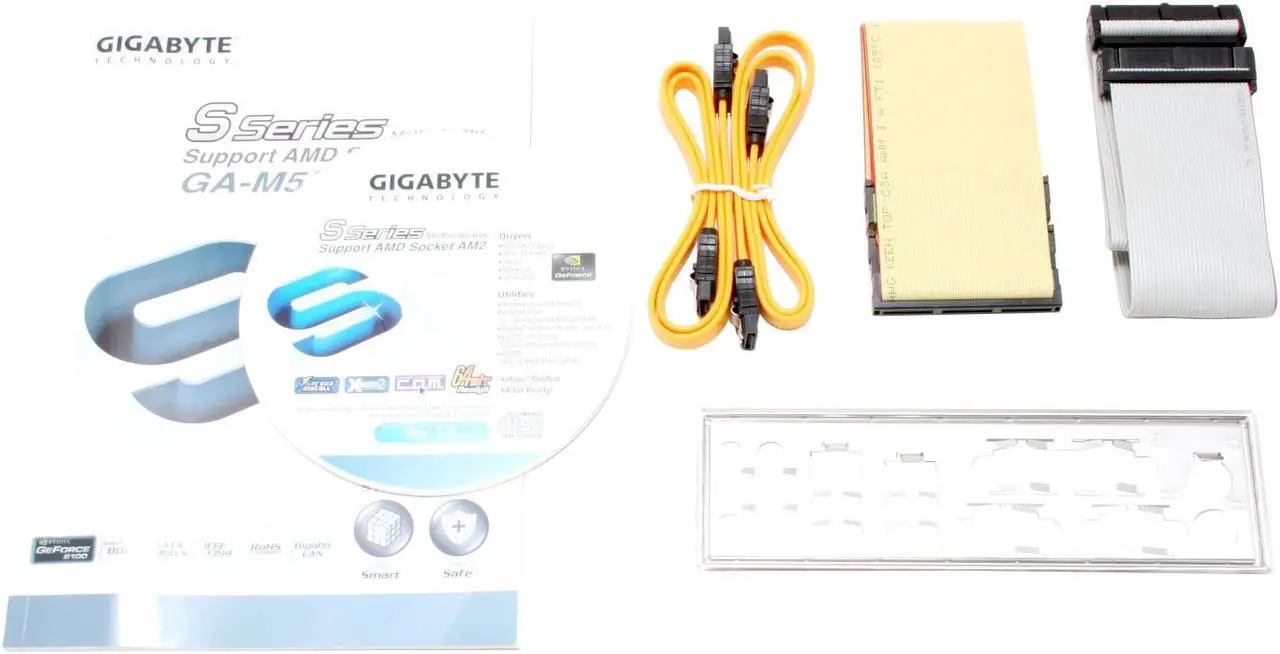

Package Contents | GA-M51GM-S2G User Manual Driver Disk Rear I/O Panel Shield IDE/PATA Cable FDD Cable 2 x SATA Cable |
---|
Windows Vista | Certified for Windows Vista |
---|
Date First Available | May 23, 2006 |
---|
Pros: great layout, DDR2 support, Geforce 6100, north & southbridge setup, software jumpers, great manual and great software. For a cheap no-thrills rocksolid motherboard this one is great. Absolutely no install problems, runs great, and does a better than expected job with games. I love software jumpers. u Rig = Athlon 64 3200+, Crucial Ballistix DDRII 800MHz, Seagate 160Gb HD, Plextor 750 burner, Sony DVD player, YE-data 7 in l (basic rig for a friend)
Cons: none so far.
Overall Review: I had the Asus board that is consistently DOA (ASUS M2NPV-VM). Glad I returned it and got this board.
