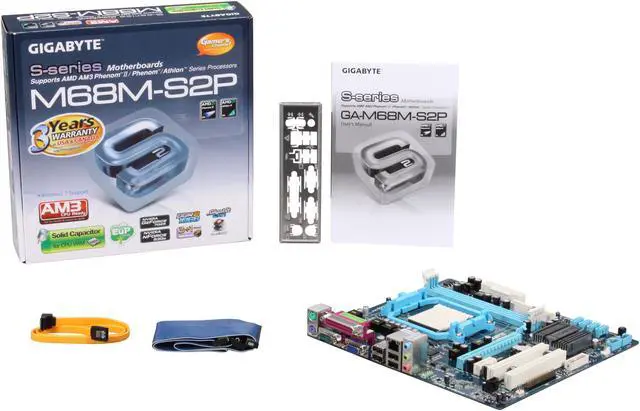

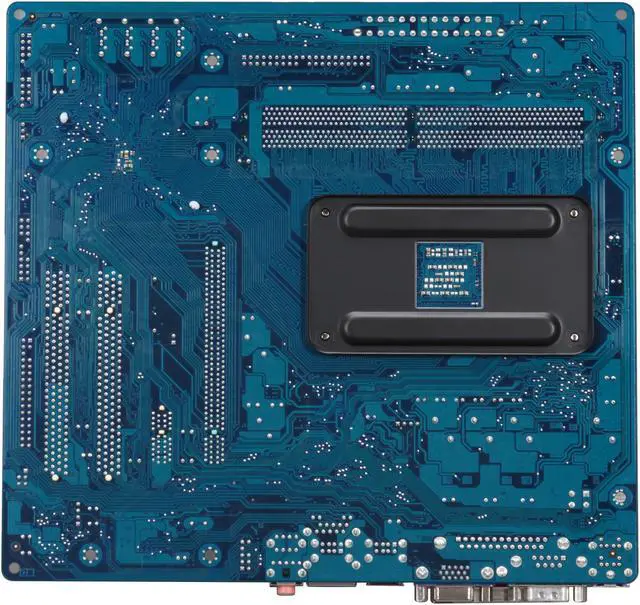

GIGABYTE GA-M68M-S2P AM3/AM2+/AM2 NVIDIA GeForce 7025/nForce 630a chipset Micro ATX AMD Motherboard
- NVIDIA GeForce 7025/nForce 630a chipset
- Phenom II / Phenom / Athlon II / Athlon64 /Sempron Support up to 95W CPU
- DDR2 1066/800/667 (DDR2 1066 is supported with combination of AM3/ AM2+ processors)
Specs
Reviews (90)
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the GIGABYTE GA-M68M-S2P
| Brand | GIGABYTE |
|---|---|
| Model | GA-M68M-S2P |
| CPU Socket Type | AM3/AM2+/AM2 |
|---|---|
| CPU Type | Phenom II / Phenom / Athlon II / Athlon64 /Sempron Support up to 95W CPU |
| Chipset | NVIDIA GeForce 7025/nForce 630a chipset |
|---|
| Number of Memory Slots | 2x240pin |
|---|---|
| Memory Standard | DDR2 1066/800/667 (DDR2 1066 is supported with combination of AM3/ AM2+ processors) |
| Maximum Memory Supported | 8GB |
| Channel Supported | Dual Channel |
| PCI Express x16 | 1 x PCI Express x16 |
|---|---|
| PCI Express x1 | 1 x PCI Express x1 |
| PCI Slots | 2 x PCI Slots |
| SATA RAID | 0/1 |
|---|
| Onboard Video Chipset | NVIDIA GeForce 7025 |
|---|
| Audio Chipset | Realtek ALC883 |
|---|---|
| Audio Channels | 8 Channels |
| LAN Chipset | Realtek 8211CL |
|---|---|
| Max LAN Speed | 1Gbps |

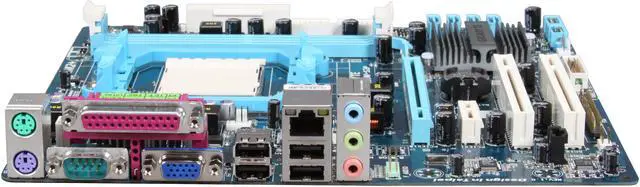

| Back I/O Ports | 1 x COM (Serial Port) / 1 x D-Sub / 1 x LPT (Parallel Port) / 2 x PS/2 / 3 x Audio Jacks / 4 x USB 2.0/1.1 |
|---|---|
| PS/2 | 2 |
| COM | 1 |
| LPT | 1 |
| Video Ports | D-Sub |
| USB 1.1/2.0 | 4 x USB 2.0 |
| Audio Ports | 3 Ports |
| Onboard USB | 2 USB 2.0/1.1 connectors for additional 4 USB 2.0/1.1 ports by cables |
|---|
| Form Factor | Micro ATX |
|---|---|
| Dimensions (W x L) | 9.6" x 8.9" |
| Power Pin | 24 Pin |
| First Listed on Newegg | January 12, 2010 |
|---|
