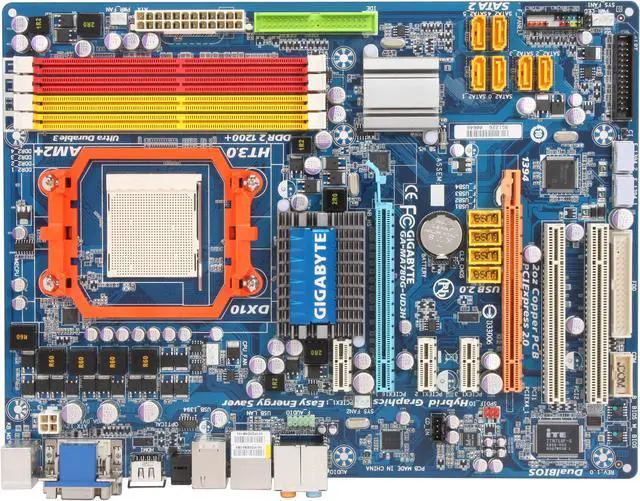

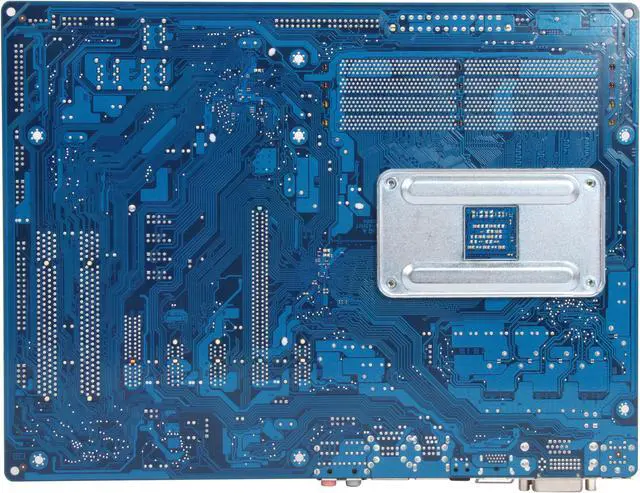

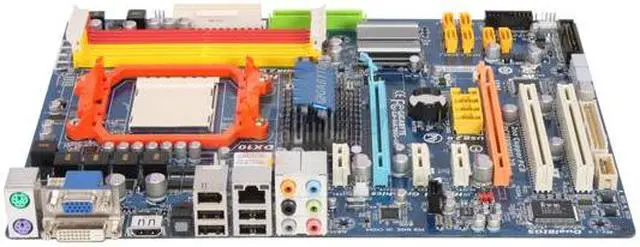

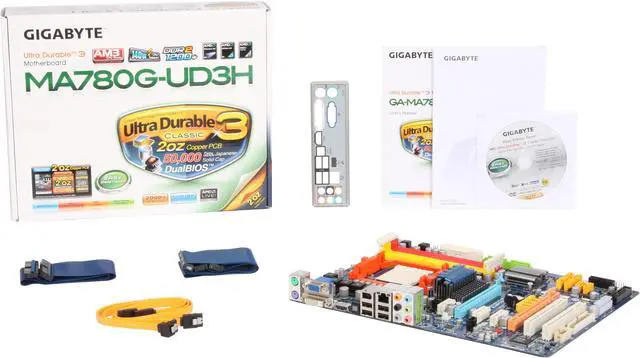

    GIGABYTE GA-MA780G-UD3H AM2+/AM2 AMD 780G HDMI ATX AMD Motherboard

    Used - Very Good Product Type
    • AMD 780G
    • Phenom FX / Phenom / Athlon 64 FX / Athlon 64 X2
    • DDR2 1200*/1066 * Whether 1200 MHz memory speed is supported depends on the CPU being used
    🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available
    +
    +
    Specs

    Learn more about the GIGABYTE GA-MA780G-UD3H

    Model
    Brand GIGABYTE
    Model GA-MA780G-UD3H
    Supported CPU
    CPU Socket Type AM2+/AM2
    CPU Type Phenom FX / Phenom / Athlon 64 FX / Athlon 64 X2
    FSB 2600 MHz
    Chipsets
    Chipset AMD 780G
    South Bridge AMD SB700
    Memory
    Number of Memory Slots 4x240pin
    Memory Standard DDR2 1200*/1066
    * Whether 1200 MHz memory speed is supported depends on the CPU being used
    Maximum Memory Supported 16GB
    Channel Supported Dual Channel
    Expansion Slots
    PCI Express 2.0 x16 1 x PCI Express x16 slot, running at x16 (PCIEX16_1) (Note 4)
    1 x PCI Express x16 slot, running at x4 (PCIEX4_1)
    (The PCIEX16_1 and PCIEX4_1 slots support ATI Hybrid CrossFireX technology)
    PCI Express x1 3 x PCI Express x1
    PCI Slots 2 x PCI Slots
    Storage Devices
    PATA 1 x ATA100 2 Dev. Max
    SATA RAID 0/1/10
    Onboard Video
    Onboard Video Chipset ATI Radeon HD 3200
    Onboard Audio
    Audio Chipset Realtek ALC889A
    Audio Channels 8 Channels
    Onboard LAN
    LAN Chipset Realtek 8111C
    Max LAN Speed 1Gbps
    Rear Panel Ports
    Back I/O Ports 1 x D-Sub / 1 x DVI / 1 x HDMI / 1 x Optical S/PDIF Out / 2 x PS/2 / 4 x USB 2.0/1.1 / 6 x Audio Jacks
    PS/2 2
    Video Ports D-Sub + DVI
    HDMI 1 x HDMI
    USB 1.1/2.0 4 x USB 2.0
    IEEE 1394 1 x IEEE 1394a
    S/PDIF Out 1 x Optical
    Audio Ports 6 Ports
    Internal I/O Connectors
    Onboard USB 4 x USB 2.0/1.1 headers
    Onboard 1394 2 x 1394a
    Physical Spec
    Form Factor ATX
    Power Pin 24 Pin
    Additional Information
    Date First Available April 02, 2025
